CTCDRH64BF-680M datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTCDRH64BF-680M

CTCDRH64BF-680M: Description1 ELEMENT, 68 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size190KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTCDRH64BF-680M Overview

1 ELEMENT, 68 uH, GENERAL PURPOSE INDUCTOR, SMD

CTCDRH64BF-680M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.63 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTCDRH64B
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum rated current	0.51 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

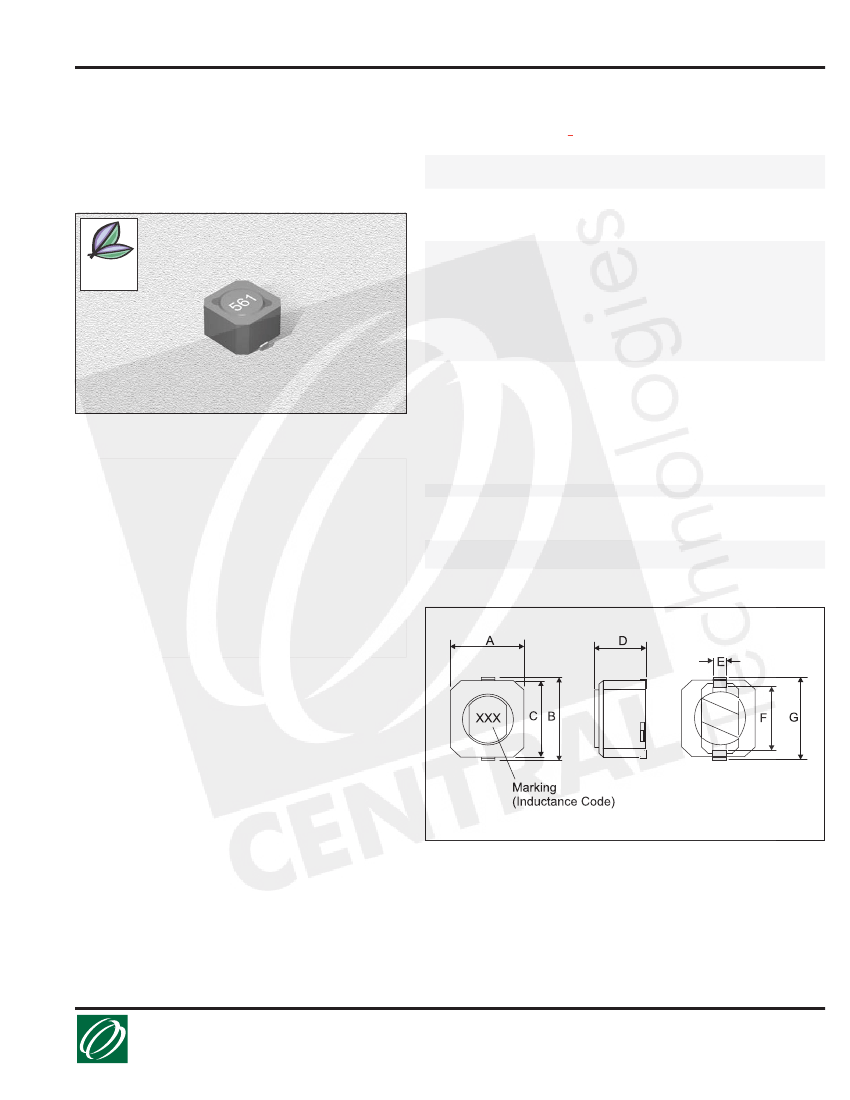

Preview

Download Datasheet

View All

Power Inductors - Shielded

ctparts.com

CTCDRH64B Series

From 2.9 µH to 1000 µH

Part

Number

CTCDRH64B_-2R9N

CTCDRH64B_-3R3N

CTCDRH64B_-4R0N

CTCDRH64B_-4R7N

CTCDRH64B_-5R5N

CTCDRH64B_-100M

CTCDRH64B_-120M

CTCDRH64B_-150M

CTCDRH64B_-180M

CTCDRH64B_-220M

CTCDRH64B_-270M

CTCDRH64B_-330M

CTCDRH64B_-390M

CTCDRH64B_-470M

CTCDRH64B_-560M

CTCDRH64B_-680M

CTCDRH64B_-820M

CTCDRH64B_-101M

CTCDRH64B_-121M

CTCDRH64B_-151M

CTCDRH64B_-181M

CTCDRH64B_-221M

CTCDRH64B_-271M

CTCDRH64B_-331M

CTCDRH64B_-391M

CTCDRH64B_-471M

CTCDRH64B_-561M

CTCDRH64B_-681M

CTCDRH64B_-821M

CTCDRH64B_-102M

Not shown at actual size.

SPECIFICATIONS

Part numbers indicate available inductance tolerance.

N = ±30%, M = ±20%

CTCDRH64BF

Please specify “F” for RoHS Compliant

*Inductance drop =35% typ. at IDC

L Test

Freq.

(kHz)

1.0

DCR

Max.

(Ω)

.047

.050

.060

.065

.070

.120

.130

.180

.240

.270

.300

.330

.370

.520

.560

.630

.710

1.00

1.20

1.70

1.90

2.10

2.40

2.70

2.90

3.90

5.40

7.30

8.20

9.30

*IDC

Min.

(A)

1.80

1.75

1.65

1.55

1.45

1.40

1.20

1.10

1.00

.910

.820

.740

.690

.620

.580

.510

.460

.420

.380

.350

.320

.290

.260

.230

.220

.200

.180

.170

.150

.140

Inductance

(µH)

2.9

3.3

4.0

4.7

5.5

100

120

150

180

220

270

330

390

470

560

680

820

1000

Compliant

Available

RoHS

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature:

-30°C to +100°C

Inductance Tolerances:

±20%, ±30%

Testing:

Tested on a HP4285A at 1.0 KHz , 1.0V

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

RoHS Compliant available

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

inches

6.2

0.24

6.6±0.3

0.26±0.01

Max.

5.9±0.3

0.23±0.01

4.5

0.18

1.5

0.06

4.6

0.18

6.6

0.26

12.14.06

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
