H11A3S datasheet, PDF - EEWORLD Datasheet

H11A3S: DescriptionTransistor Output Optocoupler, 1-Element, 7500V Isolation; CategoryLED optoelectronic/LED photoelectric; File Size247KB，5 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

H11A3S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H11A3S	-	-	View	Buy Now

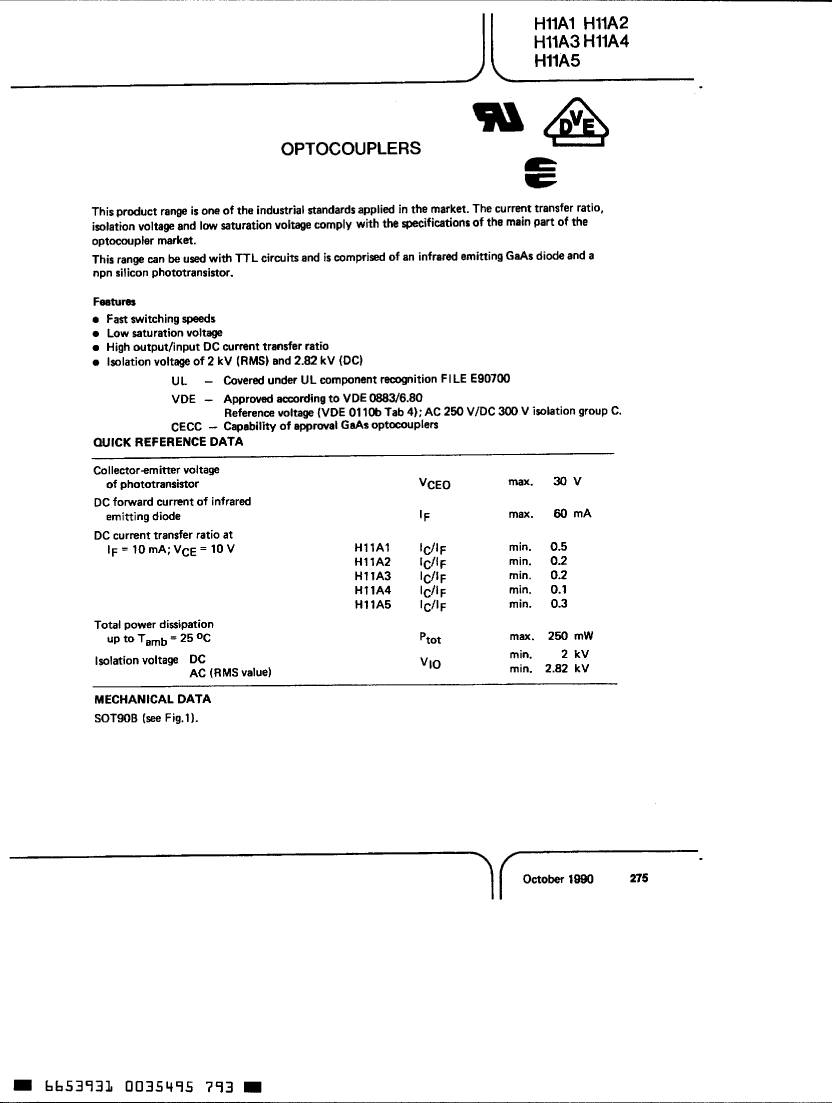

Transistor Output Optocoupler, 1-Element, 7500V Isolation

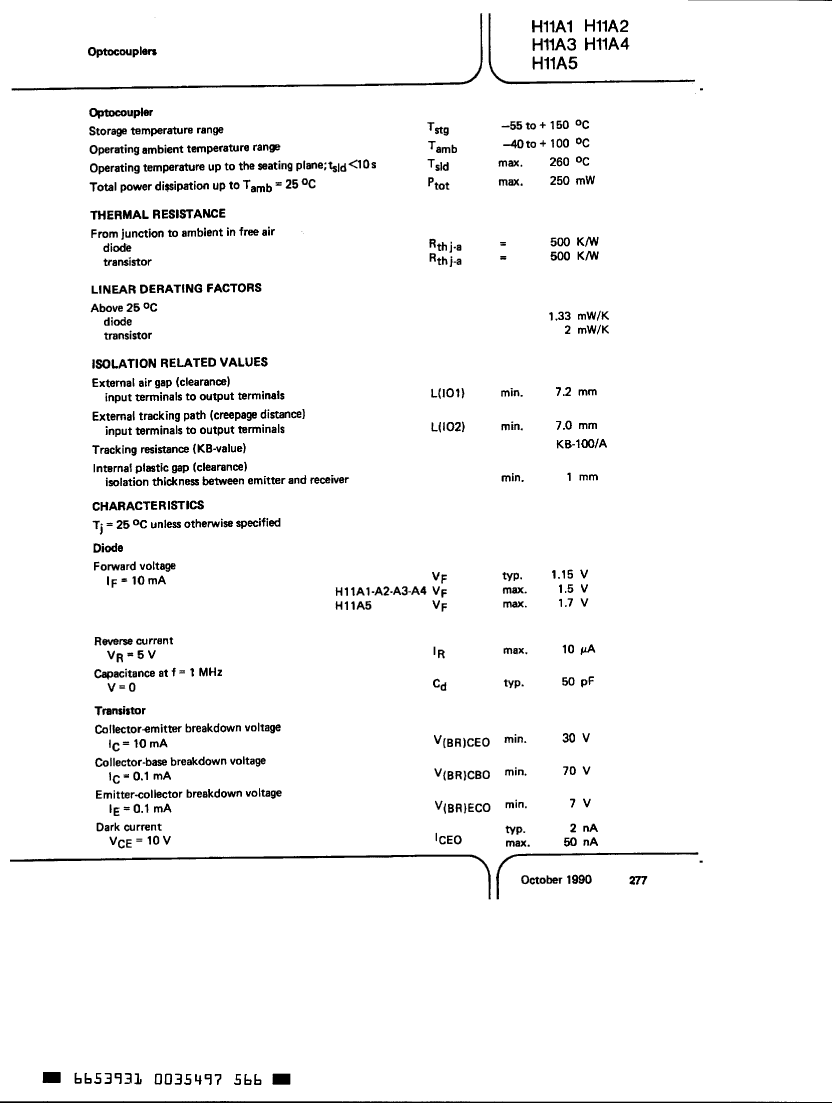

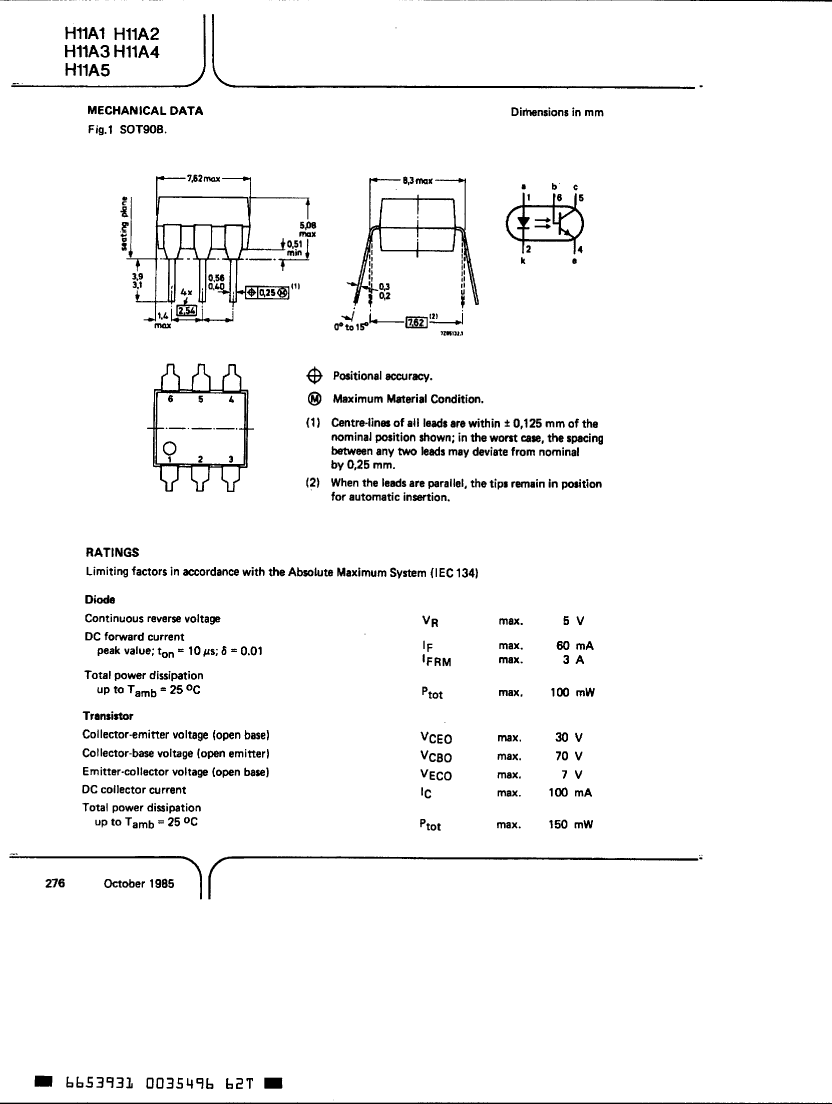

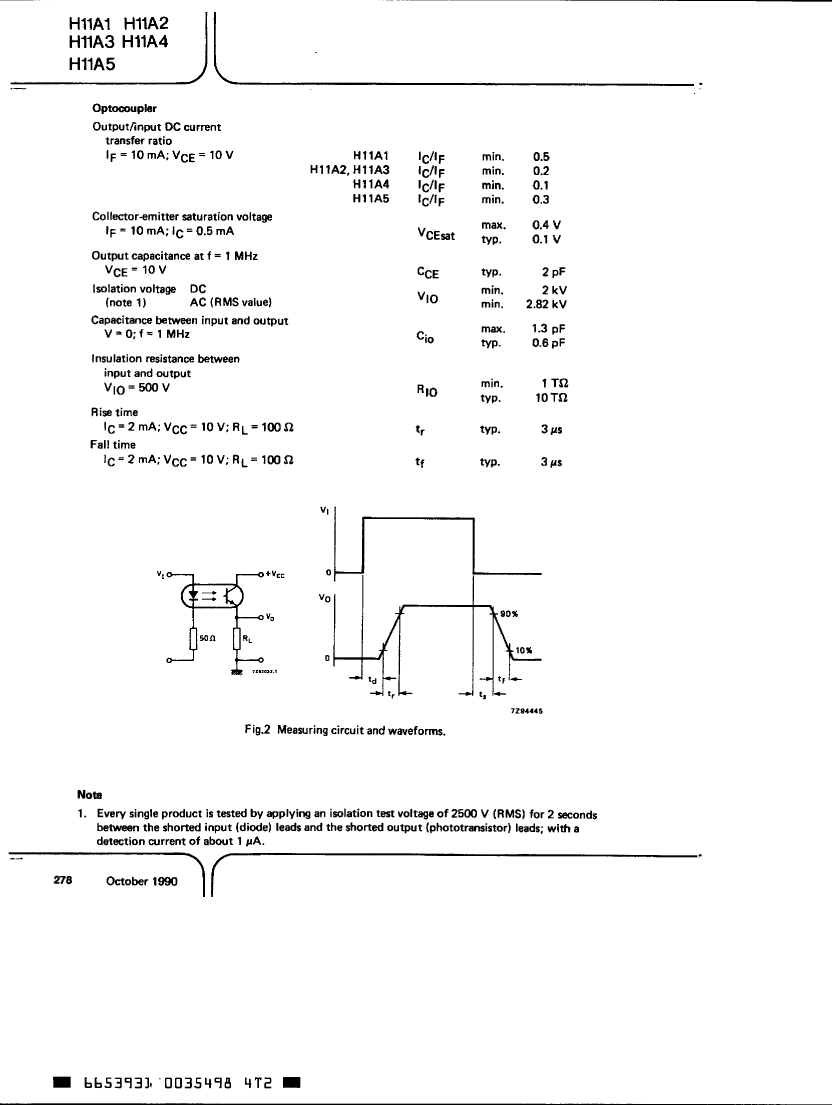

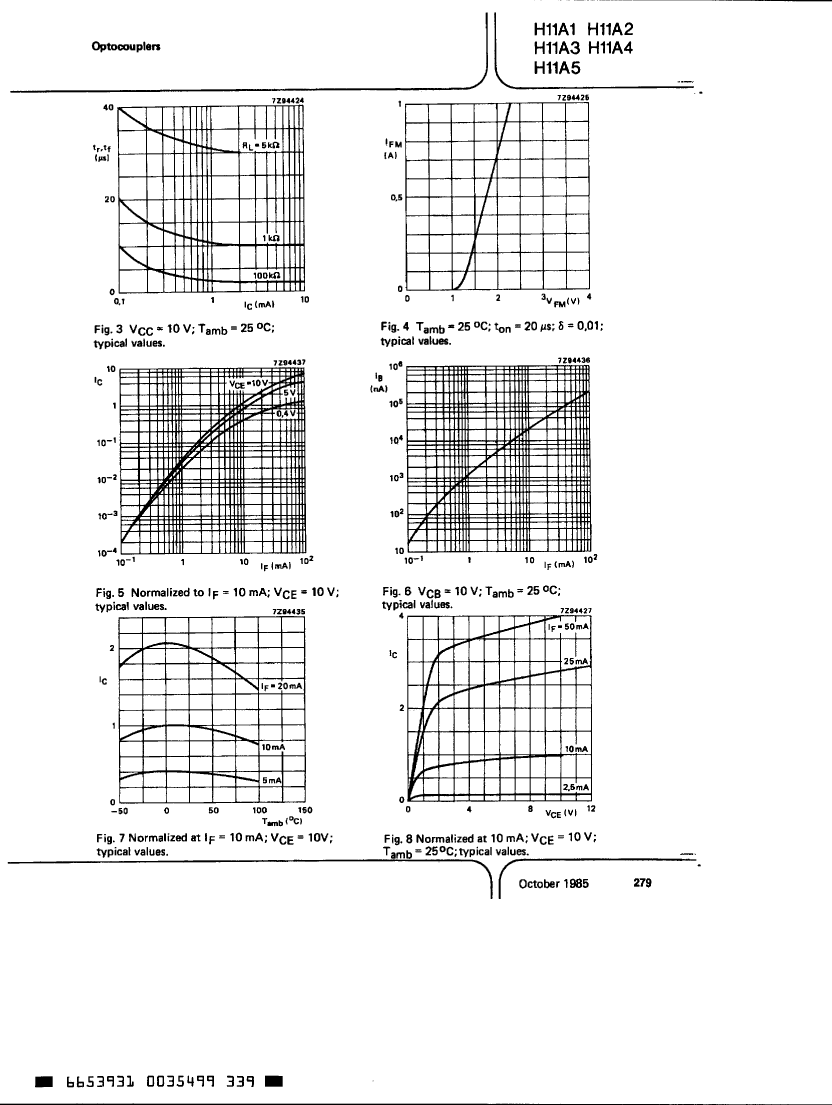

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
Reach Compliance Code	unknow
Maximum forward current	0.06 A
Maximum forward voltage	1.5 V
Maximum insulation voltage	7500 V
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of components	1
Maximum on-state current	0.115 A
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Maximum power dissipation	0.15 W
Maximum response time	0.0000028 s
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

	H11A3S	H11A2S	H11A4S
Description	Transistor Output Optocoupler, 1-Element, 7500V Isolation	Transistor Output Optocoupler, 1-Element, 7500V Isolation	Transistor Output Optocoupler, 1-Element, 7500V Isolation
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Reach Compliance Code	unknow	unknown	unknown
Maximum forward current	0.06 A	0.06 A	0.06 A
Maximum forward voltage	1.5 V	1.5 V	1.5 V
Maximum insulation voltage	7500 V	7500 V	7500 V
JESD-609 code	e0	e0	e0
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of components	1	1	1
Maximum on-state current	0.115 A	0.15 A	0.15 A
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum power dissipation	0.15 W	0.15 W	0.15 W
Maximum response time	0.0000028 s	0.0000028 s	0.0000028 s
surface mount	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Is Samacsys	-	N	N
Base Number Matches	-	1	1
