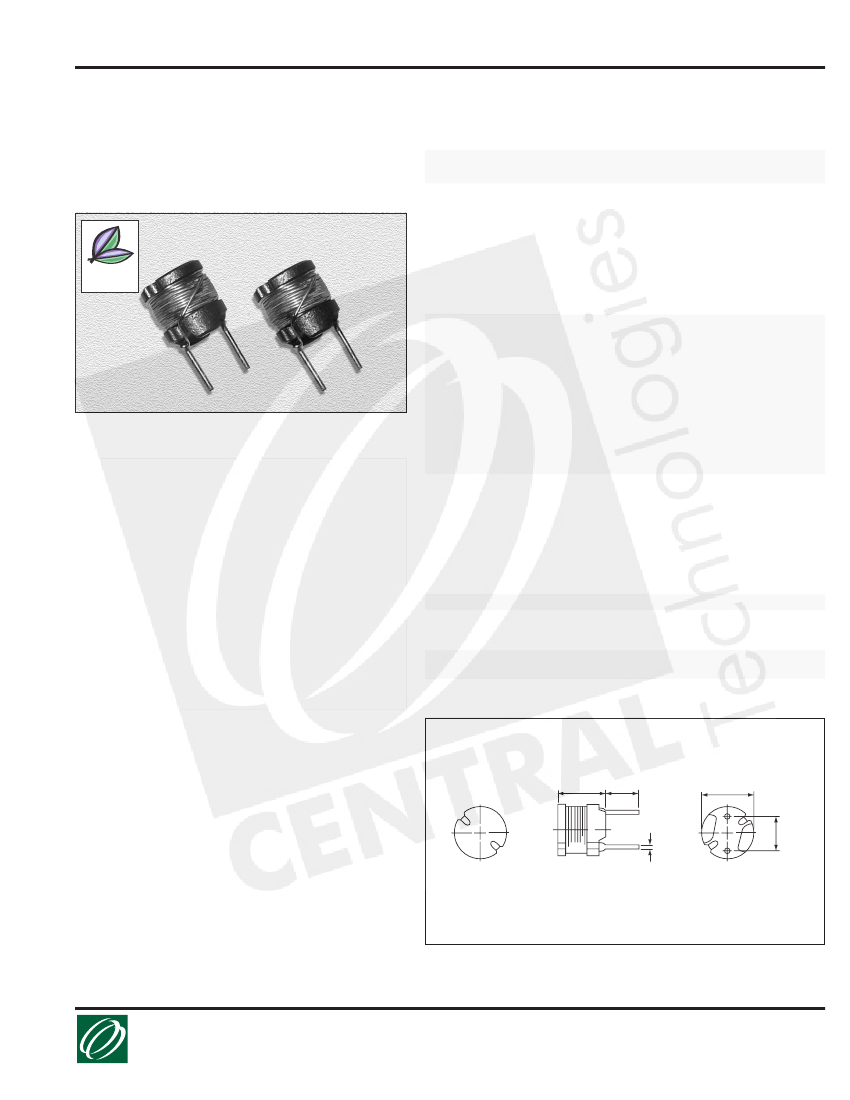

Peaking Coils - Radial
ctparts.com
SPECIFICATIONS
CTCH664F Series
From 1.0 µH to 1,000 µH
Part
Number
CTCH664F-1R0M
CTCH664F-1R3M
CTCH664F-1R7M
CTCH664F-2R2M
CTCH664F-2R7M
CTCH664F-3R3M
CTCH664F-3R9M
CTCH664F-4R7M
CTCH664F-5R5M
CTCH664F-6R3M
CTCH664F-7R2M
CTCH664F-8R1M
CTCH664F-9R1M
CTCH664F-100M
CTCH664F-110L
CTCH664F-120L
CTCH664F-130L
CTCH664F-140L
CTCH664F-150L
CTCH664F-160L
CTCH664F-180L
CTCH664F-220K
CTCH664F-270K
CTCH664F-330K
CTCH664F-390K
CTCH664F-470K
CTCH664F-560K
CTCH664F-680K
CTCH664F-820K
CTCH664F-101K
CTCH664F-121K
CTCH664F-151K
CTCH664F-181K
CTCH664F-221K
CTCH664F-271K
CTCH664F-331K
CTCH664F-391K
CTCH664F-471K
CTCH664F-561K
CTCH664F-681K
CTCH664F-821K
CTCH664F-102K
Not shown at actual size.
Parts numbers indicate available inductance tolerance.
K = ±10%, L = ±15%, M = ±20%
Inductance
(µH)
1.0
1.3
1.7
2.2
2.7
3.3
3.9
4.7
5.5
6.3
7.2
8.1
9.1
10
11
12
13
14
15
16
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Test
Freq.
(_Hz)
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
7.96M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
1.00k
1.00k
1.00k
1.00k
1.00k
1.00k
1.00k
1.00k
1.00k
1.00k
1.00k
1.00k
1.00k
DCR
Max.
Ω
(Ω)
0.0183
0.0206
0.0228
0.0255
0.0282
0.0308
0.0334
0.0364
0.0395
0.0430
0.0462
0.0498
0.0532
0.0566
0.0596
0.0630
0.0667
0.0701
0.0744
0.0788
0.0839
0.1100
0.1400
0.1700
0.1900
0.2300
0.2600
0.2800
0.3900
0.4300
0.5400
0.6400
0.7400
0.9600
1.1200
1.4800
1.6600
1.9100
2.3100
2.6700
3.1000
4.4500
Rated
DC
(A)
4.00
3.70
3.52
3.20
3.00
2.83
2.63
2.43
2.30
2.14
2.09
1.99
1.86
1.75
1.64
1.52
1.48
1.44
1.40
1.33
1.30
1.27
1.14
1.03
0.95
0.87
0.80
0.72
0.66
0.59
0.54
0.48
0.44
0.40
0.36
0.33
0.30
0.27
0.25
0.23
0.21
0.19
Compliant
RoHS
CHARACTERISTICS
Description:
Radial leaded fixed inductor
Applications:
Ideal for use as a power choke coil in switching
power supply, TV sets, video appliances, and industrial equipment
as well as use as a peaking coil in filtering applications
Inductance Tolerance:
±10%, ±15%, ±20%
Testing:
Tested on a HP4285A or HP4284A at specified
frequency
Packaging:
Bulk packaging
Rated Current:
The rated D.C. current indicates the value of
current when the inductance is 10% lower than its initial value at
D.C. superposition or D.C. current when at
Δt=40°C
whichever is
lower. (Ta=20°C)
Miscellaneous:
RoHS Compliant
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
PHYSICAL DIMENSIONS
Size
mm
inches
A
Max.
6.5
0.26
4.0±1.0
0.16±0.04
0.5+0.1,-0.05
0.02+0.004,-0.002
6.0±0.5
0.24±0.02
4.0±0.3
0.16±0.012
B
C
D
E
A
B
øD
E
øC
04.04.07
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2007 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
