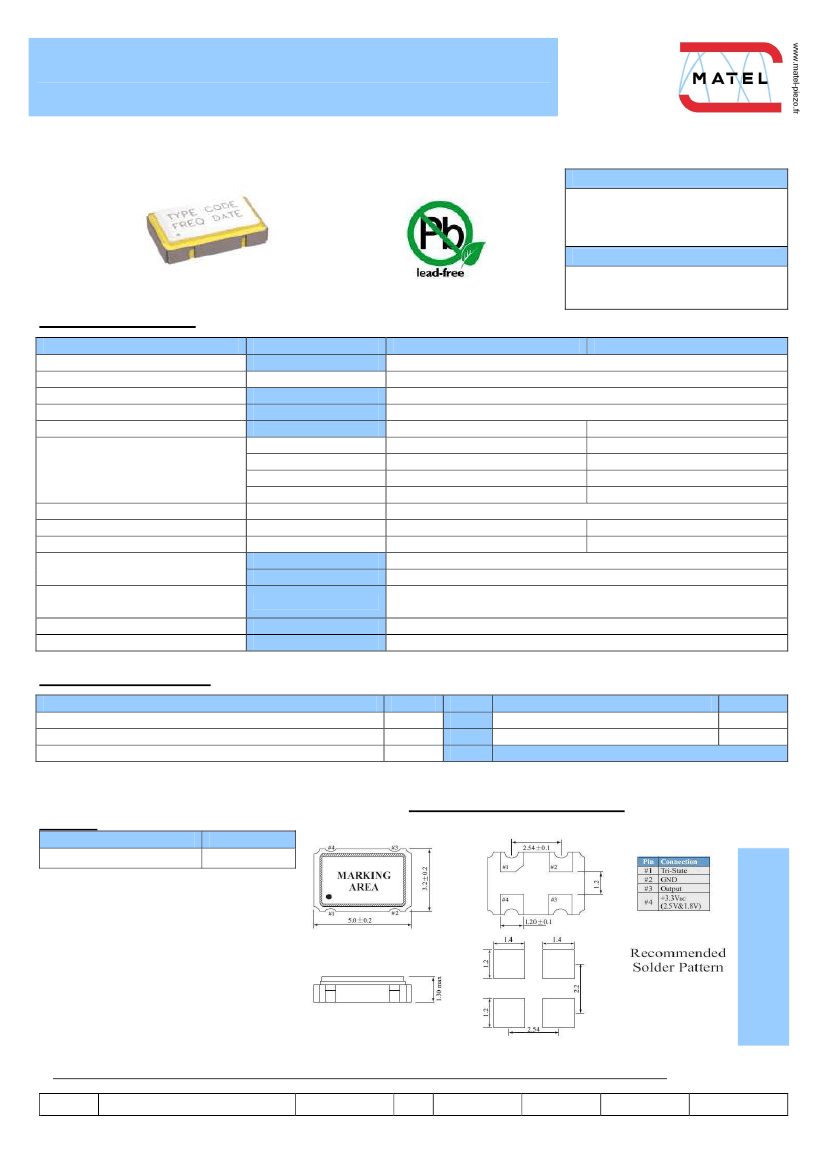

SMD Oscillator CXO 5X3.2
HXO-59 & HXO-57
FEATURES
1 to 133MHz
HCMOS/TTL compatible
Tri-State Enable/Disable
APPLICATIONS
Clocking
Datacoms
PCMCIA
Electrical Parameters
Parameters
Frequency Range
Frequency Stability*
Operating Temperature Range
Storage Temperature Range
Power Supply Voltage (V
DD
)
Supply Current
Output Symmetry
Rise Time
Fall Time
Output Voltage
HCMOS Load
Start-up Time
Ageing (First Year)
25° ± 3°
C
C
Conditions
All Conditions*
HXO-59
HXO-57
1 to 133 MHz
± 25 ppm, ± 50 ppm, ± 100 ppm
-20 ~ 70° -40 ~ 85°
C,
C
-55°
~ 125°C
C
+2.8V ± 10%
+1.8V ± 10%
7 mA Max
6 mA Max
8 mA Max
7 mA Max
20 mA Max
15 mA Max
30 mA Max
25 mA Max
40/60% (45/55% option)
6 nS Max
7 nS Max
6 nS Max
7 nS Max
90% V
DD
Min
10% V
DD
Max
15 pF Max
10 mS Max
± 2 ppm Max
1 to 9.999 MHz
10 to 34.999 MHz
35 to 49.999 MHz
50 to 133 MHz
At ½ V
DD
10% V
DD
~ 90% V
DD
90% V
DD
~ 10% V
DD
Ordering Code Stability
Stability*
Code
Temperature Range
± 25 ppm
A
- 20 + 70°
C
± 50 ppm
B
- 40 + 85°
C
± 100 ppm
C
*Includes: 25° calibration, operating temperature range, input voltage and load change, ageing, shock and vibration
C
Code
E
W
Mechanical Dimensions (mm)
Options
Option
Symmetry 45/55%
Code
T
SMD CXO
Note : A 0.01uF bypass capacitor should be place between Vdd (Pin 4) and GDN (pin 2) to minimize power supply line noise
TYPE
HXO-59 & HXO-57
REVISION
01
CHECKED
PB
DATE
15/09/2009
