CTDD2709SF-0509-D1K-2 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD2709SF-0509-D1K-2

CTDD2709SF-0509-D1K-2: Description2-OUTPUT 2 W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size209KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTDD2709SF-0509-D1K-2 Overview

2-OUTPUT 2 W DC-DC REG PWR SUPPLY MODULE

CTDD2709SF-0509-D1K-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
Parts packaging code	SFM
package instruction	,
Contacts	10/5
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Other features	-9V OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.25 V
Minimum input voltage	4.75 V
Nominal input voltage	5 V
JESD-30 code	R-PSMA-P5
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	9.27 V
Minimum output voltage	8.73 V
Nominal output voltage	9 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

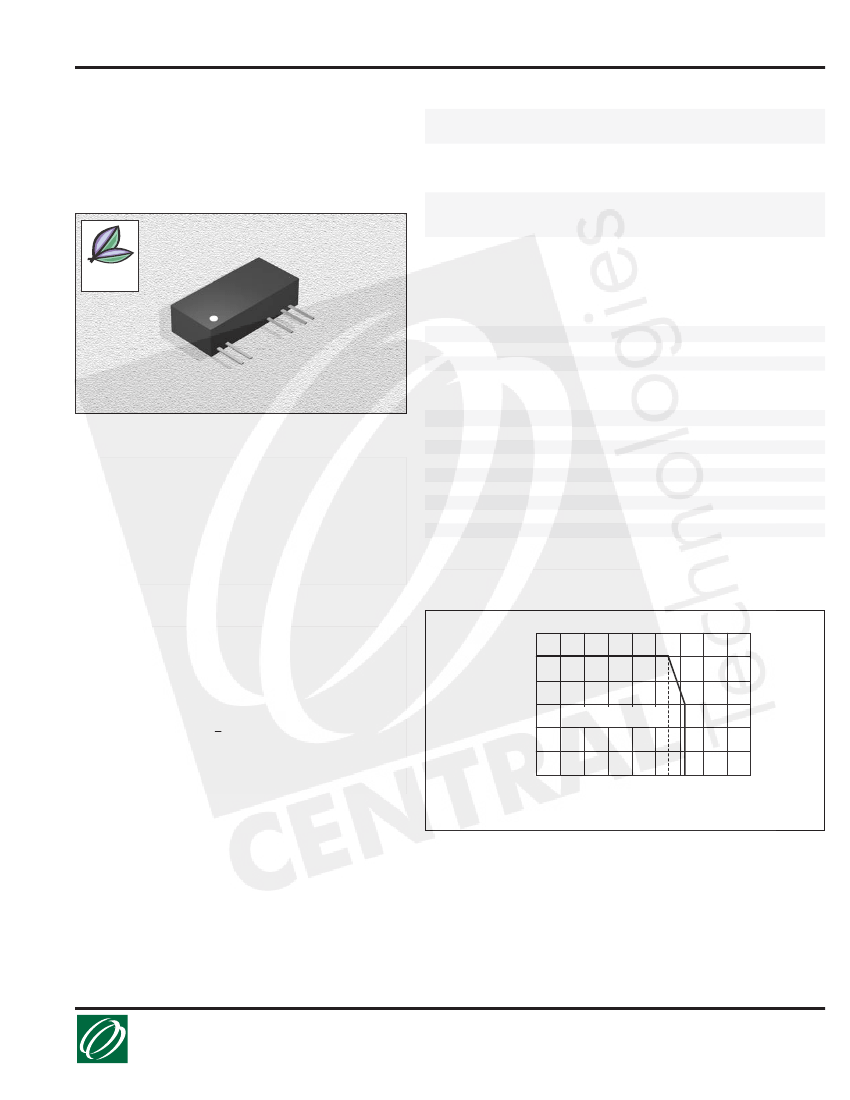

SPECIFICATIONS

CTDD2709SF-D1K-2 Series

Fixed Input Isolated & Regulated

2W Output, Dual Output

Part

Number

CTDD2709SF-0505-D1K-1W5

CTDD2709SF-0509-D1K-2

CTDD2709SF-0512-D1K-2

CTDD2709SF-0515-D1K-2

CTDD2709SF-1205-D1K-1W5

CTDD2709SF-1209-D1K-2

CTDD2709SF-1212-D1K-2

CTDD2709SF-1215-D1K-2

CTDD2709SF-2405-D1K-1W5

CTDD2709SF-2409-D1K-2

CTDD2709SF-2412-D1K-2

CTDD2709SF-2415-D1K-2

Vin

Nom.

(VDC)

Input Range

(VDC)

4.75-5.25

11.4-12.4

22.8-25.2

Vout

(VDC)

±5

±9

±12

±15

±5

±9

±12

±15

±5

±9

±12

±15

Iout

Max.

(mA)

±150

±100

±83

±67

±150

±100

±83

±67

±150

±100

±83

±67

Iout

Min.

(mA)

±15

±10

±9

±7

±15

±10

±9

±7

±15

±10

±9

±7

Effi.

Typ.

(%)

Not shown at actual size.

Compliant

RoHS

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Tested for 1 minute

Test at 500VDC

MIN

1000

TYP

MAX

Units

VDC

MΩ

OUTPUT SPECIFICATIONS

Item

Output Power

Test Condition

For Vin change of ±5%

10% to 100% full load

100% full load

20MHz bandwidth

Full load, nominal input

MIN

0.2

TYP

MAX

0.25

±3

0.03

150

Units

%/°C

mVp-p

KHz

FEATURES

Efficiency:

To 74%

Temperature Range:

-40°C to 85°C

Isolation:

1KVDC

Package:

UL94-V0

Miscellaneous:

Dual Output. No heat sink required. No external

component required. Industry standard pinout. Power density

0.76W/cm

. Custom service available.

Samples available.

Line regulation

Load regulation

Output voltage accuracy

Temperature drift

Output ripple

Output noise

Switching frequency

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load

unless otherwise specified.

TYPICAL CHARACTERISTICS

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>3,500,000 hours

Miscellaneous:

RoHS Compliant.

120

Output Power (%)

100

-40

120

71 85

Ambient Temperature (°C)

Safe Operating Area

11.21.06

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
