AXH010A0G9-SRZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AXH010A0G9-SRZ

AXH010A0G9-SRZ: DescriptionIC 1-OUTPUT 25 W DC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT, SMT-6, Power Supply Module; CategoryPower/power management The power supply circuit; File Size214KB，19 Pages; ManufacturerLineage Power

Download Datasheet Parametric View All

AXH010A0G9-SRZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AXH010A0G9-SRZ	-	-	View	Buy Now

AXH010A0G9-SRZ Overview

IC 1-OUTPUT 25 W DC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT, SMT-6, Power Supply Module

AXH010A0G9-SRZ Parametric

Parameter Name	Attribute value
Maker	Lineage Power
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	3 V
Nominal input voltage	5 V
JESD-30 code	R-XDMA-X6
length	33 mm
Maximum load regulation	0.4%
Number of functions	1
Output times	1
Number of terminals	6
Maximum output voltage	2.75 V
Minimum output voltage	2.25 V
Nominal output voltage	2.5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	8.28 mm
surface mount	NO
technology	HYBRID
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum total power output	25 W
Fine-tuning/adjustable output	YES
width	13.5 mm

Preview

Download Datasheet

View All

Data Sheet

March 28, 2008

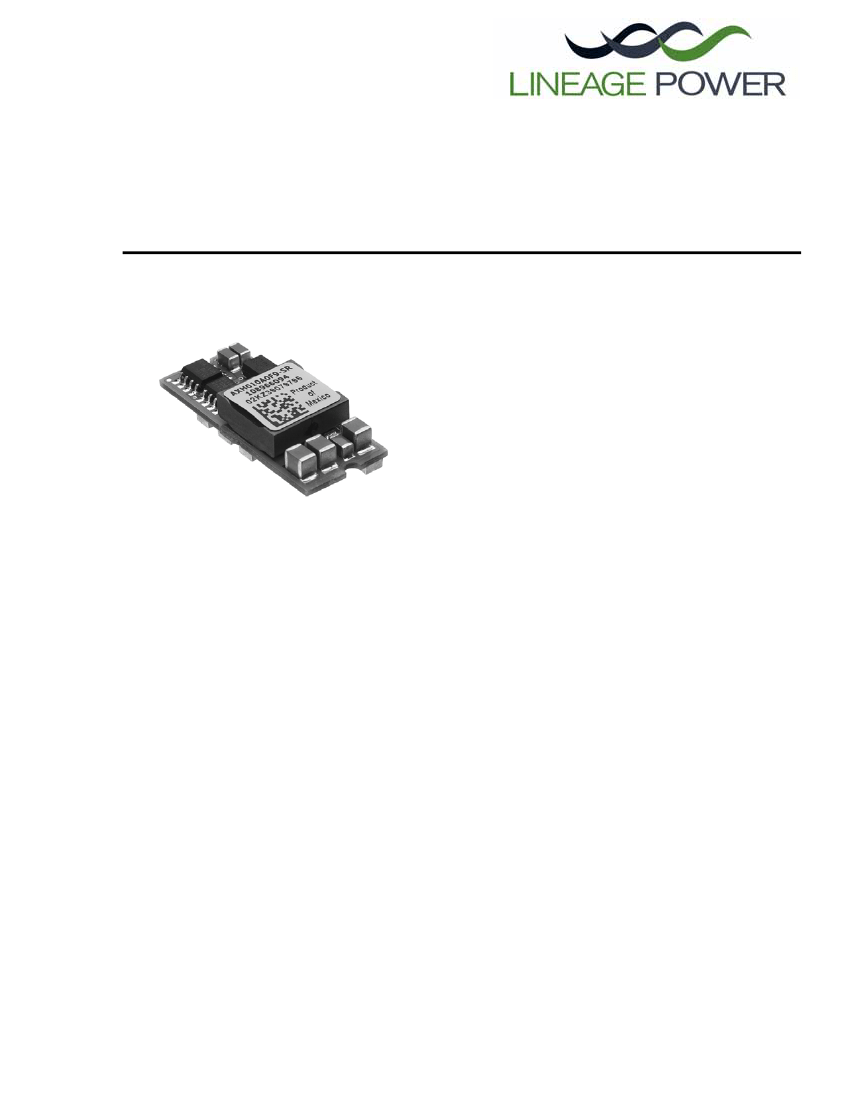

Austin Lynx

SMT Non-Isolated dc-dc Power Modules:

3.0 Vdc - 5.5 Vdc Input, 0.9 Vdc - 3.3 Vdc Output, 10 A

Features

RoHS Compliant

Compatible with RoHS EU Directive 200295/EC

Compatible in Pb- free or SnPb reflow environment

Delivers up to 10A output current

High efficiency: 95% at 3.3V full load

Small size and low profile:

33 mm x 13.5 mm x 8.30 mm

(1.3 in x 0.53 in x 0.33 in)

Light Weight 0.23 oz(6.5 g)

Cost-efficient open frame design

High reliability: MTBF > 10M hours at 25 °C

Constant switching frequency (300 KHz typical)

Output overcurrent protection with auto-restart

Overtemperature protection

Surface Mount Package,Tape and Reel

Adjustable output voltage (-5% to +10% for 0.9V output)

Remote On/Off

Wide Operating temperature range:-40 °C to +85 °C

UL*

60950 Recognized,

CSA

†

C22.2 No. 60950-00 Certi-

fied, and VDE

‡

0805 (IEC60950, 3rd edition) Licensed

Applications

Workstations,Servers and Desktop computers

Distributed Power Architectures

Telecommunications Equipment

LANs/WANs

Data processing Equipment

Latest generation IC’s (DSP, FPGA, ASIC) and Micropro-

cessor-powered applications.

Options

Remote Sense

Description

Austin Lynx™ power modules are non-isolated dc-dc converters that can deliver 10 A of output current with full load effi-

ciency of 95% at 3.3 V output. These open frame modules in surface-mount-package enable designers to develop cost-and

space efficient solutions. Standard features include remote ON/OFF, output voltage adjustment, overcurrent and overtem-

perature protection.

†

‡

is a registered trademark of Underwriters Laboratories, Inc.

CSA

is a registered trademark of Canadian Standards Association.

VDE

is a trademark of Verband Deutscher Elektrotechniker e.V.

This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should be followed. (The CE mark is placed on selected products.)

ISO is a registered trademark of the Internation Organization of Standards

Document Name: FDS02-034EPS ver.1.6

PDF Name: Austin Lynx SMT
