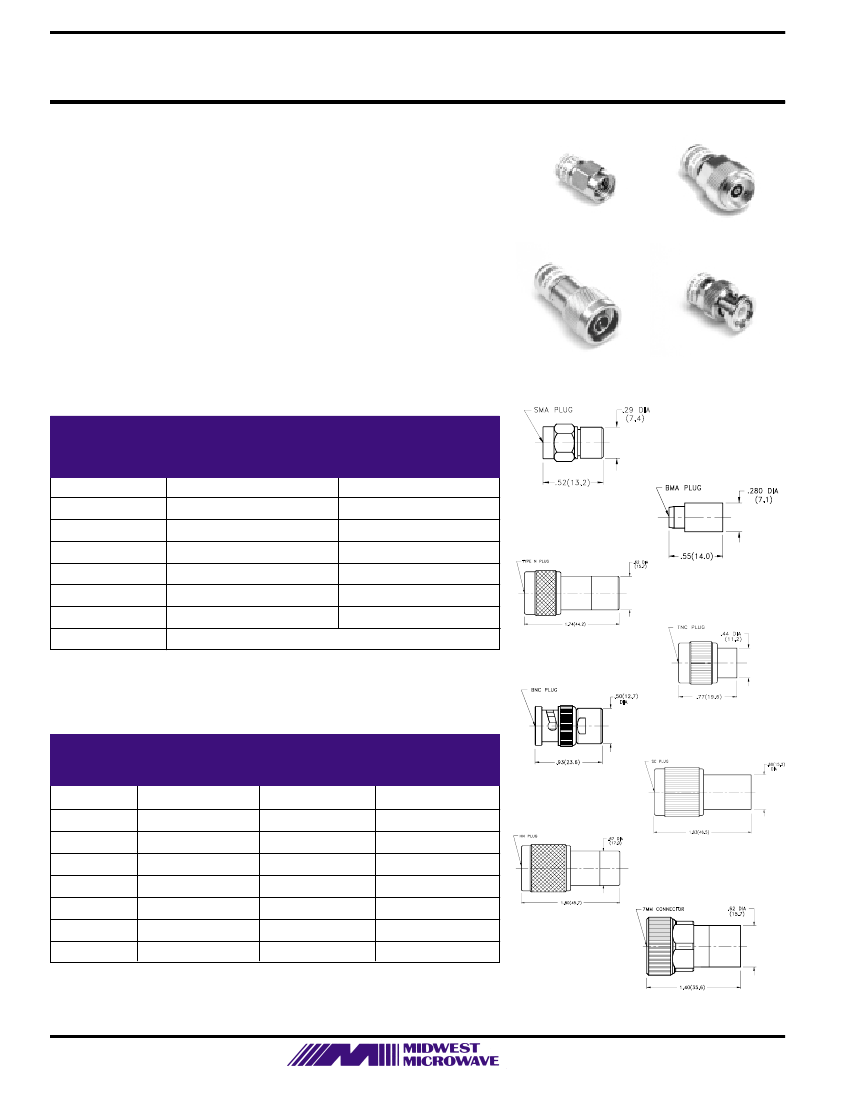

Terminations
Mismatches for Testing
SMA, 7mm, N, TNC, BNC, and BMA types available
Convenient for Phase Testing
Small Size, Light Weight
Bead Chain available on all Models
Mismatches
Midwest Microwave's series of Plug and Jack Mismatches are conveniently
offered in all of the popular connector interfaces. They are particularly useful
for performing phase measurement tests. The units are available in eight
standard mismatch values and special versions are available on request. All
of the units are finished in passivated stainless steel except for the BNC type
which is nickel plated brass.
Connector
Type
SMA
BMA*
Type N
TNC
BNC
SC
HN
7mm
Model Numbers
Male Plug
MSM-2170-MX-SMA-02
MSM-2170-FX-BMA-02
MSM-2170-MX-NNN-02
MSM-2170-MX-TNC-02
MSM-2169-MX-BNC-10
MSM-2169-MX-SC0-02
MSM-2169-MX-HN0-02
Female Jack
MSM-2170-FX-SMA-02
MSM-2170-MX-BMA-02
MSM-2170-FX-NNN-02
MSM-2170-FX-TNC-02
MSM-2169-FX-BNC-10
MSM-2169-FX-SC0-02
MSM-2169-FX-HN0-02
MSM-2170-0X-7MM-02
X = Mismatch Value dash No., Select from chart below and subsitute in Model No.
X
Dash No.
VSWR
Mismatch Value
1.05
1.10
1.20
1.30
1.40
1.50
1.75
2.00
DC - 4 GHz
± 0.05
± 0.05
± 0.05
± 0.05
± 0.05
± 0.05
± 0.10
± 0.10
ACCURACY
4 - 18 GHz
± 0.05
± 0.07
± 0.10
± 0.10
± 0.10
± 0.10
± 0.15
± 0.20
-1
-2
-3
-4
-5
-6
-7
-8
Note: 1. Plug Models are shown above, Jack Models are shown on the opposite page.
2. * BMA units are "Female Plug" and "Male Jack".
3. SC , HN, and BNC Types are rated to 4 GHz only.
82
