CTMC1210HF-1R0M datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTMC1210HF-1R0M

CTMC1210HF-1R0M: Description1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size166KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTMC1210HF-1R0M Overview

1 ELEMENT, 1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

CTMC1210HF-1R0M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
package instruction	1210
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1210
core material	FERRITE
DC Resistance	0.156 Ω
Nominal inductance(L)	1 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTMC1210HF
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Minimum quality factor (at nominal inductance)	10
Maximum rated current	770 A
self resonant frequency	100 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.96 MHz
Tolerance	20%

Preview

Download Datasheet

View All

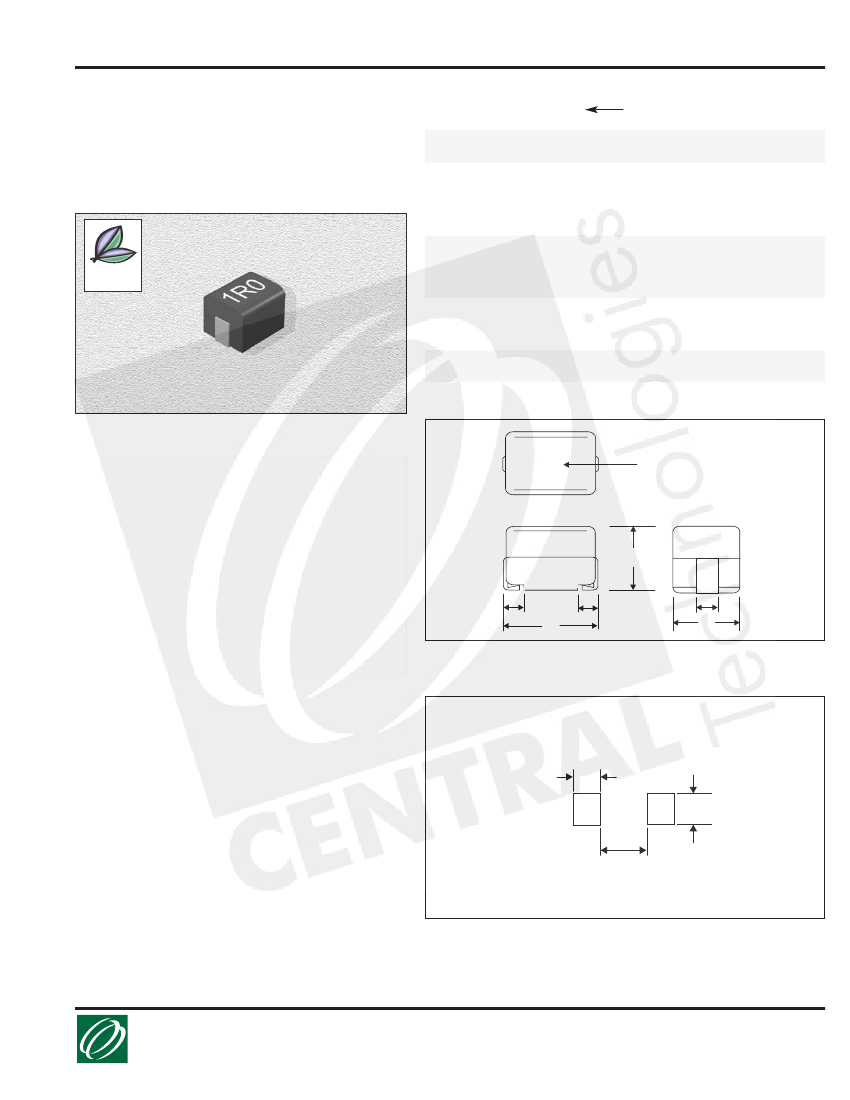

Wire-wound Chip Inductors - Molded

ctparts.com

CTMC1210HF Series

From 1.0 µH to 100 µH

Part

Number

Not shown at actual size.

SPECIFICATIONS

Please specify tolerance code when ordering.

CTMC1210HF-1R0_

J = ±5%, K = ±10%, M = ±20%

Rated Current to cause inductance drop within 10%

Inductance

(µH)

1.0

1.5

1.8

2.2

3.3

4.7

6.8

100

L Test

Freq.

(MHz)

7.96

2.52

0.796

Fact.

Min.

Q Test

Freq.

(MHz)

7.96

2.52

0.796

SRF

Min.

(MHz)

100

DCR

Max.

(Ω)

0.156

0.195

0.230

0.260

0.325

0.520

0.650

1.105

1.690

2.600

3.640

5.460

6.00

7.00

IDC

Max.

(mA)

770

580

530

480

400

320

280

220

180

145

115

105

CTMC1210HF-1R0_

CTMC1210HF-1R5_

CTMC1210HF-1R8_

CTMC1210HF-2R2_

CTMC1210HF-3R3_

CTMC1210HF-4R7_

CTMC1210HF-6R8_

CTMC1210HF-100_

CTMC1210HF-150_

CTMC1210HF-220_

CTMC1210HF-330_

CTMC1210HF-470_

CTMC1210HF-680_

CTMC1210HF-101_

Compliant

RoHS

PHYSICAL DIMENSIONS

Size

inches

3.2±0.4

0.13±0.016

2.5±0.2

0.10±0.008

2.2±0.2

0.09±0.008

REF.

1.0

0.04

REF.

0.6

0.02

CHARACTERISTICS

Description:

Ferrite core, wire-wound molded chip inductor

Applications:

Digital TVs, DVD, MP3 players, computer

peripherals, telecommunication devices, battery chargers &

electronic game devices.

Operating Temperature:

-30°C to +100°C

Inductance Tolerance:

±5%, ±10% & ±20%

Testing:

Inductance and Q are tested on a HP4285A or a

HP4286A at a specified frequency

Packaging:

Tape & Reel

Part Marking:

Inductance code or inductance code plus tolerance.

Miscellaneous:

RoHS Compliant.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

xxx

Marking:

Inductance Code

PAD LAYOUT

Unit: mm

1.0Ref.

1.2Ref.

2.0Ref.

05.31.07

Technologies

Manufacturer of Passive & Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
