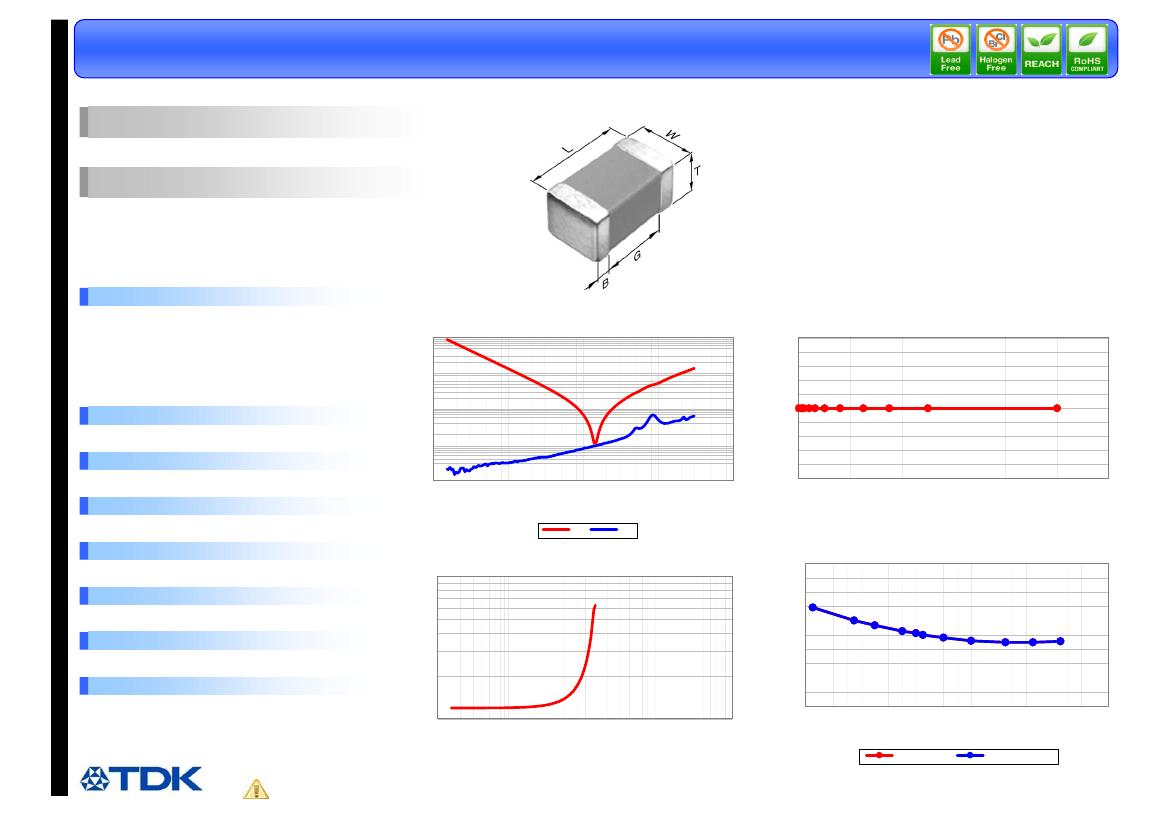

C2012C0G2A122J060AA_16: DescriptionCommercial Grade ( Mid Voltage (100 to 630V) ); File Size124KB，1 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet View All

C2012C0G2A122J060AA_16 Overview

Commercial Grade ( Mid Voltage (100 to 630V) )

Preview

Download Datasheet

View All

C2012C0G2A122J060AA

TDK Item Description : C2012C0G2A122JT****

Application & Main Feature

Commercial Grade ( Mid Voltage (100 to 630V) )

Series

C2012 [EIA CC0805]

Dimensions

Cap. Change/%

|Z|, ESR/ohm

2.00mm

1.25mm

0.60mm

0.20mm

0.50mm

+/-0.2mm

+/-0.15mm

Min.

|Z|, ESR vs. Freq. Characteristics

100

-1

-2

-3

-4

-5

DC Bias Characteristic

Temperature Characteristic

Characterization Sheet ( Multilayer Ceramic Chip Capacitors )

C0G (-55 to 125 degC 0+/-30ppm/degC)

2A (100Vdc)

1.2nF

0.1

Rated Voltage

Capacitance

0.01

100

1000

10000

100

120

Frequency/MHz

|Z|

ESR

DC Bias/V

Capacitance Tolerance

J (+/-5%)

1000 Min.

Cap./nF

Cap. vs. Freq. Characteristic

Cap. Change/%

Temperature Characteristics

0.5

0.4

0.3

0.2

0.1

-0.1

-0.2

-0.3

-0.4

-0.5

Q Factor

Insulation Resistance

10Gohm Min.

AEC-Q200

Not Applicable

100

1000

10000

-60

-40

-20

100

120

140

160

Frequency/MHz

Temperature/degC

Temp.Chara.

TCBias(1/2Rated)

All specifications are subject to change without notice.
