IBM11M8730PA-60 datasheet, PDF

IBM11M8730PA-60: DescriptionFast Page DRAM Module, 8MX72, 60ns, CMOS, DIMM-168; Categorystorage storage; File Size825KB，22 Pages; ManufacturerIBM; Websitehttp://www.ibm.com

Download Datasheet Parametric Compare View All

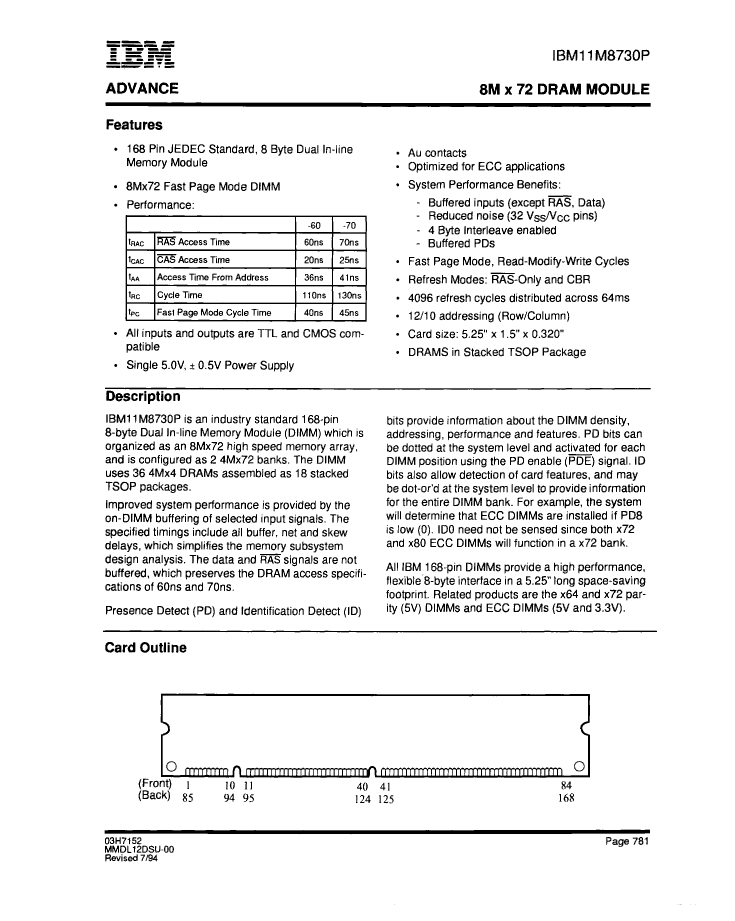

IBM11M8730PA-60 Overview

Fast Page DRAM Module, 8MX72, 60ns, CMOS, DIMM-168

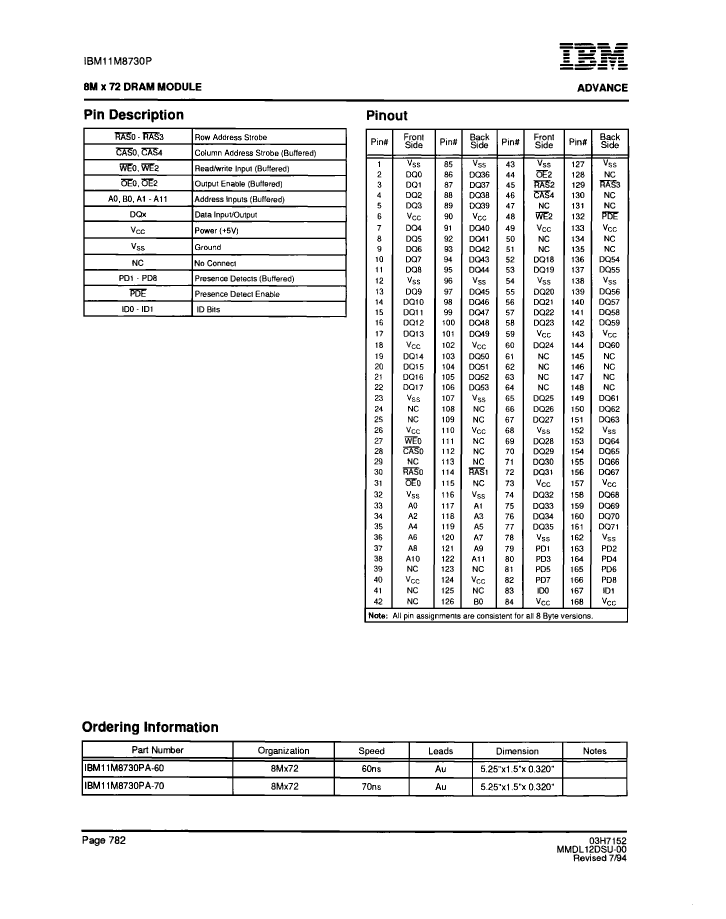

Parameter Name	Attribute value
Maker	IBM
Parts packaging code	DIMM
package instruction	,
Contacts	168
Reach Compliance Code	unknow
ECCN code	EAR99

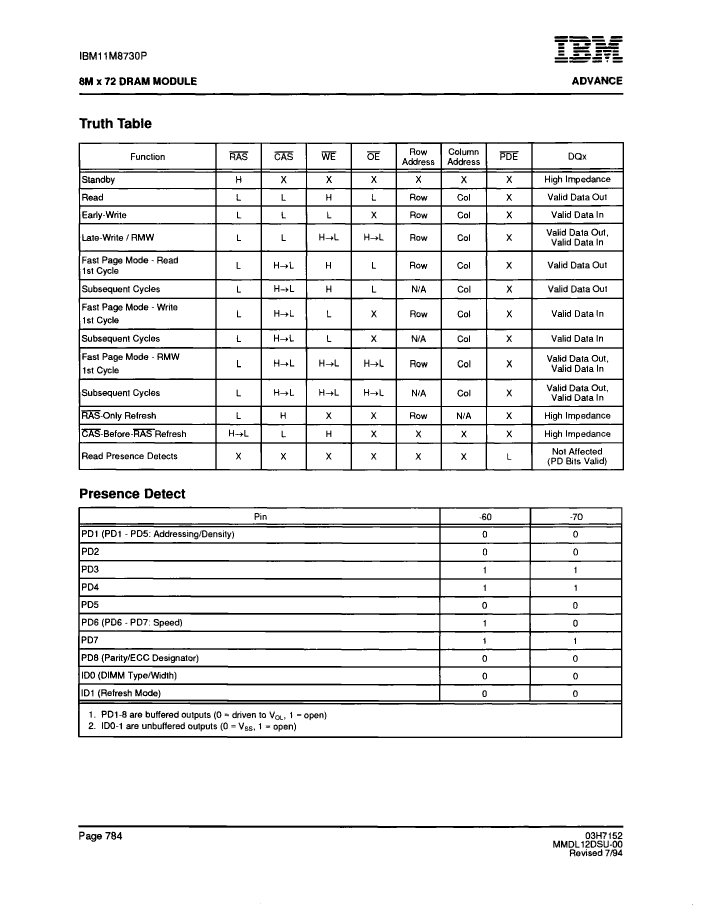

access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH
Spare memory width	36
JESD-30 code	R-XDMA-N168
memory density	603979776 bi
Memory IC Type	FAST PAGE DRAM MODULE

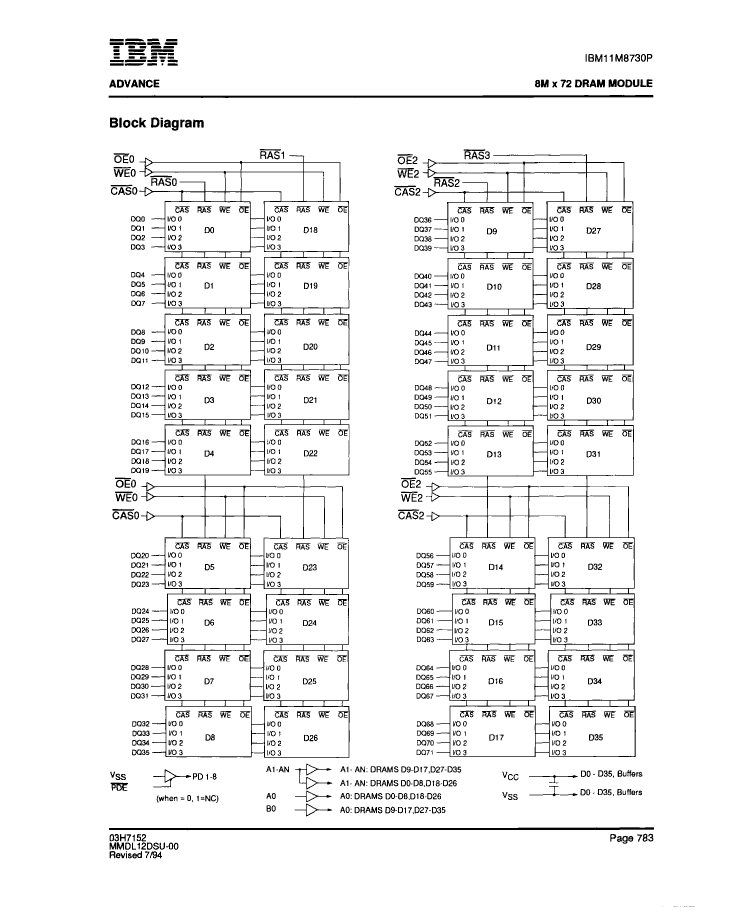

memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	8388608 words
character code	8000000
Operating mode	ASYNCHRONOUS

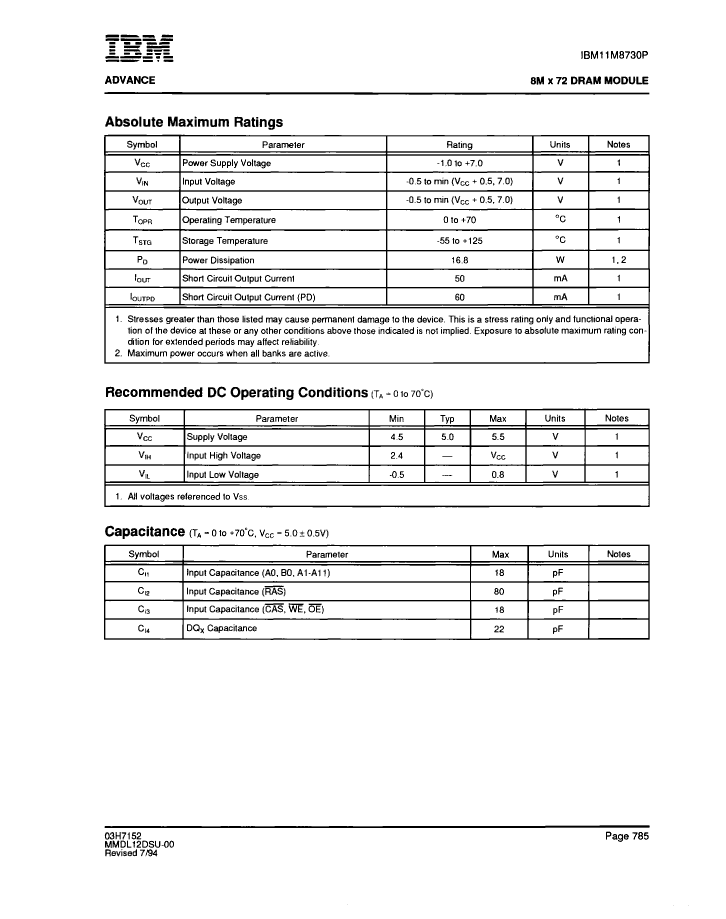

Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	4096
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL

	IBM11M8730PA-60	IBM11M8730PA-70
Description	Fast Page DRAM Module, 8MX72, 60ns, CMOS, DIMM-168	Fast Page DRAM Module, 8MX72, 70ns, CMOS, DIMM-168
Maker	IBM	IBM
Parts packaging code	DIMM	DIMM
Contacts	168	168
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE
Maximum access time	60 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH
Spare memory width	36	36
JESD-30 code	R-XDMA-N168	R-XDMA-N168
memory density	603979776 bi	603979776 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	72	72
Number of functions	1	1
Number of ports	1	1
Number of terminals	168	168
word count	8388608 words	8388608 words
character code	8000000	8000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	8MX72	8MX72
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
refresh cycle	4096	4096
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL
