CTTF0402F-10NF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTTF0402F-10NF

CTTF0402F-10NF: Description1 ELEMENT, 0.01 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size433KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTTF0402F-10NF Overview

1 ELEMENT, 0.01 uH, GENERAL PURPOSE INDUCTOR, SMD

CTTF0402F-10NF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	0402
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	0402
DC Resistance	1.3 Ω
Nominal inductance(L)	0.01 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTTF0402F
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	13
Maximum rated current	0.2 A
self resonant frequency	4500 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	500 MHz
Tolerance	1%
Base Number Matches	1

Preview

Download Datasheet

View All

Thin Film Chip Inductors

ctparts.com

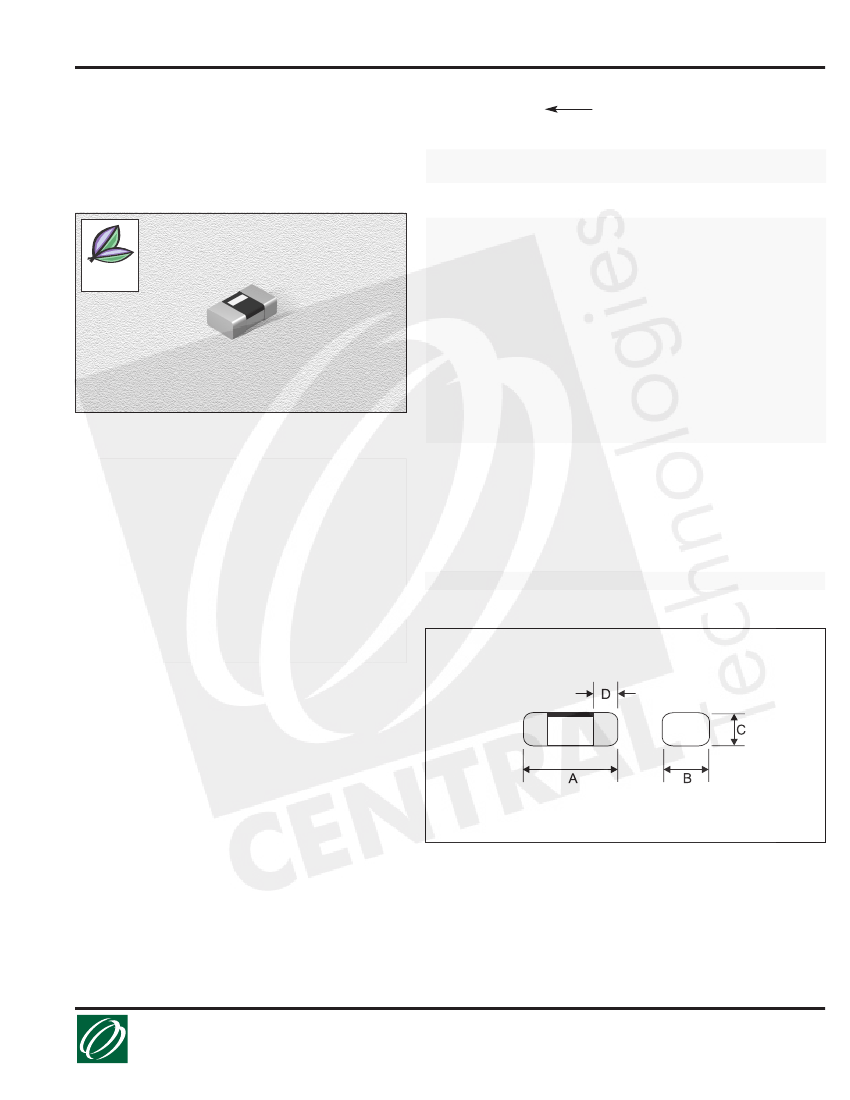

SPECIFICATIONS

CTTF0402F Series

From 0.2 nH to 33 nH

Not shown at actual size.

Please specify tolerance code when ordering.

CTTF0402F-0N2_

B = ±0.1nH, C = ±0.2nH, S = ±0.3nH, F = ±1%, G = ±2%,

H = ±3%, J = ±5%

* = F, G, H or J only

** = B, C, or S only

Part

Number

CTTF0402F-0N2_**

CTTF0402F-0N4_**

CTTF0402F-0N8_**

CTTF0402F-1N0_**

CTTF0402F-1N2_**

CTTF0402F-1N5_**

CTTF0402F-1N6_**

CTTF0402F-1N8_**

CTTF0402F-2N0_**

CTTF0402F-2N2_**

CTTF0402F-2N5_**

CTTF0402F-2N7_**

CTTF0402F-3N0_**

CTTF0402F-3N1_**

CTTF0402F-3N3_**

CTTF0402F-3N6_**

CTTF0402F-3N8_**

CTTF0402F-3N9_**

CTTF0402F-4N7_**

CTTF0402F-5N6_**

CTTF0402F-5N9_**

CTTF0402F-6N8_**

CTTF0402F-7N2_**

CTTF0402F-8N0_**

CTTF0402F-8N2_**

CTTF0402F-9N1_**

CTTF0402F-10N_*

CTTF0402F-12N_*

CTTF0402F-13N8_*

CTTF0402F-15N_*

CTTF0402F-17N_*

CTTF0402F-18N_*

CTTF0402F-20N8_*

CTTF0402F-22N_*

CTTF0402F-27N_*

CTTF0402F-33N_*

Inductance

(nH)

0.2

0.4

0.8

1.0

1.2

1.5

1.6

1.8

2.0

2.2

2.5

2.7

3.0

3.1

3.3

3.6

3.8

3.9

4.7

5.6

5.9

6.8

7.2

8.0

8.2

9.1

13.8

20.8

L Test

Freq.

(MHz)

500

Min.

Q Test

Freq.

(MHz)

500

DCR

Max.

(Ω)

0.1

0.2

0.3

0.35

0.3

0.45

0.4

0.55

0.5

0.6

0.7

0.9

1.1

1.3

1.6

1.8

2.0

2.6

2.5

Rated DC

Max.

(mA)

800

700

560

440

380

340

320

280

260

220

200

180

130

100

SRF

Min.

(GHz)

5.5

4.5

3.7

3.3

3.1

2.8

3.25

3.75

Compliant

RoHS

CHARACTERISTICS

Description:

SMD thin film chip inductors

Applications:

Cellular Telephone, pagers, GPS products,

wireless LAN and other communication appliances, VCO, TCXO

circuit and RF Transceiver Module

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±0.1nH, ±0.2nH & ±2%

Testing:

Tested on a HP4287A at 500 MHz

Packaging:

Tape & Reel

Miscellaneous:

RoHS Compliant.

Marking:

Reels are marked with inductance code and tolerance

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

inches

1.0 ± 0.05

0.04 ± 0.002

0.5 ± 0.05

0.02 ± 0.002

0.35 ± 0.05

0.01 ± 0.002

0.2 ± 0.1

0.008 ± 0.004

04.21.08

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
