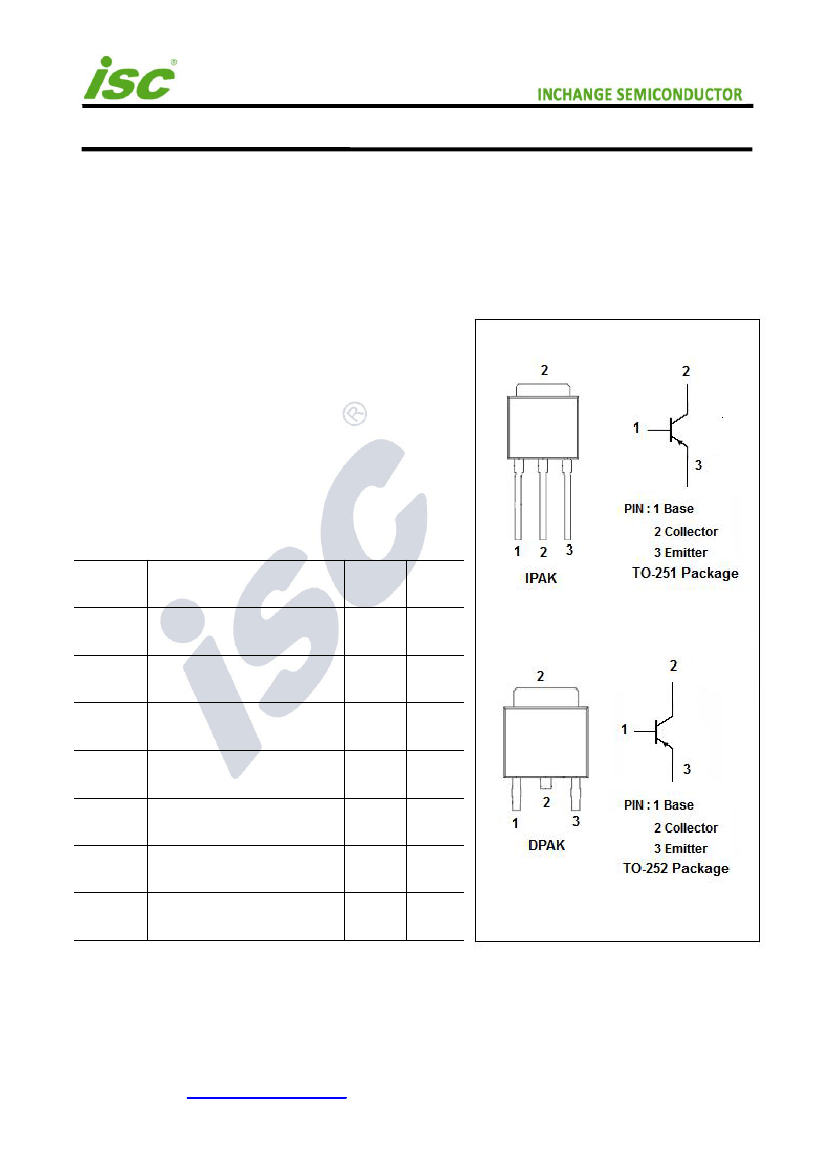

isc
Silicon PNP Power Transistor
3CA753
DESCRIPTION
·Low
V
CE(sat)
·Small
and slim package
·100%
avalanche tested
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Power
dissipation
ABSOLUTE MAXIMUM RATINGS(T
a
=25
℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
C
T
J
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current-Continuous
Collector Power Dissipation
Junction Temperature
Storage Temperature Range
VALUE
-40
-30
-5
-2
1.2
150
-55~150
UNIT
V
V
V
A
W
℃
T
stg
℃
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
isc
Silicon PNP Power Transistor
ELECTRICAL CHARACTERISTICS
T
C
=25℃ unless otherwise specified
SYMBOL
V
CE
(sat)-1
V
CE
(sat)-2
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
C
OB
f
T
PARAMETER
Collector-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Output Capacitance
Current-Gain—Bandwidth Product
CONDITIONS
I
C
= -2A; I
B
= -200mA
I
C
= -1.5A; I
B
= -30mA
I
C
= -100uA; I
B
= 0
I
C
= -10mA; I
B
= 0
I
E
= -1mA; I
C
= 0
V
CB
= -40V; I
E
= 0
V
EB
= -5V; I
C
= 0
I
C
= -0.5A; V
CE
= -2V
I
E
= 0; V
CB
= -10V; f= 1.0MHz
I
C
= -500mA; V
CE
= -5V
100
13
120
-40
-30
-5
MIN
TYP.
3CA753
MAX
-0.8
-2.0
UNIT
V
V
V
V
V
-0.1
-0.1
400
μA
μA
pF
MHz
h
FE
Classifications
O
Y
160-320
G
200-400
100-200
isc website
：
www.iscsemi.com
2
isc & iscsemi
is registered trademark
isc Silicon PNP Power Transistor

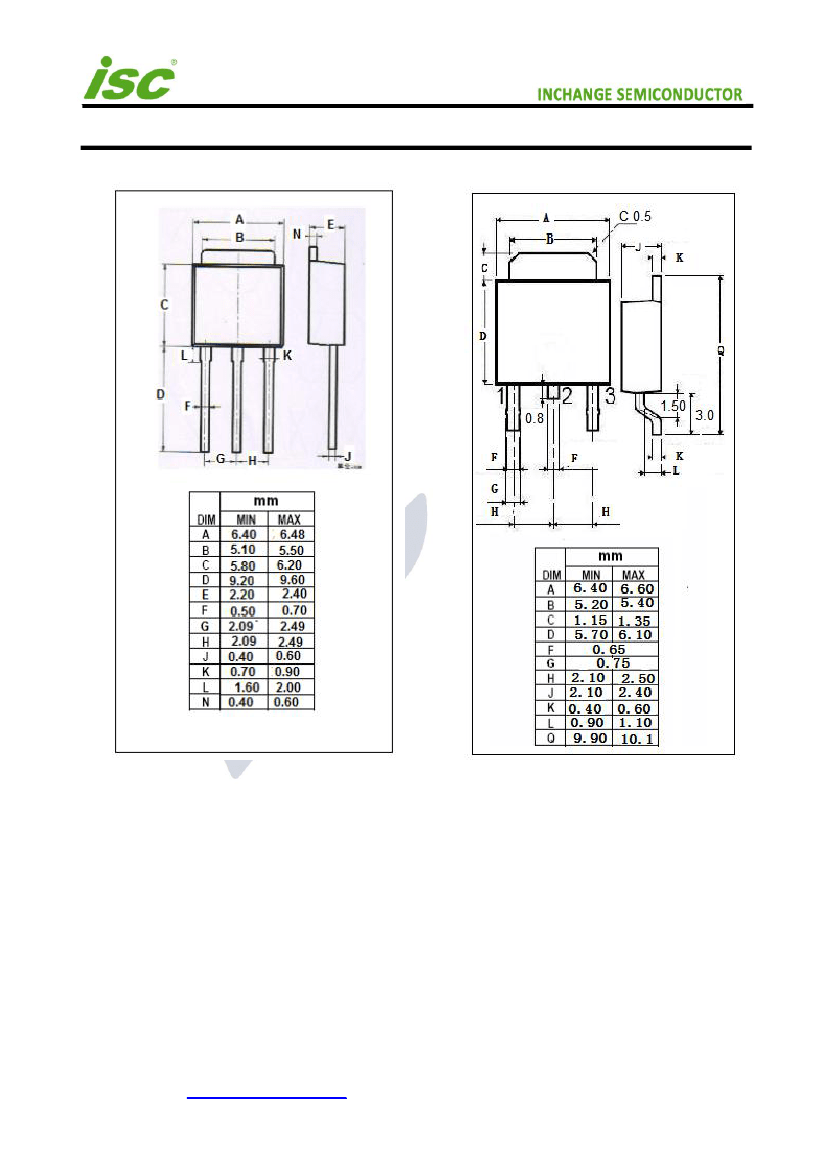

Outline Drawing
3CA753
NOTICE：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not designed
for use in equipment which require specialized quality and/or reliability, or in equipment which
could have applications in hazardous environments, aerospace industry, or medical field. Please
contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
