ET08J6WQE2 datasheet, PDF - EEWORLD Datasheet

ET08J6WQE2: DescriptionRocker Switch, SPDT, On-(on), Horizontal, 2A, 28VDC, 3 PCB Hole Cnt, Wire Wrap Terminal, Rocker Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size454KB，5 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

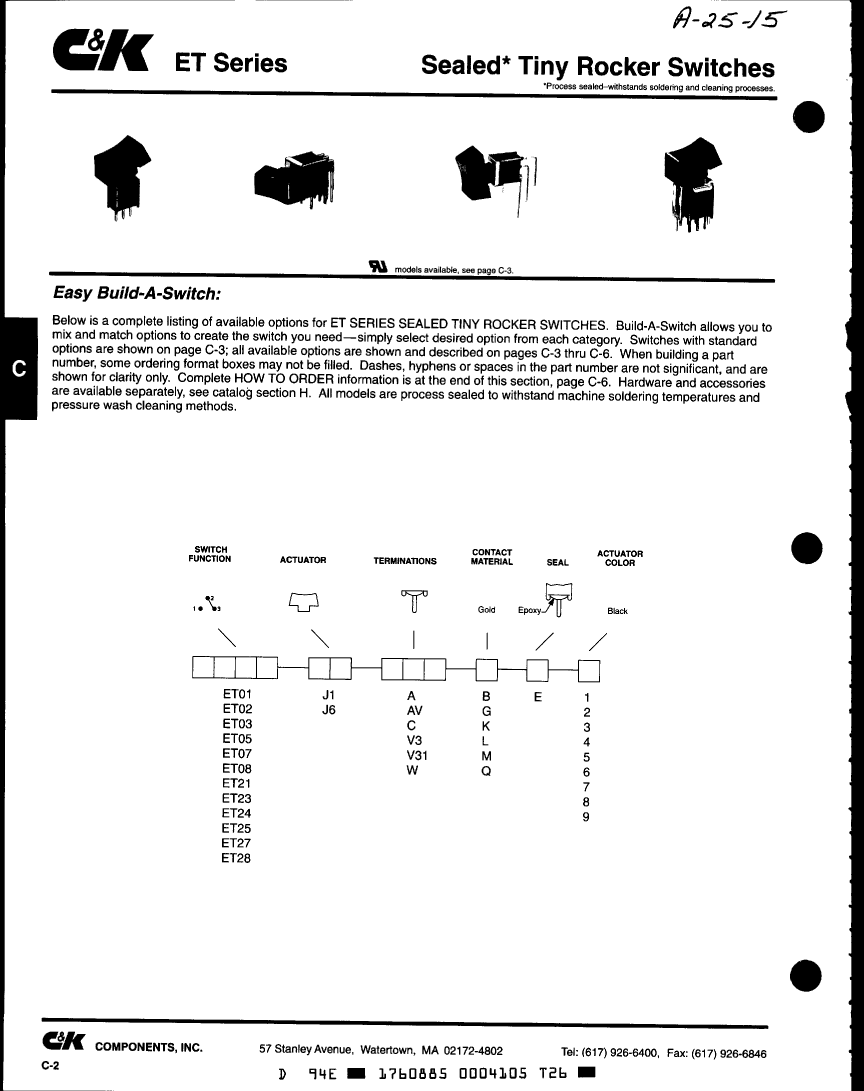

ET08J6WQE2 Overview

Rocker Switch, SPDT, On-(on), Horizontal, 2A, 28VDC, 3 PCB Hole Cnt, Wire Wrap Terminal, Rocker Actuator, Through Hole-straight

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator angle	25 deg
Actuator color	BLACK
Executor completed	MATTE
Actuator length	0.339 inch
Actuator material	NYLON
Actuator type	ROCKER
body width	5.08 mm
body height	35.1282 mm
Body length or diameter	8.128 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	2A@120VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@28VDC

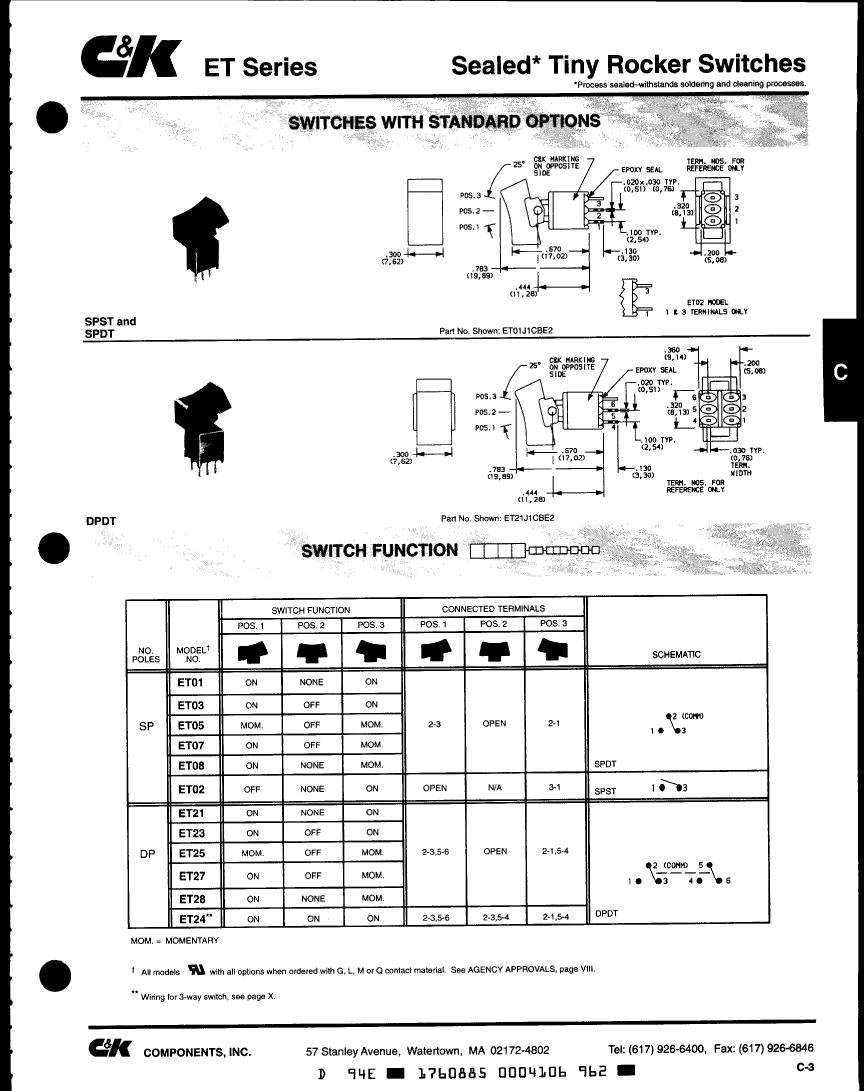

Contact function	ON-(ON)
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	30000 Cycle(s)
End contact material	SILVER
End contact plating	SILVER
Shell material	GLASS FILLED NYLON
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	ET
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	3
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
Switch action	HORIZONTAL
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal length	0.6 inch
Terminal material	COPPER ALLOY
Termination type	WIRE WRAP
Washability	PRESSURE
