BD239D datasheet, PDF - EEWORLD Datasheet

BD239D: Description2A, 120V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size211KB，6 Pages; ManufacturerJ.W. Miller ( Bourns )

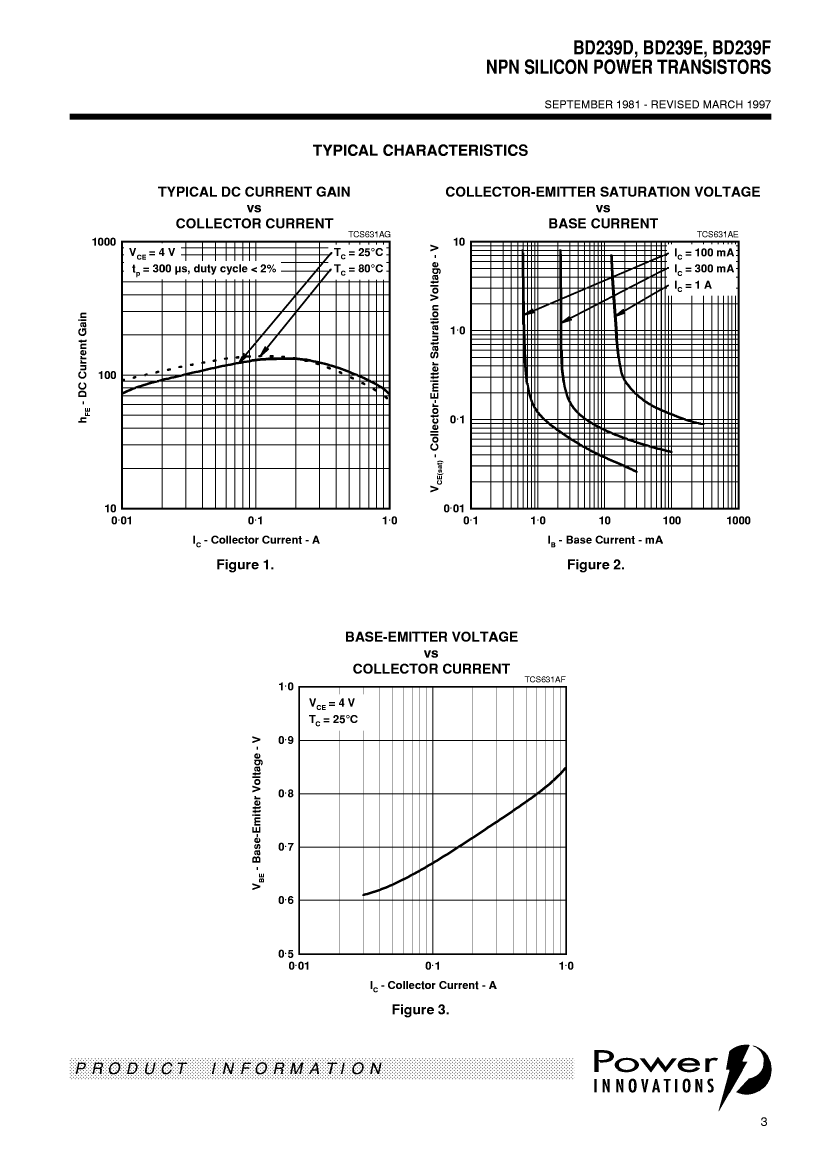

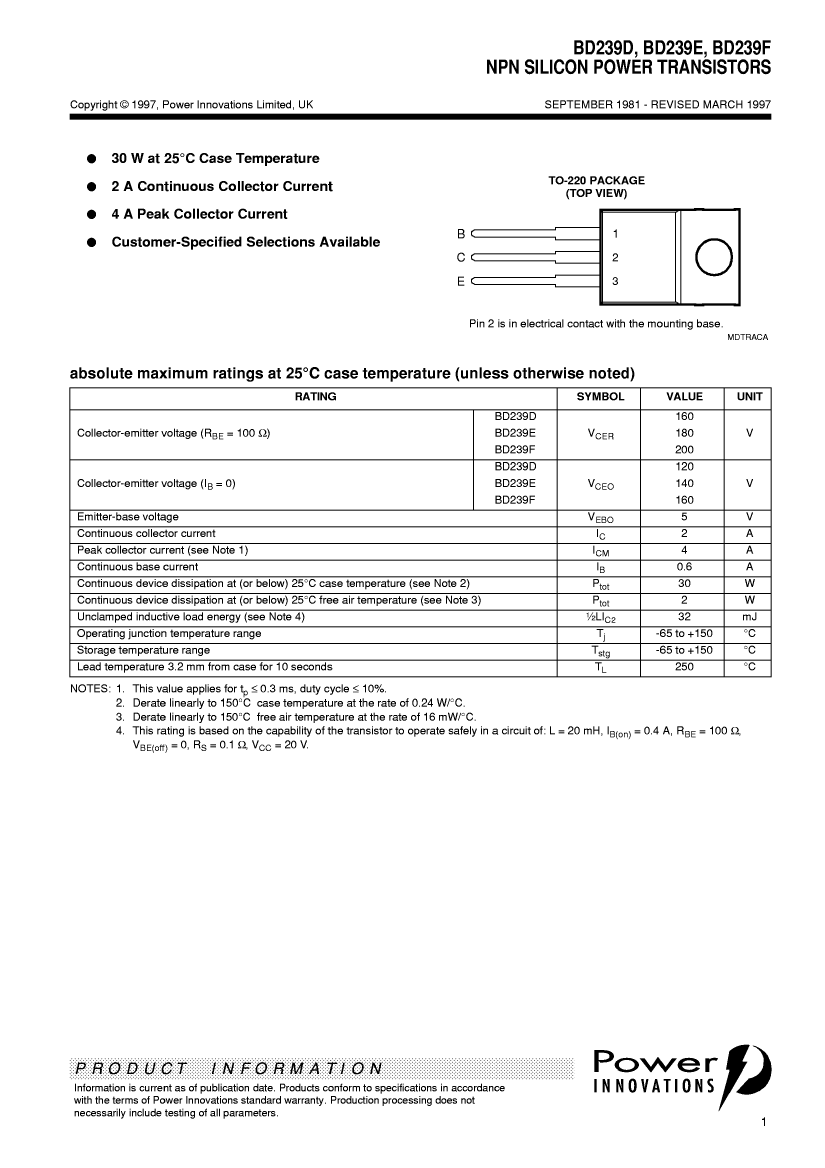

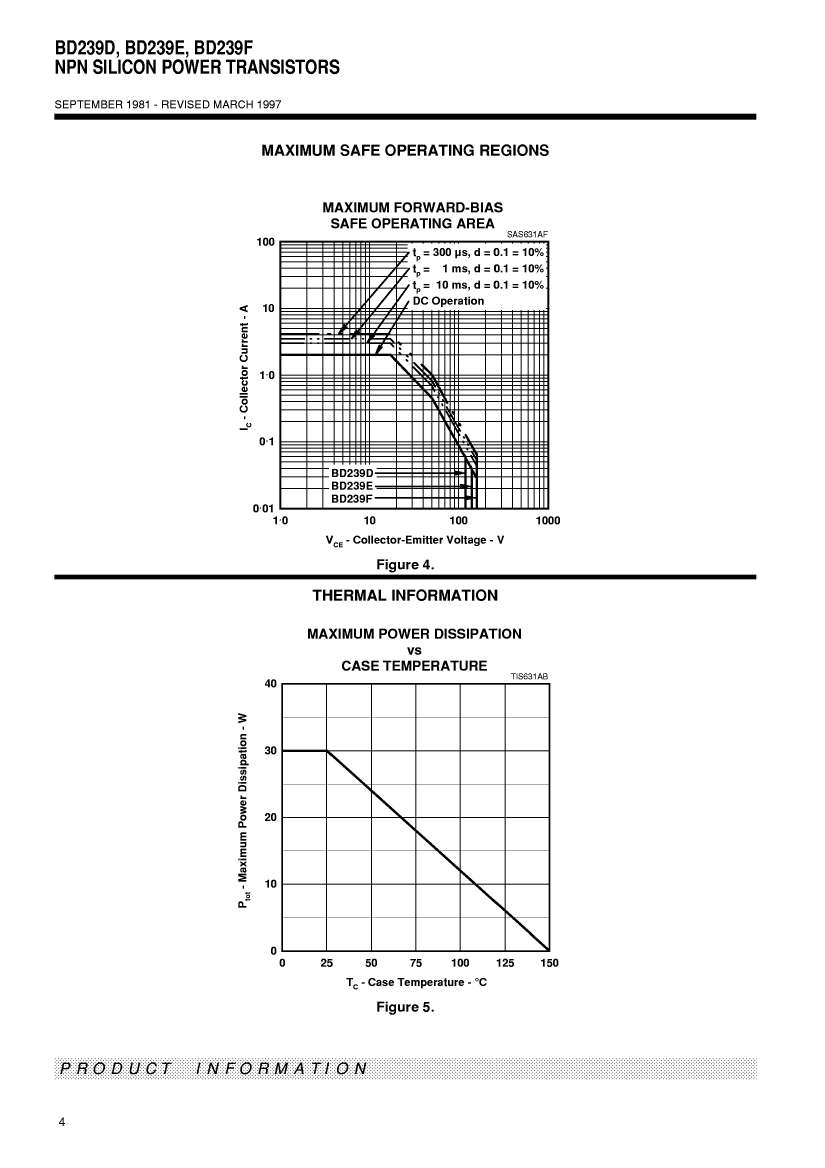

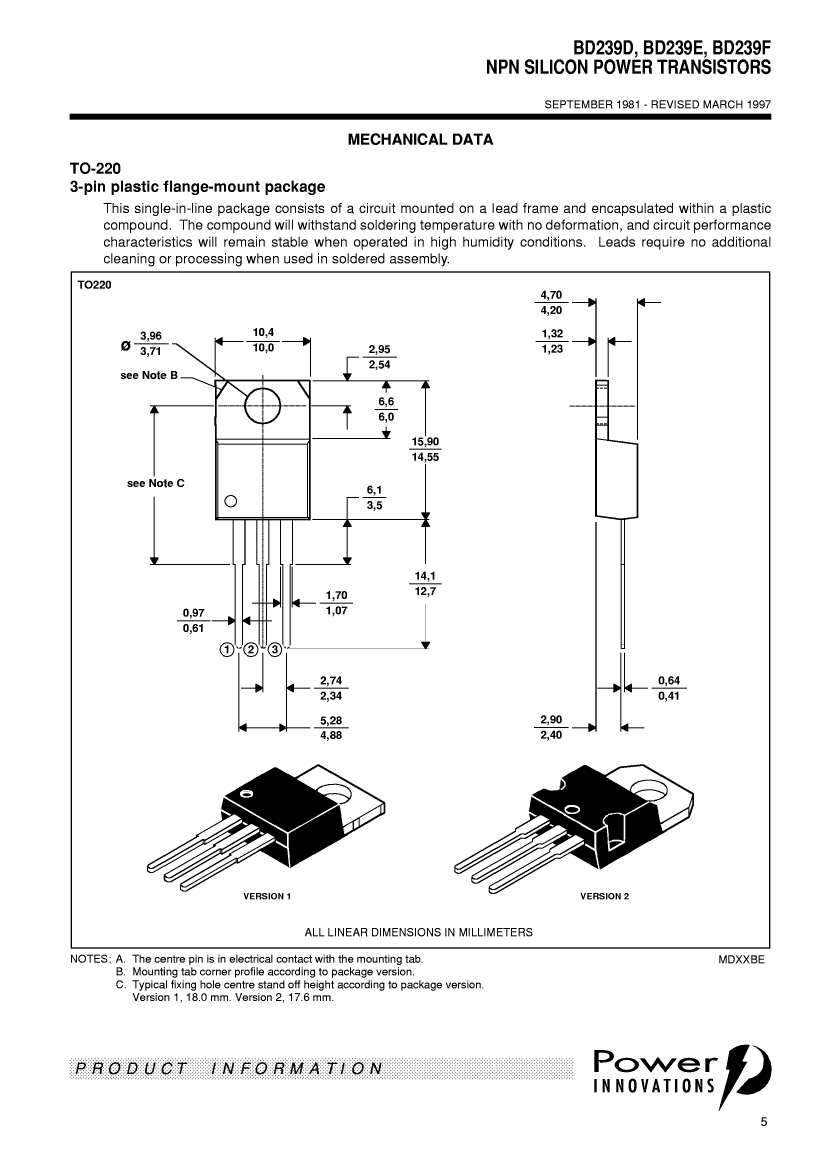

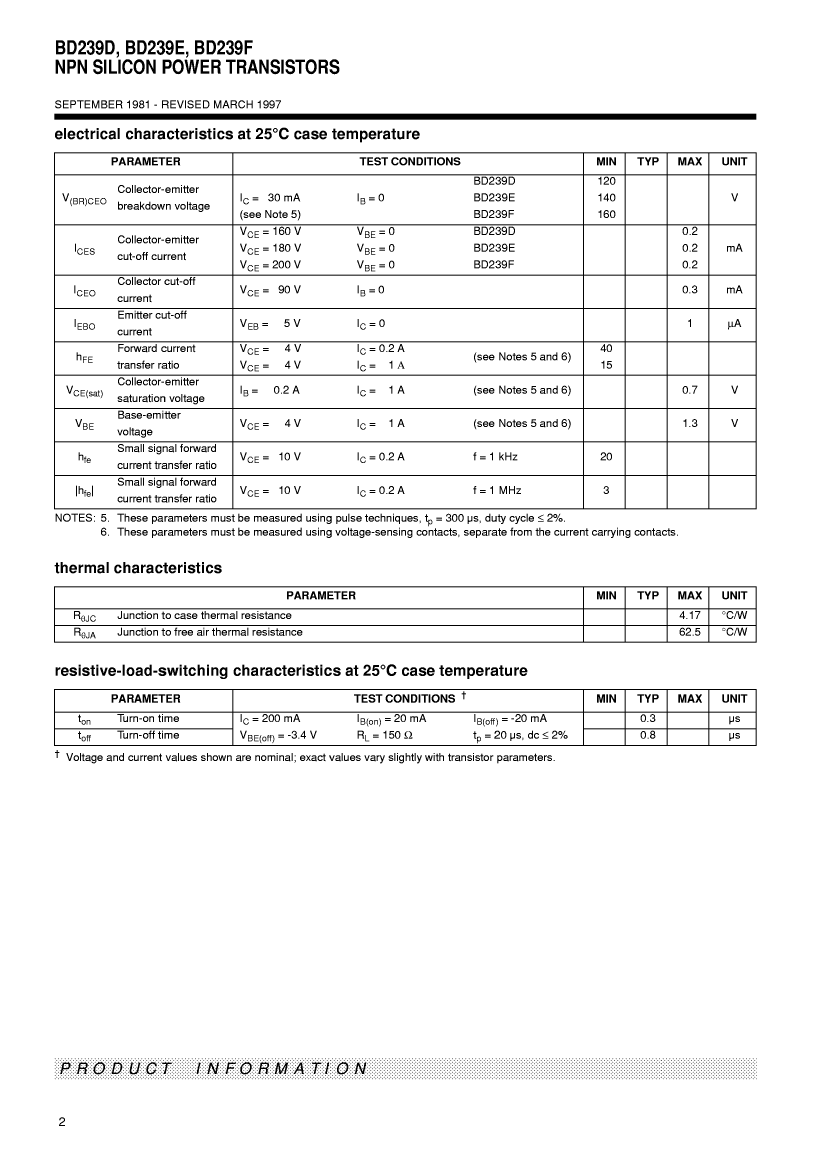

Download Datasheet Parametric Compare View All

BD239D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD239D	-	-	View	Buy Now

2A, 120V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN

Parameter Name	Attribute value
Maker	J.W. Miller ( Bourns )
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	120 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	BD239D	BD239E
Description	2A, 120V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	2A, 140V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN
Maker	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )
Parts packaging code	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	2 A	2 A
Collector-emitter maximum voltage	120 V	140 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	15	15
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
