Crimp
RF
CONNECTOR

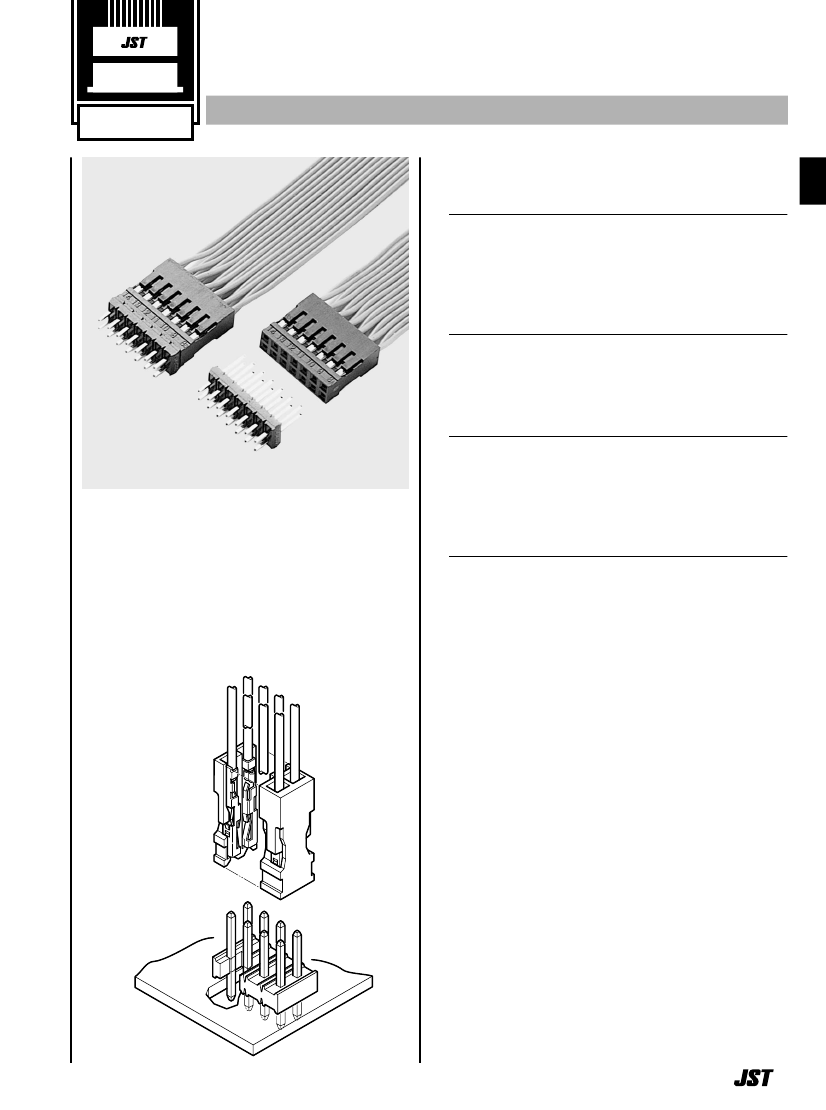

Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Highly reliable, yet low in cost
Our original double-leaf spring construction withstands the
stresses caused by repeated insertions and withdrawals and
ensures reliable contact performance. Depending on the
application, the socket contacts and header posts can be
selectively gold-plated or fully tin-plated to minimize costs.
2.54mm
pitch
• Space-saving, high-density design
The 2.54mm pitch contacts are arranged in two rows. The
mated connectors can be placed side by side or end to end
without a loss in pitch. This facilitates space-saving, high-
density circuit designs.
• Easy connection
A slight force is all that is required for contact insertion because
the housing has resilient lances. Furthermore, the positions of
the contacts in the housing can be visually checked. This
The RF connector was developed as a
highly reliable, low-cost, crimp style
connector for connecting wires to printed
circuit boards. Well suited for internal
connections in office automation
equipment, such as personal computers,
office computers and their peripheral
devices.
facilitates insertion of the contacts in the housing.
• It can be cut to any length to provide a header
with any number of circuits
Notches are provided on the insulator that allow it to be cut to
any length without using special tools.
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (AWG #24)
• Voltage rating: 250V AC, DC
• Temperature range: (including temperature rise in applying
electrical current)
-55˚C to +105 ˚C(gold-plated)
-55˚C to +85˚C(tin-plated)
• Contact resistance: Initial value/15m
Ω
max.
After environmental testing/30m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #30 to #24
• Applicable PC board thickness: 1.2 to 1.6mm
* RoHS compliant products are published.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
Recognized E60389
Certified LR20812
1
RF
CONNECTOR

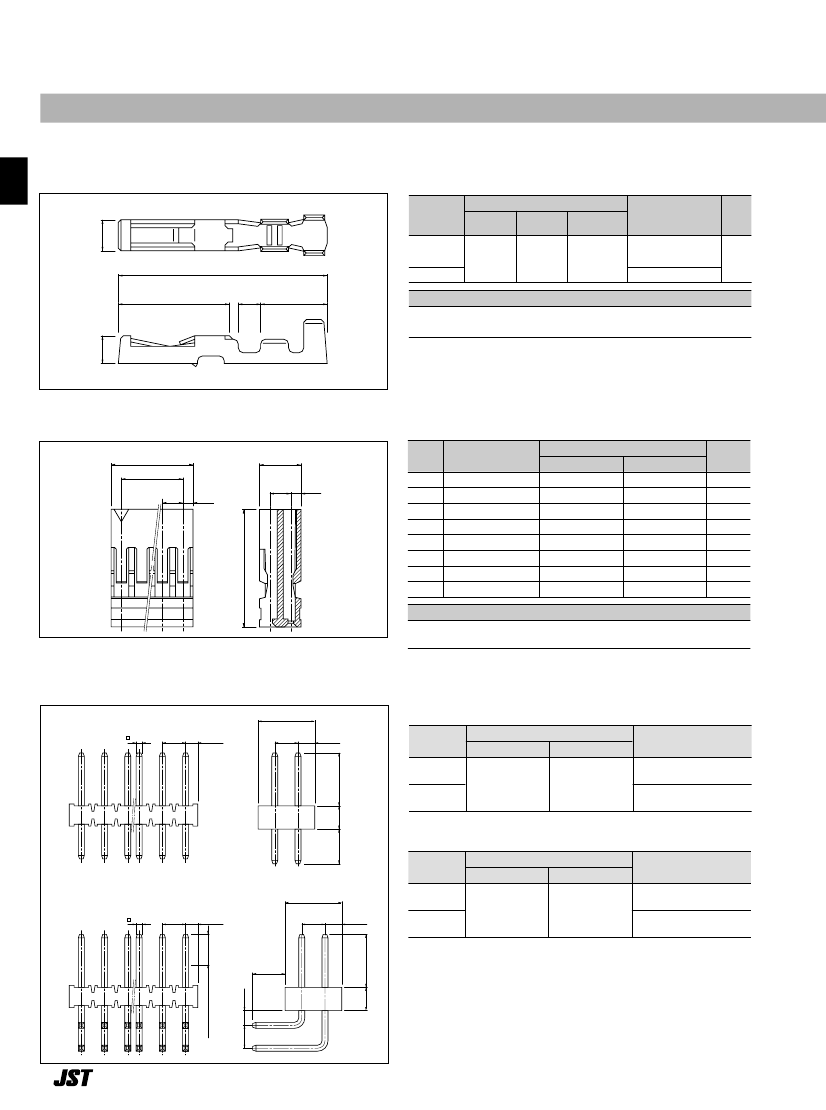

Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Applicable wire
Model No.
1.6
mm
2
AWG #
Insulation O.D.
(mm)
0.9 to 1.5
Finish
Q'ty /
reel
RF-SC2210
11.5
6.1
1.2
3.6
0.05 to 0.22
30 to 24
Nickel-undercoated,
Mating part; gold-plated
Crimping part; tin-plated (reflow treatment) 10,000
Tin-plated (reflow treatment)
RF-SC2290
Material
Phosphor bronze
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
B
A
2.54
2.54
1.27
1.27
5.08
1.5
RoHS compliance
RF-SC2210 displays (LF)(SN) on a label.
Cir-
cuits
6
8
10
12
14
16
Model No.
RF-06
RF-08
RF-10
RF-12
RF-14
RF-16
RF-20
RF-28
Dimensions (mm)
A
5.08
7.62
10.16
12.70
15.24
17.78
22.86
33.02
B
7.62
10.16
12.70
15.24
17.78
20.32
25.40
35.56
Q'ty /
box
500
500
500
500
300
300
200
200
14.0
20
28
JST
2
9
10
Material
PBT, UL94V-0, black
RoHS compliance
Header ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
0.64
2.54
1.27
6.2
2.54
(1.83)
Top entry type
Model No.
RF-H( *)
2TD-1130
RF-H( *)
2TD-1190
2.54
Material
Wafer
PBT,
UL94V-0,
black (natural)
Post
Finish
Nickel-undercoated,
gold-plated
Copper-undercoated, tin-plated
(reflow treatment)
6.0
Brass
3.4
Side entry type
Model No.
Material
Wafer
PBT,
UL94V-0,
black (natural)
Post
Finish
Nickel-undercoated,
Mating part; gold-plated
Solder tail; tin-plated (reflow treatment)
Copper-undercoated, tin-plated
(reflow treatment)
Side entry type
0.64
2.54
1.27
4.0min.
6.2
2.54
(1.83)
RF-H( *)
2SD-1110
RF-H( *)
2SD-1190
Brass
3.4
Gold-plated area
1.52
RoHS compliance
Tin-plated product displays (LF)(SN) on a label.
Note:
1. A two-digit number (06 to 16 even numbers only, 20 and 28) representing the
number of circuits should be inserted in ( * ).
Determine the number depending on the number of circuits of the housing or
header.
2. Contact JST for special products.
2
2.54
2.54
6.0
RF
CONNECTOR
Polarizing key ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
PK-RF-1
4.2
0.8
Q'ty / bag
10,000
Material
PBT, UL94V-0, natural (white)
1.5
RoHS compliance
Polarizing key: The polarizing key in the housing prevents misinsertion of the
connector to the header.
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
φ
0.9
+0.1
0
2.54±0.05
1.27min.
2.54
1.83min.
Side entry type
φ
0.9
+0.1
0
2.54±0.05
1.27min.
4.1min.
(16.54)
4.06
(16.6)
2.54
6.2
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Crimping machine, Applicator–––––––––––––––––––––––––––––––––––––––––––––––
Contact
RF-SC2210
RF-SC2290
Crimping
machine
AP-K2N
Crimp applicator
MKS-L
—
Dies
MK/RF-SC22
—
Crimp applicator with dies
APLMK RF-SC22
—
6.2
