LTC1291CCN datasheet, PDF - EEWORLD Datasheet

LTC1291CCN: DescriptionIC 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDIP8, PLASTIC, DIP-8, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size242KB，7 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

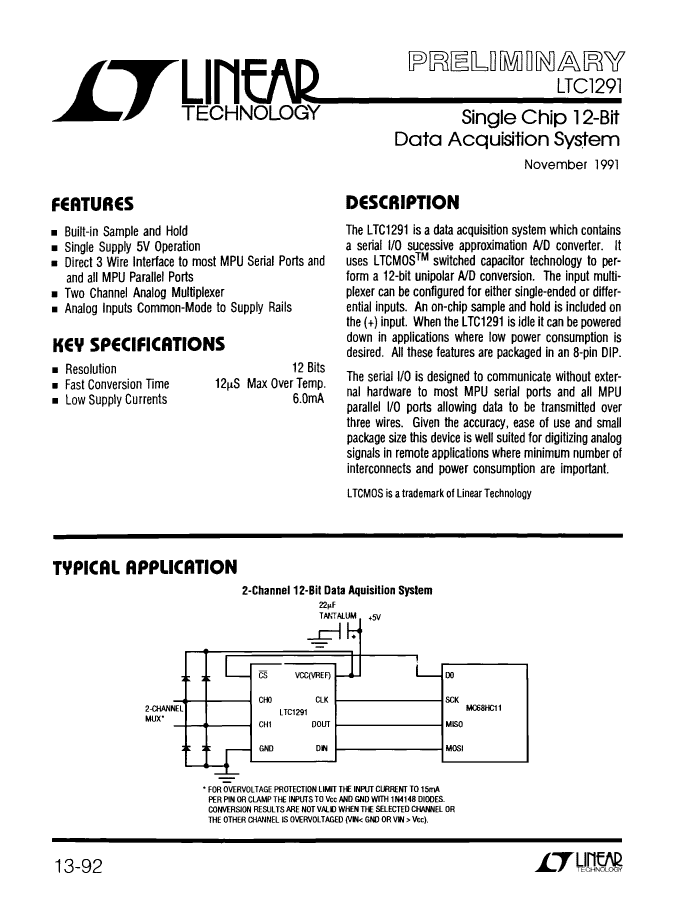

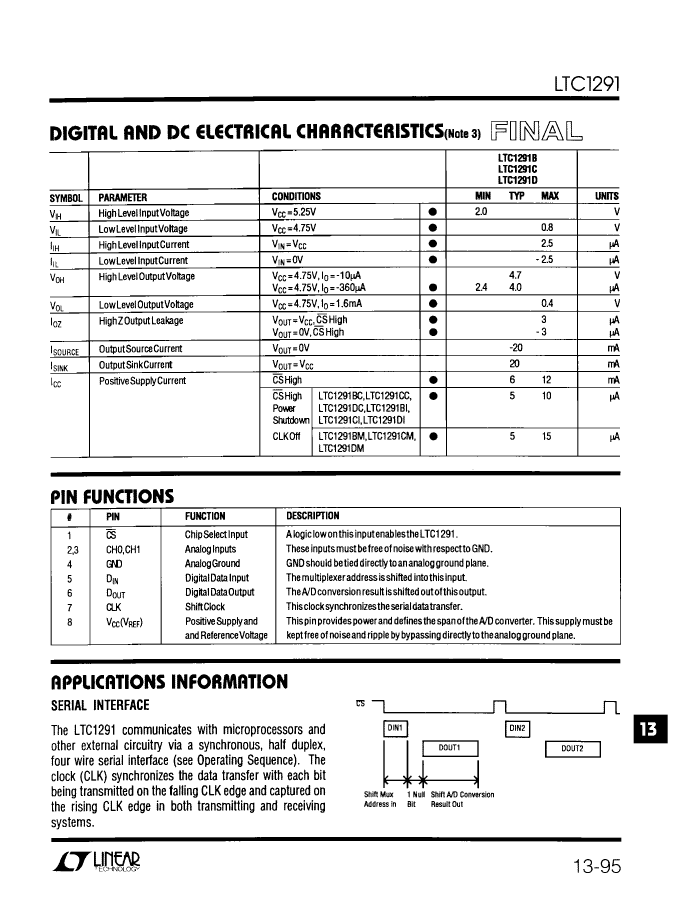

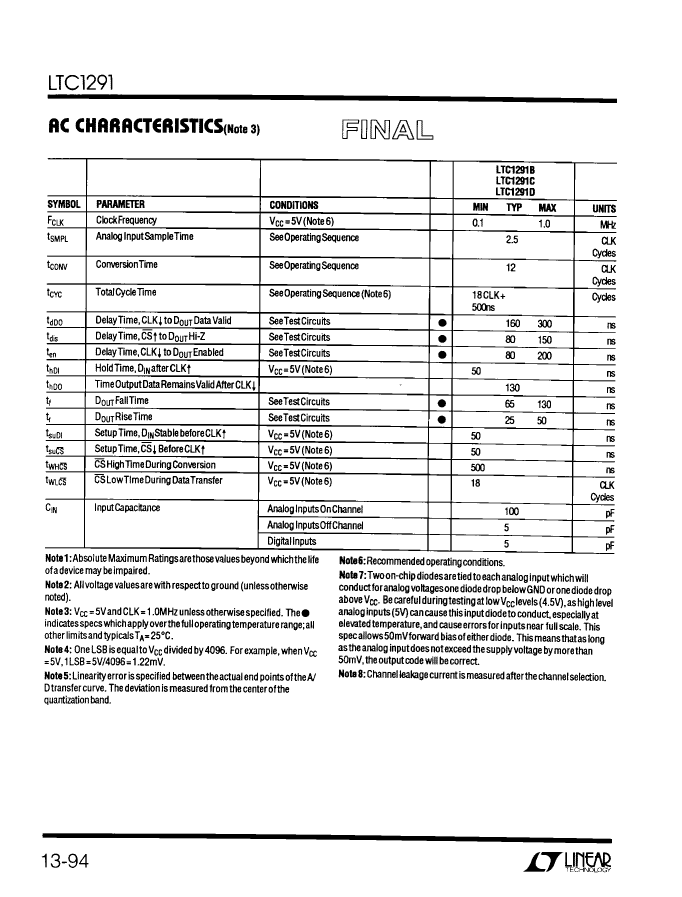

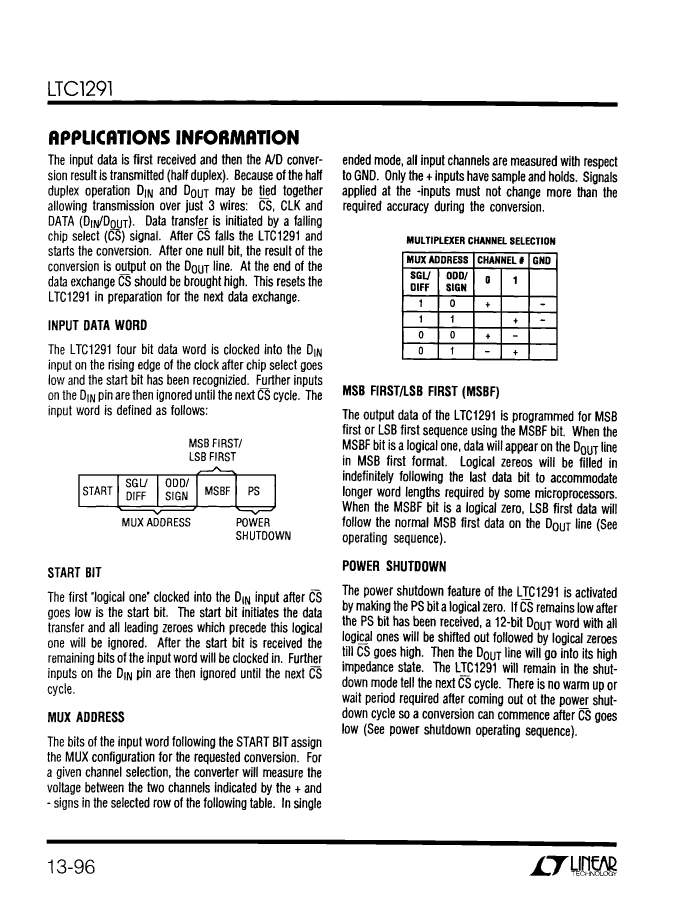

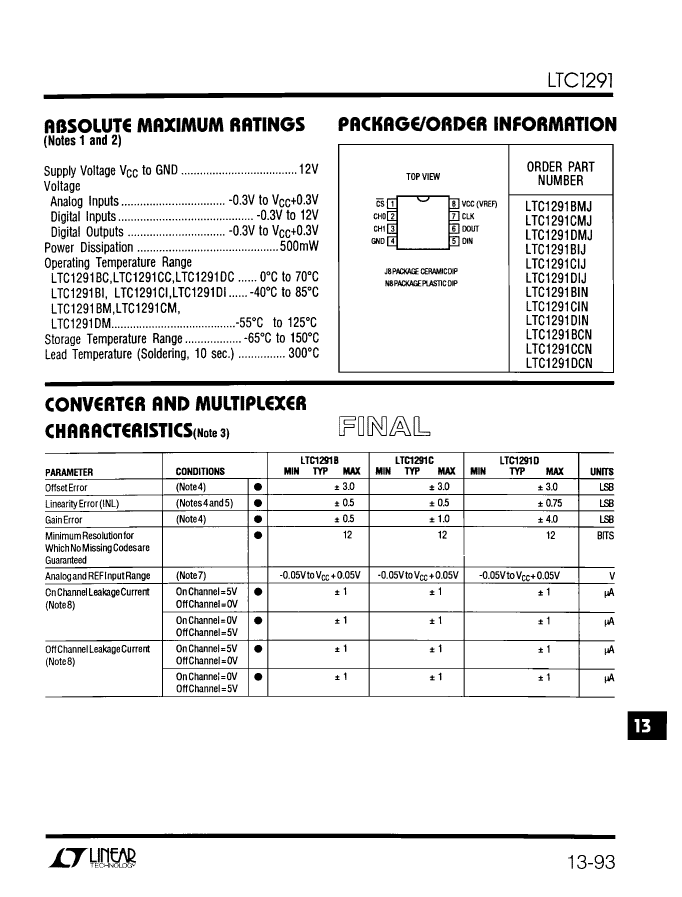

LTC1291CCN Overview

IC 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDIP8, PLASTIC, DIP-8, Analog to Digital Converter

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	120 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Maximum linear error (EL)	0.012%
Number of analog input channels	2
Number of digits	12
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	OFFSET BINARY
Output format	SERIAL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Sampling rate	0.077 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	3.937 mm
Maximum slew rate	12 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
