The MtronPTI M2060 Series is an ultra miniature 3.2 x 5.0 mm surface mount LVPECL fixed
frequency clock oscillator. It is designed for any application requiring minimum printed circuit
board space, low jitter, wide temperature range and a low supply voltage of 3.3 Vdc.
Product Applications
The M2060 Series is an excellent clock oscillator when the design dictates low supply voltage,
low jitter, minimum PC board real estate and excellent phase noise performance. Applications
for the M2060 include SONET / SDH / DWDM / ATM / DSRC, Ethernet, Fiber Channel, Digital
Switching Networks and Hand Held Wireless Communications.
Product Ordering Information
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
Revision: 09-09-10
M2060 Series
Performance Characteristics
3.2 x 5 mm, 3.3 Volt, LVPECL, Clock Oscillator
Parameters
Frequency Range
Operating Temperature
Storage Temperature
Frequency Stability
Electrical Specifications
Symbol
F
o
T
A
Ts
∆F/F
Min.
Typ.
Max.
62.5
212.5
See Ordering Information
-55C to +125C
See Ordering Information
Units
MHz
°C
Conditions/Notes
See Note 1
Includes calibration tolerance,
deviation over operating
temperature, load & supply
variations, and 1 yr. Aging at
+25°C.
At 25°C +/- 3°C for first year
Per year.
62.500 to 212.500 MHz
Aging 1
st
Year
Aging After 1
st
Year
Input Voltage
Supply Current
Output Logic Type
Output Load
Symmetry
Logic Level “1”
Logic Level “0”
Rise/Fall Time
Disable Delay Time
Enable Delay Time
Random Jitter
Parameter
Mechanical Shock
Vibration
Thermal Cycle
Aging
Gross Leak
Fine Leak
Solderability
Maximum Soldering Temp
-5
V
dd
I
dd
3.0
3.3
+5
3.6
90
ppm
ppm
Volts
mA
V
OH
V
OL
Tr/Tf
V
V
+1.47
V
+1.745
V
1.0
ns
20/80% of amplitude
200
ns
2
ms
1ps RMS max. (12KHz to 20MHz band)
≥100
g's
≥10
g's from 10-2000 Hz
Specification
50 Ohms (Vdd to -2.0V)
45/55%
+2.215
+2.42
Environmental
Test Method
MIL-STD-202, Method 213, C
MIL-STD-202, Method 201 &
204
MIL-STD-883, Method 1010, B
Internal Specification
MIL-STD-202, Method 112
MIL-STD-202, Method 112
Per EIAJ-STD-002
MIL-STD-202, Method 210, C
-55 Deg. C to +125 Deg. C, 15 minute Dwell, 10
Cycles min.
1 yr w/ accelerated testing for 1000 Hours @ 55°C
30 Second Immersion
Must meet 1 X 10
-8
+260°C for no more than 10 seconds
1. Not all Frequencies are available with all options. Please consult with MtronPTI to determine availability.
LVPECL Load – see LVPECL load diagram in this datasheet.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
2
M2060 Series
Part Marking Guide
3.2 x 5 mm, 3.3 Volt, LVPECL, Clock Oscillator
“F” = Frequency (example: 6.176000 MHz = 6M176)
“M” = Used in place of the decimal point; signifies MHz
“O” = Output type/stability combined
S = fixed output, ±100
ppm stability
T = fixed output, ±50
ppm stability
X = tristate output,
±100
ppm stability
Y = tristate output,
±50
ppm stability
“L” = Symmetry
A = 40/60 TTL/HCMOS
C = 45/55 HCMOS
G = 40/60 HCMOS
“X” = Month code
A = January
G = July
B = February
H = August
C = March
J = September
D = April
K = October
E = May
L = November
F = June
M = December
“Y” = Last digit of year (example: 2003 = 3)
Parts manufactured at MtronPTI partner facilities will have
a one digit letter code or a two digit number code after the
date code.
Catalog ModelNumber
FFF.FFFFM
MbYYWWV
“M” in last line=MtronPTI
Output Waveform
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
3
M2060 Series

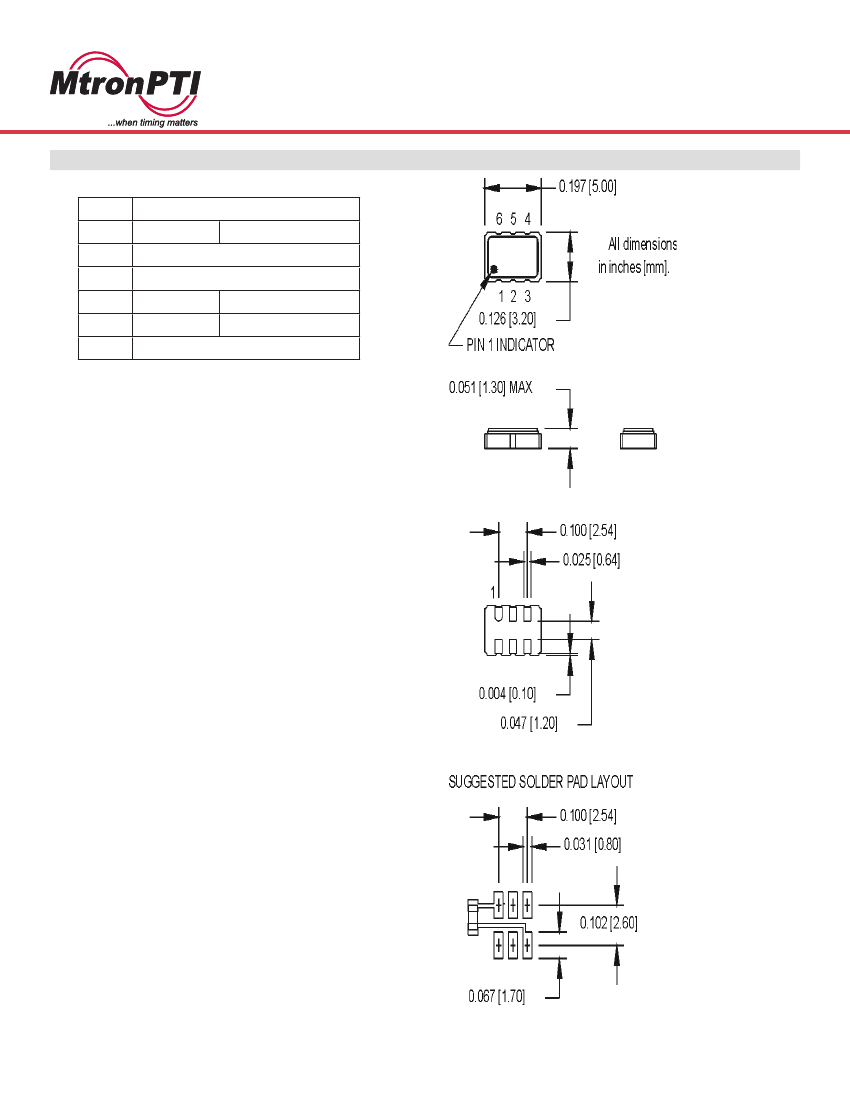

Product Dimension & Pinout Information
3.2 x 5 mm, 3.3 Volt, LVPECL, Clock Oscillator
PIN
1
2
3
4
5
6
CONNECTION
“L”
OPEN OR “H”
N.C.
V
SS
Z
OUTPUT
Z
C-OUTPUT
V
DD
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
4
M2060 Series
Handling Information
3.2 x 5 mm, 3.3 Volt, LVPECL, Clock Oscillator

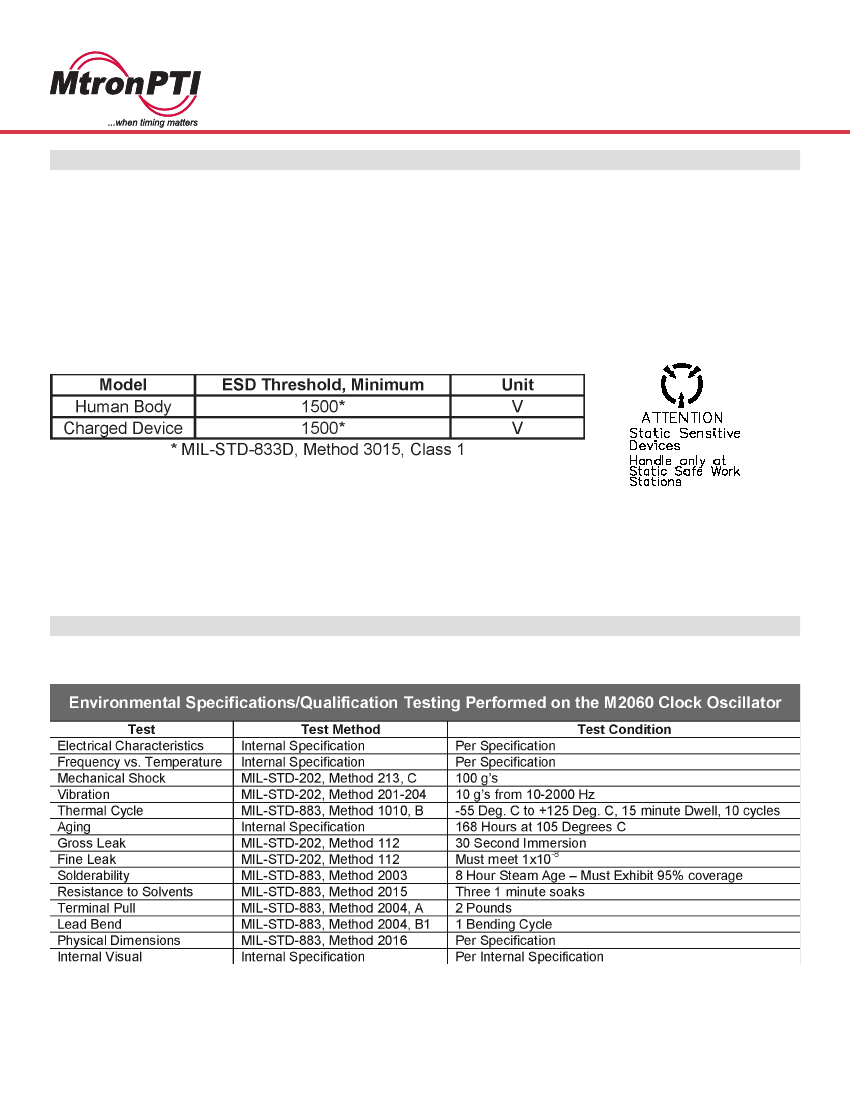

Although protection circuitry has been designed into the M2060 oscillator, proper precautions should
be taken to avoid exposure to electrostatic discharge (ESD) during handling and mounting. MtronPTI
utilizes a human-body model (HBM) and a charged-device model (CDM) for ESD-susceptibility testing
and protection design evaluation. ESD voltage thresholds are dependent on the circuit parameters used
to define the mode. Although no industry-wide standard has been adopted for the CDM, a standard HBM
(resistance = 1500
Ω,
capacitance = 100 pF) is widely used and therefore can be used for comparison
purposes. The HBM ESD threshold presented here was obtained using these circuit parameters.
Quality Parameters
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
