EP8210 datasheet, PDF - EEWORLD Datasheet

EP8210: DescriptionActive Delay Line, 1-Func, 5-Tap, True Output, TTL, DIP-14/8; Categorylogic logic; File Size114KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Parametric View All

EP8210 Overview

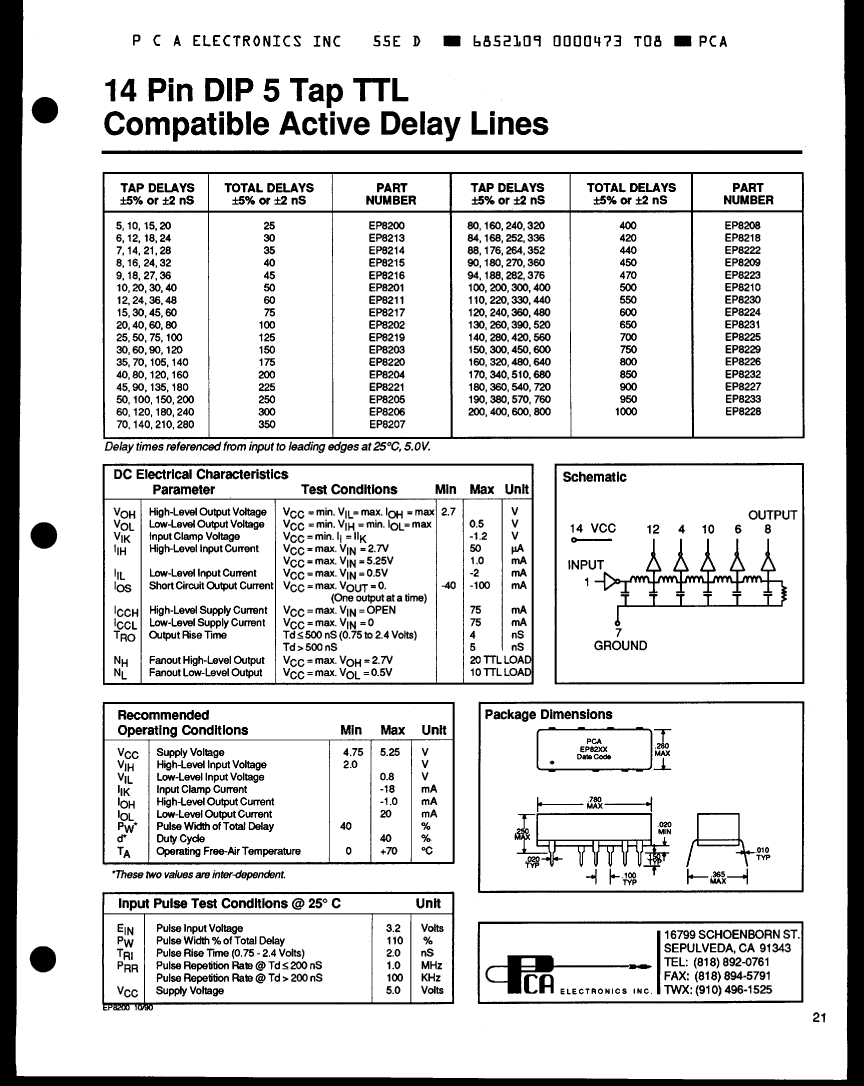

Active Delay Line, 1-Func, 5-Tap, True Output, TTL, DIP-14/8

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	PCA Electronics Inc.
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compli
Other features	MAX RISE TIME CAPTURED
series	TTL
Input frequency maximum value (fmax)	2 MHz
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
length	19.304 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Humidity sensitivity level	3
Number of functions	1
Number of taps/steps	5
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	75 mA
programmable delay line	NO
Prop。Delay @ Nom-Su	500 ns
Certification status	Not Qualified
Maximum seat height	6.35 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	500 ns
width	7.62 mm
