ADM3311EARUZ: DescriptionTRIPLE LINE TRANSCEIVER, PDSO28, ROHS COMPLIANT, MO-153AE, TSSOP-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，25 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric View All

ADM3311EARUZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ADM3311EARUZ	-	-	View	Buy Now

ADM3311EARUZ Overview

TRIPLE LINE TRANSCEIVER, PDSO28, ROHS COMPLIANT, MO-153AE, TSSOP-28

ADM3311EARUZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	TSSOP
package instruction	ROHS COMPLIANT, MO-153AE, TSSOP-28
Contacts	28
Reach Compliance Code	unknow
Differential output	NO
Number of drives	3
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232
JESD-30 code	R-PDSO-G28
JESD-609 code	e3
length	9.7 mm
Humidity sensitivity level	1
Number of functions	3
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Maximum receive delay	1000 ns
Number of receiver bits	5
Maximum seat height	1.2 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	4.4 mm

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

ADM3307E/ADM3310E/ADM3311E/ADM3312E/ADM3315E

TABLE OF CONTENTS

Features .............................................................................................. 1

Applications ....................................................................................... 1

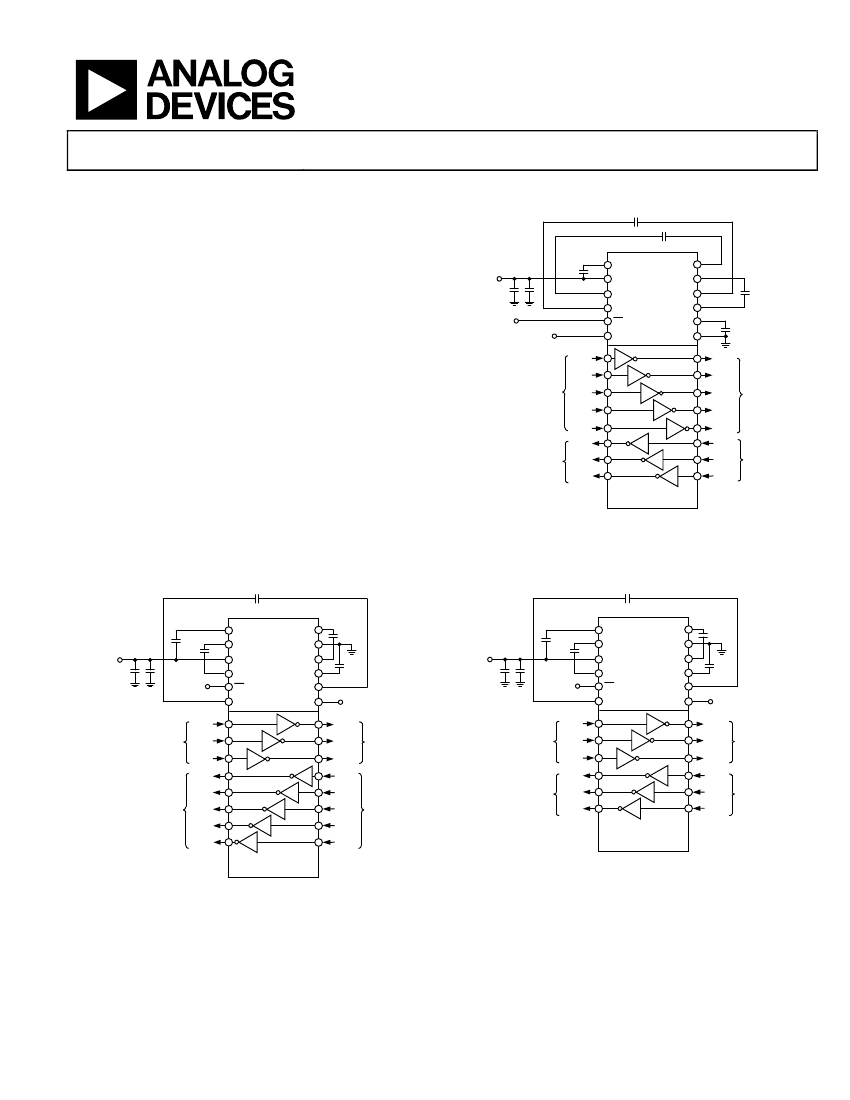

Functional Block Diagrams ............................................................. 1

Revision History ............................................................................... 2

General Description ......................................................................... 3

Specifications..................................................................................... 4

Absolute Maximum Ratings ............................................................ 6

ESD Caution .................................................................................. 6

Product Selection Guide .................................................................. 7

Pin Configurations and Function Descriptions ........................... 8

Data Sheet

Typical Performance Characteristics ........................................... 10

Circuit Description......................................................................... 13

Enable and Shutdown ................................................................ 15

Layout and Supply Decoupling ................................................ 15

ESD/EFT Transient Protection Scheme .................................. 15

ESD Testing (IEC 1000-4-2) ..................................................... 16

Outline Dimensions ....................................................................... 18

Ordering Guide .......................................................................... 20

Automotive Products ................................................................. 21

REVISION HISTORY

3/13—Rev. H to Rev. I

Changed CP-32-2 Package to CP-32-7 Package, Throughout .... 1

Changes to Figure 4, Figure 6, Figure 8 ......................................... 8

Changes to Figure 25 ...................................................................... 13

Updated Outline Dimensions ....................................................... 18

Changes to Ordering Guide .......................................................... 20

Added Automotive Products Section........................................... 20

1/06—Rev. G to Rev. H

Updated Formatting ................................................................. Universal

Updated Outline Dimensions .............................................................. 18

Changes to Ordering Guide ................................................................. 20

4/04—Rev. F to Rev. G

Changes to Ordering Guide ................................................................... 5

Updated Outline Dimensions .............................................................. 15

8/02—Rev. E to Rev. F

ADM3307E (REV. 0), ADM3311E (REV. E), and ADM3312E

(REV. A) Data Sheets Merged into REV. G of ADM33xxE Universal

ADM3310E (REV. PrA Now Prelims) and ADM3315E

(REV. PrA) Added .................................................................... Universal

Edits to Features....................................................................................... 1

Edits to Applications ............................................................................... 1

Edits to General Description ................................................................. 1

Edits to Functional Block Diagrams ..................................................... 2

Edits to Specifications ...............................................................................

Edits to Absolute Maximum Ratings .................................................... 4

ADM33xx Product Selection Guide Added ......................................... 5

Added ADM3307E, ADM3310E, ADM3312E, and

ADM3315E Pin Configurations ............................................................ 6

Edits to Pin Function Descriptions ....................................................... 7

Added ADM3307E, ADM3310E, ADM3312E, and

ADM3315E Truth Tables .......................................................................7

Edits to TPCs 1–14 ..................................................................................8

TPCs 15–18 Deleted ..............................................................................10

Edits to Circuit Description Section ...................................................11

Edits to Charge Pump DC-to-DC Voltage Converter Section ........11

Edits to How Does It Work Section ....................................................11

Edits to Green Idle vs. Shutdown Section ..........................................12

Edits to Doesn’t It Increase Supply Voltage Ripple? Section ............12

Edits to What About Electromagnetic Compatibility? Section .......12

Edits to Transmitter (Driver) Section .................................................12

Edits to Receiver Section ......................................................................12

Edits to Enable and Shutdown Section ...............................................12

Edits to High Baud Rate Section..........................................................13

Edits to ESD/EFT Transient Protection Scheme ...............................13

Added Figures 8a and 8b and Renumbered the Figures

that Followed ..........................................................................................13

Edits to ESD Testing (IEC 1000-4-2) Section ....................................14

Edits to Figure 9 .....................................................................................14

Deleted Table II and Table III and replaced them with Table V .....14

Added RU-24 Package Outline Updated CP-32, RS-28

and RU-28 ...............................................................................................15

Rev. I | Page 2 of 24
