T6101218 datasheet, PDF - EEWORLD Datasheet

T6101218: DescriptionPhase Control SCR (125-175 Amperes 1600 Volts); CategoryAnalog mixed-signal IC Trigger device; File Size733KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

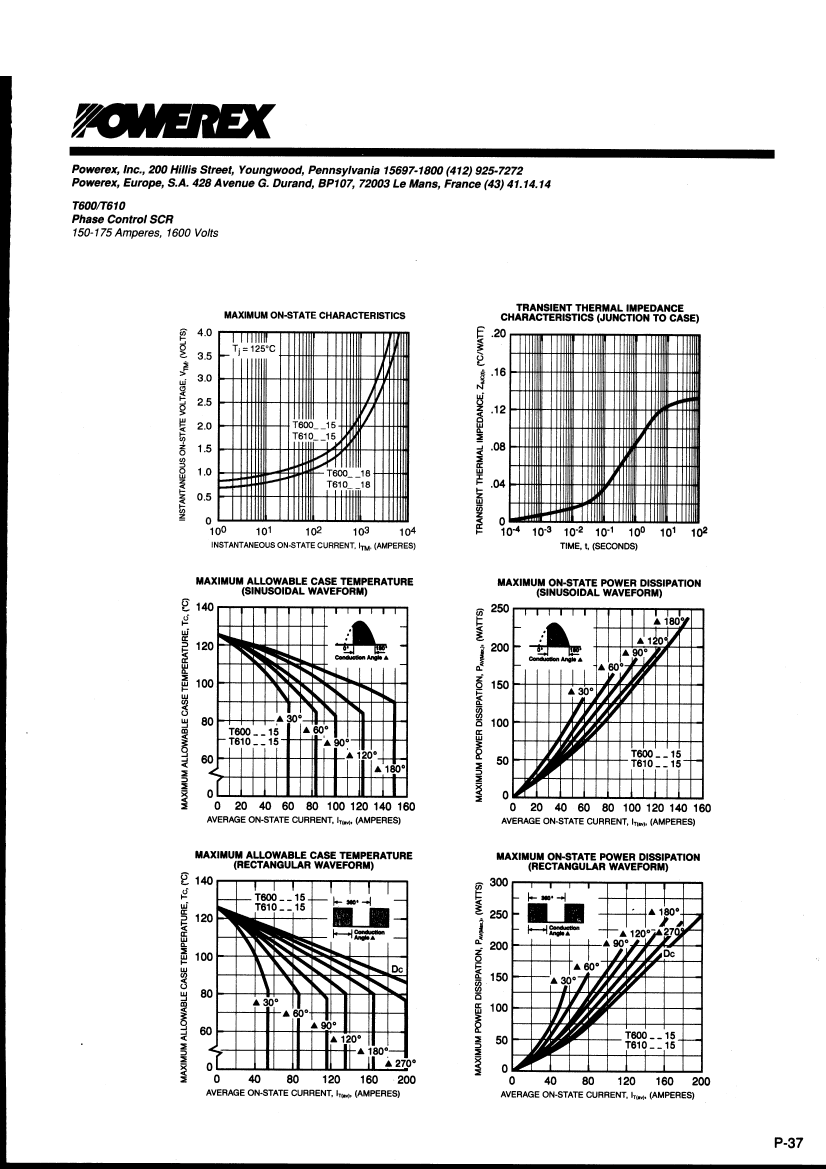

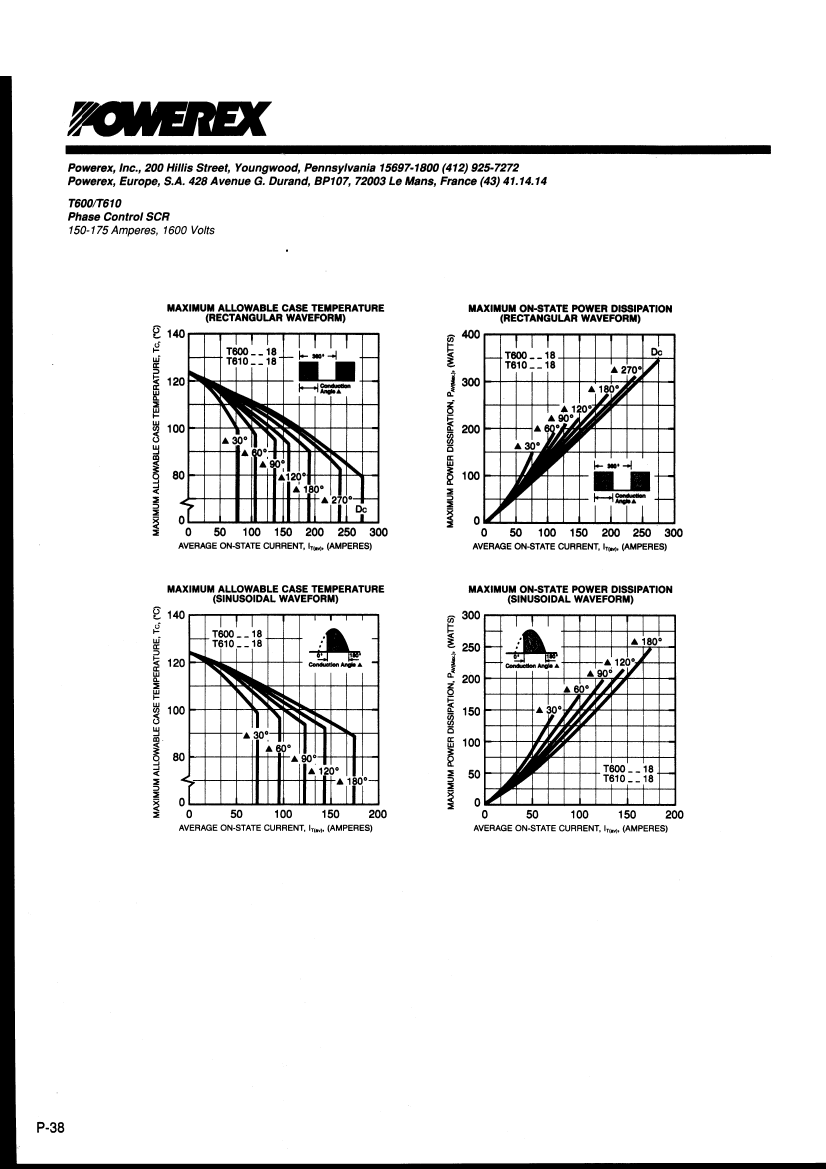

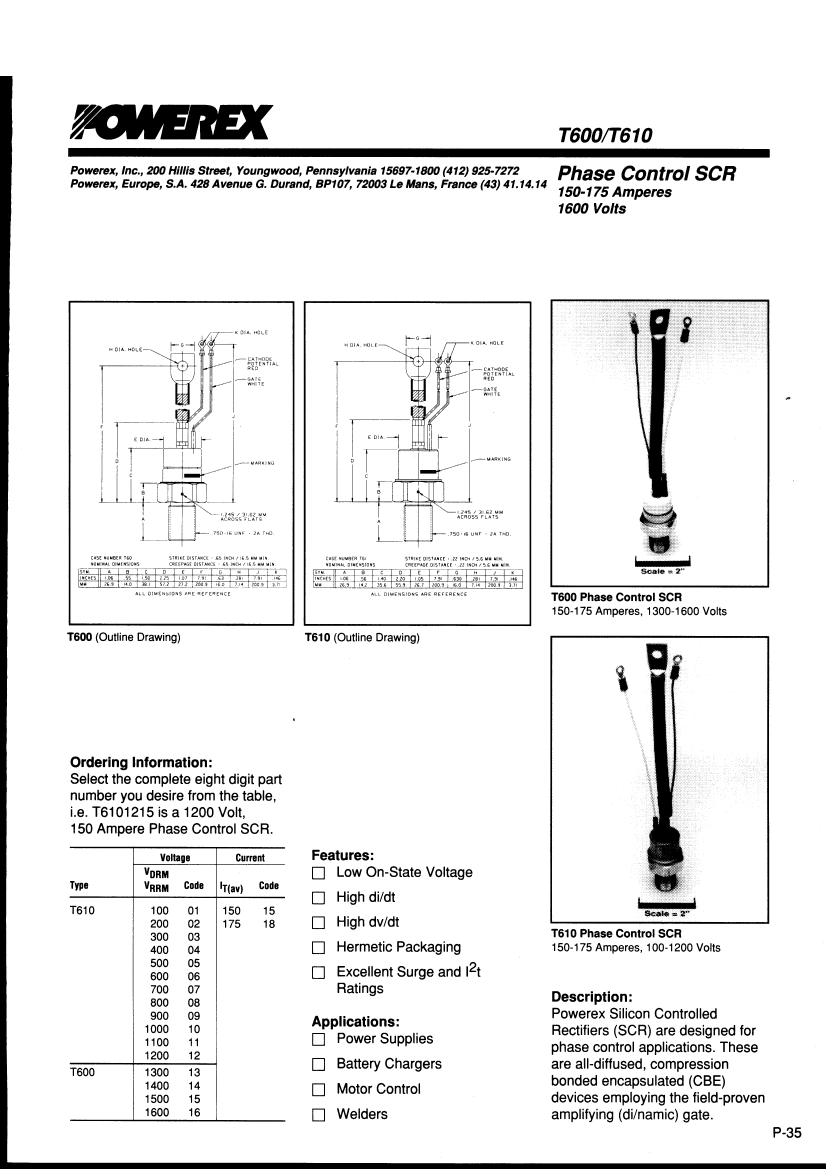

T6101218 Overview

Phase Control SCR (125-175 Amperes 1600 Volts)

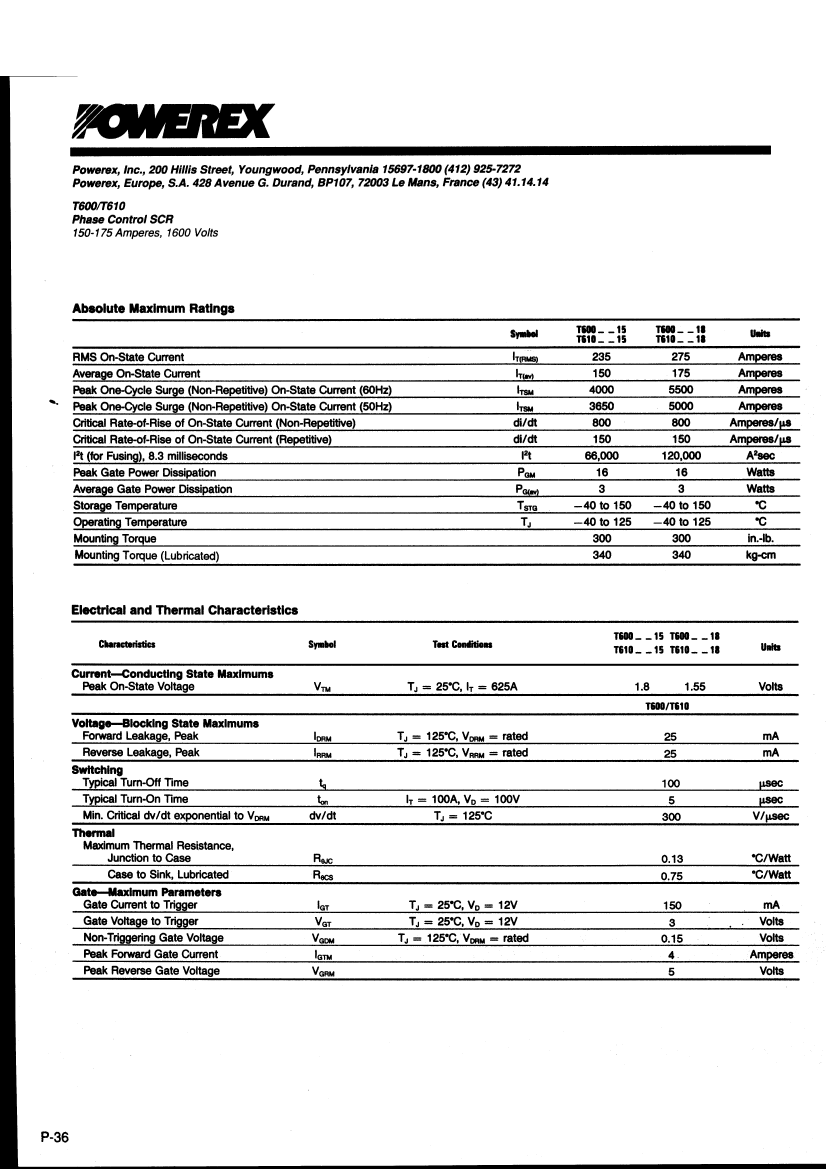

Parameter Name	Attribute value
Maker	POWEREX
package instruction	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknow
Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JESD-30 code	O-MUPM-H3
Maximum leakage current	25 mA
On-state non-repetitive peak current	4000 A
Number of components	1
Number of terminals	3
Maximum on-state current	175000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	275 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR
