2962

Using PWM to minimize power dissipation and maximize load

efficiency, the UDN2962W dual driver is recommended for impact

printer solenoids and stepper motors. It is comprised of two source/

sink driver pairs rated for continuous operation to

±3

A. It can be

connected to drive two independent loads or a single load in the full-

bridge configuration. Both drivers include output clamp/flyback

diodes, input gain and level shifting, a voltage regulator for single-

supply operation, and pulse-width modulated output-current control

circuitry. Inputs are compatible with most TTL, DTL, LSTTL, and

low-voltage CMOS or PMOS logic.

DUAL SOLENOID/MOTOR DRIVER

—PULSE-WIDTH MODULATED CURRENT CONTROL

Data Sheet

29319.12A†

GROUND

SENSE

SINK

SOURCE

THS

SOURCE

SINK

SENSE

THS

ABSOLUTE MAXIMUM RATINGS

at T

≤

+150°C

Supply Voltage, V

. . . . . . . . . . . . . . 45 V

Peak Output Current, I

OUT

. . . . . . . . .

4 A

Input Voltage Range,

. . . . . . . . . . . . . . . -0.3 V to +7.0 V

Package Power Dissipation,

. . . . . . . . . . . . . . . . . . . See Graph

Operating Temperature Range,

. . . . . . . . . . . . . . . . -20

C to +85

Storage Temperature Range,

. . . . . . . . . . . . . . . -55

C to +150

NOTE: Output current rating may be limited by

duty cycle, ambient temperature, and heat

sinking. Under any set of conditions, do not

exceed the specified peak current and a junction

temperature of +150°C.

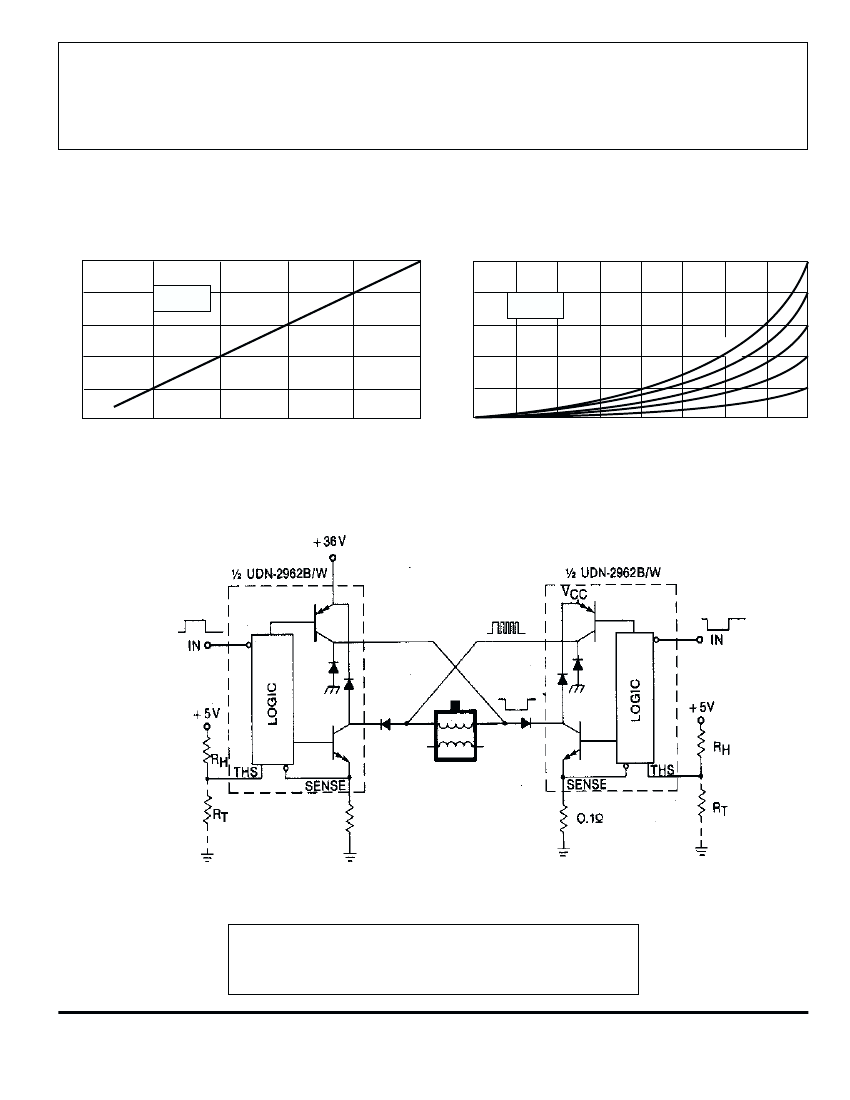

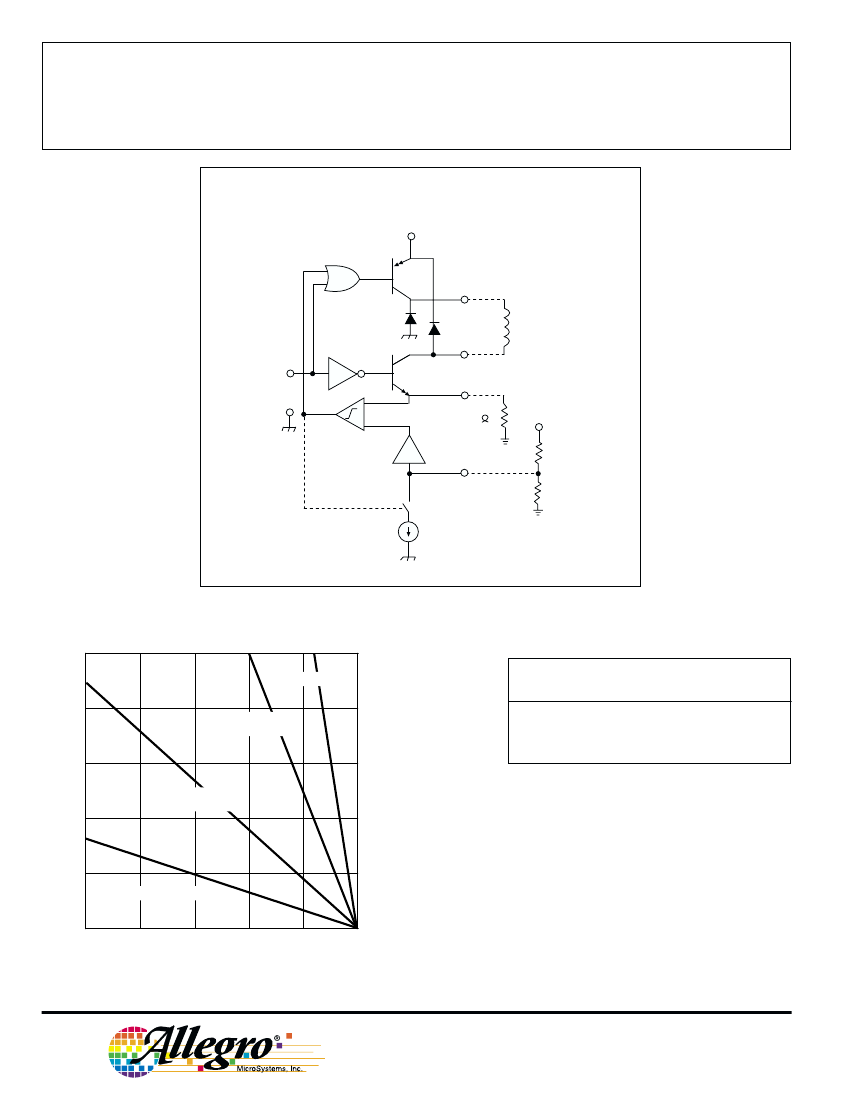

LOGIC

The peak output current and hysteresis for each source/sink pair is

set independently. Output current, threshold voltage, and hysteresis are

set by the user’s selection of external resistors. At the specified output-

current trip level, the source driver turns off. The internal clamp diode

then allows current to flow without additional input from the power

supply. When the lower current trip point is reached, the source driver

turns back on.

The UDN2962W is in a 12-pin single in-line power-tab package.

The tab is at ground potential and needs no insulation. For high-

current or high-frequency applications, external heat sinking may be

required.

Dwg. No. D-1001

FEATURES

4 A Peak Output

45 V Min. Sustaining Voltage

Internal Clamp Diodes

TTL/PMOS/CMOS Compatible Inputs

High-Speed Chopper

Always order by complete part number:

UDN2962W
