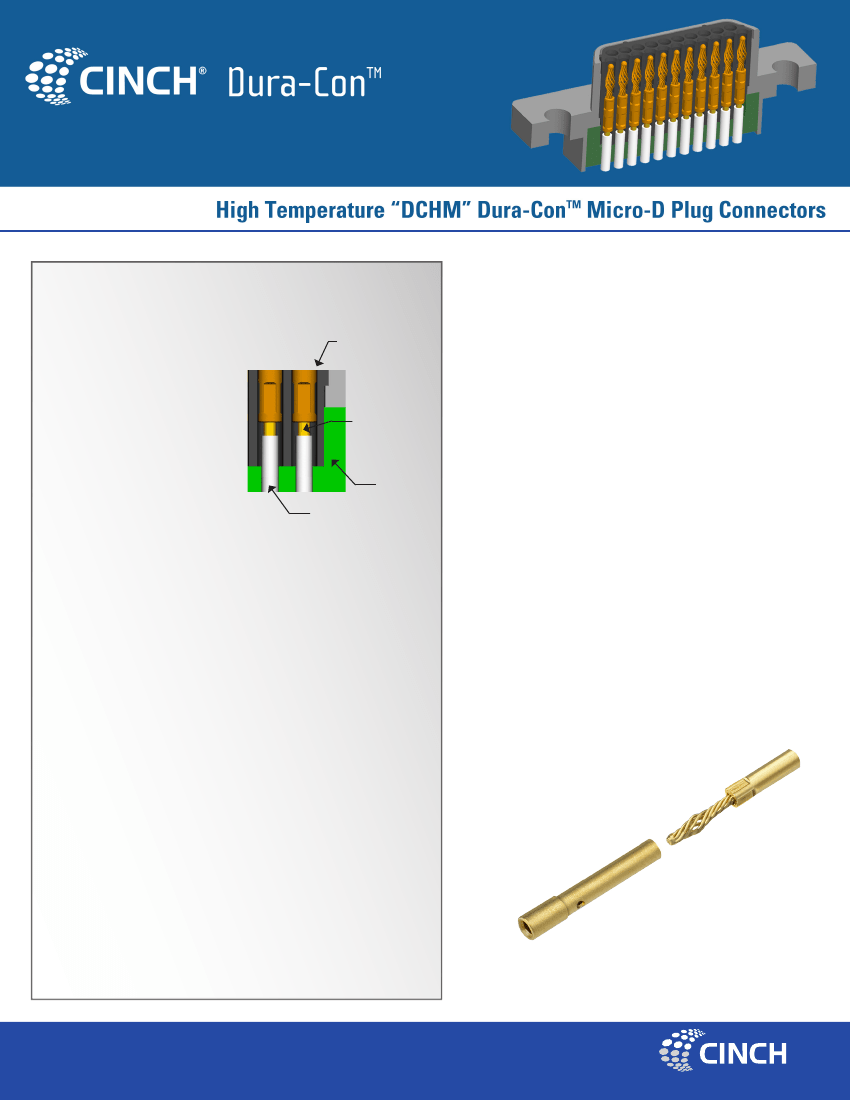

Plug Connector Technology
Cinch has teamed our
proven twist pin technology
with these custom designed
insulators capable of
meeting the extreme
mechanical and electrical
needs in the harshest
environments of military/
aerospace and industrial
applications
such as Down Hole Directional Drilling.
Cinch’s unique plug insulators are designed to provide
increased electrical protection between contact cavities
preventing any potential shorts due to exposed wire or
epoxy voids. Comprised of LCP material these connectors
offer superior performance and long life in severe
environments.
•
•
Custom
Insulator
Cinch’s Twist Pin Advantage
•
Combine the twist pin performance with increased
temperature range
•
BeCu wire strands provide seven points of
electrical contact
•
Achieve high mating cycles and better resistance
to shock and vibration
Approved system applications
(Aerospace, Defense and Geo-Thermal)
Qualified and approved to Mil-DTL-83513
Exposed
Conductor
Recessed
Into Insulator
2-Part
Epoxy
Wire Insulation
Product Offerings
•
•
Full harnessing capabilities ranging from simple point-
point to complex with many branches
Custom configurations and modifications available to fit
unique packaging and design requirements
Detail of
Dura-Con™ Twist Pin
Americas and Asia . 1700 Finley Road . Lombard, IL 60148 USA . Phone: 630.705.6000 . E-mail: Dura-Con@cinch.com
Europe . Shireoaks Road . Worksop S803HA . Nottinghamshire,U.K. . Phone: +44 (0) 1909 474 131 . E-mail: info@cinchuk.com
www.cinch.com
Dura-Con DCHM Plug v1 12 2013
©2013 Cinch Connectors

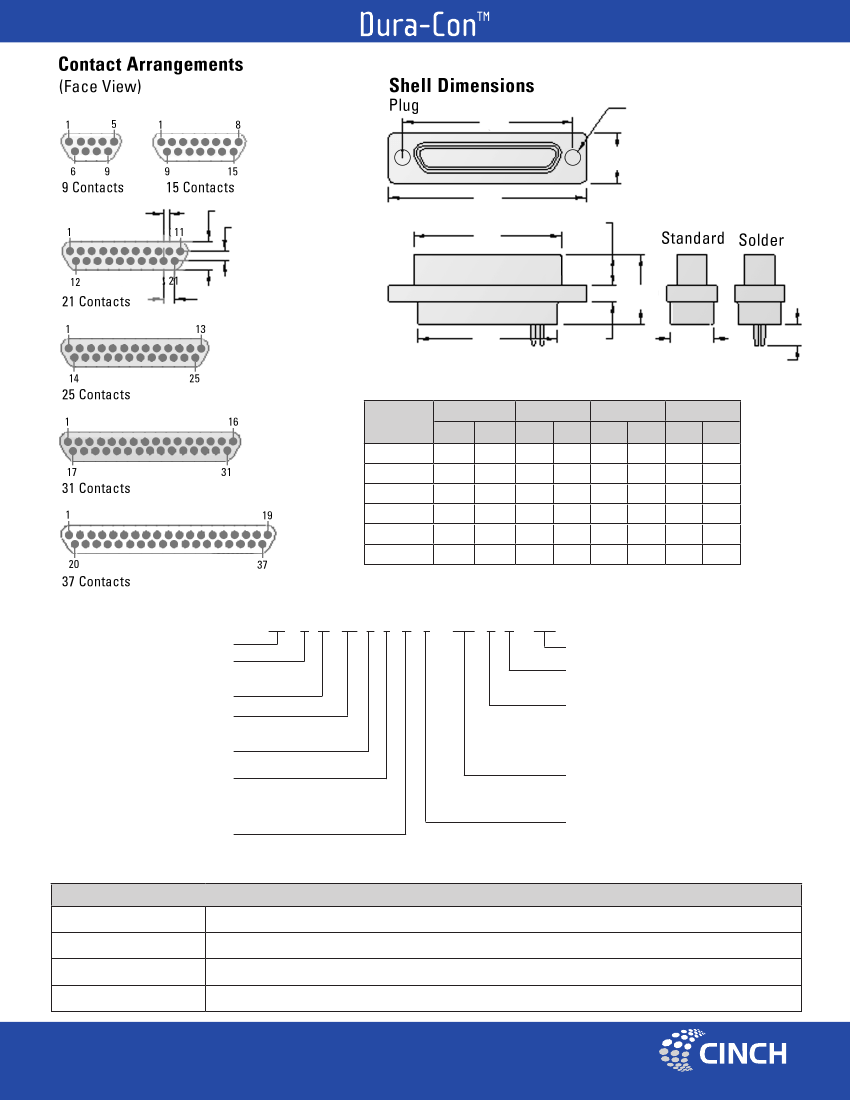

D
Two. Mtg. Holes
.096/ .088 Dia.
(2.44/2.24)
.308 Max.
(7.82)
.0254 Typ.
.130
.043
(1.09)
A
B
.186
(4.72)
Max.
.05 (1.27)
Typ.
.416 Max.
(10.57)
C
.098 Max.
(2.50)
.270
(6.86)
Max.
.100
(2.54)
Max.
No. of
Contacts
9 Plug
15 Plug
21 Plug
25 plug
31 Plug
37 Plug
A Max.
In.
0.785
0.935
1.085
1.185
1.335
1.485
mm.
19.94
23.74
27.56
30.10
33.97
37.72
B Max.
in.
0.334
0.484
0.634
0.734
0.884
1.034
mm.
8.48
C Max.
in.
0.400
mm.
10.16
13.97
17.78
20.32
24.13
27.94
D Nominal
in.
0.565
0.715
0.865
0.965
1.115
1.265
mm.
14.35
18.16
21.97
24.51
28.32
32.13
12.29 0.550
16.10 0.700
18.64 0.800
22.45 0.950
26.26 1.100
How to Order
DC
Cinch Dura-Con “D”
Insulator Type
H=High Temperature LCP
M=Metal Shell
Contact Positions
xx = 9,15, 21, 25, 31, 37
Contact Type
P = Plug (PIN)
Wire Size (in AWG)
6=26, 8=28
S=Solder Cup
(Skip to Mounting Hardware)
Insulated Wire Type
N = Mil-W-22759/33
H M XX P 6 N 6 - 36.0 B N - HT1
HT1=High Temperature 175°C
Shell Plating
N = Nickel
Mounting hardware
B = No Hardware
M = Jackscrew Hex Head
Low Profile Per
M83513/05-02
Lead Length
(in Inches)
XX.X
Insulation Color
1 = White
5 = Color Coded Per Mil-Std 681 System 1
6 = Coded Per Mil-Std 681 System 1
First 10 Colors then repeat
Performance Characteristics
Operating Temperature
Shock
Vibration
Sizes
-40°C to 175°C (-40°F to 347°F)
50 G’s per MIL-STD-1344, Method 2004, Condition E (EIA-364-27, Condition E)
20 G’s per MIL-STD-1344, Method 2005, Condition IV (EIA-364-28, Condition IV)
9, 15, 21, 25, 31 and 37. Please consult factory for larger sizes.
