8121SD9AGE: DescriptionPUSHBUTTON SWITCH, SPDT, MOMENTARY, 1A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size83KB，1 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric View All

8121SD9AGE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8121SD9AGE	-	-	View	Buy Now

8121SD9AGE Overview

PUSHBUTTON SWITCH, SPDT, MOMENTARY, 1A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT

8121SD9AGE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	15 weeks
Actuator stroke	5.7912 mm
Actuator type	PLUNGER
Other features	PANEL MOUNTABLE
body width	12.7 mm
body height	6.86 mm
Body length or diameter	12.7 mm
Nozzle length	0.28 inch
Casing type	UNTHREADED
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact (AC) maximum rated R load	1A@120VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Contact resistance	0.1 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	60000 Cycle(s)
End contact plating	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
PCB hole count	3
seal	EPOXY TERMINAL SEALED
Solderability	MIL-STD
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal length	0.138 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

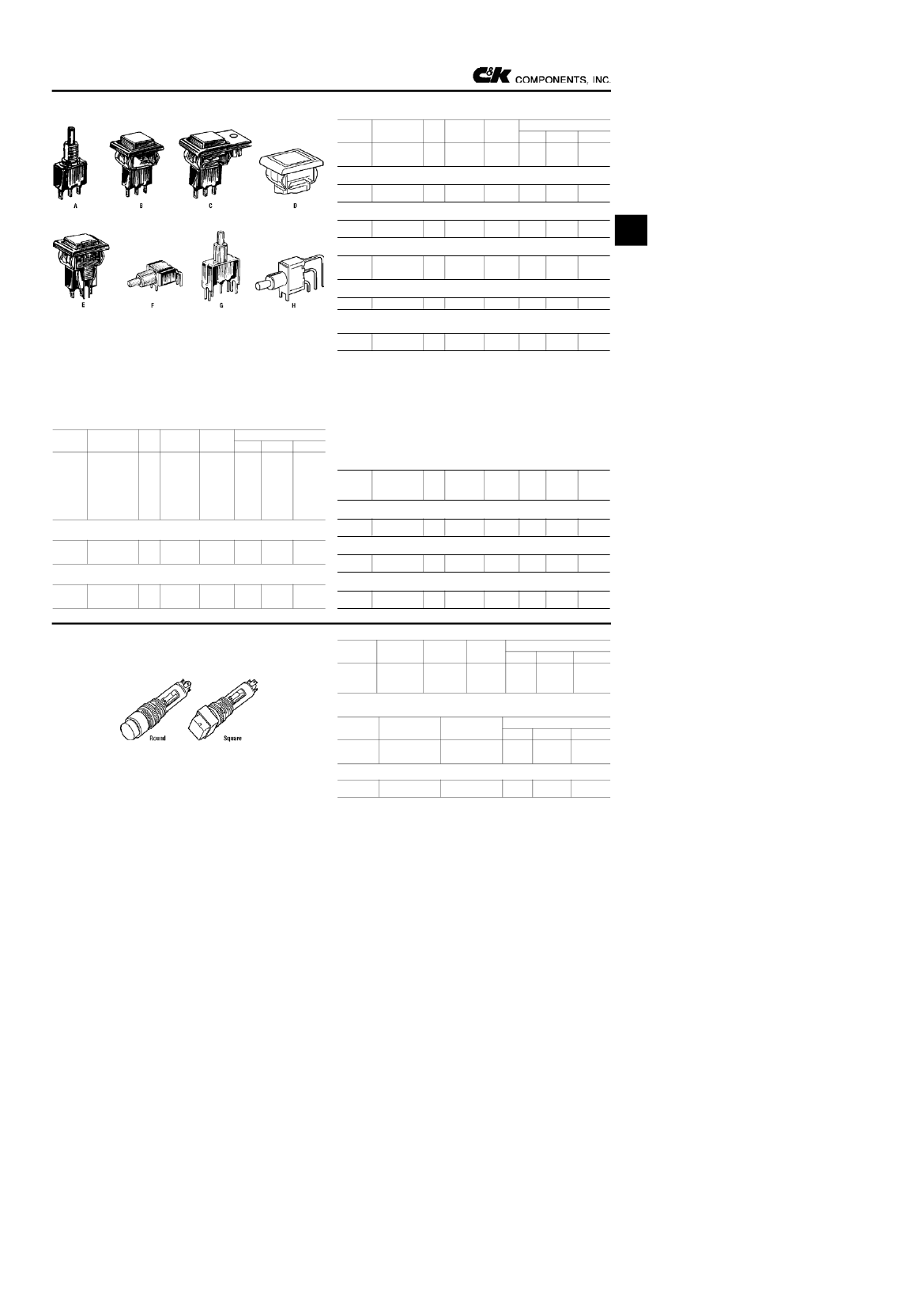

Preview

Download Datasheet

View All

Pushbutton Switches

8020 Series Momentary

Panel-Mounted and PC-Mounted Pushbutton Switches

Alternate Action and Momentary with Cap and Bezel

Panel Cut Out:

0.500

0.600".

Stock

No.

676-0475

676-0480

676-0485

Mfr.Õs

Type

8161J81ZQE22

8168J81ZQE22

8261J81ZQE22

Fig.

Components

Panel-Mount Pushbutton Switches (Continued)

Description

SPDT

DPDT

Switch

Function*

On-On

On-Mom.

On-On

EACH

1-99

5.38

6.61

10.79

100-499

4.79

5.89

9.79

500-999

4.38

5.38

8.95

Snap Action and Momentary with Cap and Bezel for LED

676-0490

676-0495

8121J82ZGE22

8125J82ZBE22

SPDT

On-Mom.

8.09

5.94

7.35

5.28

6.71

4.83

Alternate Action and Momentary with Cap and Bezel for LED

676-0510

676-0520

8161J82ZQE22

8261J82ZQE22

SPDT

DPDT

On-On

6.61

8.63

5.89

7.83

5.38

7.16

Snap Action and Momentary with Flush Cap and Square Bezel

676-6148

676-9249

676-9250

8121J83ZGE22

8125J83ZBE22

8221J83ZGE22

SPDT

DPDT

On-Mom.

8.20

5.81

11.82

7.25

5.14

10.44

6.69

4.74

9.64

Snap Action and Momentary with Cap, Bezel and Rectangular LED

676-0525

8121J85ZGE223

SPDT

On-Mom.

6.46

5.87

5.36

Panel Mount

Bushings:

Brass, nickel plated.

Plungers:

Glass filled nylon.

Cap and Bezel:

Black nylon.

Case:

Red diallyl phthalate.

Operating Temperature:

Ð30¡C to 65¡C.

Included Hardware:

2 nuts, locking ring, and lockwasher, where applicable.

8X25 Models. Contact Rating:

0.4 VA max. at 20 VAC or VDC max.

Contacts and Terminals:

Brass with gold plate over

nickel plate.

8X21 Models. Contact Rating:

1 amp at 120 VAC or 28 VDC, or 0.4 VA max. at 20 VAC or VDC max.

Common Contact

and Terminals:

Brass with gold plate over nickel plate.

Normally Open and Normally Closed Contacts:

Coin silver with

gold plate over nickel plate.

8X6 Models. Contact Rating:

6 amps at 120 VAC or 28 VDC; 3 amps at 250 VAC (816X-UL).

Center Contact and

Terminals:

Brass, silver plated.

End Contacts:

Silver, silver plated.

A Ò2Ó at the end of each part number indicates a black actuator; a Ò22Ó indicates a black actuator and black bezel; and a

Ò223Ó indicates a black actuator, black bezel, and a red LED.

Snap-Action and Momentary with Solder Terminals

Bushing:

-40 uns-2 A.

Terminal Spacing:

0.185".

Stock

No.

676-6151

676-9244

676-0400

676-0405

676-0410

676-0415

676-0420

676-0425

676-0430

676-0435

Mfr.Õs

Type

8121SHCGE

8125SHCBE

8121SHZGE

8125SHZBE

8221SHZGE

8225SHZBE

8321SHZGE

8325SHZBE

8421SHZGE

8425SHZBE

Fig.

Description

SPDT

DPDT

3PDT

4PDT

Switch

Function*

On-Mom.

EACH

1-99

7.45

5.13

5.88

5.05

10.86

5.84

13.10

10.39

16.65

14.82

100-499

6.58

4.54

5.33

4.49

9.85

5.30

12.00

9.52

15.26

13.58

500-999

6.07

4.19

4.88

4.11

9.01

4.85

10.97

8.71

13.95

12.41

Alternate Action and Momentary with Cap, Bezel, and Rectangular LED

Panel Cut Out:

0.600

0.500".

676-0530

676-0535

8161J86ZQE223

8168J86ZQE223

SPDT

On-On

On-Mom.

8.58

7.37

7.80

6.70

7.12

6.12

PC-Mount Pushbutton Switches

Bushings:

Brass, nickel plated.

Plungers:

Glass filled nylon.

Cap:

Black nylon.

Case:

Red diallyl phthalate.

Operating

Temperature:

Ð30¡C to 65¡C.

8X25 Models. Contact Rating:

0.4 VA max. at 20 VAC or VDC max.

Contacts and Terminals:

Brass with gold plate over

nickel plate.

8X21 Models. Contact Rating:

1 amp at 120 VAC or 28 VDC, or 0.4 VA max. at 20 VAC or VDC max.

Common Contact

and Terminals:

Brass with gold plate over nickel plate.

Normally Open and Normally Closed Contacts:

Coin silver with

gold plate over nickel plate.

8X6 models. Contact Rating:

0.4 VA max. at 20 VAC or vDC max.

Contacts and Terminals:

Brass with gold plate over

nickel plate.

Snap-Action and Momentary/Right Angle Mounting

676-6150

676-0540

676-9251

676-0545

8121SD9AGE

8125SD9ABE

8125SD9AGE

8225SD9ABE

SPDT

DPDT

On-Mom.

7.82

5.52

4.83

7.70

6.96

4.92

4.27

7.00

6.38

4.48

3.94

6.39

Alternate Action and Momentary/Right Angle Mounting

676-9354

676-9355

8121SH9AGE

8121SH9ABE

SPDT

On-On

On-Mom.

7.81

7.68

6.90

6.78

6.37

6.26

Alternate Action and Momentary with Solder Terminals

Bushing:

-40 uns-2 amps.

676-0440

676-0445

676-0450

8161SHZQE2

8168SHZQE2

8261SHZQE2

SPDT

DPDT

On-On

On-Mom.

On-On

5.56

6.08

7.59

4.96

5.41

6.89

4.52

4.94

6.29

Snap-Action and Momentary with Support Bracket

676-0565

676-0570

8121SD9V3GE

8125SD9V3BE

SPDT

On-Mom.

7.63

5.49

6.94

4.87

6.35

4.46

Snap Action and Momentary with Cap and Bezel

Panel Cut Out:

0.500

0.600".

676-0455

676-0460

676-0470

8121J81ZGE22

8125J81ZBE22

8225J81ZBE22

SPDT

DPDT

On-Mom.

7.98

5.83

7.62

7.24

5.17

6.92

6.62

4.74

6.33

Snap-Action and Momentary/Vertical Right Angle Mounting with Support Bracket

676-9252

676-9356

8121SD9AV2GE

8125SD9AV2BE

SPDT

On-Mom.

7.93

5.62

7.01

4.96

6.46

4.58

*Mom. = Momentary.

8.1 mm Lighted Pushbutton

Switches and Indicators

8.1 mm Switch Housing

Stock

No.

676-9287

676-9288

676-9289

676-9290

Mfr.Õs

Type

1.15116.001

1.15116.011

1.15116.021

1.15116.031

Description

SPST/NO

Switch

Function*

Off-Mom.

Off-On

Off-Mom.

Off-On

EACH

1-99

11.46

12.10

16.73

17.70

100-499

7.48

7.90

10.92

11.56

500-999

7.26

7.65

10.60

11.19

*Mom.=Momentary. Round. àSquare.

Keycap Ñ Switches Only

Stock

No.

676-9291

676-9292

676-9293

Extremely compact design, fits 0.319" (8.1) mounting hole dia., mounts with threaded ring. Round and square frames

available.

Color:

Black.

Contact Rating:

250 mA at 42 VAC or VDC.

Electrical Life:

105 operations min.

Operating

Temperature:

Ð25¡C to 55¡C.

Lamp:

T1 incandescent.

Housing:

Polyamide with solder terminals.

Complete Assembly

Length:

1.57" (40 mm). For complete assembly, order switch body, lens and lamp separately below. Other keycap/lens

colors, LED lamps also available. Momentary switches are SPST N.O; maintained are SPST.

Degree of Protection:

IP40.

Mfr.Õs

Type

5.05510.470/1303

5.05510.471/1303

5.05510.471/1502

Description

Round, Green

Square, Red

Square, Green

EACH

1-99

1.81

100-499

1.16

500-999

1.09

T1 Lamps

676-9294

676-9295

1.90180.472

1.90180.473

12 V Incandescent

24 V Incandescent

6.05

5.79

4.16

3.99

3.86

3.70

Same Day Shipments For Product In Stock
