DSB534HA-14.85MHZ

Description
Sine Output Oscillator, 14.85MHz Nom
CategoryPassive components    oscillator
File Size27KB,1 Pages
ManufacturerDaishinku Corp.
Websitehttp://www.kds.info/
Download Datasheet Parametric View All

DSB534HA-14.85MHZ Overview

Sine Output Oscillator, 14.85MHz Nom

DSB534HA-14.85MHZ Parametric

Parameter NameAttribute value
MakerDaishinku Corp.
Reach Compliance Codeunknown
Ageing1 PPM/YEAR
Frequency Adjustment - MechanicalNO
frequency stability2.5%
Manufacturer's serial numberDSB534HA
Installation featuresSURFACE MOUNT
Nominal operating frequency14.85 MHz
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Oscillator typeSINE
Output impedance10000 Ω
Output level0.8 V
physical size5mm x 3.2mm x 1.5mm
Nominal supply voltage3 V
surface mountYES

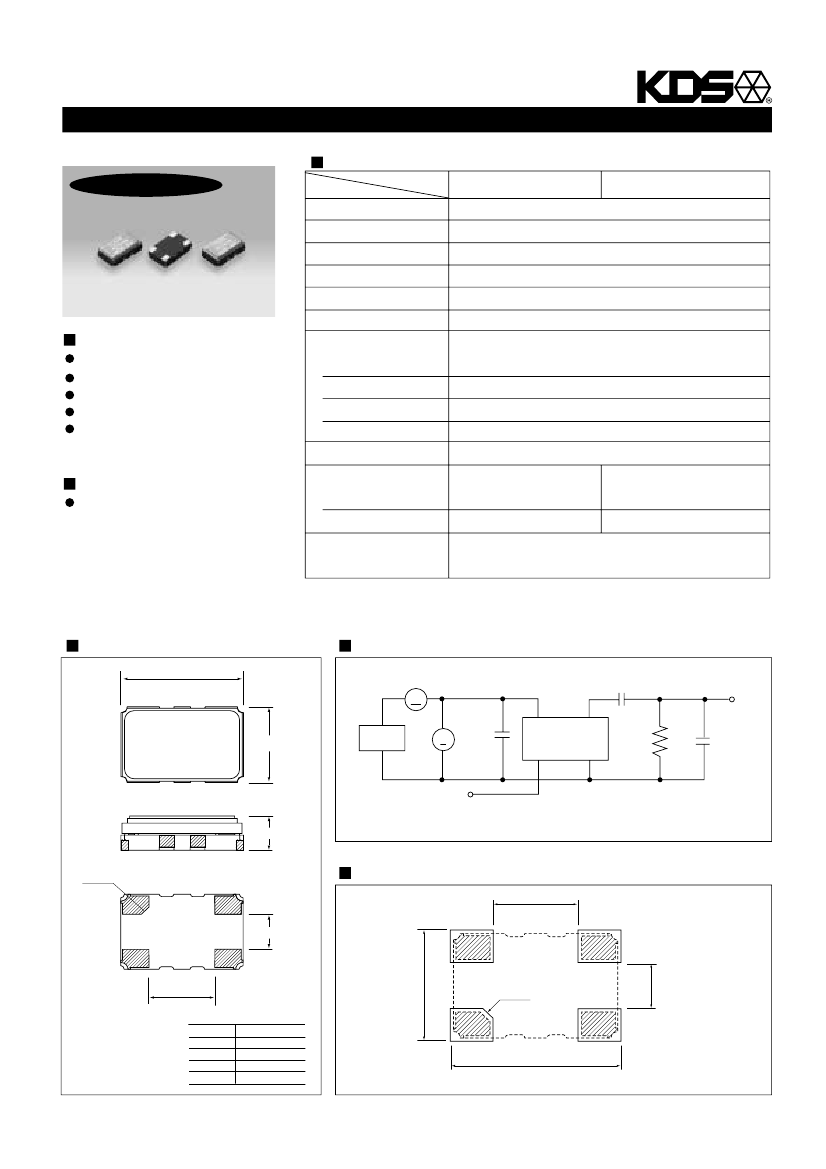

ULTRA MINIATURE SIZE SMD (VC-)TCXO
DSA534HA/DSB534HA
GENERIC SPECIFICATION
Under development
ITEM
TYPE
DSB534HA(TCXO)
DSA534HA(VC-TCXO)
Standard Frequency
Frequency Range
Supply Voltage
Current Consumption
Output Level
Output Load
12.6 / 12.8 / 13 / 14.4 / 14.85 / 16.8 / 19.2 / 19.68 / 19.8 MHz
12.6MHz ~ 20MHz
+3.0 V (+2.6 to + 3.3V available)
+1.5mA max. (F<15MHz) / +1.7mA max. (F≥15MHz)
0.8 Vp-p min.
10kΩ // 10 pF
±1.5
ppm (After 2 reflows)
±2.5
ppm / –30 ~ +85˚C
±0.2
ppm (+3.0V
±
0.3V)
±1.0
ppm / year
3.0 mS
±10.0ppm
/ V typ.
(5~15ppm / V optional)
Positive
FEATURES
Ultra miniature size (0.026cc).
Light weight (0.08g).
High reliability with IC Circuits.
Low phase noise.
Reflow soldering
(2 Reflows available).
APPLICATIONS
Cellular phone
(PDC,GSM,PCN,PCS,PHS and
other systems)
Frequency Stability
Tolerance
vs. Temperature
vs. Supply Voltage
vs. Aging
Start up
Frequency Control
Control Sensitivity
Response Slope
SSB Phase Noise
–130dBc / Hz (Offset 1kHz · F<15MHz)
–120dBc / Hz (Offset 1kHz · F≥15MHz)
Please contact your KDS sales representative to discuss particular spec requirements.
DIMENSIONS [mm]
5.0
±
0.2
MEASUREMENT CIRCUIT
1000pF
#4
#3
mA
+
0.01µF
V
V
CC
V
CONT
/GND
Output
(VC-)TCXO
GND
R
L
C
L
T.P.
Marking
3.2
±
0.2
Power
Supply
#1
#2
VC-TCXO:V
CONT
TCXO
:GND
R
L
=10kΩ
C
L
=10pF(Include Jig stray capacitance)
1.5max.
C 0.3
RECOMMENDED LAND PATTERN
#1
#2
2.6
[mm]
1.5
3.4
2.8
C 0.3
Pin Connections
Pin No.
#1
#2
#3
#4
Connection
Vcont/GND
GND
OUTPUT
Vcc
5.2
1.4
#4
#3
