CTCX-A1B3-25.000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CTCX-A1B3-25.000

Preview

CTCX-A1B3-25.000: DescriptionClipped Sine Output Oscillator, 25MHz Nom, ROHS COMPLIANT PACKAGE-14/4; CategoryPassive components oscillator; File Size684KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CTCX-A1B3-25.000 Overview

Clipped Sine Output Oscillator, 25MHz Nom, ROHS COMPLIANT PACKAGE-14/4

CTCX-A1B3-25.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cardinal Components
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
Manufacturer's serial number	CTCX
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	1 V
physical size	18.3mm x 11.7mm x 4.7mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

Thru Hole TCXO

CARDINAL COMPONENTS

• Tight frequency

• Stability over temperature with excellent aging

Series CTCX

Part Numbering Example: CTCX - A3 B3 - 15.360

CTCX

SERIES

CTCX

A3

OPERATING TEMP.

A1=-10°C ~ +50°C

A2=-10°C ~ +60°C

A3=-30°C ~ +75°C

A4=-40°C ~ +75°C

B3

STABILITY

B1 = ±5.0 ppm

B2 = ±3.0 ppm

B3 = ±2.5 ppm

15.360

FREQUENCY

Specifications:

Frequency Range:

4.000 MHz to 25.000 MHz

Available Stability Options:

±5.0 ppm

±2.5 ppm

±3.0 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Output Voltage:

Frequency Trim Range

With Externally

Adjustable Trimmer:

Output Load:

Maximum Input Current:

Maximum Frequency

Aging at +25°C:

Freq. Stability Vs. Change

of Input Voltage of ±5%:

Storage Temperature

CTCX

Standard

Clipped Sine

+5.0 VDC ±5%

-30°C to +75°C

-10°C to +60°C

Standard

1.0 Volt Peak to Peak

Minimum

±3.0 ppm Minimum

10K OHM Parallel with 10 pf

2.0 mA

±1 ppm/yr

±0.5 ppm

-40°C to +85°C

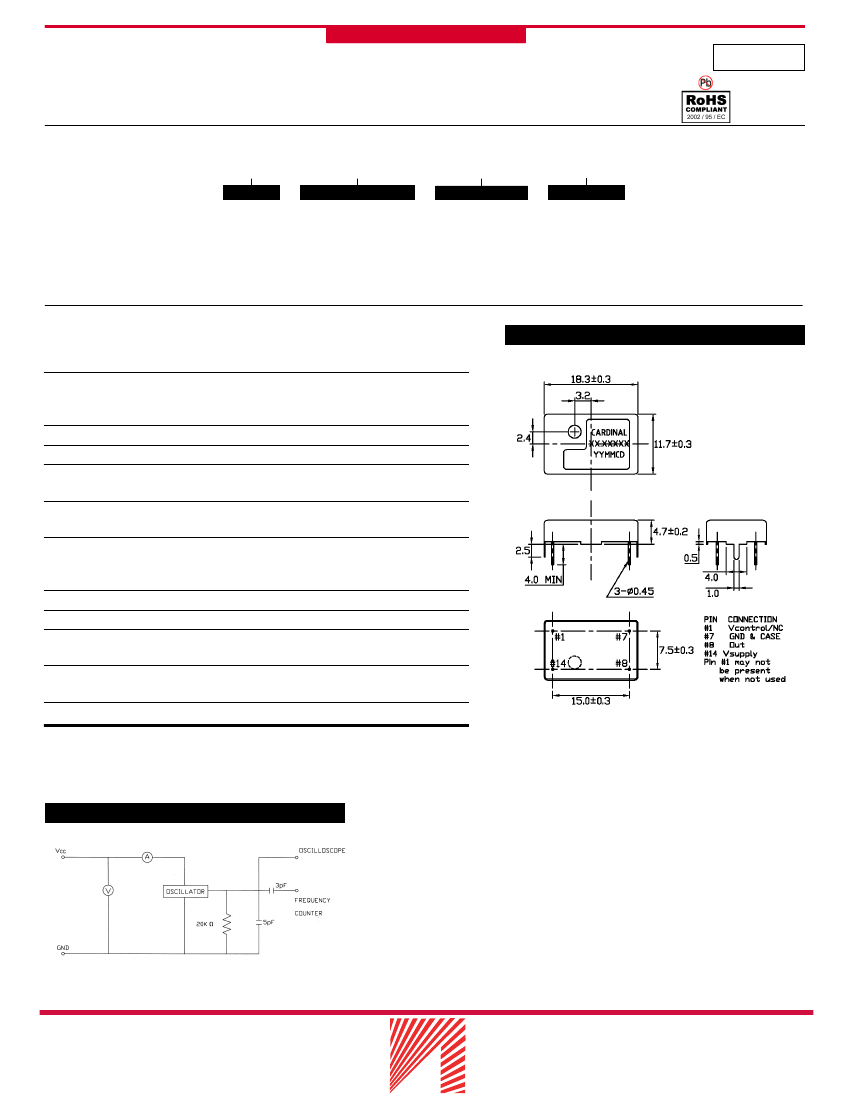

TEST CIRCUIT

155 Route 46 West

Wayne, NJ 07470

Rev:

T-090414-12

Cardinal Components, Inc.

T-4

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
