A3014-120-010-10-Z: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size172KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

A3014-120-010-10-Z Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Receptacle

A3014-120-010-10-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.463 inch
subject depth	0.709 inch
body length	0.441 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A3014
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

ELECTRICAL:

VOLTAGE RATING: 125 VAC RMS

CURRENT: 1.5 AMP

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 500M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 1000VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +°70 C

HOW TO ORDER:

A

3

0

1

4

-

1

2

0

-

0

1

0

-

X

0

-

Z

NUMBER OF POSITIONS:

1 - 4 POSITIONS

NUMBER OF CONTACTS:

2 - 4 CONTACTS

SHIELD:

0 - NON SHIELDED

MATERIAL:

INSULATOR: PBT 10% Glass Filled ( UL 94V-0 Rated)

CONTACT: 0.45mm Dia. Phosphor Bronze over Nickel Plated

PLATING OVERALL: FLANGE:

RoHS

0 - FULL Au

0 - NO FLANGE

COMPLIANT

1 - 10u" Au

2 - 15u" Au

3 - 30u" Au

4 - 50u" Au

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MECHANICAL:

NUMBER OF PORTS:

01

DURABILITY: 500 Mating Cycles Min.

E195981

Rev

0

Issued

A Revised for RoHS Compliance

SCALE

TOL. DEC.

.X +/- 0.35

MAT'L

.XX +/- 0.25

.XXX +/-

Date

Drawn Checked Approved

D.H.

S.M.

05/06/04

B.S.

S.M.

3/6/07

FINISH

ANGLE +/-

UNIT: mm

SMP TECHNOLOGY, INC.

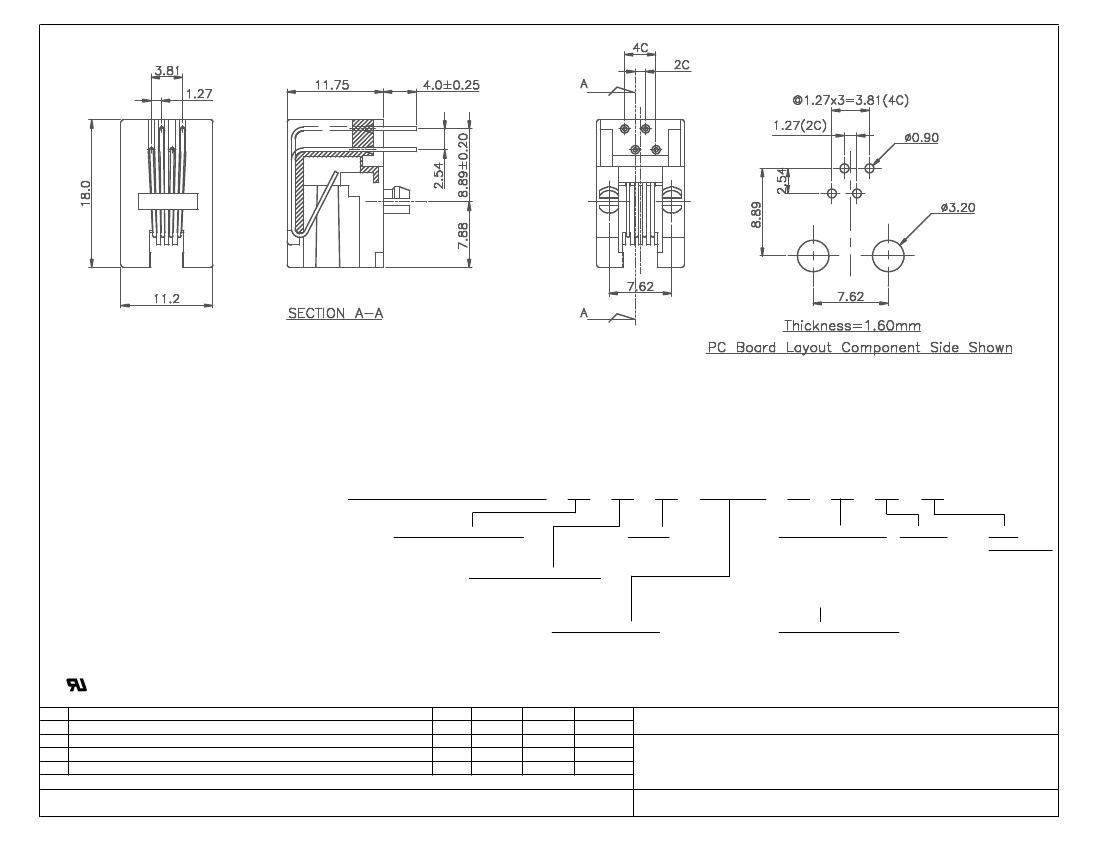

RJ11 (4P4C), Very Low Profile, Non-Shielded

SERIES: A 3 0 1 4 - 1 2 0 - 0 1 0 - X 0 - Z

Pg: 1
