PLCH12M63ST30A1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> PLCH12M63ST30A1

PLCH12M63ST30A1: DescriptionRectangular Power Connector, 12 Contact(s), Male, Press Fit Terminal; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

PLCH12M63ST30A1 Overview

Rectangular Power Connector, 12 Contact(s), Male, Press Fit Terminal

PLCH12M63ST30A1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Positronic Industries
Reach Compliance Code	unknow
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	MALE
Contact material	BERYLLIUM COPPER/BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PLC
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	PRESS FIT
Total number of contacts	12
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

ower

onnection

ystems

RIGHT ANGLE

PRESS-FIT CONNECTORS

FOR USE WITH “FLAT ROCK” TOOLING

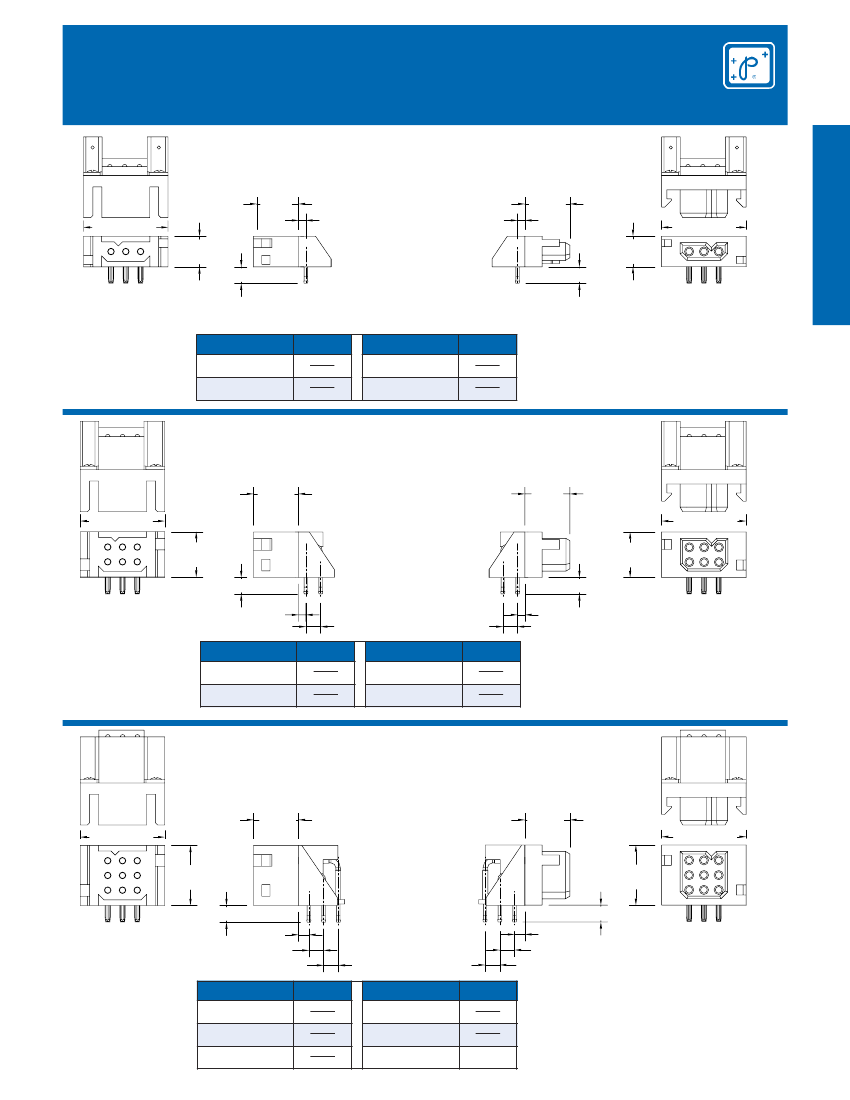

PLA 90° PRESS-FIT CONNECTORS

CODE 63, 0.219 [5.56] CONTACT EXTENSION

0.560

[14.22]

0.560

[14.22]

0.138 [3.51]

0.408

[10.36]

0.219 [5.56]

Positronic Industries, Inc.

www.connectpositronic.com

A±0.020 [0.51]

0.138 [3.51]

0.408

[10.36]

A±0.020 [0.51]

Typical part number:

PLA03M63B30A1

PLAH03M63B30A1

In Step 5 of Ordering

Information, choose

“ST2 or “ST3” to secure

connector to PCB. Other

options available, contact

Technical Sales.

Typical part number:

PLA03F63BN0A1

PLAH03F63BN0A1

PART NUMBER

PLA03*63B30A1

PLAH03*63B30A1

PLA04*63B30A1

PLAH04*63B30A1

1.126

[28.60]

1.324

[33.63]

PART NUMBER

PLA06*63B30A1

PLAH06*63B30A1

PLA08*63B30A1

PLAH08*63B30A1

1.718

[43.64]

2.112

[53.64]

*Asterisk determines gender of connector,

M for male, F for female.

Plating-Gold flash over nickel or 0.000030 [0.75µ] gold

over nickel on contacts. See ordering information.

For connection systems 1,2 and 5.

PLB 90° PRESS-FIT CONNECTORS

CODE 63, 0.219 [5.56] CONTACT EXTENSION

MALE

A±0.020 [0.51]

0.606

[15.39]

0.219 [5.56]

0.560

[14.22]

0.560

[14.22]

FEMALE

A±0.020 [0.51]

0.606

[15.39]

Typical part number:

PLB06M63B30A1

PLBH06M63B30A1

In Step 5 of Ordering

Information, choose

“ST2 or “ST3” to secure

connector to PCB. Other

options available, contact

Technical Sales.

0.138 [3.51]

0.197 [5.00]

0.138 [3.51]

0.197 [5.00]

Typical part number:

PLB06F63B30A1

PLBH06F63B30A1

PART NUMBER

PLB06*63B30A1

PLBH06*63B30A1

PLB08*63B30A1

PLBH08*63B30A1

1.126

[28.60]

1.324

[33.63]

PART NUMBER

PLB12*63B30A1

PLBH12*63B30A1

PLB16**63B30A1

PLBH16**63B30A1

1.718

[43.64]

2.112

[53.64]

*Asterisk determines gender of connector,

M for male, F for female.

Plating-Gold flash over nickel or 0.000030 [0.75µ] gold

over nickel on contacts. See ordering information.

For connection systems 1,2 and 5.

PLC 90° PRESS-FIT CONNECTORS

CODE 63, 0.219 [5.56] CONTACT EXTENSION

MALE

0.560

[14.22]

A±0.020 [0.51]

0.560

[14.22]

A±0.020 [0.51]

FEMALE

0.802

[20.37]

0.219 [5.56]

0.802

[20.37]

0.219 [5.56]

0.138 [3.51]

0.197 [5.00]

Typical part number:

PLC09M663B30A1

0.138 [3.51]

0.197 [5.00]

Typical part number:

PLC09F63B30A1

PLCH09F63B30A1

In Step 5 of Ordering

Information, choose

“ST2 or “ST3” to secure

connector to PCB. Other

options available, contact

Technical Sales.

PART NUMBER

PLC09*63B30A1

PLCH09*63B30A1

PLC12*63B30A1

PLCH12*63B30A1

PLC18*63B30A1

PLCH18*63B30A1

1.126

[28.60]

1.324

[33.63]

1.718

[43.64]

PART NUMBER

PLC24*63B30A1

PLCH24*63B30A1

PLC30*63B30A1

PLCH30*63B30A11

2.112

[53.64]

2.506

[63.65]

*Asterisk determines gender of connector,

M for male, F for female.

Plating-Gold flash over nickel or 0.000030 [0.75µ] gold

over nickel on contacts. See ordering information.

For connection systems 1,2 and 5.

DIMENSIONS ARE IN INCHES [MILLIMETERS].

ALL DIMENSIONS ARE SUBJECT TO CHANGE.

PCS SERIES

MALE

FEMALE
