Cam Type
RC310
Control selector switches
Cam-type control selector
switches
■
Description

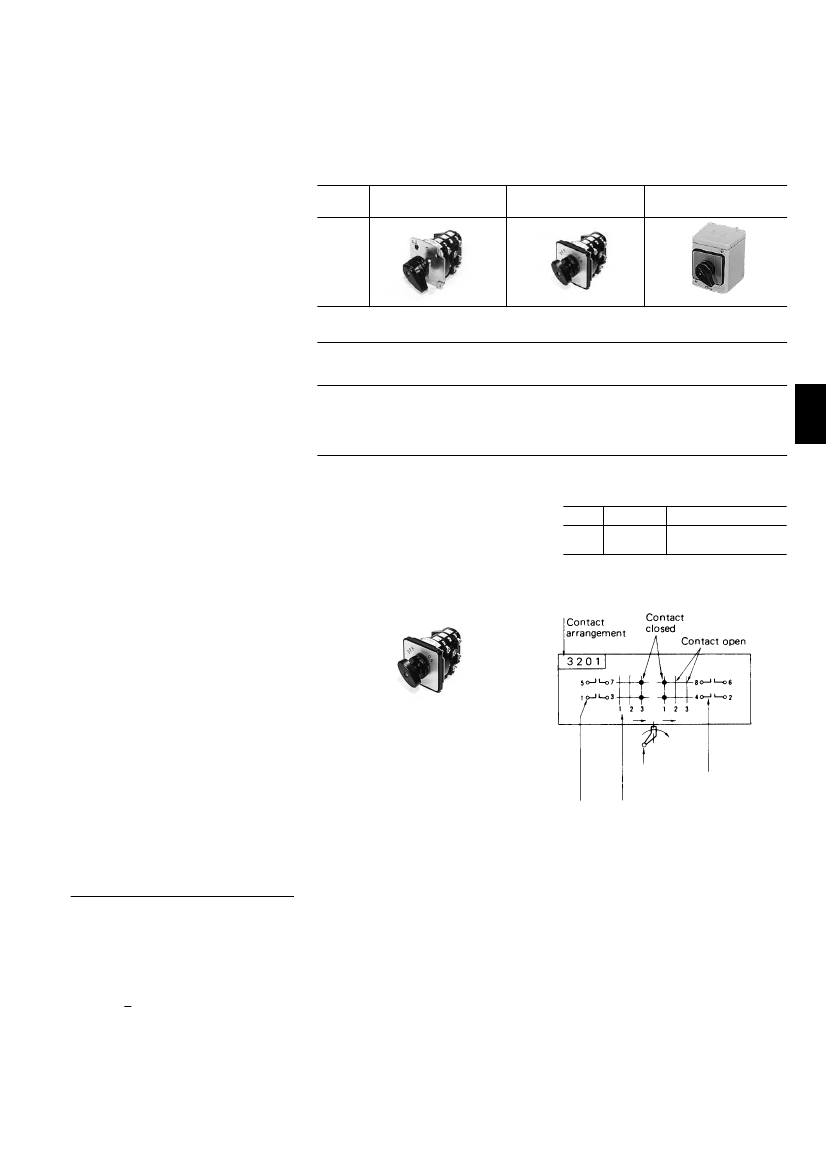

FUJI cam-type control switches are
recommended for use on switchboards,
control panels and switchgear because
of their reliability in service. The main
type is RC310 with operational current
ratings of 10A.
Simplified and economical circuits can be
designed around the RC310, since it can
handle loads of up to 10A at 220VAC
without the need of contactors. Typical
examples of complex circuits based on
the attractive features of these
economical cam-type selector switches
are given on pages 04/265 to 04/268.
FUJI is prepared to manufacture other
versions to suit your particular
applications, and switches with up to 12
selector positions can be made to order.
RC310 switches are normally supplied
with H-type handles. Alternative handle
shapes available include the pistol-grip
P-type, cane-handle shaped S-type and
rosette shaped R-type.
Switches with a 2-12 position maintained
type, 3-position center spring-return type
and center spring-return type with locking
device are also available.
Type
Flush mounting
x-type
Semi-flush mounting
Enclosed
g-type
RC310-1
SG-740
SG-743
AF-191
RC310x-1
■
RC310-1
RC310g-1
Ratings
Rated thermal
current
(A)
10
Breaking capacity (A)
Voltage
AC
(V)
Inductive
24
110
220
440
550
10
7.5
7.5
2.5
2
DC
Resistive
10
3
0.8
0.4
0.3
DC
Inductive
5
1.3
0.45
0.2
0.15
Type
RC310-1
04
■
Technical data
Insulation resistance: Over 100MΩ at 500VDC
Dielectric strength: 2,500VAC. 1 minute
Ambient temperature: –5° to +60°C
Operating cycle: 600 cycles/hour
■
■
Life expectancy (operations)
Mechanical
Electrical
250,000 at 220VAC 7.5A
500,000 at 220VAC 3A
Type
RC310-1 5 million
Contact arrangement:
See page 04/265
.
■
Contact arrangement (typical)
(Viewed from the direction of the handle)
Ordering information
Specify the following
(See page 04/264):
■
1.
2.
3.
4.
5.
6.
7.
8.
Type number
Mounting method
Operation
Selector position and notch angles
No. of contact blocks
Contact arrangement
Handle
Handle colors
Handle
Contact
of upper Nos. of selector
positions
side
Contact of
lower side
Example
Cam switch,
rated current 10A .................. RC310-1
Flush mounting ............................ x
Maintained operation ......................... M
Contact arrangement ............................. 3201
(3-position, 2 contact blocks,
H type handle ................................................... H
Black color handle............................................... B
Type number
RC310x-1M3201HB
Note: “C” in the type No. nomenclature must be
filled with numbers appearing in the table of “The
Contact Arrangement”.
(page 04/265)
When requiring special arrangements not appearing
in the list clearly specify the arrangement required.
Note that “C” in the type nomenclature must not be
removed in this case.
RC310x-1MCHB
Fuji Electric FA Components & Systems Co., Ltd./D & C Catalog
Information subject to change without notice
04/263
Cam Type
RC310
Control selector switches

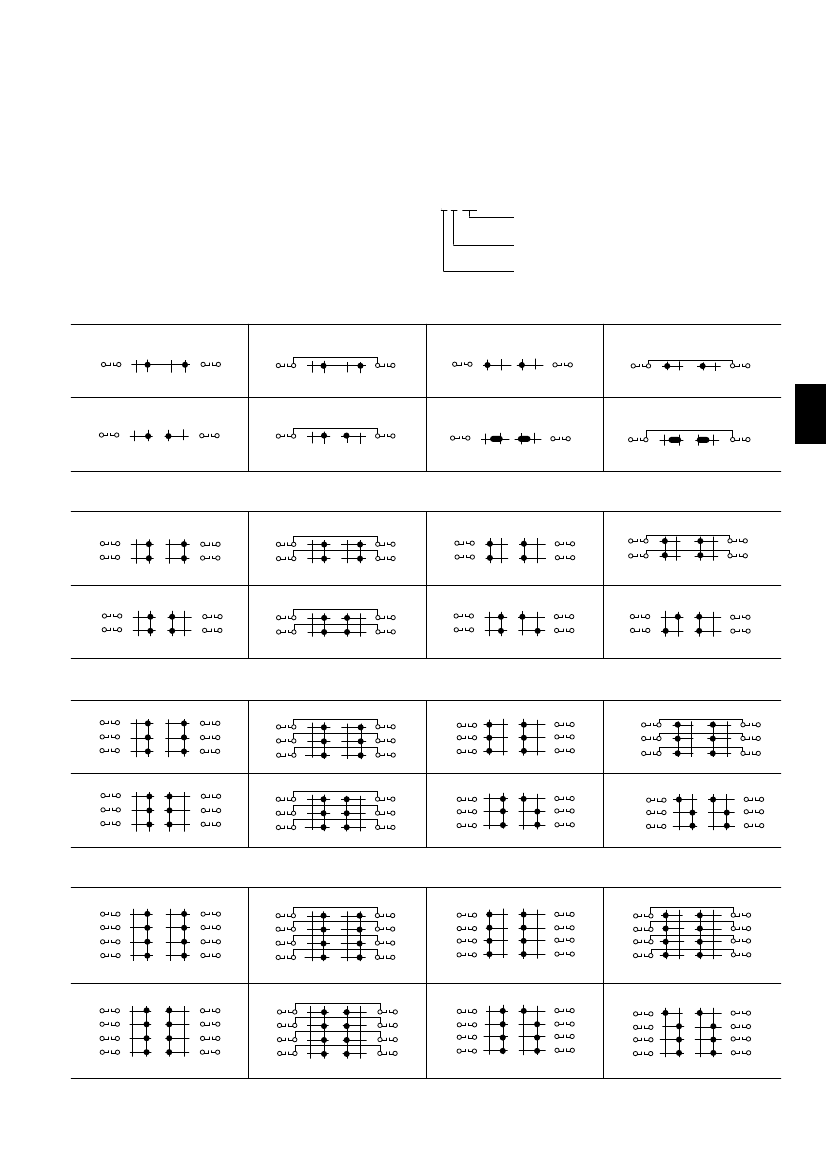

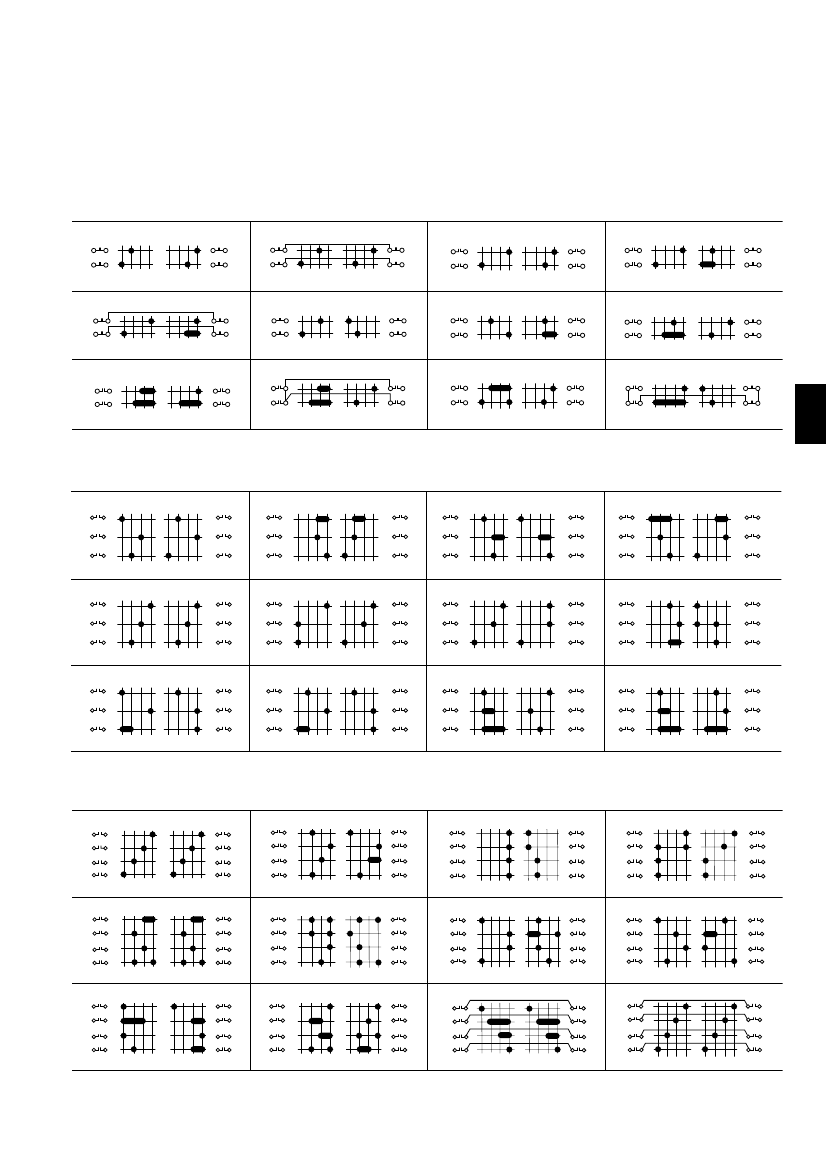

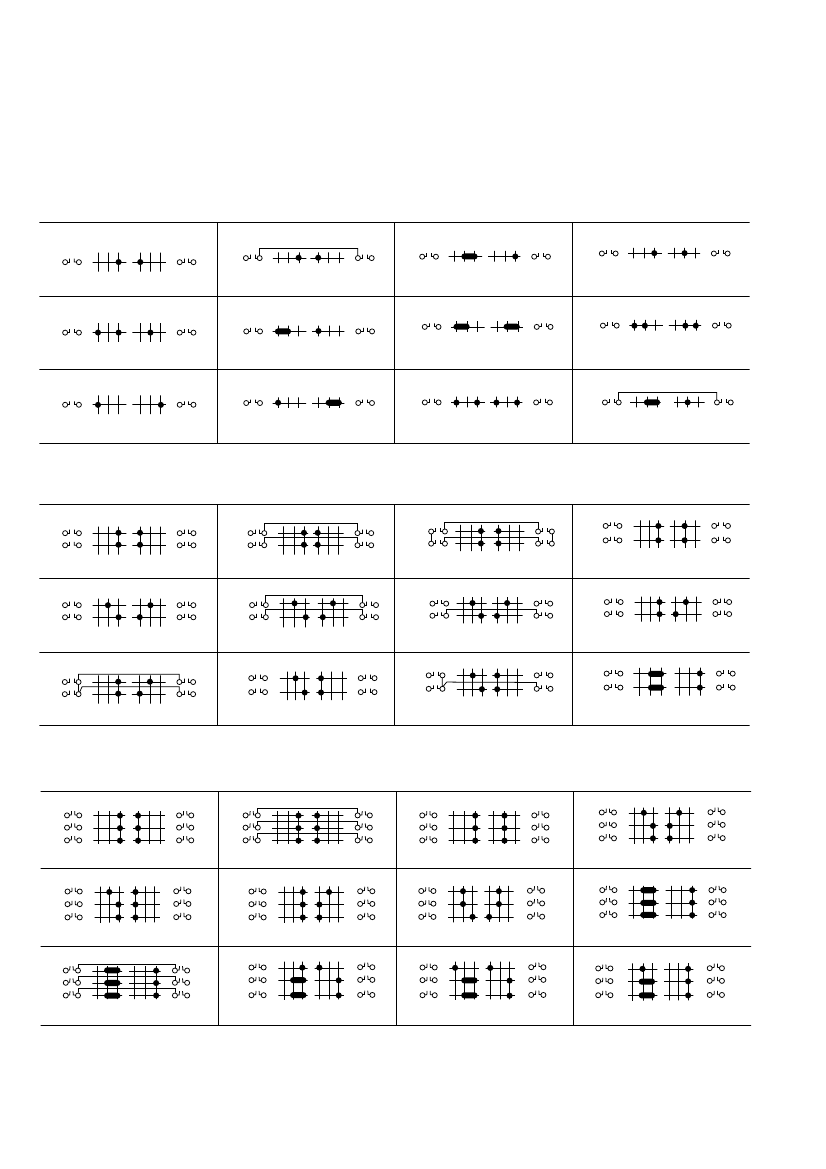

Contact arrangement
The following diagrams show the cam-type selector switch
contact arrangement. These are only typical examples and
other versions can be manufactured to meet your special
requirements. Contact FUJI for details.
The figures appearing on the right side indicate the contact
arrangement. This information must be given when ordering.
■
3201
No. of contact arrangements: Indicates the
arrangement number.
No. of contact blocks: Up to 10 blocks can be
mounted. (0 indicates 10 blocks)
No. of selector positions
2-position 1-contact block
2101
1
3
1 2
1 2
4
2
2102
1
3
1 2
1 2
4
2
2103
1
3
1 2
1 2
4
2
2104
1
3
1 2
1 2
4
2
2105
1
3
1 2
1 2
4
2
2106
1
3
1 2
1 2
4
2
2107
1
Over rap contact
(early make, late break)
3
1 2
1 2
4
2
2108
1
Over rap contact
(early make, late break)
3
4
2
04
2-position 2-contact block
2201
5
1
7
3
1 2
1 2
8
4
6
2
2202
5
1
7
3
1 2
1 2
8
4
6
2
2203
5
1
7
3
1 2
1 2
8
4
6
2
2204
5
1
7
3
1 2
1 2
8
4
6
2
2205
5
1
7
3
1 2
1 2
8
4
6
2
2206
5
1
7
3
1 2
1 2
8
4
6
2
2207
5
1
7
3
1 2
1 2
8
4
6
2
2208
5
1
7
3
1 2
1 2
8
4
6
2
2-position 3-contact block
2301
9
5
1
11
7
3
1 2
1 2
12
8
4
10
6
2
2302
9
5
1
11
7
3
1 2
1 2
12
8
4
10
6
2
2303
9
5
1
11
7
3
1 2
1 2
12
8
4
10
6
2
2304
9
5
1
11
7
3
1 2
1 2
12
8
4
10
6
2
2305
9
5
1
11
7
3
1 2
1 2
12
8
4
10
6
2
2306
9
5
1
11
7
3
1 2
1 2
12
8
4
10
6
2
2307
9
5
1
11
7
3
1 2
1 2
12
8
4
10
6
2
2308
9
5
1
11
7
3
1 2
1 2
12
8
4
10
6
2
2-position 4-contact block
2401
13
9
5
1
15
11
7
3
1 2
1 2
16
12
8
4
14
10
6
2
2402
13
9
5
1
15
11
7
3
1 2
1 2
16
12
8
4
14
10
6
2
2403
13
9
5
1
15
11
7
3
1 2
1 2
16
12
8
4
14
10
6
2
2404
13
9
5
1
15
11
7
3
1 2
1 2
16
12
8
4
14
10
6
2
2405
13
9
5
1
15
11
7
3
1 2
1
2
16
12
8
4
14
10
6
2
2406
13
9
5
1
15
11
7
3
1 2
1 2
16
12
8
4
14
10
6
2
2407
13
9
5
1
15
11
7
3
1 2
1 2
16
12
8
4
14
10
6
2
2408
13
9
5
1
15
11
7
3
1 2
1 2
16
12
8
4
14
10
6
2
