FX5545G2063V3T1 Overview

1-OUTPUT 15 W DC-DC BOOSTER MODULE

FX5545G2063V3T1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	MODULE
package instruction	BGA, BGA20,4X5,100
Contacts	20
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC BOOSTER MODULE
Maximum input voltage	6 V
Minimum input voltage	2.7 V
JESD-30 code	R-PBGA-B20
JESD-609 code	e0
length	14.7 mm
Number of functions	1
Output times	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	2.5 A
Maximum output voltage	3.399 V
Minimum output voltage	3.201 V
Nominal output voltage	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA20,4X5,100
Package shape	RECTANGULAR
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3.2 mm
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	BALL
Terminal pitch	2.54 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	15 W
Fine-tuning/adjustable output	NO
width	12.2 mm
Base Number Matches	1

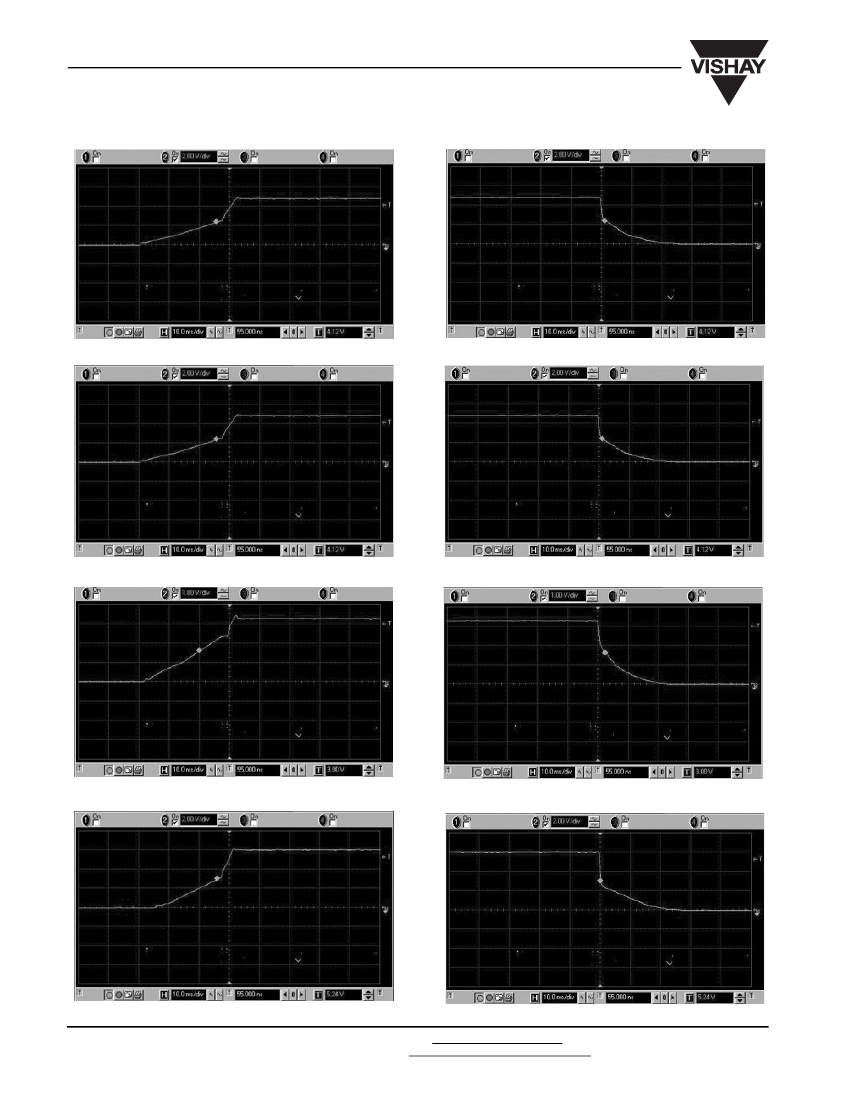

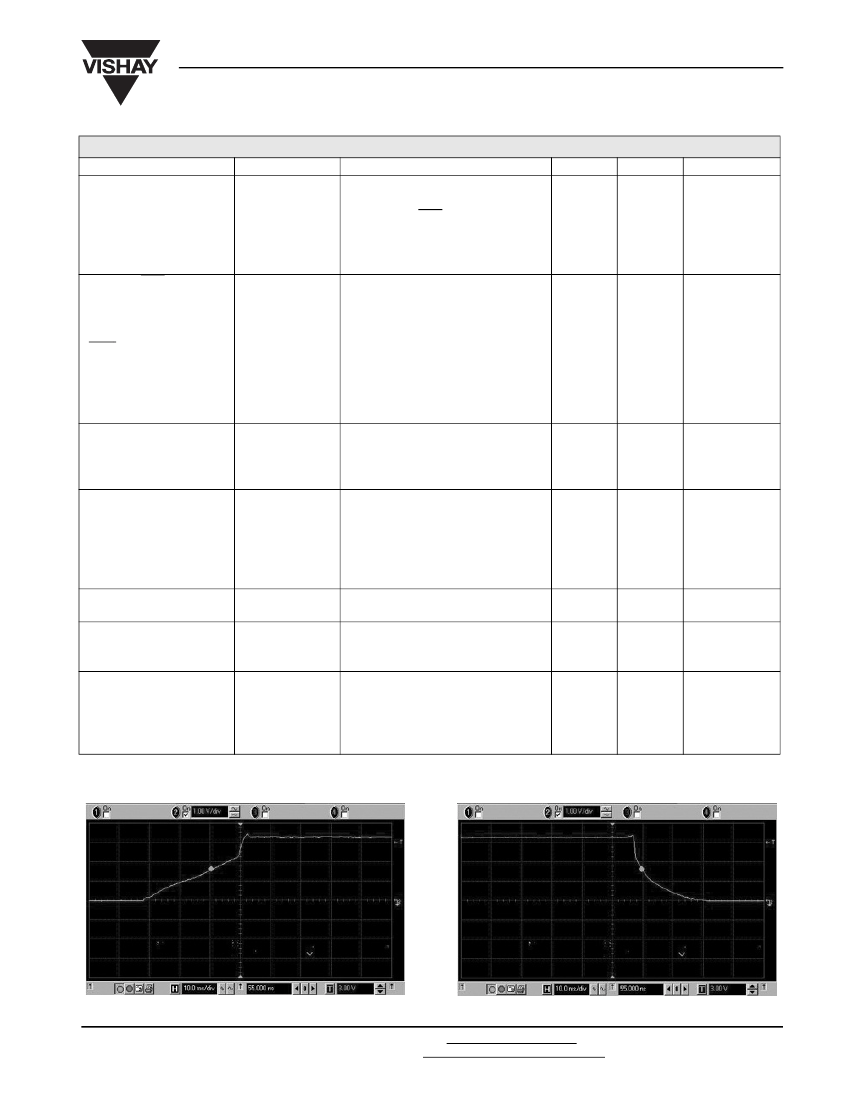

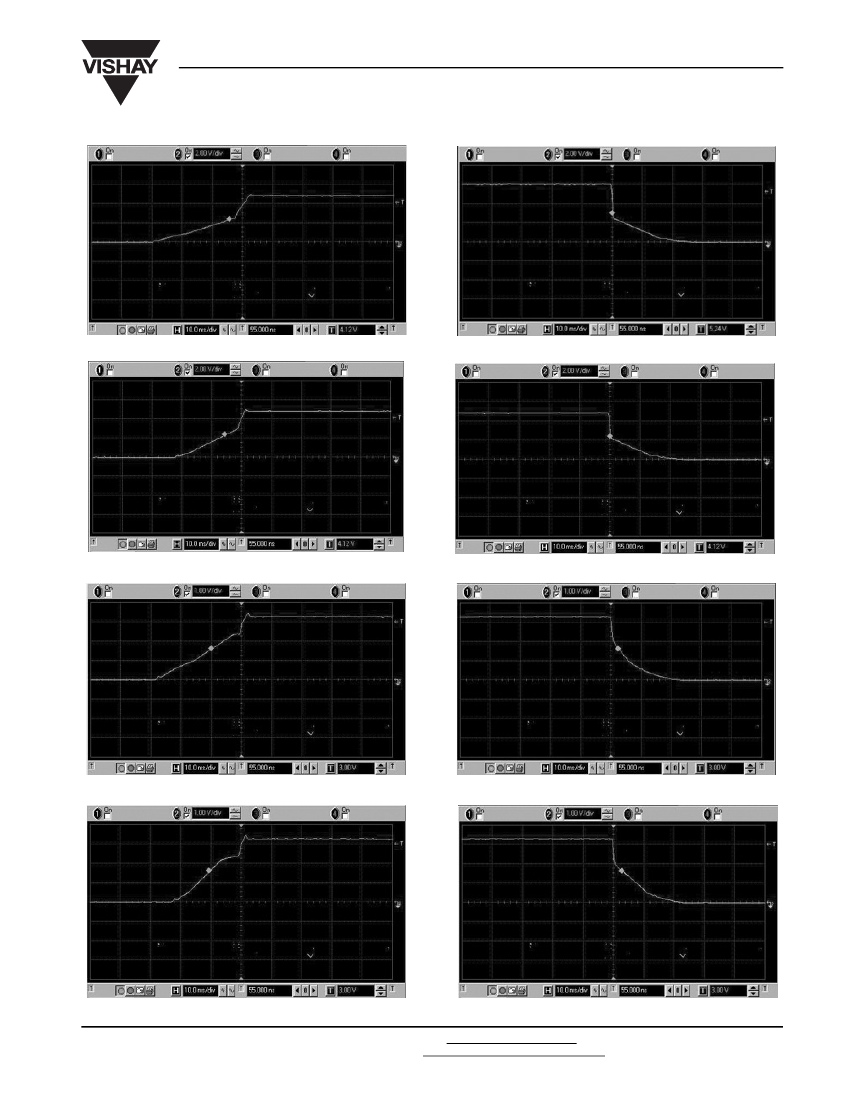

Preview

Download Datasheet

View All

FX5545G206

Vishay

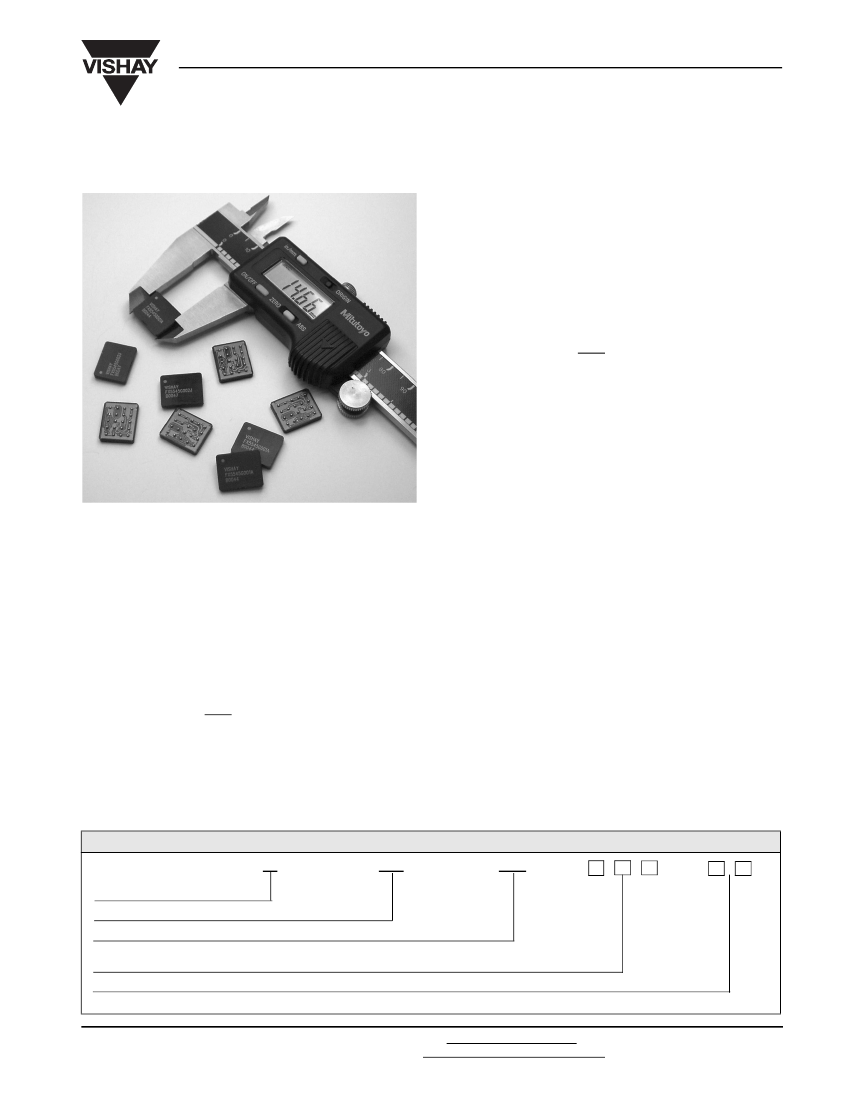

Industry Smallest and Low Profile 15W, 2.5A

DC/DC Boost Converter with High Output Power Density

FEATURES

•

Fully integrated DC/DC converter

•

High efficiency over large load range

•

100% duty cycle

•

Power density - more than 550W/inch

•

1µA shutdown current

•

2.7V to 6V input range (1Li+ and 3-cell NiCd or NiMH cells)

•

3.3V to 6V output voltage

•

Programmable PWM/PSM controls

•

Low output ripple

•

BGA construction

•

Temperature range: - 40°C to + 85°C

•

No external components required

•

Output power 15W

•

Maximum current 2.5A

•

Low profile

The DC/DC converter is a programmable topology

synchronized Boost converter for today’s continuous

changing portable electronic market. The DC/DC converter

provides flexibility of utilizing various battery configurations

and chemistries such as NiCd, NiMH, or Li+ with an input

voltage range of 2.5V to 6V. An additional flexibility is

provided with topology programmability to power multiple

loads such as power amplifiers, microcontrollers, or

baseband logic IC’s. For ultra-high efficiency, converters are

designed to operate in synchronous rectified PWM mode

under full load while transforming into externally controlled

pulse-skipping mode (PSM) under light load.

The DC/DC converter is available in 20-ports BGA package.

In order to satisfy the stringent ambient temperature

requirements, the DC/DC converter is designed to handle

the industrial temperature range of - 40°C to + 85°C.

APPLICATION

•

Point of Load (POL) applications such as drivers for

FPGA’s, microprocessors, DSP’s, amplifiers, etc.

•

Cordless phones, PDA’s and others

•

Supply voltage source for low-voltage chip sets

•

Portable computers

•

Battery back-up supplies

•

Cameras

ORDERING INFORMATION

FUNCTION

SIZE

CIRCUIT IDENTIFIER

OUTPUT VOLTAGE - Example: 3.3V should be written as 3V3 as the V indicates the decimal point,

or ADJ for adjustable version - self selectable output voltage.

PACKAGING - B1 = 10pcs in bulk; B5 = 50pcs in bulk; T1 = 13” reel; T2 = 7” reel.

For lead (Pb)-free solder please add E2 suffix.

Document Number: 10133

Revision: 21-Jan-05

For technical questions, contact FunctionPAK@vishay.com

For marketing questions, contact FunctionPAK.marketing@vishay.com

www.vishay.com

5545

G206
