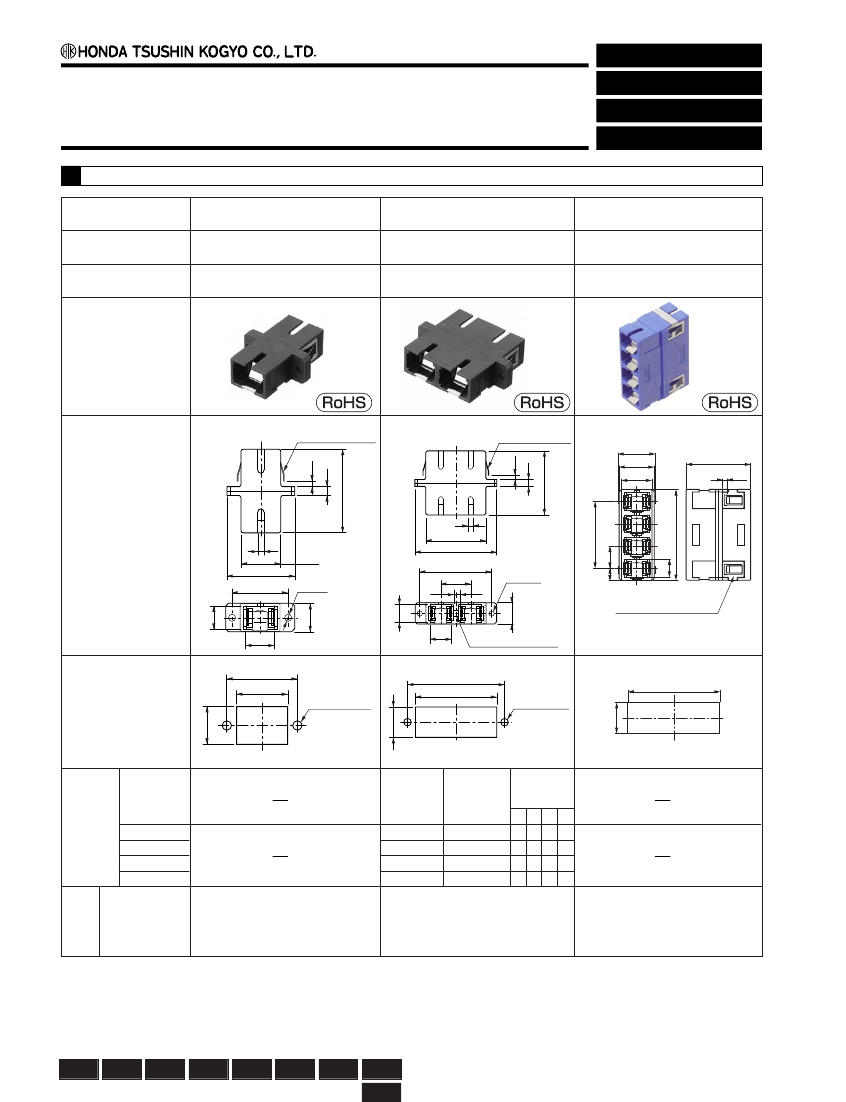

Optical fiber connector
SC-type Adaptor with a Shutter
LGC-300 series
SC-type
JIS C 5973 F04 type
Adaptor with a shutter
SC-type Adaptor with a Shutter (SC-A type Adaptor/SCF-2A type Adaptor/SCH-4A type Adaptor)
Type of Adaptor
Mounting Clamps
Housing
Simplex
Retaining-lock-bracket
for vertical board
Horizontal (F type) Duplex
Retaining-lock-bracket
for vertical board
4-Ports
Retaining-lock-bracket
for vertical board
Plastic (Color: blue)(See Note #2)
Plastic (Color: blue)(See Note #2) Plastic (Color: blue)(See Note #2)
Overview
Retaining-lock-bracket
for vertical board
1.8
3
Retaining-lock-bracket
for vertical board
1.8
3
27.4
15.4
14.8
12.8
9.4≈3=28.2
5.2 9.4
27.4
1.8
27.4
Drawing
2
12.8
22
18
7.4
2-ø2.3
25.9
34.7
30.7
12.7
B
7.4
B
2-ø2.3
A
9.4
9.4
Retaining-lock-bracket
for vertical board
9
9
Type of Guide key
18
±0.1
+0.3
13.1
0
30.7
±0.1
0
26.2
+0.3
13.1
+0.3
0
0
9.7
+0.3
38.8
+0.3
0
2-
ø
2.4 or 2-M2
(for fixing
with screw)
t=1.6
Mounting Hole Size
9.7
2-
ø
2.4 or 2-M2
(for fixing
with screw)
t=1.6 (Additionally t=1.0, t=1.2)
+0.3
0
t=1.6 (Additionally t=1.0, t=1.2)
Type of Guide key
A
(mm)
B
(mm)
Type of Guide key
for Connectable
Horizontal Duplex Plugs
(See Note #3)
A
B
P
X
X
X
X
X
X
X
X
R
A
B
P
R
0.85
1.85
1.85
0.85
1.85
0.85
1.85
0.85
X
Item Number
Zirconia-
Alignment-
Sleeve Adaptor
LGC-SA303
LGC-SF2A303[A,B,P,R]SH
LGC-SH4A313
Note 1: (A, B, P and R) show the kind of guide key, and
one of these characters is inserted.
Note 2: For other than blue plastic housing, please contact us.
Note 3: X: Correspond
Through
hole
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
7.5
38.5
2
