924327-24-07-1

Description
HEADER CONNECTOR,PCB MNT,RECEPT,14 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,DETENT,BLACK
CategoryThe connector    The connector

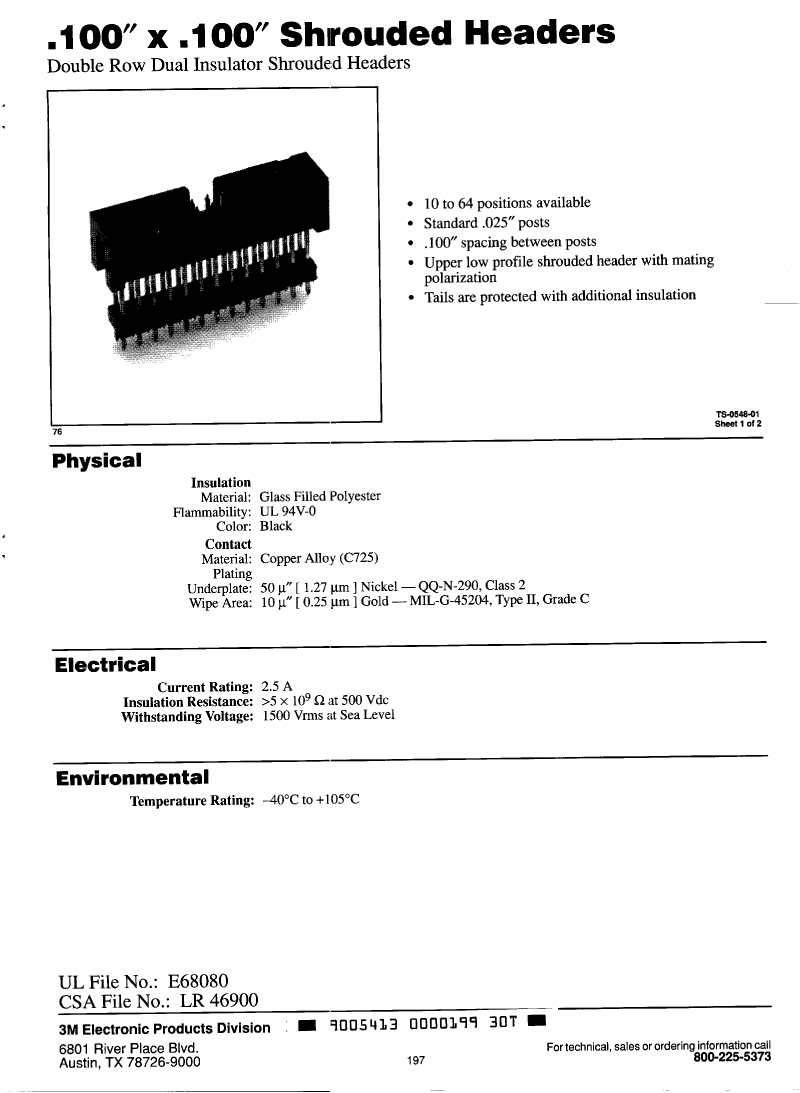

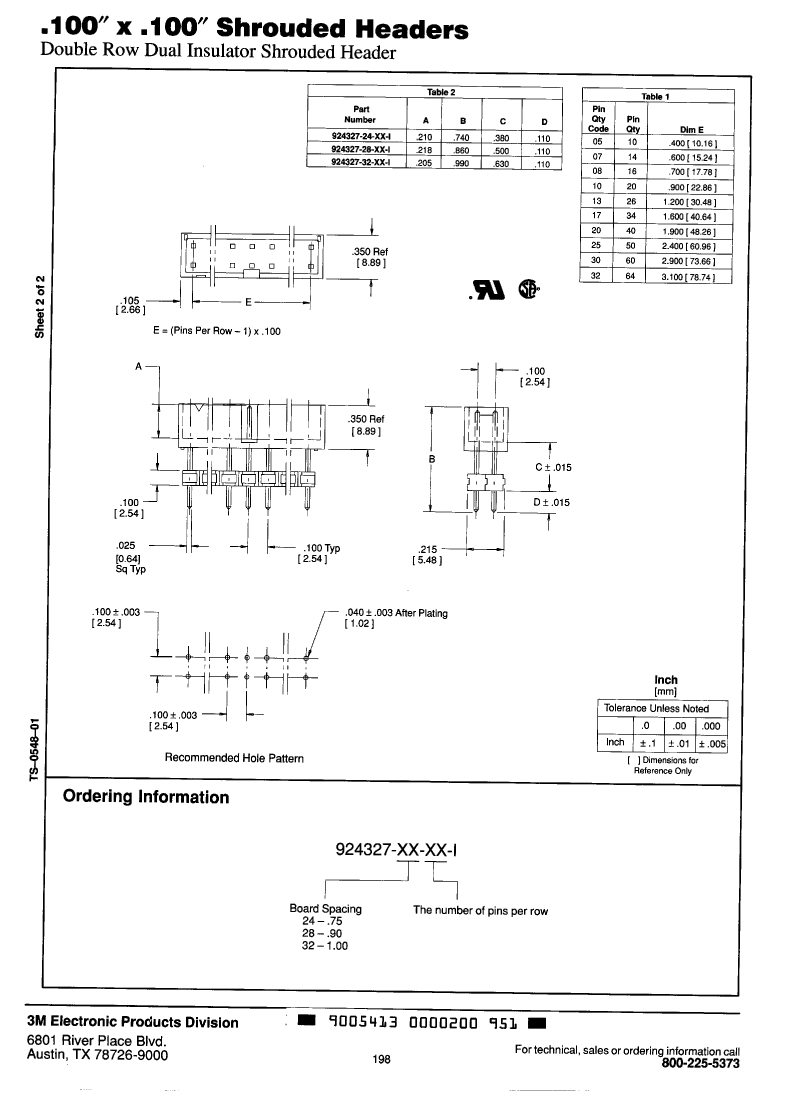

File Size119KB,2 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Download Datasheet Parametric View All

924327-24-07-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,14 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,DETENT,BLACK

924327-24-07-1 Parametric

Parameter NameAttribute value
Maker3M
Reach Compliance Codeunknow
ECCN codeEAR99
body width0.35 inch
subject depth0.63 inch
body length0.81 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number924327
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1DETENT
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness10u inch
polarization keyCENTER
Rated current (signal)2.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts14
