BZT52B75 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> BZT52B75

BZT52B75: Description75V,500mW,Surface Mount Zener Diodes, Diodes, Single, 0.02, 75V, 2mA, 500mW, No; CategoryDiscrete semiconductor; File Size251KB，5 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BZT52B75 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZT52B75	-	-	View	Buy Now

BZT52B75 Overview

75V,500mW,Surface Mount Zener Diodes, Diodes, Single, 0.02, 75V, 2mA, 500mW, No

BZT52B75 Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Reach Compliance Code	unknow
category
Configuration	Single
Tolerance	0.02
VZ (V) nom.	75
Condition1_IT (mA)	2
PD (mW) max	500
AEC Qualified	N
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Pi	Z1

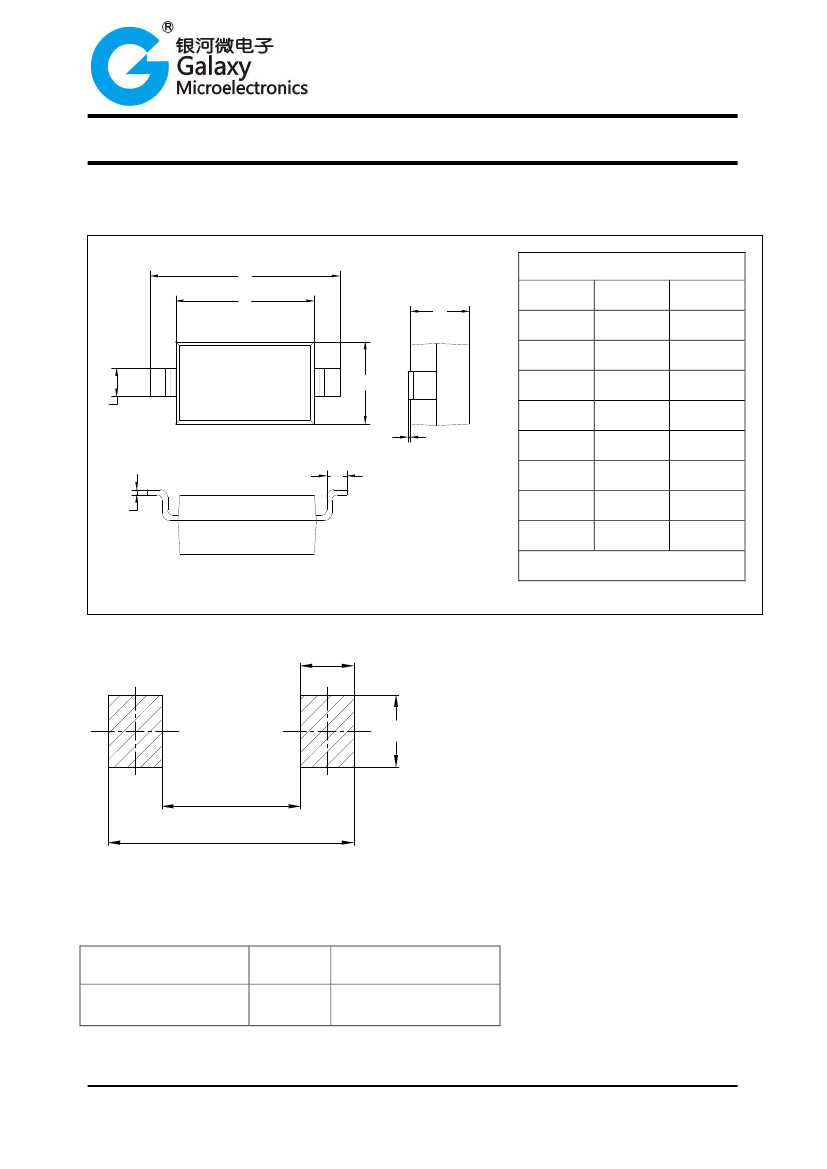

Package Outlines	SOD-123

Preview

Download Datasheet

View All

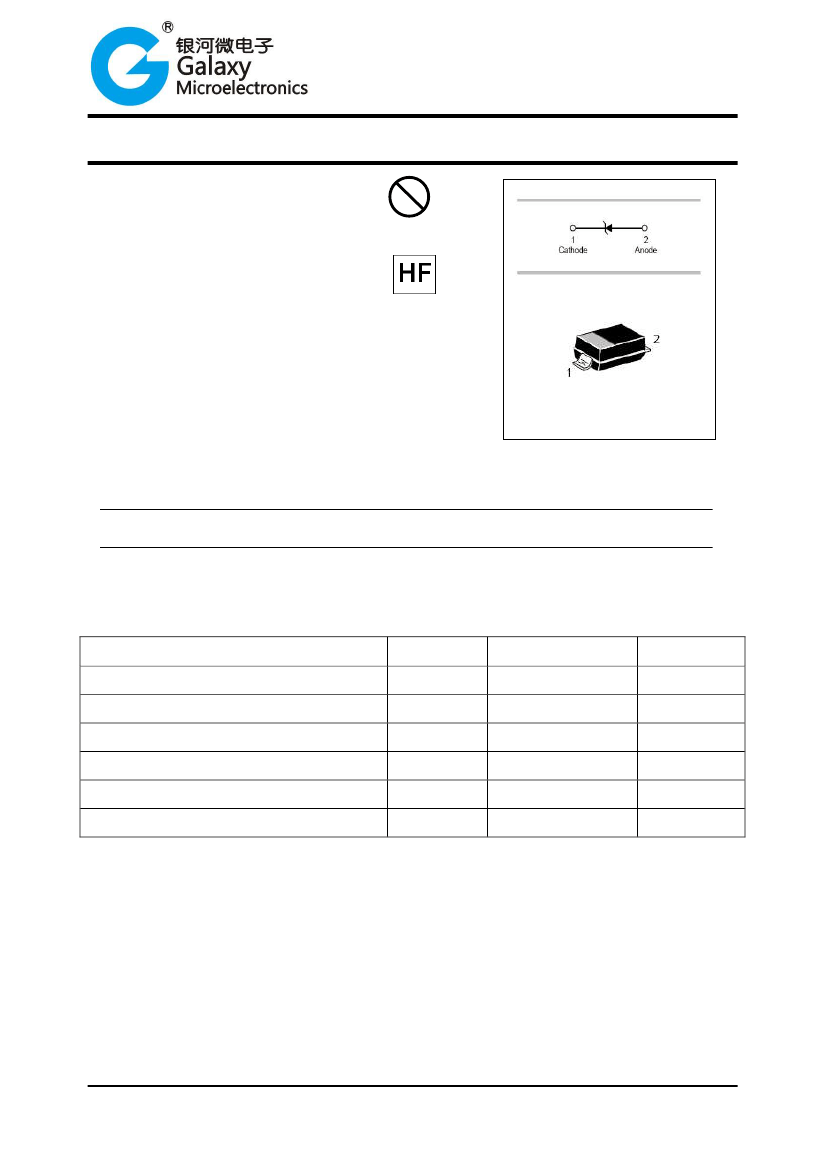

Product specification

Surface mount zener diode

FEATURES



Planar die construction.

“B” for ±2% tolerance.

General purpose, medium current.

Ideally suited for automated assembly processes.

MSL 1

BZT52B2V0-BZT52B75

Lead-free

APPLICATIONS



Zener diode.

Ultra-small surface mount package.

SOD-123

ORDERING INFORMATION

Type No.

BZT52B2V0

□

-BZT52B75

□

□:

none is for Lead Free package;

“G” is for Halogen Free package.

Marking

See table 2

Package Code

SOD-123

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Forward Voltage

Power Dissipation

Thermal resistance,junction to ambient air

Thermal Resistance Junction-to-Case

Junction temperature

Storage temperature range

@ I

=10mA

Symbol

θjA

θjC

stg

Value

0.9

500

305

180

150

-65 to +150

Unit

℃/W

℃

Notes: 1. Device mounted on ceramic PCB; 7.6mm x 9.4mm x 0.87mm with pad areas 25mm

2. Short duration test pulse used to minimize self-heating effect.

3. When provided, otherwise, parts are provided with date code only, and type number

identifications appears on reel only.

4. f = 1KHz.

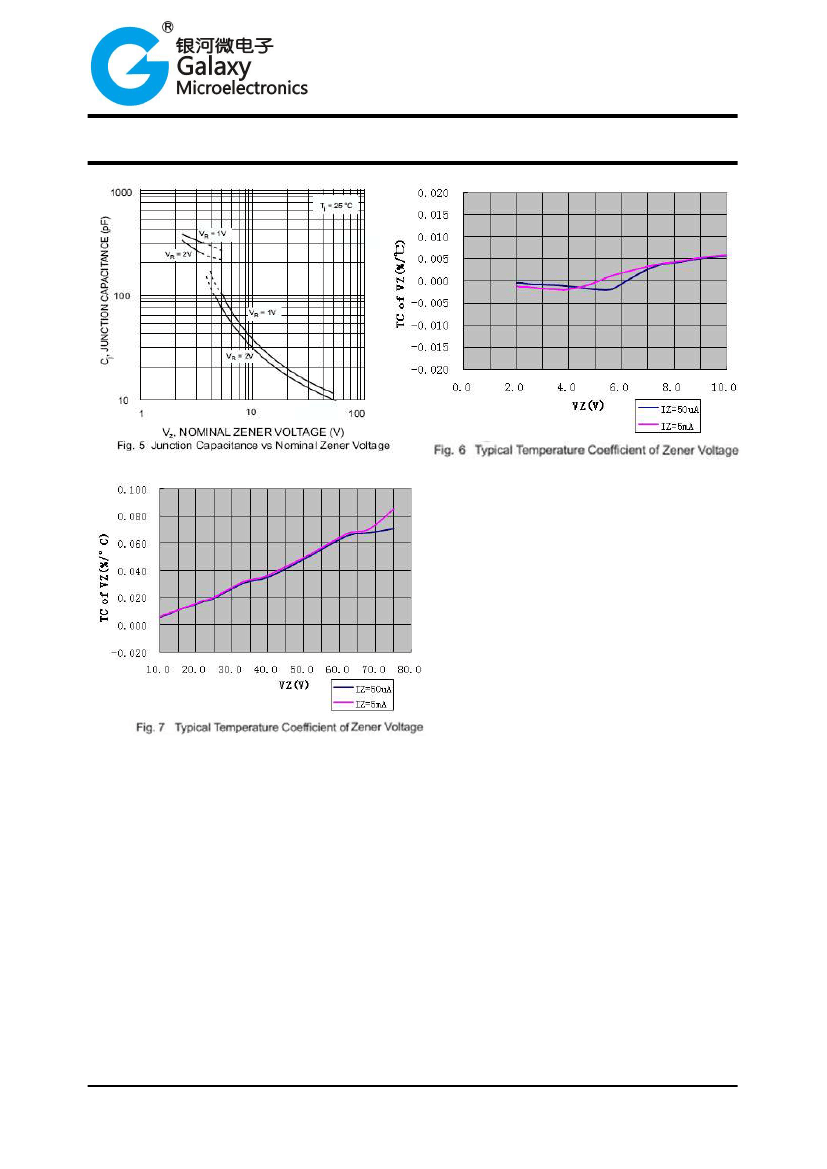

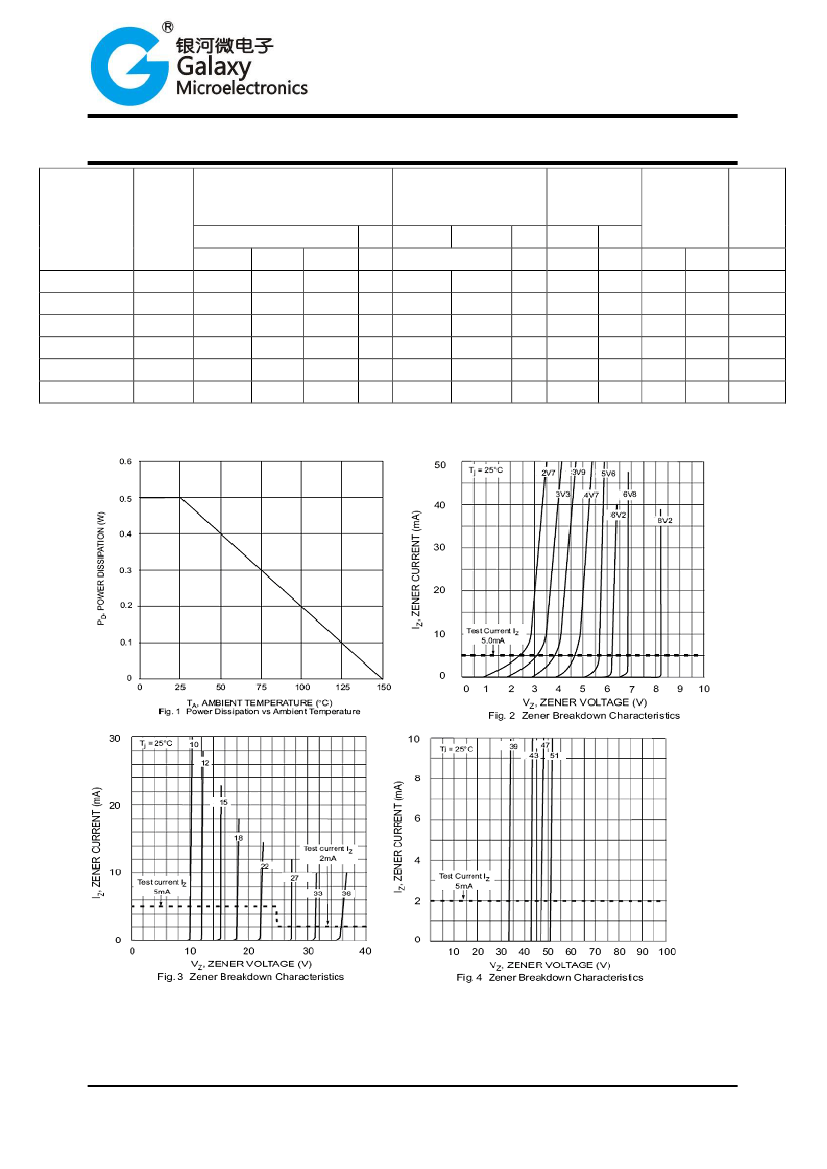

ZDM0004A

www.gmesemi.com
