STK401-100 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Consumption circuit> STK401-100

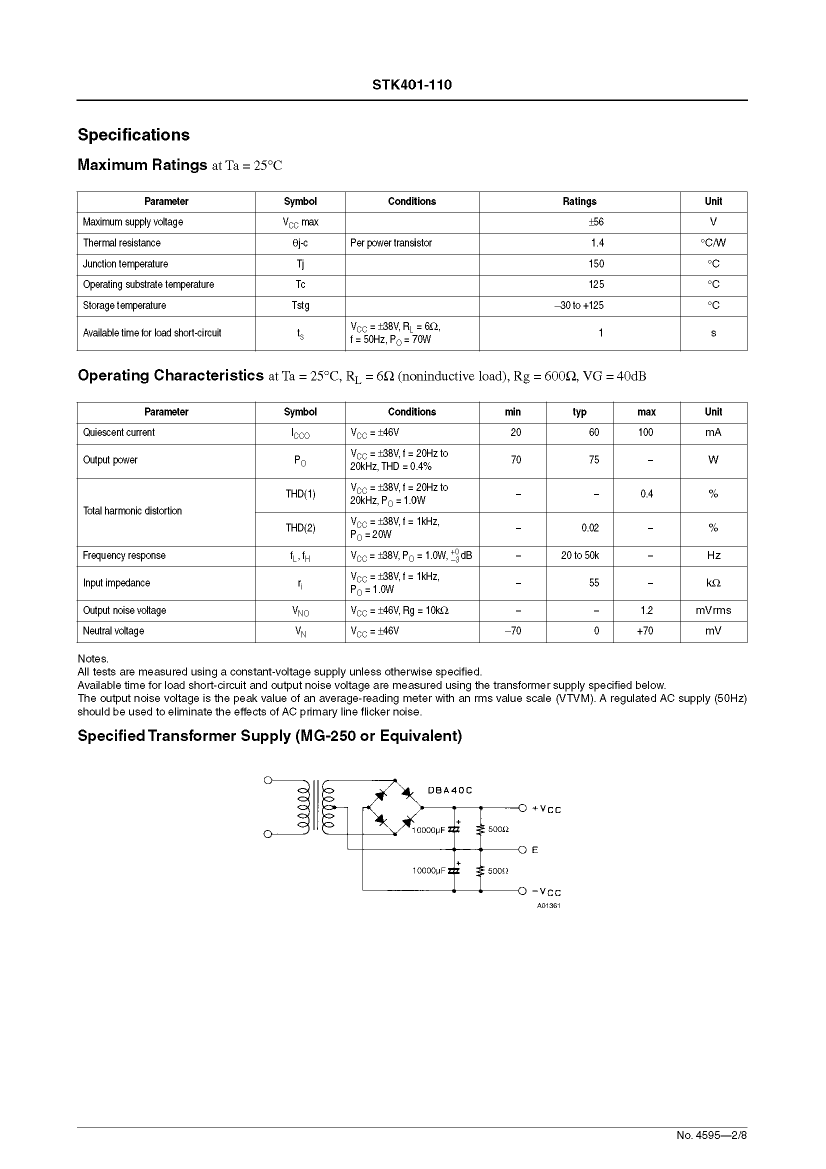

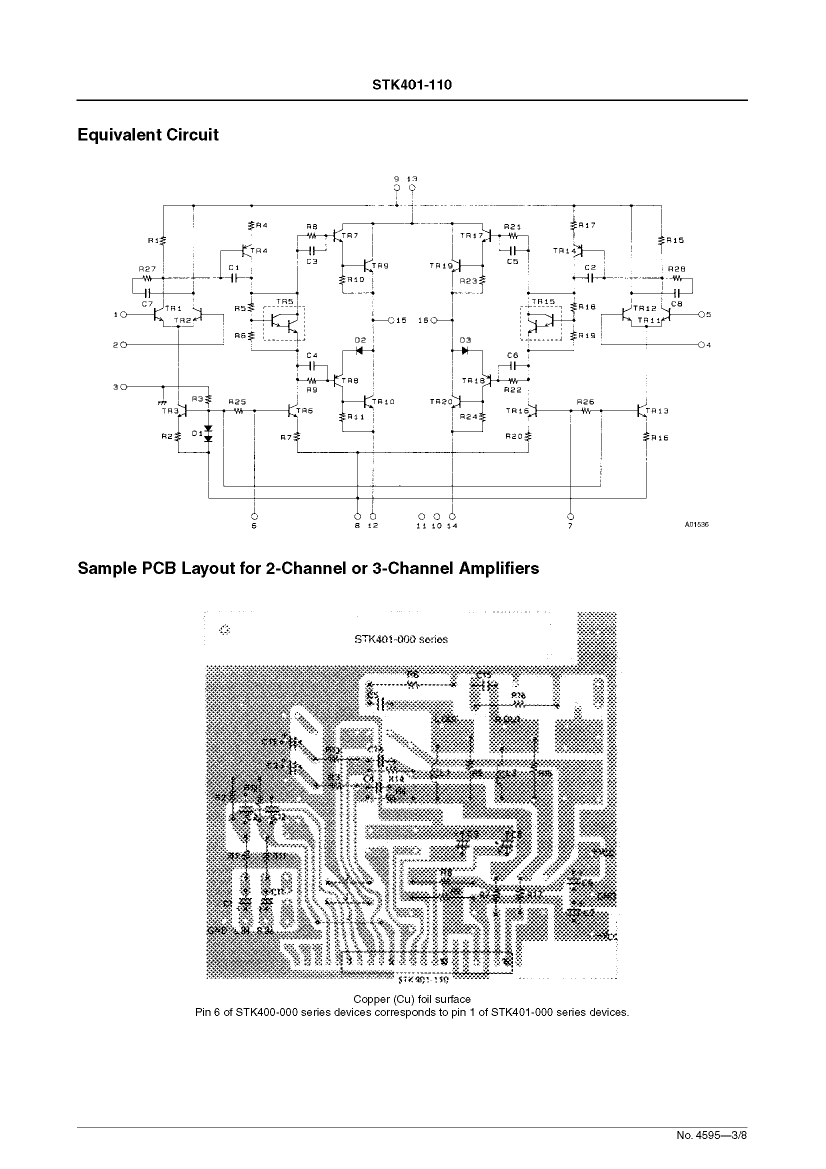

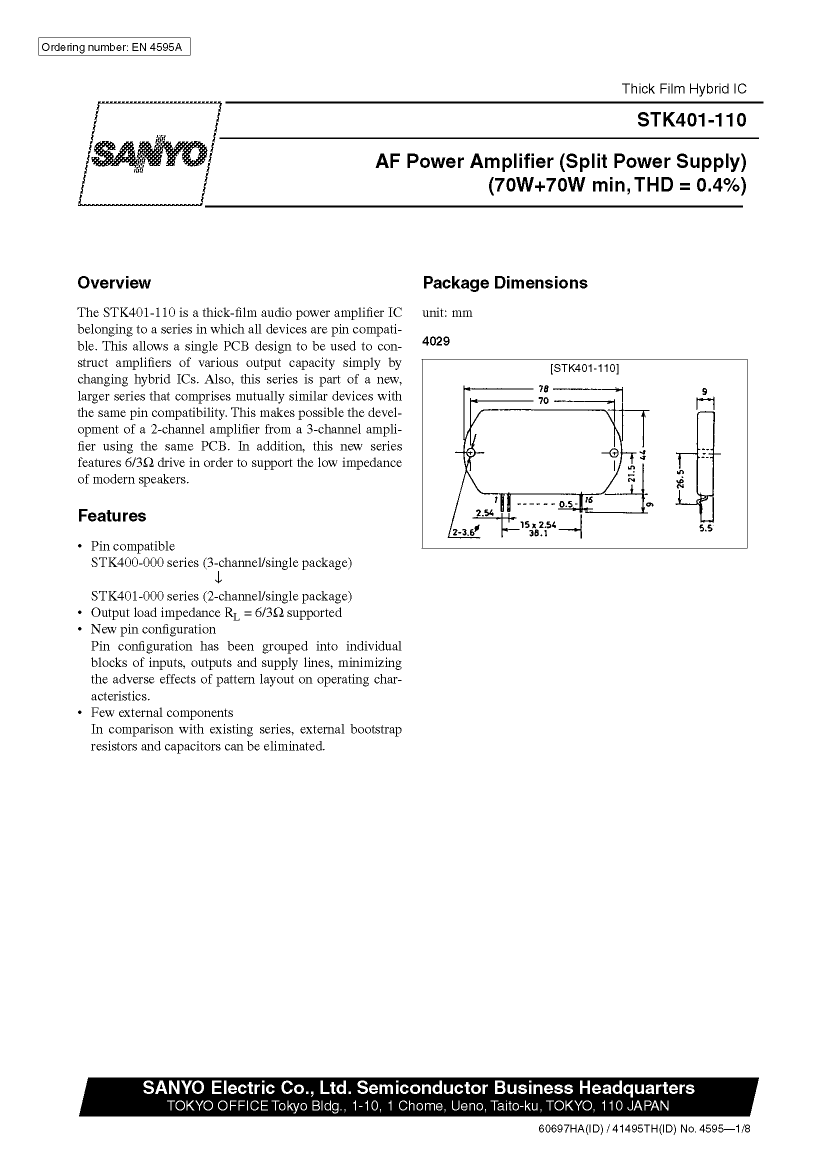

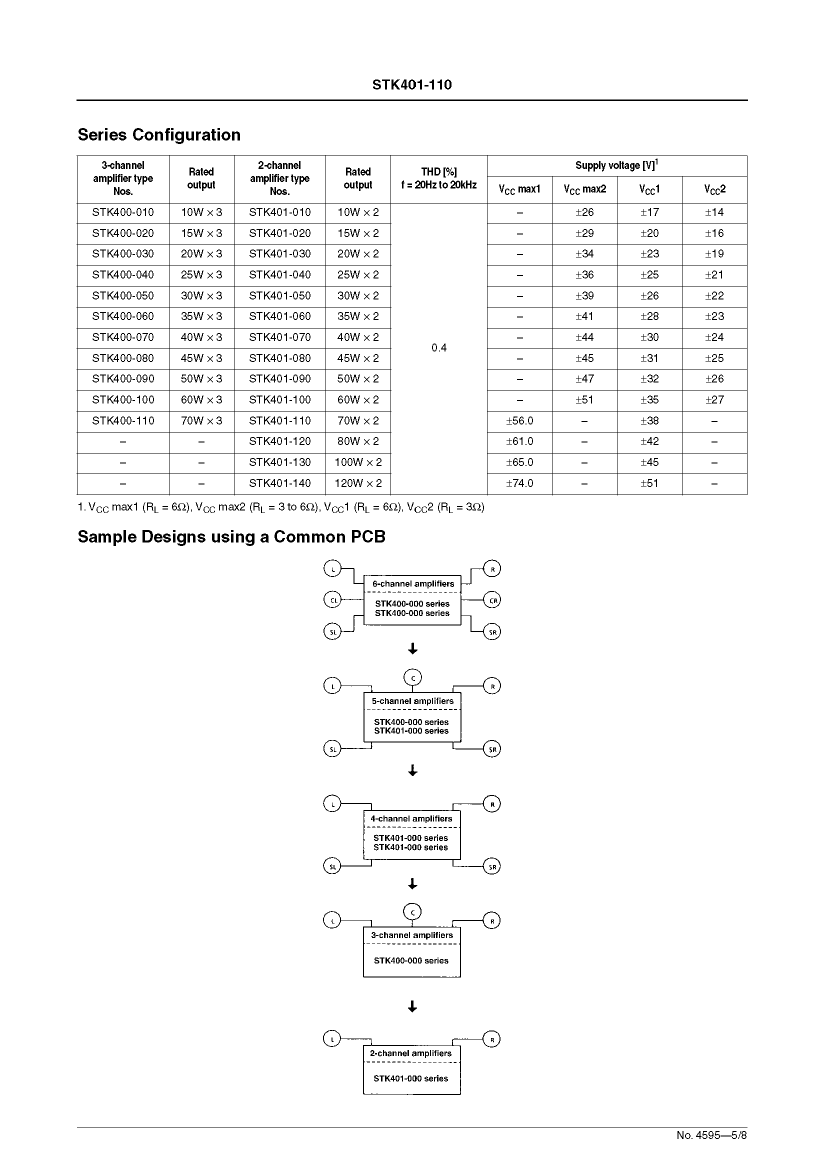

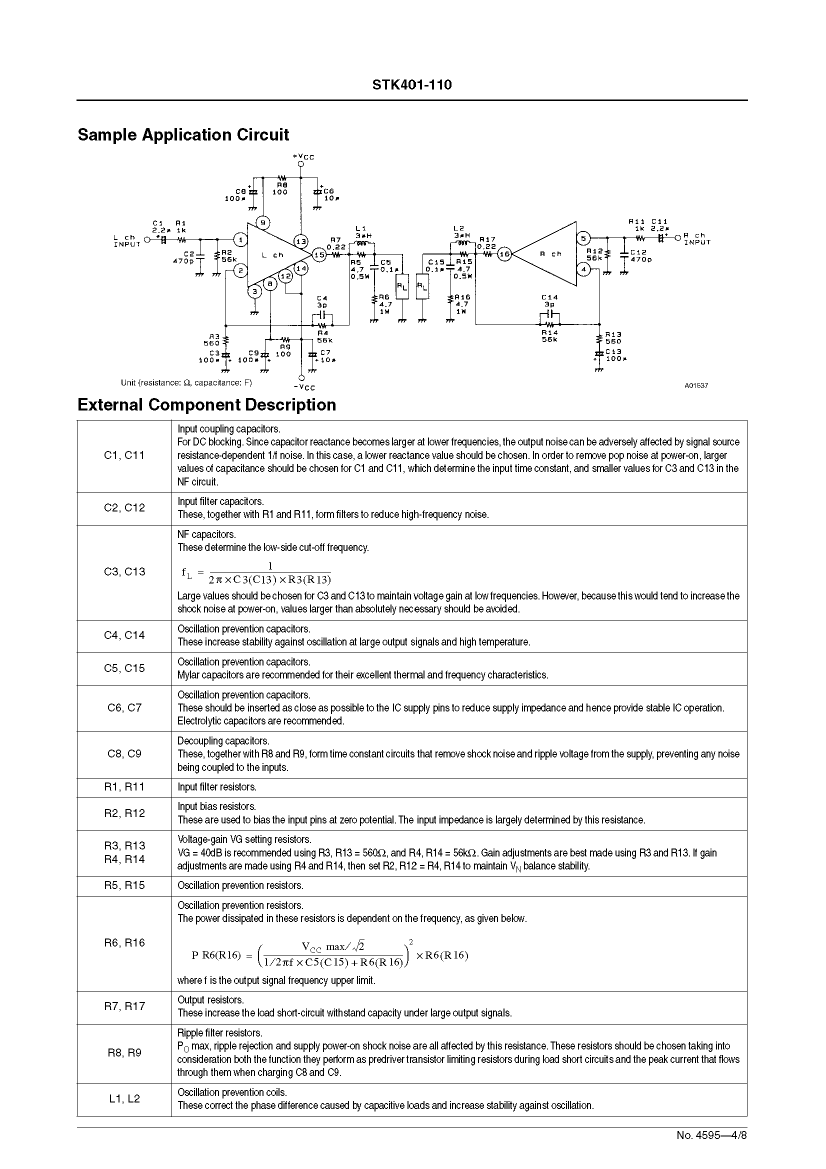

Preview

STK401-100: DescriptionAF Power Amplifier (Split Power Supply) (70 W + 70 W min, THD = 0.4%)　; CategoryAnalog mixed-signal IC Consumption circuit; File Size246KB，8 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

STK401-100 Overview

AF Power Amplifier (Split Power Supply) (70 W + 70 W min, THD = 0.4%)　

STK401-100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	SFM
package instruction	, SIP16,.2
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Nominal bandwidth	50 kHz
Commercial integrated circuit types	AUDIO AMPLIFIER
Gain	40 dB
harmonic distortion	0.4%
JESD-30 code	R-PSFM-T16
JESD-609 code	e0
Number of channels	2
Number of functions	1
Number of terminals	16
Nominal output power	60 W
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP16,.2
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage (Vsup)	35 V
Minimum supply voltage (Vsup)	35 V
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

STK401-100 Related Products

	STK401-100	STK401-110	STK401-090
Description	AF Power Amplifier (Split Power Supply) (70 W + 70 W min, THD = 0.4%)	AF Power Amplifier (Split Power Supply) (70 W + 70 W min, THD = 0.4%)	AF Power Amplifier (Split Power Supply) (70 W + 70 W min, THD = 0.4%)
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	SANYO	SANYO	SANYO
package instruction	, SIP16,.2	SIP, SIP16,.2	, SIP16,.2
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Commercial integrated circuit types	AUDIO AMPLIFIER	AUDIO AMPLIFIER	AUDIO AMPLIFIER
harmonic distortion	0.4%	0.4%	0.4%
JESD-30 code	R-PSFM-T16	R-PSIP-T16	R-PSFM-T16
JESD-609 code	e0	e0	e0
Number of channels	2	2	2
Number of functions	1	2	1
Number of terminals	16	16	16
Nominal output power	60 W	70 W	55 W
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP16,.2	SIP16,.2	SIP16,.2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	IN-LINE	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	35 V	38 V	32 V
surface mount	NO	NO	NO
technology	BIPOLAR	HYBRID	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Parts packaging code	SFM	SIP	-
Contacts	16	16	-
Nominal bandwidth	50 kHz	-	50 kHz
Gain	40 dB	-	40 dB
Minimum supply voltage (Vsup)	35 V	-	32 V
