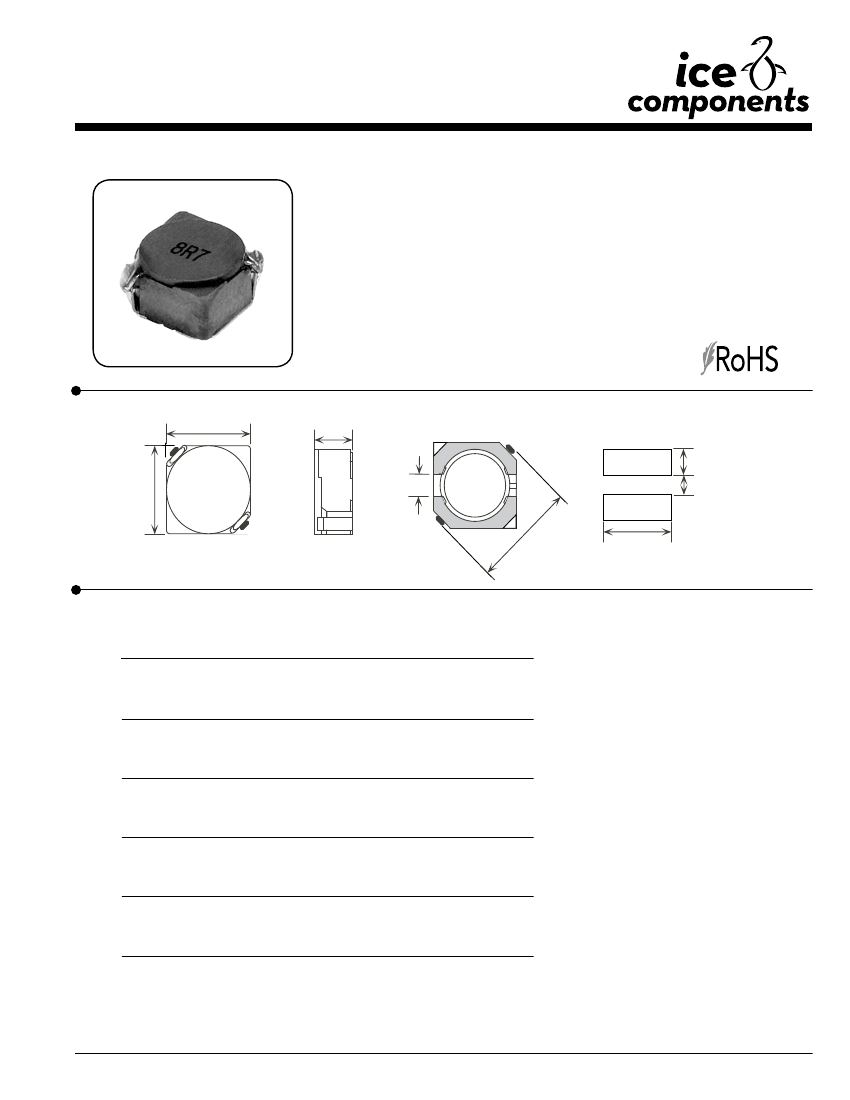

LS6D38 Series
Surface Mount Power Inductors
Will Handle Up To 3.5A
•
Economical Design
•
Suitable For Pick And Place
•
Withstands Solder Reflow
•
Shielded Design
•
Features
Packaging
Reel Diameter: 330mm
•
Reel Width: 16.3mm
•
Pieces Per Reel: 1000
•
Applications
•
DC/DC Converters
•
Output Power Chokes
•
Handheld And PDA Applications
•
Battery Powered Or Low Voltage Applications
Mechanical
6.7 +/- 0.3
6.7 +/- 0.3
4.0 max
2.65(X2)
XXX
2.0 Ref.
2.0
ax
9.
5
m
7.3
unit= mm
Electrical Specifications
Part
Number
LS6D38-3R3-RN
LS6D38-5R0-RN
LS6D38-6R2-RN
LS6D38-7R4-RN
LS6D38-8R7-RN
LS6D38-100-RN
LS6D38-120-RN
LS6D38-150-RN
LS6D38-180-RN
LS6D38-220-RN
LS6D38-270-RN
LS6D38-330-RN
LS6D38-390-RN
LS6D38-470-RN
LS6D38-560-RN
LS6D38-680-RN
LS6D38-820-RN
LS6D38-101-RN
LS6D38-121-RN
LS6D38-151-RN
LS6D38-181-RN
LS6D38-221-RN
LS6D38-271-RN
LS6D38-331-RN
LS6D38-391-RN
LS6D38-471-RN
LS6D38-561-RN
LS6D38-681-RN
LS6D38-821-RN
LS6D38-102-RN
6
Inductance Test Frequency
(μH+/-30%)
(kHz)
3.3
5.0
6.2
7.4
8.7
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
1
DCR max
(Ω)
0.020
0.024
0.027
0.031
0.034
0.038
0.053
0.057
0.092
0.096
0.109
0.124
0.138
0.155
0.202
0.234
0.324
0.358
0.47
0.58
0.69
0.89
1.29
1.70
1.75
2.20
2.85
3.20
4.05
5.70
I
DC
max
(A)
3.5
2.9
2.5
2.3
2.2
2.0
1.7
1.6
1.5
1.3
1.2
1.1
1.0
.95
.85
.75
.70
.65
.59
.54
.49
.43
.40
.37
.34
.32
.29
.25
.22
.20
2
1.
2.
3.
4.
Tested @ 10kHz, 0.1Vrms.
Inductance drop = 35% at rated I
DC
max.
Electrical specifications at 25ºC.
Operating temperature range:
-40ºC to +85ºC.
5. Meets UL 94V-0.
6. Optional Tolerances: 10%(K), 15%(L),
and 20%(M).
Specifications subject to change without notice.
800.729.2099 tel
www.icecomponents.com
59
(04/08) LS-13
