ET28LF1ALE

Description
Toggle Switch, DPDT, Momentary, 2A, 28VDC, Solder Terminal, Through Hole-right Angle
CategoryMechanical and electronic products    switch
File Size528KB,7 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Download Datasheet Parametric View All

ET28LF1ALE Overview

Toggle Switch, DPDT, Momentary, 2A, 28VDC, Solder Terminal, Through Hole-right Angle

ET28LF1ALE Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerITT
Reach Compliance Codeunknow
ECCN codeEAR99
body width8.13 mm
body height9.14 mm
Body length or diameter9.27 mm
Contact (AC) maximum rated R load2A@120VAC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact (DC) maximum rated R load2A@28VDC
Maximum contact voltage (AC)120 V
Maximum contact voltage (DC)28 V
Electrical life30000 Cycle(s)
JESD-609 codee0
Manufacturer's serial numberET
Installation featuresTHROUGH HOLE-RIGHT ANGLE
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
sealEPOXY TERMINAL SEALED; IP57
surface mountNO
Switch actionMOMENTARY
switch functionDPDT
Switch typeTOGGLE SWITCH
Terminal surfaceTin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Termination typeSOLDER
C&K ET Series
Sealed Subminiature Toggle Switches
Features/Benefits
Sealed against solder and cleaning
process contaminants
ESD protection available
Thru-hole and surface mount models
Compact size and small footprint
save PCB space
RoHS compliant models available
Typical Applications
Hand-held telecommunications
Instrumentation
Medical equipment
Models Available
Specifications
CONTACT RATING: B contact material: 0.4 VA max. @
20 V AC or DC max. See page F-32 for additional ratings.
ELECTRICAL LIFE: ETX1 models: 60,000 make-and-break cycles at
full load. All other models: 30,000 cycles.
CONTACT RESISTANCE: Below 20 m
typ. initial @ 2-4
V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
min.
ELECTROSTATIC DISCHARGE (ESD) RESISTANT OPTION:
M3 & S3 insulating actuator only: 9,000 V DC min. @ sea level,
actuator to terminals. F1 conductive bushing only: Dissipates
up to 20,000 V DC from actuator to ground. M3 & S3 actuator
and F1 bushing options are not recommended for use together.
DIELECTRIC STRENGTH: 1000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to 85ºC.
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
DEGREE OF PROTECTION: IP57; Protection against harmful dust
deposit, full-scale voltage protection, temporary immersion.
PACKAGING: Surface mount switches are shipped in tape and reel
packaging, see page G-35 for drawings and reel information.
Materials
CASE & BUSHING: Glass filled nylon 6/6, flame retardant, heat
stabilized (UL 94V-0). SA surface mount: High temperature
material, glass filled 4/6 nylon, flame retardant, heat stabilized
(UL 94V-0). F1 conductive bushing option is impregnated
with carbon fibers.
ACTUATOR: M3 & S3 anti-static actuator: Nylon 4/6, black standard
(UL 94V-0). All other actuators: Brass, chrome plated. Internal
o-ring seal standard with all actuators.
SWITCH SUPPORT: Brass, tin plated.
CONTACTS & TERMINALS: B contact material: Copper alloy,
with gold plate over nickel plate. Q contact material: Copper
alloy, silver plated. See G-35 for additional contact materials.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q, B, G, P or R contact material are RoHS compliant
and compatible. For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.

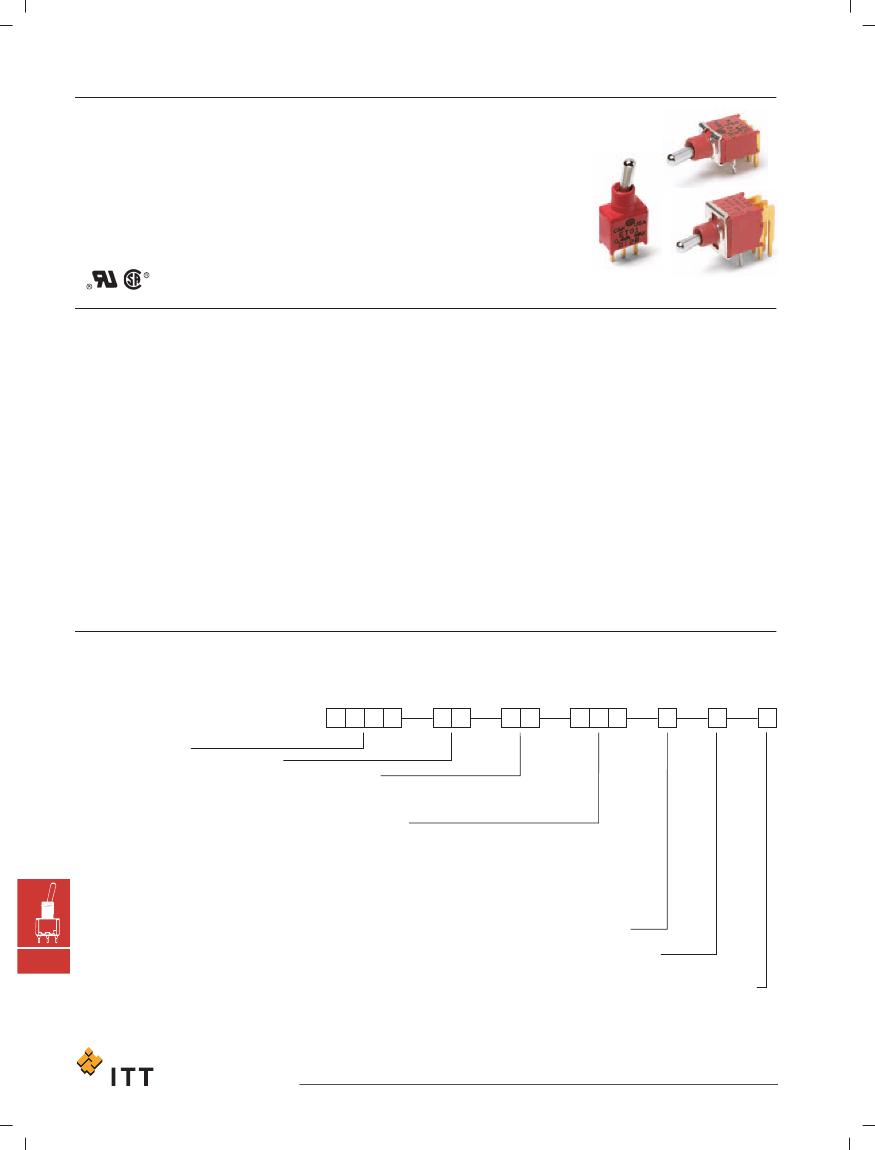

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G–31 thru G–35. For additional options not shown in catalog, consult our Customer Service Center. All
models are process sealed to withstand machine soldering temperatures and pressure wash cleaning methods.

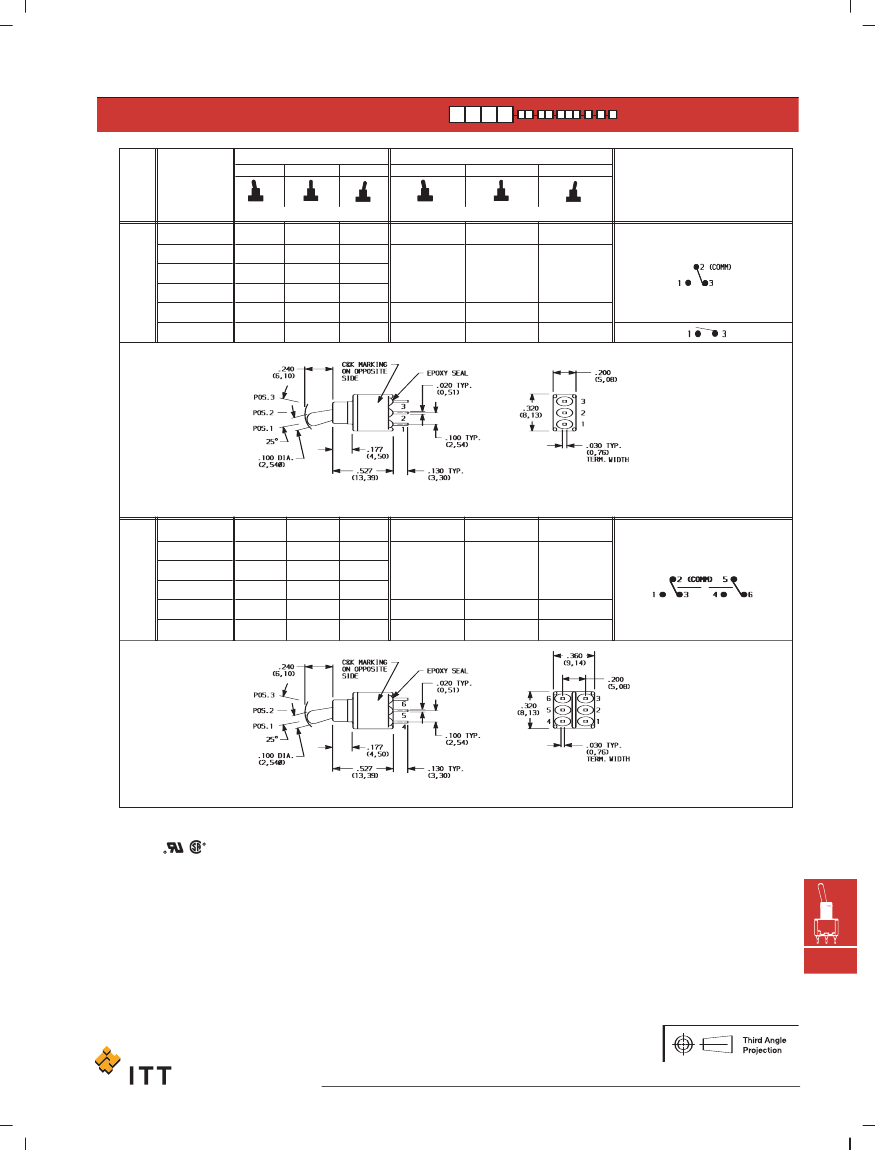

Switch Function
ET01
SP, On-None-On
ET02
SPST, Off-None-On
ET03
SP, On-Off-On
ET05
SP, Mom.-Off-Mom.
ET07
SP, On-Off-Mom.
ET08
SP, On-None-Mom.
ET21
DP, On-None-On
ET23
DP, On-Off-On
ET24
DP, On-On-On
ET25
DP, Mom.-Off-Mom.
ET27
DP, On-Off-Mom.
ET28
DP, On-None-Mom.

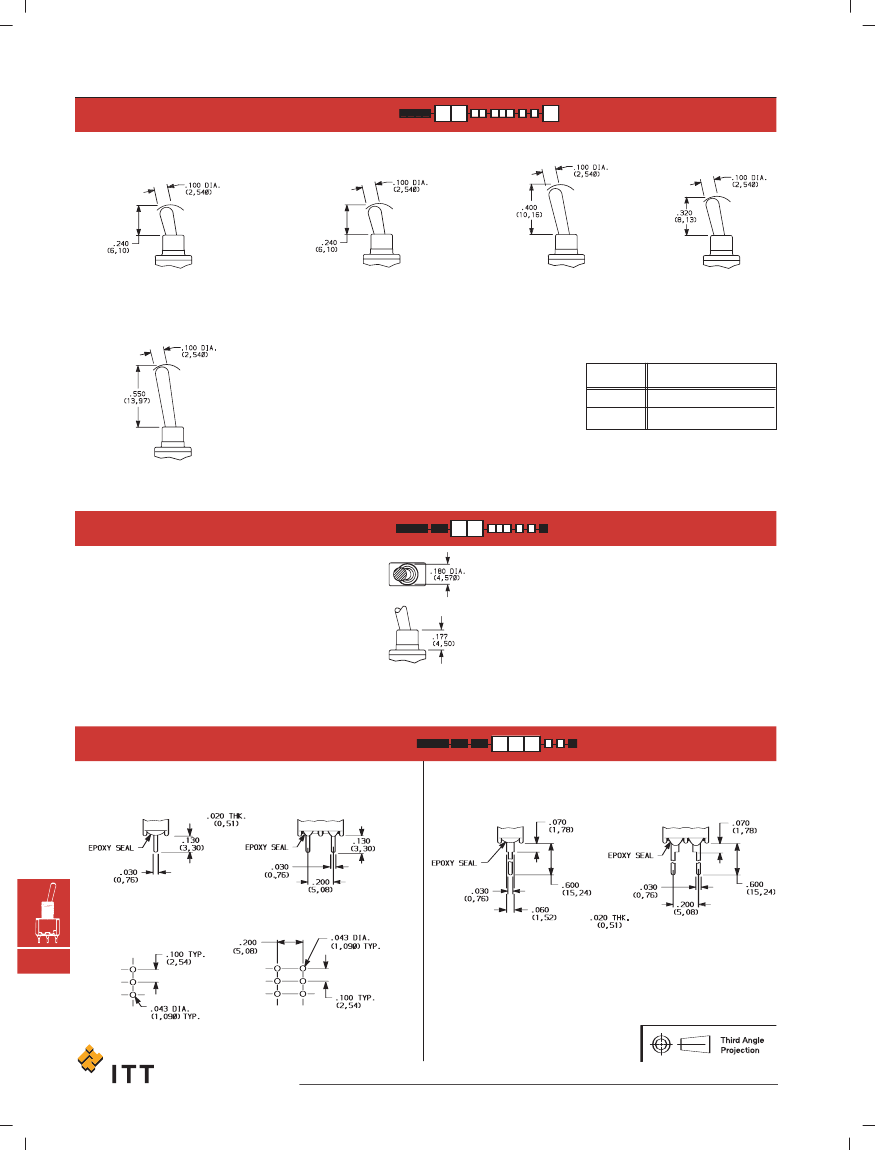

Actuator
M
.240" high
M3
Plastic, anti-static,
.240" high
S
.400" high
L
.320" high
S1
.540" high
Bushing
D1
.177" High, Unthreaded
F1
.177" high, unthreaded, ESD conductive

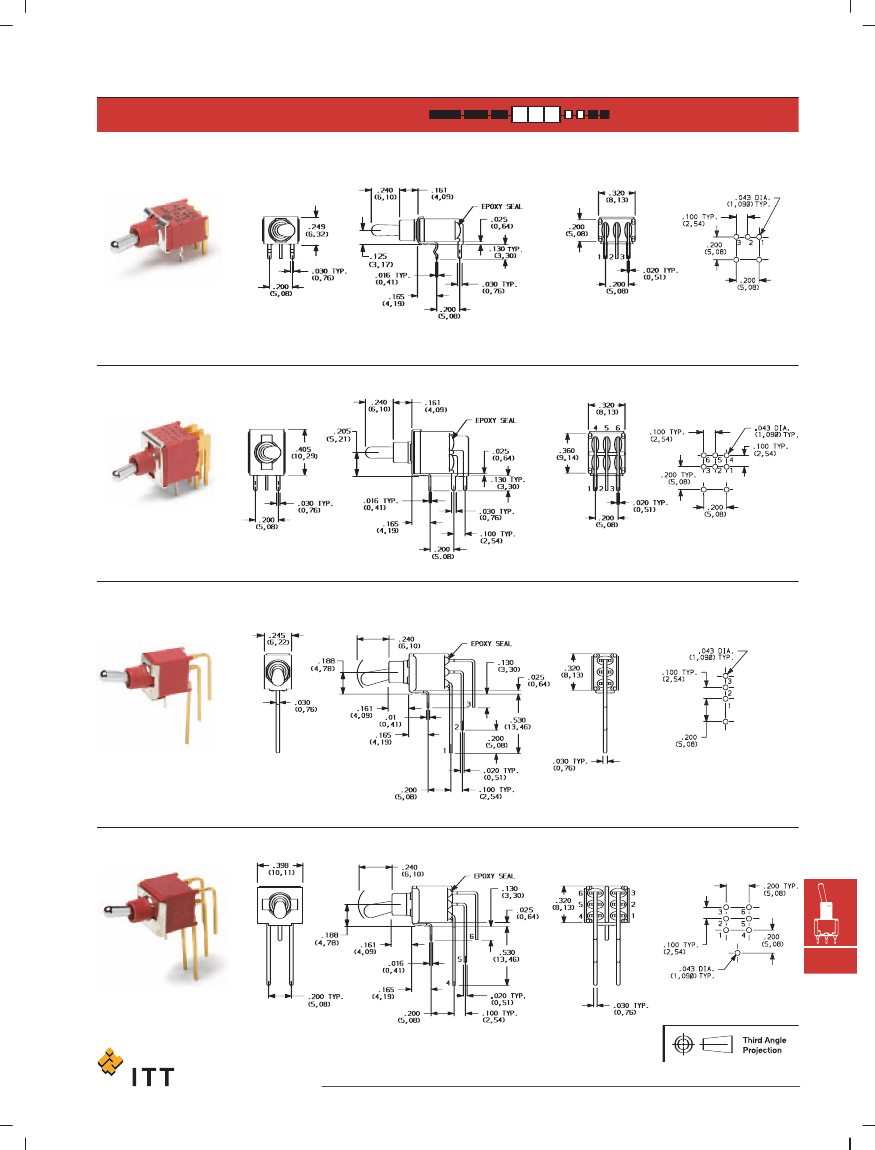

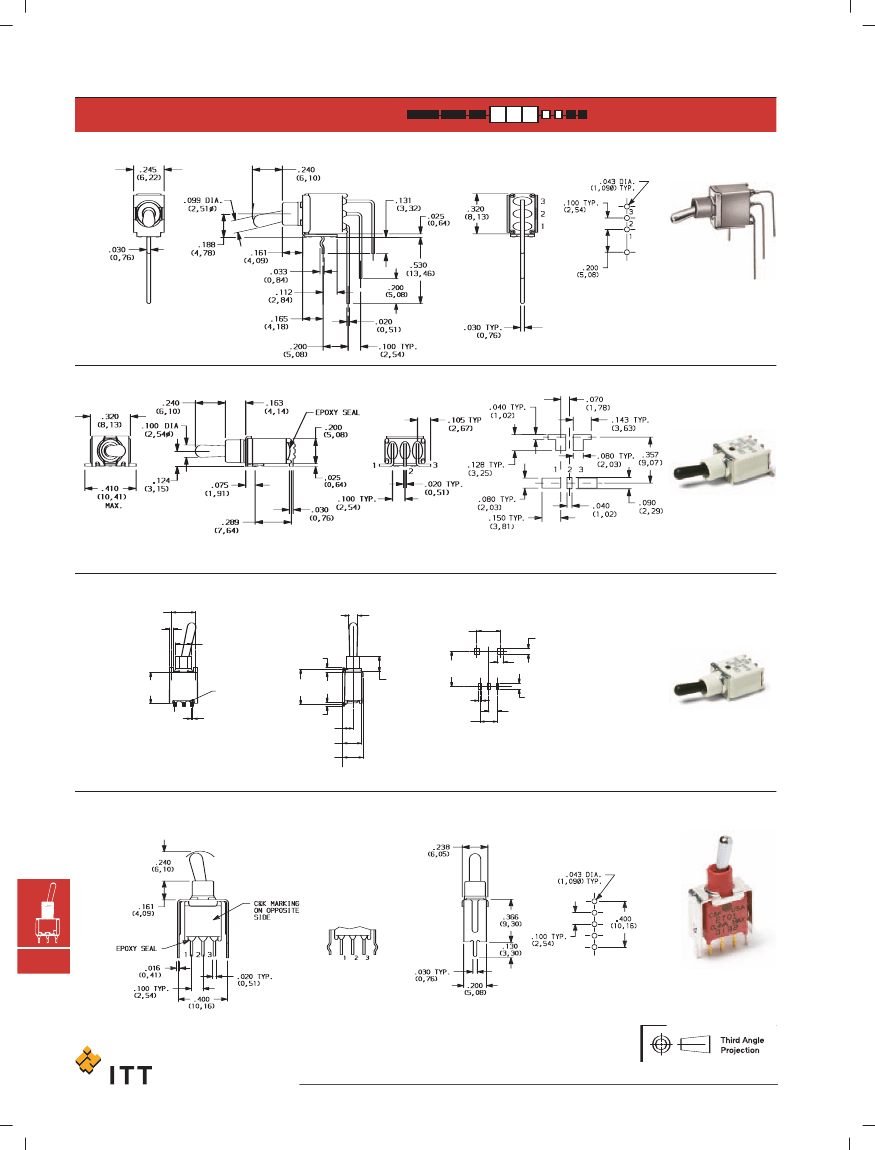

Terminations
A
Right angle, PC thru-hole
AV
Vertical right angle, PC thru-hole
C
PC Thru-hole
SA
Right angle, surface mount
SA1
Right angle, surface mount rear-facing
V3
Vertical mount, V-bracket
AV3
Vertical right angle, snap-in, PC thru-hole
V31
Vertical mount, V-bracket, snap-in
Contact Material
W
Wire wrap
B
Gold
K
Gold, tin-lead
P
Gold, matte tin
Q
Silver
G
Gold over silver
L
Gold over silver,
tin-lead
R
Gold over silver,
matte-tin
G
Toggle
Seal
E
Epoxy
Plastic Actuator Color
NONE
No actuator color
2
Black
1
White
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
G–30
www.ittcannon.com
