L-7104JQ/2GD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-7104JQ/2GD

L-7104JQ/2GD: DescriptionT-1 SINGLE COLOR LED ARRAY, GREEN, 3mm, ROHS COMPLIANT PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size99KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-7104JQ/2GD Overview

T-1 SINGLE COLOR LED ARRAY, GREEN, 3mm, ROHS COMPLIANT PACKAGE-4

L-7104JQ/2GD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compli
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	GREEN
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.025 A
Lens type	DIFFUSED GREEN
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	12.6 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	40 deg

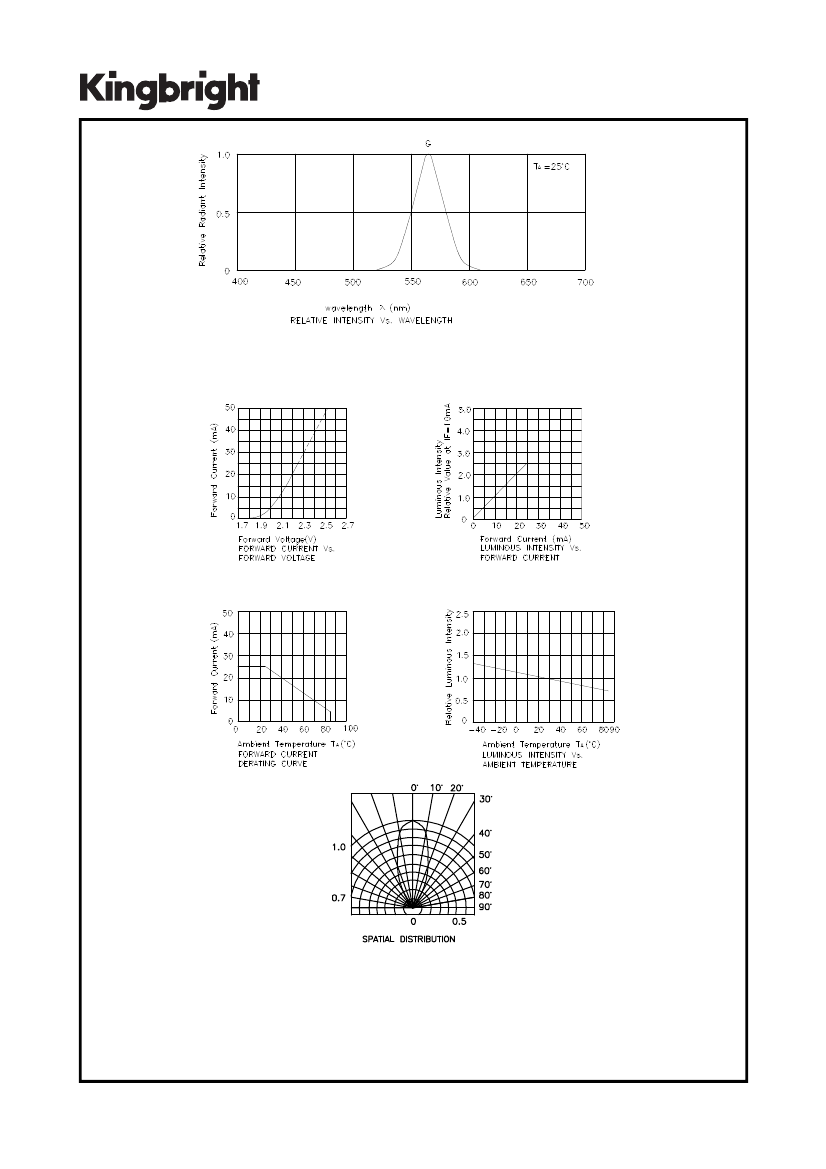

Preview

Download Datasheet

View All

T-1 (3mm) RIGHT ANGLE LED INDICATOR

P/N: L-7104JQ/2GD

GREEN

Features

PRE-TRIMMED LEADS FOR PC BOARD MOUNTING.

COLORS CAN BE MIXED IN A SINGLE HOUSING.

I.C. COMPATIBLE.

BLACK CASE ENHANCES CONTRAST RATIO.

HIGH RELIABILITY - LIFE MEASURED IN YEARS.

UL RATING : 94V-0.

HOUSING MATERIAL: TYPE 66 NYLON.

RoHS COMPLIANT.

Description

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. Specifications are subject to change without notice.

SPEC NO: DSAE7312

APPROVED: J. Lu

REV NO: V.4

CHECKED: Allen Liu

DATE: NOV/17/2005

DRAWN: Y.W.WANG

PAGE: 1 OF 3
