AACQ24TTEB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AACQ24TTEB

Preview

AACQ24TTEB: DescriptionTerminator, 9-Line, PDSO24, ROHS COMPLIANT, QSOP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size79KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AACQ24TTEB Overview

Terminator, 9-Line, PDSO24, ROHS COMPLIANT, QSOP-24

AACQ24TTEB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
Parts packaging code	SOIC
package instruction	SSOP,
Contacts	24
Reach Compliance Code	compli
ECCN code	EAR99
Differential output	NO
Interface integrated circuit type	OTHER TERMINATOR
JESD-30 code	R-PDSO-G24
JESD-609 code	e3
length	8.66 mm
Humidity sensitivity level	1
Number of functions	1
Number of signal lines	9
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
surface mount	YES
Temperature level	MILITARY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	3

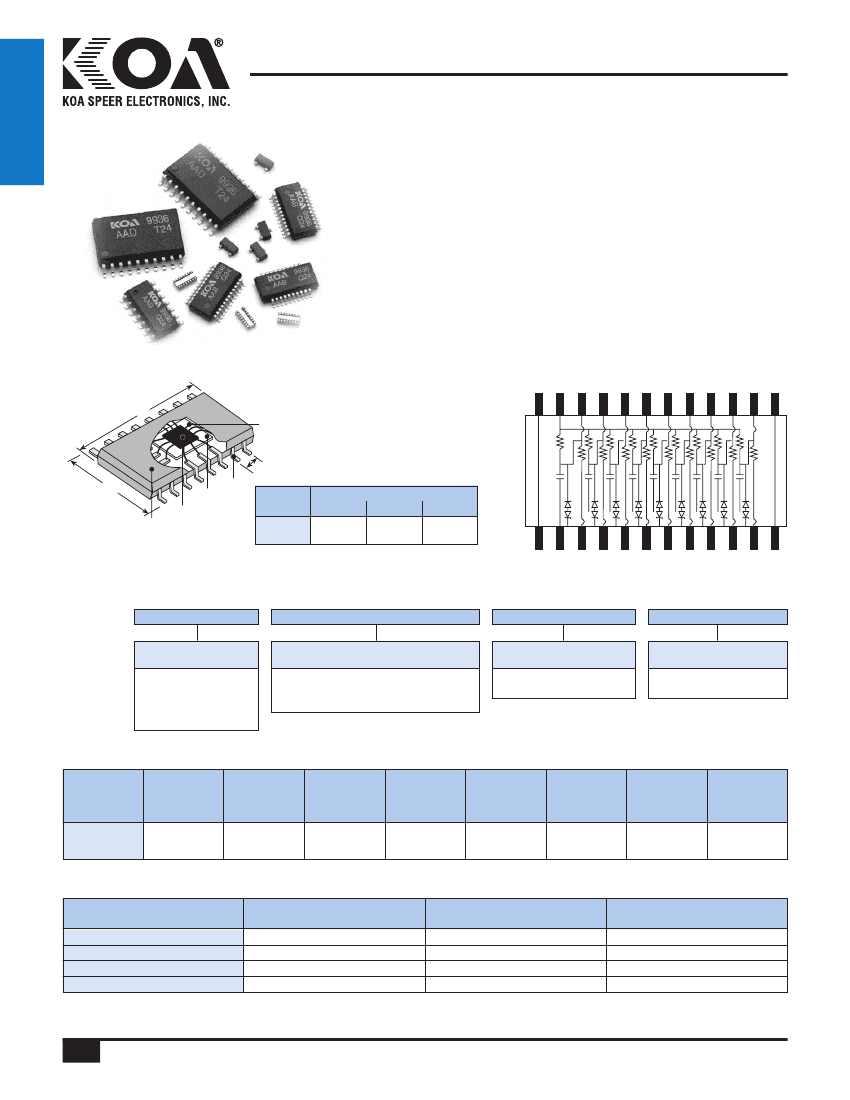

AACQ24TTEB Preview

AA(X)

resistors

active 1284 terminator networks

features

•

9 RC termination circuits per package

•

ESD protection

•

Thin film ultra stable circuit elements

applications

•

Bi-directional I/O

•

EMI/RFI filter

•

I/O operating > 20MHz

dimensions and construction

L

circuit schematic

n

Bonding

Wire

R1

R2

p

W

Lead

Die

Pad

Si

Wafer

Molded

Resin

Size

Code

Q24

C

Dimensions

inches

(mm)

L

W

p

.341

(8.66)

150

(3.81)

.033

(0.84)

1

n= number of pins (24)

ordering information

New Part #

AAB

Type

AAA

AAB

AAC

AAD

Q24

Package

Symbol

Package type symbol

+ number of pins

QSOP: Q24

T

Termination

Material

T: Sn

L: SnPb

TEB

Packaging

TEB: 13" embossed

plastic tape

applications and ratings

Part

Designation

Power Rating Power Rating

@ 70°C

(Resistor)

(Package)

100mW

1W

Resistor

Tolerance

T.C.R.

(ppm/°C)

Capacitor

Tolerance

Diode

Breakdown

Voltage

±6V

ESD

Operating

Withstanding Temperature

Voltage (HMB)

Range

±8kV

-50°C to

+150°C

AA(X)

±10%

±200

±20%

standard circuit elements

Product

Code

AAA

AAB

AAC

AAD

R

1

1.0KΩ

2.2KΩ

4.7KΩ

R

2

33Ω

10Ω

33Ω

C

180pF

220pF

180pF

For further information on packaging, please refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

1/12/05

118

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AACQ24TTEB Related Products

	AACQ24TTEB	AADQ24TTEB	AAAQ24TTEB	AABQ24TTEB
Description	Terminator, 9-Line, PDSO24, ROHS COMPLIANT, QSOP-24	Terminator, 9-Line, PDSO24, ROHS COMPLIANT, QSOP-24	Terminator, 9-Line, PDSO24, ROHS COMPLIANT, QSOP-24	Terminator, 9-Line, PDSO24, ROHS COMPLIANT, QSOP-24
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	KOA Speer	KOA Speer	KOA Speer	KOA Speer
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	SSOP,	SSOP,	SSOP,	SSOP,
Contacts	24	24	24	24
Reach Compliance Code	compli	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Differential output	NO	NO	NO	NO
Interface integrated circuit type	OTHER TERMINATOR	OTHER TERMINATOR	OTHER TERMINATOR	OTHER TERMINATOR
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e3	e3	e3	e3
length	8.66 mm	8.66 mm	8.66 mm	8.66 mm
Humidity sensitivity level	1	1	1	1
Number of functions	1	1	1	1
Number of signal lines	9	9	9	9
Number of terminals	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	MATTE TIN	MATTE TIN	Tin (Sn)	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	3	3	3	3
