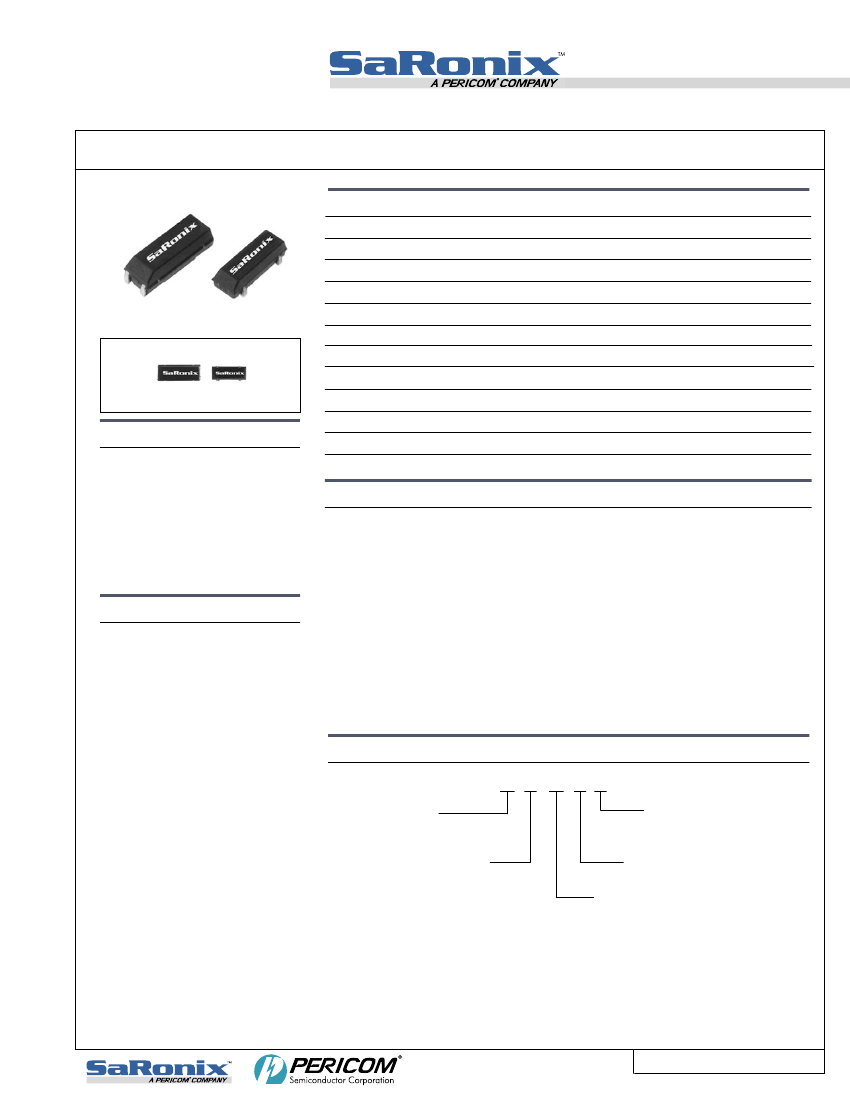

Tuning Fork Quartz Crystals
Technical Data
Electrical Specifications
Nominal Frequency @ 25°C – F
Frequency Tolerance
Turnover Temperature – T
O
Temperature Coefficient – K
Load Capacitance – C
L
Equivalent Series Resistance – R
S
Shunt Capacitance – C
0
Recommended Drive Level - Pd
ACTUAL SIZE
32.768 kHz Plastic SMD
32S12 Series
32.768 kHz
±20 ppm
+25°C ±5°C
(-3.5 ± 0.8) × 10
-8
/ °C
2
12.5 pF standard
50KΩ max
1.0 pF, typ
0.1µW
1µW max
±5 ppm, max
-40 to +85°C
-55 to +125°C
Maximum Drive Level – Pd
MAX
Aging – Δ F / f ( 1st year @ 25°C ±3°C)
Operating Temp. Range
Storage Temp. Range
Description
The 32S12 Series is a micro-miniature,
plastic-molded, surface mountable ver-
sion of the 32.768 kHz tuning fork-type
quartz crystal. The crystal is housed in a
rugged, high-temperature tubular holder,
then mounted to a leadframe and injection
molded into its plastic carrier. Two sizes
and two lead connection configurations
are available.
Applications & Features
• Very small, compact packaging
• Rugged, plastic-molded design, resistant
to shock and vibration
• Excellent resistance to heat shock and
environmental characteristics
• Ideally suited for automated pick-and-
place assembly environments
• Available on tape and reel
• Ideal for portable applications, time of
day clocks, communication equipment,
pagers, cellular telephones, camcorders,
and micro computers
Environmental / Process Specifications
High Temperature Storage:
Low Temperature Storage:
Thermal Shock:
Shock:
Resistance to Soldering Heat:
Solderability:
Terminal Strength:
Less than ±5 ppm change after 500H at 80°C
Less than ±5 ppm change after 500H at -30°C
Less than ±5 ppm change at 25°C after
-25 to +80°C 20 cycles each 1 H
MIL-STD-883, Method 2002, Condition B
MIL-STD-202, Method 210, Condition I or J
Maximum of two (2) reflow passes
MIL-STD-883, Method 2003
Will withstand pull weight of 500 grams,
30 seconds maximum
Part Numbering Guide
32 S 12
Frequency
32.768 kHz
C (T)
Package Option
Blank = Bulk packed
(T) = Tape / Reel*
*full reel increments only
SaRonix
Package Type & Lead Connection

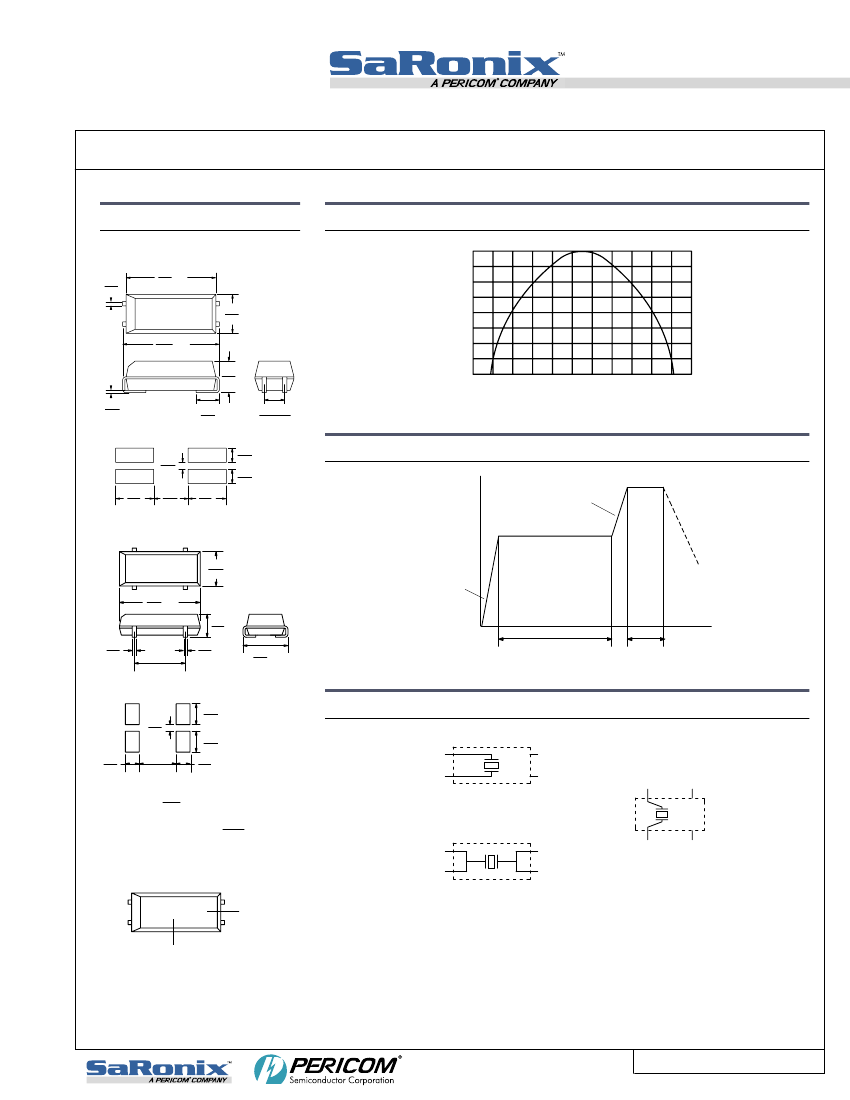

A, B, C ( see package configurations)
Load Capacitance
12 = 12.5 pF (standard load capacitance)
Example PN: 32S12B
DS-107
REV E
