5435-54111-1A datasheet, PDF - EEWORLD Datasheet

5435-54111-1A: DescriptionCard Edge Connector, 54 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Eject Lever; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerLeamax Enterprise Co., Ltd.

Download Datasheet Parametric View All

5435-54111-1A Overview

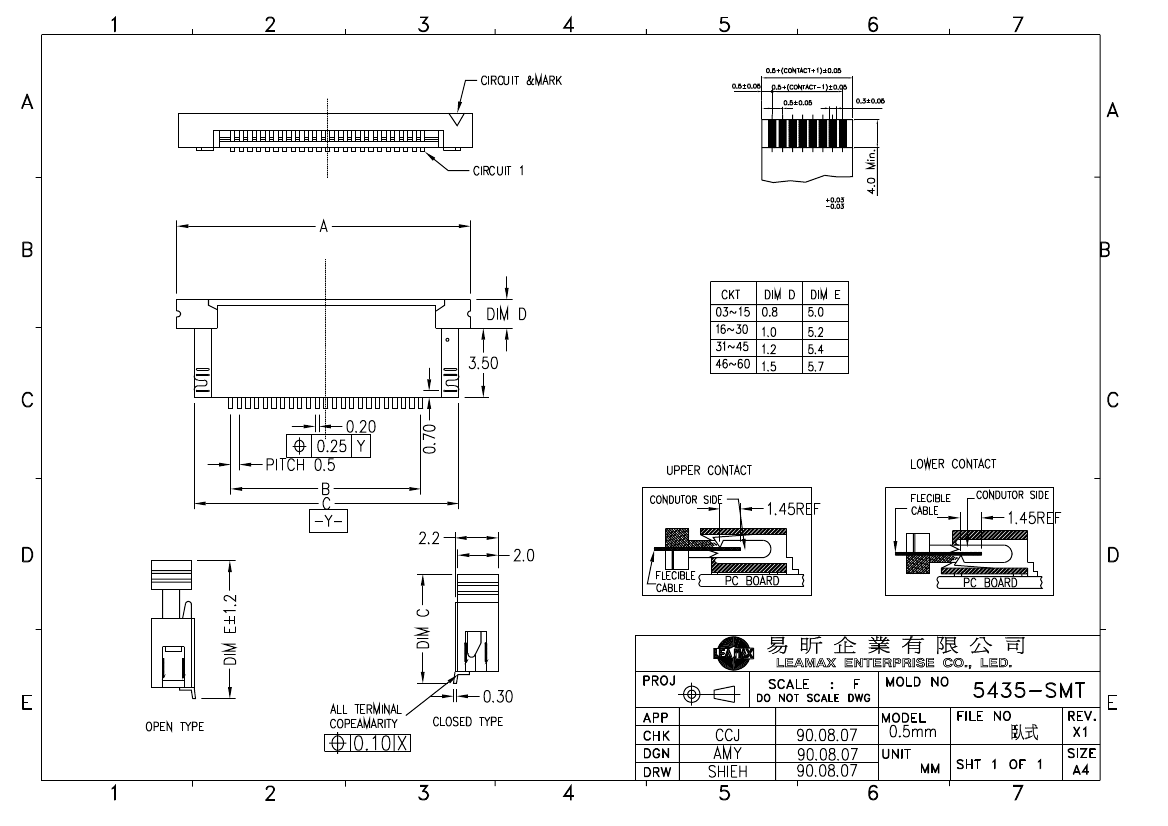

Card Edge Connector, 54 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Eject Lever

Parameter Name	Attribute value
Maker	Leamax Enterprise Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PACKAGING
Board mount options	SOLDER HOLDING POSTS
body width	0.087 inch
subject depth	0.197 inch
body length	1.323 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SINGLE PRONG
Dielectric withstand voltage	500VAC V
maximum insertion force	ZIF N
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.02 inch
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	120u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	54
Evacuation force-minimum value	ZIF N

FFC/FPC DIMENSION

THICKNESS 0.3

mm
