F1100H-FREQ2-OUT5 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> F1100H-FREQ2-OUT5

F1100H-FREQ2-OUT5: DescriptionLow Power Schottky Output Clock Oscillator, 50MHz Min, 80MHz Max; CategoryPassive components oscillator; File Size327KB，1 Pages; ManufacturerFOX [Fox Electronics]

Download Datasheet Parametric Compare View All

F1100H-FREQ2-OUT5 Overview

Low Power Schottky Output Clock Oscillator, 50MHz Min, 80MHz Max

F1100H-FREQ2-OUT5 Parametric

Parameter Name	Attribute value
Maker	FOX [Fox Electronics]
Reach Compliance Code	unknow
ECCN code	EAR99
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	F1100H
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	80 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LOW POWER SCHOTTKY
Output load	10 LS TTL
physical size	20.8mm x 13.2mm x 5.08mm
longest rise time	5 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

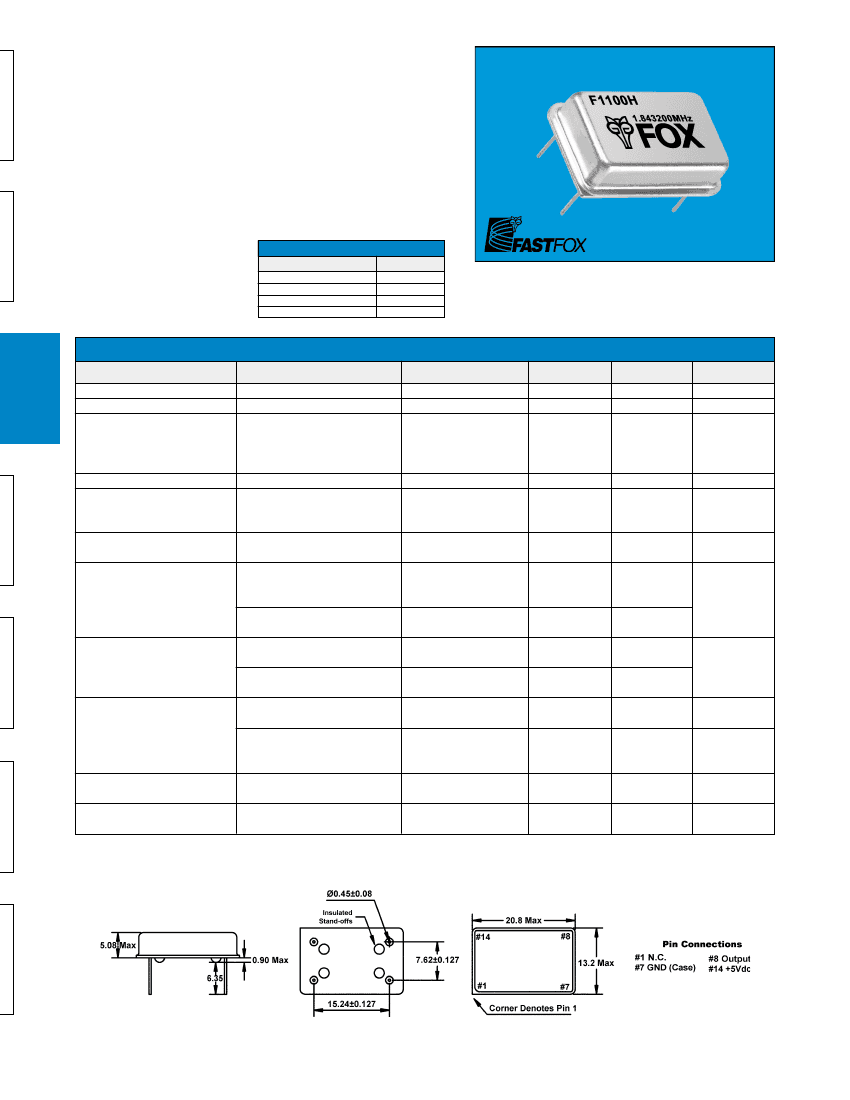

TTL CLOCK OSCILLATOR

F1100H

The F1100H Clock Oscillator is TTL compatible. It has been

designed for low current consumption and fast rise time. Its

standard 45/55% symmetry allows it to directly drive

microprocessors that previously used a divide-by-2 stage in

applications up to 50MHz. The package is all metal with pin 7 as

case ground which provides shielding to help minimize EMI

radiation.

FEATURES

MODEL NUMBER SELECTION

Model Number

Frequency Stability

F1100H

±100PPM

(STD -10ºC ~ 70ºC)

F1100HR

±100PPM

(-40ºC ~ 85ºC)

F1145H

±50PPM

F1144H

±25PPM

45/55% Symmetry up to 50MHz

Fast Rise/Fall Times

-40°C to 85°C Option

Low Current Consumption

OSCILLATORS

ELECTRICAL CHARACTERISTICS (V

=5.0V, R

=noted below, C

=15pF)

Frequency Range (Fo)

Frequency Stability

Temperature Range

Operating

OPR

)

Optional

Storage

STG

)

Supply Voltage

)

Input Current

)

Output Symmetry

Rise Time

Fall Time

Output Voltage

)

Output Current

)

Output Load

Start-up Time

(TS)

PARAMETERS

FREQUENCY RANGE

0.500

~ 80.000

CONDITIONS

All Conditions*

0.500

-100

-10

-40

-55

+4.5

MIN

MAX

80.000

+100

+70

+85

+125

+5.5

0.4

0.5

-0.4

-0.2

UNITS

MHz

PPM

ºC

0.500

25.000+

50.000+

0.500

50.000+

0.500

4.000+

25.000+

0.500

25.000+

0.500

25.000+

0.500

25.000+

0.500

25.000+

0.500

4.000+

25.000+

0.500

25.000+

0.500

25.000+

80.000

25.000

50.000

80.000

50.000

80.000

4.000

25.000

80.000

25.000

80.000

25.000

80.000

25.000

80.000

25.000

80.000

4.000

25.000

80.000

25.000

80.000

25.000

80.000

1.4V Level

0.4V to 2.4V

0.5V to 2.4V

2.4V to 0.4V

2.4V to 0.5V

= 16 mA

= 4 mA

= -0.4 mA

= -0.2 mA

= 0.4 V

= 0.5 V

= 2.4V

= 400W

= 2kW

2.4

TTL

LSTTL

* Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging, shock, and vibration.

See page 44 for mechanical specifications, test circuits, and output waveform.

All specifications subject to change without notice. Rev. 03/02/00

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

941-693-0099

FAX 941-693-1554

http://www.foxonline.com
