ZMSL03130T11PLC

Description
Snap Acting/Limit Switch, SPDT, Momentary, 3A, 12VDC, 1.82mm, Solder Terminal, Simulated Roller Actuator, Through Hole-straight, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size267KB,4 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Environmental Compliance
Download Datasheet Parametric View All

ZMSL03130T11PLC Overview

Snap Acting/Limit Switch, SPDT, Momentary, 3A, 12VDC, 1.82mm, Solder Terminal, Simulated Roller Actuator, Through Hole-straight, ROHS COMPLIANT

ZMSL03130T11PLC Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerITT
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
ECCN codeEAR99
Actuator stroke1.82 mm
Actuator typeSIMULATED ROLLER
body width5.4 mm
body height7.5 mm
Body length or diameter14.7 mm
Contact (AC) maximum rated R load3A@125VAC
Maximum contact current (AC)3 A
Maximum contact current (DC)3 A
Contact (DC) maximum rated R load3A@12VDC
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)12 V
Electrical life10000 Cycle(s)
JESD-609 codee3
Manufacturer's serial numberZMS
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating force0.44 N
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Maximum pre-travel1.02 mm
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typeSNAP ACTING/LIMIT SWITCH
Terminal surfaceTin (Sn)
Termination typeSOLDER

ZMSL03130T11PLC Preview

C&K ZMS Series
Subminiature Snap-acting Switches (Dust Proof)
Features/Benefits
Reliable snap-acting mechanism
Long electrical and mechanical life
Compact size—Ideal when space is limited
Various PCB terminals and actuators
RoHS compatible
IP67 on some models
Typical Applications
PCB detection switch
Communication devices
Testing equipment
Security/Alarm systems
Consumer electronics
Models Available
Specifications
CONTACT RATING: 3A @ 125 V AC, 3A 12 V DC / 10 mA @ 12 V DC.
ELECTRICAL LIFE: 300,000 cycles @ 10mA / 10,000 cycles @ 3A.
INSULATION RESISTANCE: 100 M ohm min.
DIELECTRIC STRENGTH: 500 Vrms.
OPERATING TEMPERATURE: –17ºF to 185ºF (–25ºC to 85ºC).
OPERATING FORCE: 80 or 130 grams.
Materials
CASE: Nylon
COVER/ACTUATOR: PBT
MOVABLE CONTACTS: Silver or gold plated.
STATIONARY CONTACTS: Silver or gold plated.
TERMINALS: Brass, tin plated.
LEVER: Stainless steel
NOTE:
For the latest information regarding RoHS compliance, please
go to: www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
K
Snap-acting
* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max.
@ 20 V AC or DC max.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages K- and K- . For additional options not shown in catalog, consult Customer Service Center.
Z M S
Series
ZMS
SP, Mom.
Over Travel
H
High Travel
Electrical Rating
L
Low Travel
00
10 mA @ 12 V DC
03
3A 125 V AC
3A 12 V DC
Operating Force
130
130 grams / 4.59
Actuator
P00
Pin plunger
T10
.25 lever
T11
.28 simulated roller
Terminations
P
PC Thru-hole
L
Left form, PC Thru-hole
R
Right form, PC Thru-hole
S
Solder type
J
Wire leads
Mounting Styles
S
Std (No support post)
L
Support post left
R
Support post right
Circuitry
C
SPDT
W
SPST N.C.
Y
SPST N.O.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K-
www.ittcannon.com

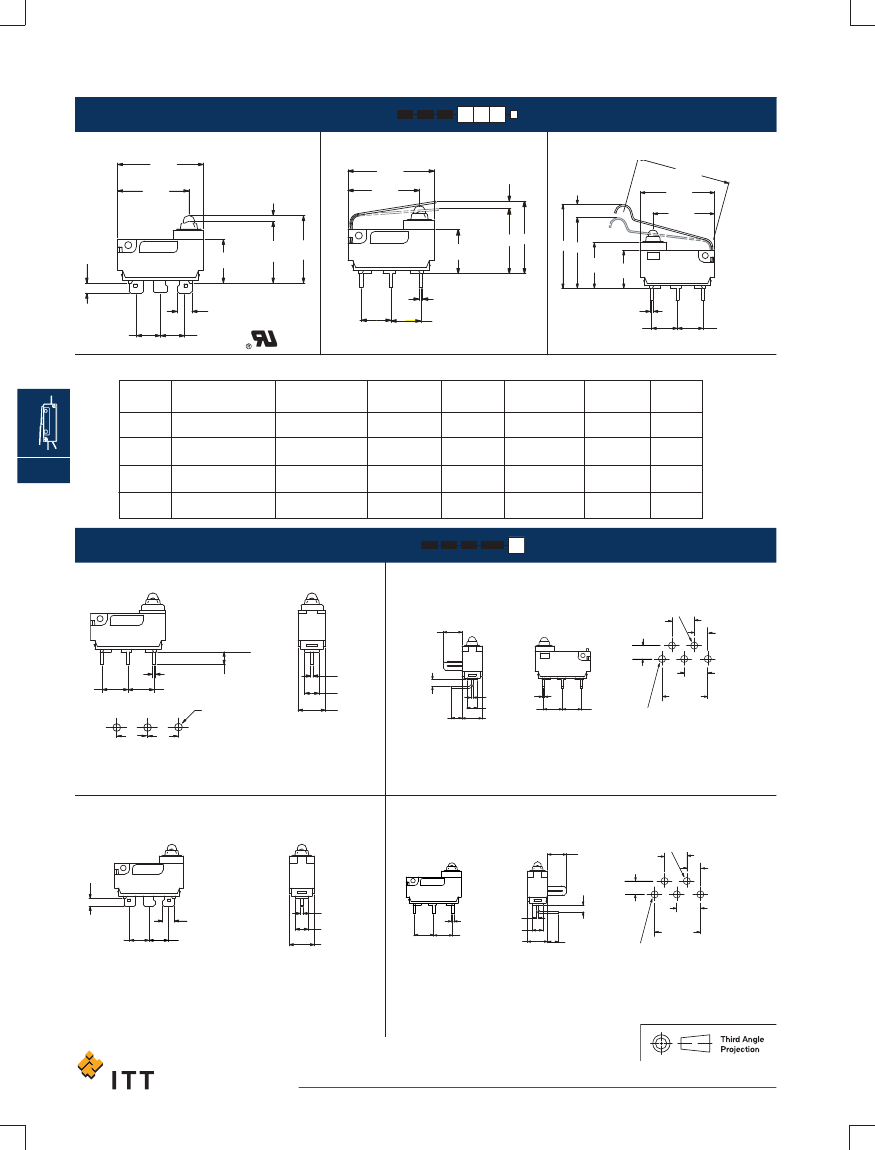

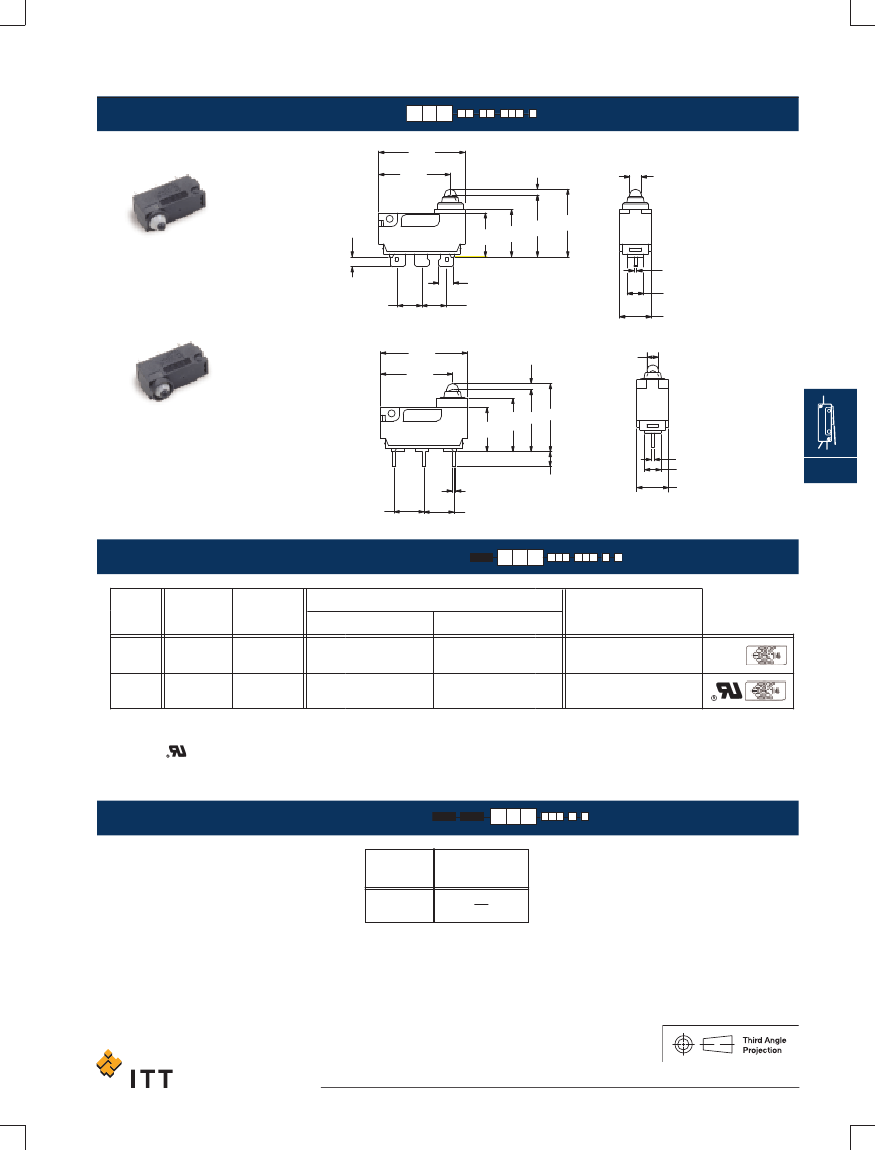

C&K ZMS Series
Subminiature Snap-acting Switches
SERIES
ZMSH
HIGH OVER TRAVEL
Z M S
14,7
[ .579 ]
12,2
[ .480 ]
PT
ø2
[ .079 ]
1,7
[ .067 ]
8,1
7,5
[ .295 ] [ .319 ]
OP
FP
2,5
[ .10 ]
0,5
[ .020 ]
2,8
[ .110 ]
5,4
[ .213 ]
ZMSL
LOW OVER TRAVEL
4,13
[ .163 ]
4,13
[ .16 ]
14,7
[ .579 ]
12,2
[ .480 ]
PT
Ø2
[ .079 ]
9,05 OP
7,5 [ .356 ]
[ .295 ]
FP
0,6 ±0,1
[ .024 ±.003 ]
5,08
[ .200 ]
5,08
[ .200 ]
2,5
[ .098]
0,5 ±0,05
[ .020 ±.001 ]
2,8
[ .110 ]
5,4
[ .213 ]
K
Snap-acting
ELECTRICAL RATING
CONTACT MATERIAL
OPTION
CODE
RoHS
COMPLIANT*
RoHS
COMPATIBLE*
MOVABLE CONTACT
STATIONARY CONTACT
ELECTRICAL RATING
00
03
Yes
Yes
Gold over fine silver
Gold over fine silver
0.1 AMP @ 30 V DC
Yes
Yes
Fine Silver
Fine silver
3 AMPS @ 125 V AC
3 AMPS @ 12 V DC
* Note: See Technical Data in section N of this catalog for RoHS compliant and compatible definition and specifications.
Model
with option “S” (solder type) only.
Consult Customer Service center for availability and delivery of nonstandard ratings.
*Electrical rating 03A is not available with Operating Force rating of 080.
OPERATING FORCE
BASIC SWITCH
OPERATING FORCE
(OZ./GRAMS)
130
4.59
OPTION CODE
130
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K-
www.ittcannon.com
C&K ZMS Series
Subminiature Snap-acting Switches (Dust Proof)
ACTUATOR
P00
PIN PLUNGER
14,7
[ .579 ]
12,2
[ .480 ]
PT
T10
.25 LEVER
14,7
[ .579 ]
12,2
[ .480 ]
T11
PT
LEVER
18,6
[ .7323 ]
14,7
[ .5787 ]
PT
OP FP
12,2
[ .4803 ]
1,7
[ .067 ]
7,5
[ .295 ]
10,55
[ .415 ]
11,55
[ .455 ]
7,5
[ .295 ]
FP OP
9,05
[ .3563 ]
7,5
[ .2953 ]
2,5
[ .098 ]
4,13
[ .163 ]
4,13
[ .163 ]
approved
0,6
[ .024 ]
5,08
[ .200 ]
5,08
[ .200 ]
0,6
[ .0236 ]
5,08
[ .2000 ]
5,08
[ .2000 ]
SWITCH CHARACTERISTICS
Maximum Operate
Force (oz. / grams)
Option
Code
P00
130
130
4.59
50
1.76
45
1.58
Minimum Release
Force (oz./grams)
130
20
0.71
8
0.28
7
0.25
Free Position
Max
0.289
(7,35)
0.398
(10,1)
0.050
(12.7)
Maximum
Pre-travel
0.024
(0,62)
0.031
(3,0)
0.40
(1.02)
Operate
Position
0.272 +/- 0.012
(6,9
+/- 0,3)
0.311 +/- 0.031
(7,9
+/- 0,8)
0.38±0.31
(9.56±0.8)
Maximum
Differential
0.005
(0,12)
0.031
(0,8)
0.040
(1.0)
Minimum
Overtravel
0.008
(0,2)
0.024
(0,6)
0.032
(0.8)
K
Snap-acting
T10
T11
TERMINATIONS
P
PC THRU-HOLE
L
LEFT FOOTED, PC THRU-HOLE
PC MOUNT
(2) 2.5 holes
(.098)
9.53 ± 1.0
(.375 ± .039)
2X 5
[ .197 ]
5.5 ± 0.5
(.216 ± .002)
0.23 ± 0.5
(.010 ± .002)
0,6 ± 0,1
( .024±.003)
5,08
5,08
( .200) ( .200)
2,5
( .098)
1,35/1,50
(.053) (.059)
0,5±0,05
( .020±.001)
2,8
( .110 )
5,4
( .213)
5.08 ± 1.0
(.200 ± .039)
1,8
[ .0709 ]
2,85
[ .1122 ]
0,5
[ .0197 ]
2,8
[ .1102 ]
5,4
[ .2126 ]
0,6
[ .0236 ]
5,08
[ .2000 ]
10.16±2.0
(.400 ± .078)
(3) 1.35 to 1.50 holes
(.053) to (.059)
5,08
[ .2000 ]
5,08 ±1
5,08 ±1
(.200±.038) (.200±.038)
PC MOUNTING HOLE
S
SOLDER TYPE
R
RIGHT FOOTED, PC THRU-HOLE
PC MOUNT
(2) 2.5 holes
(.098)
9.53 ± 1.0
(.375 ± .039)
5.5 ± 0.5
(.216 ± .002)
0.23 ± 0.5
(.010 ± .002)
5
[ .197]
1,7
[ .067 ]
1,8
[ .071]
4,13
[ .163 ]
2,5
[ .098 ]
4,13
[ .163 ]
0,5
[ .0197 ]
2,8
[ .1102 ]
5,4
[ .2126 ]
5,08
[ .200]
0,6
[ .024 ]
5,08
[ .200 ]
0,5
[ .020 ]
2,8
[ .110 ]
5,4
[ .213 ]
5.08 ± 1.0
(.200 ± .039)
10.16±2.0
(.400 ± .078)
(3) 1.35 to 1.50 holes
(.053) to (.059)
2,85
[ .112 ]
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–
www.ittcannon.com
C&K ZMS Series
Subminiature Snap-acting Switches (Dust Proof)
MOUNTING STYLES
S
STD (NO SUPPORT POST)
L
SUPPORT POST LEFT
2X 5
( .197 )
0,5
( .0197)
2,8
( .1102 )
5,4
( .2126)
1,8
( .0709 )
2,85
( .1122 )
0,5
( .0197 )
2,8
( .1102 )
5,4
( .2126 )
R
SUPPORT POST RIGHT
J
5
( .197 )
WIRE LEADS
(IP67)
1,8
( .071 )
3.17
(.125) Strip Ends
304.8
(12.00)
2,85
( .112 )
Grey
(NC)
Blue
(NO)
Black
(COM)
K
Snap-acting
0,5
( .020 )
2,8
( .110 )
5,4
( .213 )
CIRCUITRY
C
W
Y
SPDT (Single Pole, Double Throw)
SPST N.C. (Single Pole, Single Throw, Normally Closed)
SPST N.O. (Single Pole, Single Throw, Normally Open)
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–31
www.ittcannon.com
