LGE3005-LGE310
Silicon Bridge Rectifiers
D3K
FEATURES
Rating to 1000V PRV
Surge overload rating to 60 Amperes peak
Reliable low cost construction utilizing molded
plastic technique results in inexpensive product
Lead solderable per MIL-STD-202 method 208
Dim
A
B
C
E
F
I
J
K
P
Min
13.65
9.80
2.95
0.35
11.70
0.65
0.90
3.60
Ø3.2Typical
All Dimensions in mm
Max
14.15
10.20
3.25
0.65
12.30
0.95
1.20
4.00
Maximum Ratings
(@TA = 25°C unless otherwise specified)
Characteristic
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Symbol
V
RRM
V
RMS
V
DC
LGE
3005
50
35
50
LGE
301
100
70
100
LGE
302
200
140
200
LGE
304
400
280
400
LGE
306
600
420
600
LGE
308
800
560
800
LGE
310
1000
700
1000
UNITS
V
V
V
50Hz sine wave, R-load Without heat sink Ta=25℃
Peak forward surge current
8.3ms single half-sine-wave
superimposed on rated load
I²t Rating for fusing @Tj=25℃
I
F(AV)
3.0
A
I
FSM
90
33.6
A
I²t
A²S
Thermal Characteristics
Characteristic
Symbol
R
θJA
R
θJC
R
θJL
Value
UNITS
o
Typical Thermal Resistance (Note)
13.7
5.2
5.5
C/W
℃
℃
Operating junction temperature range
Storage temperature range
T
J
T
STG
- 55 ---- + 150
- 55 ---- + 150
Electrical Characteristics
(@TA = 25°C unless otherwise specified)
Characteristic
Maximum instantaneous forward voltage @1.5A
Maximum reverse current
at rated DC blocking voltage
@T
A
=25
℃
@T
A
=100℃
Symbol
V
F
I
R
Value
1.0
5.0
500
UNITS
V
μ
A
ht
t
p
:
//
Revision:20170701-P1
www.lgesemi
.c
o
m
mail:lge@lgesemi.com
LGE3005-LGE310
Silicon Bridge
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25°C unless otherwise noted)

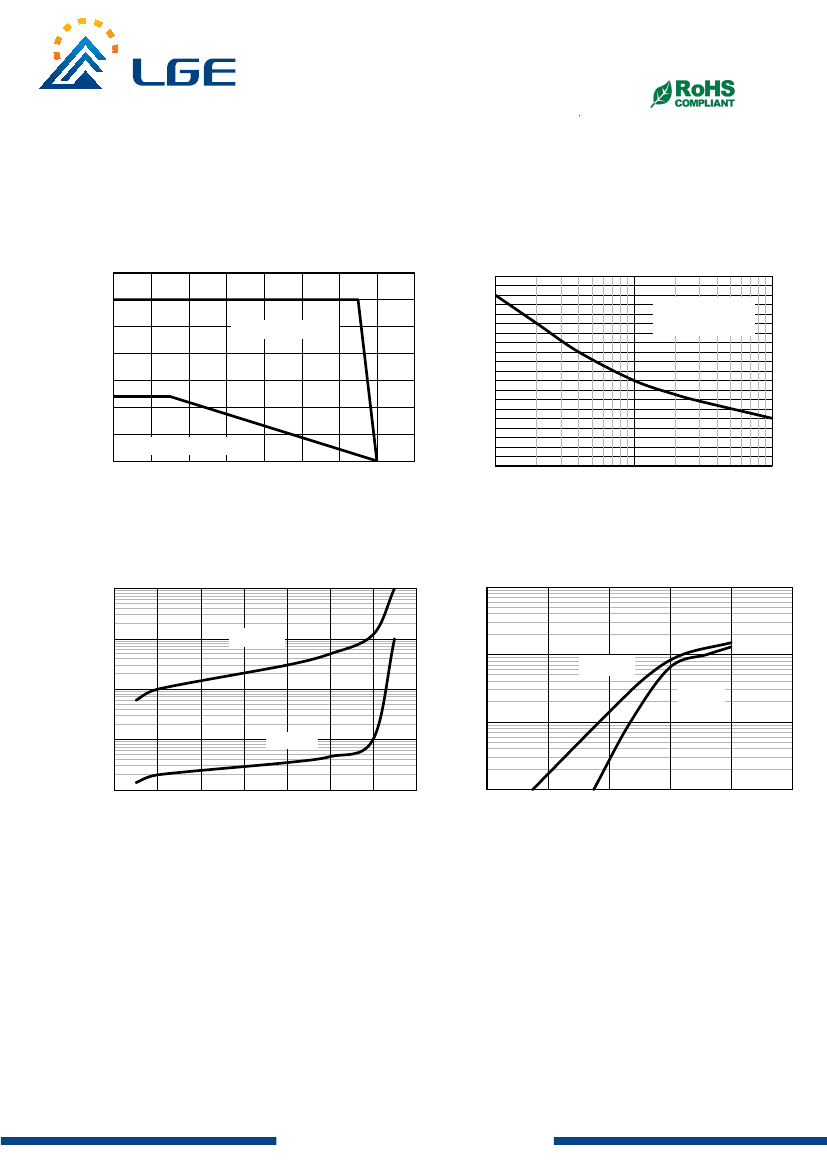

Fig1. Maximum Derating Curve For Output current
Fig2. Maximum Forward Surge Current
PEAK FORWARD SURGE CURRENT (A)
AVERAGE FORWARD CURRENT (A)
3.5
3
2.5
2
1.5
1
0.5
Without Heat sink
0
0
20
40
60
80
100
120
(
o
C)
140
160
AMBIENT TEMPERATURE
With Heat sink
100
90
80
70
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single
Half Sine-Wave
Fig3. Typical Reverse Characteristics
Fig4. Typical Forward Characteristics
INSTANTANEOUS REVERSE CURRENT (μA)
100
T
J
=125℃
INSTANTANEOUS FORWARD CURRENT (A)
1000
100
10
T
J
=125℃
T
J
=25℃
10
1
1
T
J
=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0.1
0.4
0.6
0.8
1
1.2
1.4
INSTANTANEOUS FORWARD VOLTAGE (V)
ht
t
p
:
//
Revision:20170701-P1
www.lgesemi
.c
o
m
mail:lge@lgesemi.com
