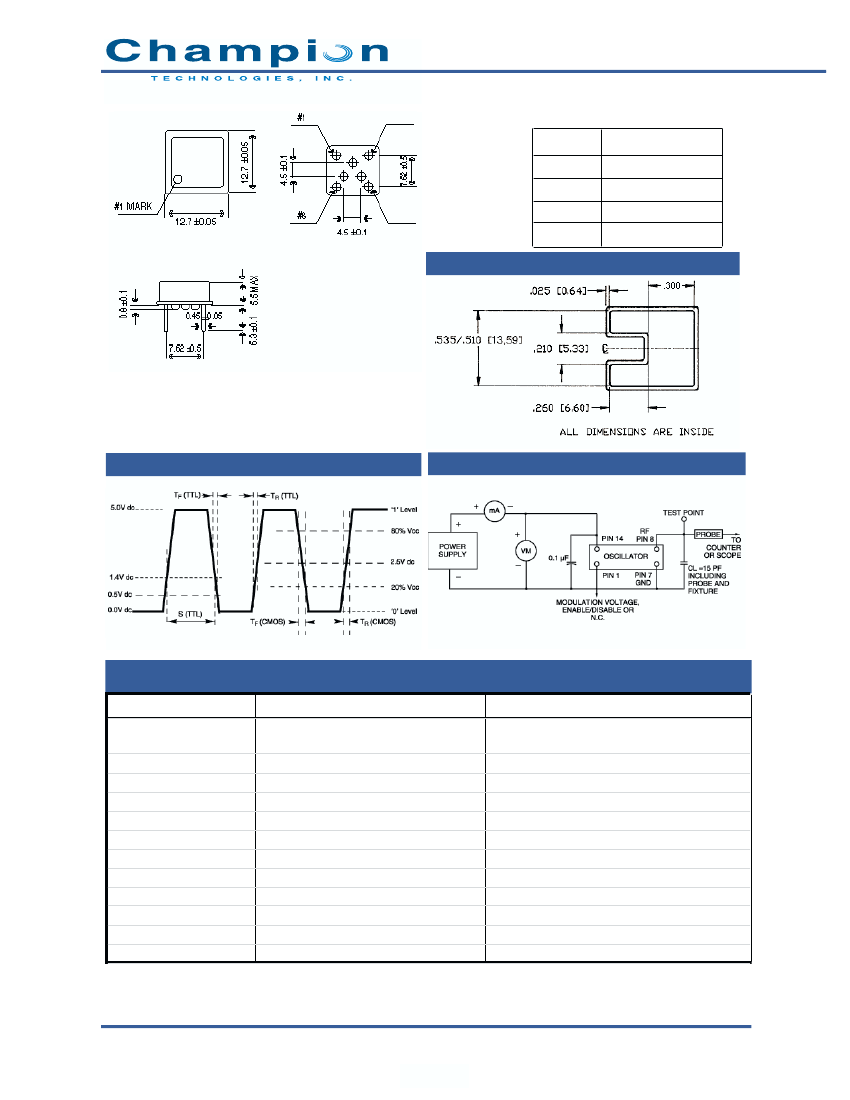

K570A Series

5V Voltage Controlled Crystal Oscillators

Applications:

Phase-Locked Loops (PLL’s); Clock

Recovery; Reference Signal Tracking;

Synthesizers; Frequency Modulation/Demodulation

8-pin Half DIL Package

1.0 to 52.0 MHz Frequency Range

0.5V to 4.5V Control Voltage

±25ppm Stability

-40°C to 85°C Operating Temperature

min

2,7 ax.

1 M

ax.

in M

12,

K576.000 MH

ODE

TI DAT

5,5

PIN 1

E L E C T R I C A L S P E C I F I C AT I O N S

Model

Frequency Range (MHz)

Input Current (mA)

Frequency Control Function

Deviation (ppm)

Minimum

Maximum

Linearity (%)

Modulation Bandwidth (±3dB)

Nominal Control Voltage (V)

Control Voltage Range (V)

Transfer Function

Input Impedance

Frequency Stability (ppm)

Overall

0oC to +70oC

-40oC to +85oC

Temperature Range (oC)

Operating

Storage

Supply Voltage (V)

Symmetry (%) CMOS/TTL

Start Up Time (ms)

Typical SSB Phase Noise (dBC/Hz)

Offset from Carrier

10Hz

100Hz

1KHz

10KHz

100KHz

-40oC to +85oC

-55oC to +125oC

+5.0V ±5%

40/60

<10

-65

-95

-120

-140

-150

Inclusive of Calibration, Temperature, Voltage, Load and Aging

±25

±50

±100

±150

< 10

> 20KHz

2.5

0.5 to 4.5

Positive

> 50KΩ @ 10KHz

K570A

1 to 52

< 26

(For Custom Deviation Range, Vc Range, etc. - Consult Factory)

PA R T N U M B E R I N G G U I D E

K570A XX -

Specify Frequency

“Blank” = 0°C to 70°C Operating Temp.

“M” = -40°C to +85°C Operating Temp.

“A” = ±25ppm (0oC to 70oC Op. Temp. Only

“B” = ±50ppm

2553 N. Edgington Street, Franklin Park, IL 60131

Phone: 847.451.1000

Fax: 847.451.7585

800-888-1499 or www.champtech.com
