S204PR-K35
General Information
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
S204PR-K35
2CDS274427R0547
4016779847810
Miniature Circuit Breakers MCBs - S200PR - Number of Poles 4 - Tripping characteristic K
S204PR-K35 MCB K-Char., 10kA, 35A, 4P, RTT UL 1077, Ring Cable Lug
Categories
Products
»
Low Voltage Products and Systems
»
Modular DIN Rail Products
»
Miniature Circuit Breakers MCBs
Ordering
EAN:
Minimum Order Quantity:
Customs Tariff Number:
4016779847810
1 piece
85362010
Dimensions
Product Net Width:
Product Net Depth:
Product Net Height:
Product Net Weight:
70.0 mm
71.0 mm
100.0 mm
0.560 kg
Container Information
Package Level 1 Units:
Package Level 1 Width:
Package Level 1 Length:
Package Level 1 Height:
Package Level 1 Gross Weight:
Package Level 1 EAN:
2 piece
121.0 mm
191.0 mm
82.0 mm
1.170 kg
4016779849814
Environmental
Ambient Air Temperature:
Operation -25 … +55 °C
Storage -40 ... +70 °C
20 °C
25g, 2 shocks, 13 ms
Resistance to Shock acc. to IEC
60068-2-27:
Resistance to Vibrations acc. to IEC
5g, 20 cycles at 5...150...5 Hz with load 0.8 In
60068-2-6:
Environmental Conditions:
28 cycles
with 55 °C / 90-96%
and 25 °C / 95-100%
Technical
Standards:
Number of Poles:
Tripping Characteristic:
Rated Current (I
n
):
Rated Operational Voltage:
Power Loss:
Rated Insulation Voltage (U
i
):
Operational Voltage:
Rated Frequency (f):
Rated Ultimate Short-Circuit
Breaking Capacity (I
cu
):
Rated Service Short-Circuit
Breaking Capacity (I
cs
):
Energy Limiting Class:
Overvoltage Category:
Pollution Degree:
Rated Impulse Withstand Voltage
(U
imp
):
Dielectric Test Voltage:
IEC/EN 60947-2
UL 1077
CSA 22.2 No. 235
4
K
35.00 A
400 V AC
19.04 W
Per Pole 4.76 W
Phase to Phase 500 V
Maximum 440 V AC
Minimum 12 V AC
50 / 60 Hz
15 kA
11.2 kA
3
III
2
4 kV
(6.2 kV @ sea level)
(5.0 kV @ 2000 m)
50/60 Hz, 1 min.: 2 kV
Housing Material:
Actuator Type:
Actuator Marking:
Contact Position Indication:
Degree of Protection:
Remarks:
Electrical Endurance:
Mechanical Endurance:
Terminal Type:
Tightening Torque:
Recommended Screw Driver:
Mounting on DIN Rail:
Mounting Position:
Insulation group II, RAL 7035
Insulation group II, black, sealable
I/ O
ON / OFF
IP20
IP40 in enclosure with cover
20000 AC cycle
20000 cycle
Ring-Tongue Terminals
2.8 N·m
Pozidriv 2
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Any
Technical UL/CSA
Maximum Operating Voltage
UL/CSA:
Connecting Capacity UL/CSA:
Tightening Torque UL/CSA:
Interrupting Rating acc. to UL1077:
480Y / 277 V AC
Conductor 18 - 4 AWG
25 in·lb
10 kA

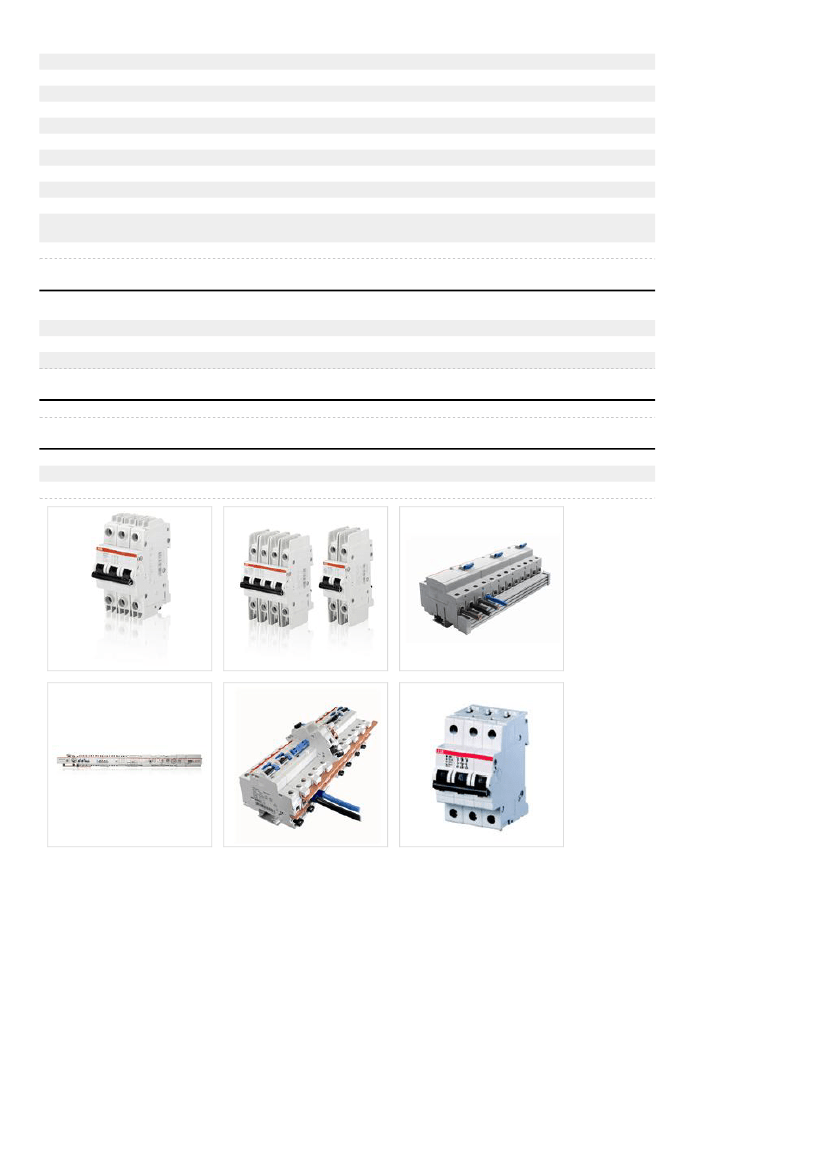

Certificates and Declarations (Document Number)
Declaration of Conformity - CE:
2CDK400587D2701;
Classifications
ETIM 4.0:
ETIM 5.0:
Object Classification Code:
EC000042 - Miniature circuit breaker (MCB)
EC000042 - Miniature circuit breaker (MCB)
F
