M2400 through M2402 Series
SPECIFICATION FOR 2.5x2.0 mm SMT CRYSTAL OSCILLATOR
Ordering Information:
Product Series
(Supply Voltage Option)
M2400
(3.3V)
M2401
(2.5V)
M2402
(1.8V)
Temperature Range
Code
6
2
Value
-20 to +70 °C
-40 to +85 °C
Stability
Code
3
4
6
8*
Value
±100 ppm
± 50 ppm
± 25 ppm
± 20 ppm
4
T
C
N
25.000000
Output Type
Code
F
Q
T
Value
Fixed
Standby
Tristate
G
40/60
CMOS
Symmetry
Code
C
Value
45/55
CMOS
Package/Lead
Configuration
Code
N
Value
Leadless
Frequency
MHz
xxx.xxxxxx
Example: M240064TCN 25.000000 MHz
M2400
6
* Contact factory for availability
Electrical Specifications:
Parameter
Frequency of Operation
Frequency Stability
Output Type
Output Load
Symmetry (duty cycle)
Logic “1” Level
Logic “0” Level
Rise/Fall Time
Start-Up Time
Tristate or Standby Function
Symbol
F
O
F/F
Min.
1
Typ.
Max.
100
Units
MHz
ppm
Conditions
Frequency Stability
See Ordering Information
Output
HCMOS Compatible
T
DC
V
OH
V
OL
T
R
/T
F
45
90% V
DD
15
55
10% V
DD
5
10
Logic (70% V
DD
min) or floating
Logic (30% V
DD
max) to a high-Z state
pF
%
V
V
ns
ms
Ref to ½ V
DD
HCMOS load
HCMOS load
1 – 100 MHz
Pad 1: Enables output
Pad 1: Disables output
3.63
2.75
1.98
6
10
16
10
1.5
1.2
1.0
0.8
0.7
0.5
0.5
0.4
V
V
V
mA
mA
mA
ps
ps
ps
ps
ps
ps
ps
ps
ps
M2400
M2401
M2402
1.000 – 20.000 MHz
20.001 – 60.000 MHz
60.001 – 100.000 MHz
@ 1M (12 kHz to 1 MHz)
@ 20M (12 kHz to 20 MHz)
@ 25M (12 kHz to 20 MHz)
@ 30M (12 kHz to 20 MHz)
@ 40M (12 kHz to 20 MHz)
@ 50M (12 kHz to 20 MHz)
@ 66M (12 kHz to 20 MHz)
@ 70M (12 kHz to 20 MHz)
@ 100M (12 kHz to 20 MHz)
Supply Voltage & Power Consumption
Supply Voltage
V
DD
I
DD
Supply Current
2.97
2.25
1.62
3.30
2.50
1.80
Additional Specifications
Phase Jitter
1 of 3
M2400 through M2402 Series
SPECIFICATION FOR 2.5x2.0 mm SMT CRYSTAL OSCILLATOR
Environmental & Mechanical Requirements:
Operating Temperature
Storage Temperature
Mechanical Shock
Vibration
Thermal Cycle
Hermeticity
Solderability
Max. Soldering Conditions
Package Type
T
A
See Ordering Information
°C
T
S
-55
+125
°C
Per MIL-STD-202, Method 213, Condition C (100 g’s, 6 ms duration, ½ sinewave)
Per MIL-STD-202, Method 201 & 204 (10 g’s from 10-2000 Hz)
Per MIL-STD-883, Method 1010, B (-55°C to 125°C, 15 min. dwell, 10 cycles)
Per MIL-STD-202, Method 112 (1 x 10
-8
atm cc/s of Helium)
Per EIAJ-STD-002
See solder profile, Figure 1
2.0 X 2.5 X 1.0 mm, 4-pad leadless ceramic. RoHS 6/6 compliant

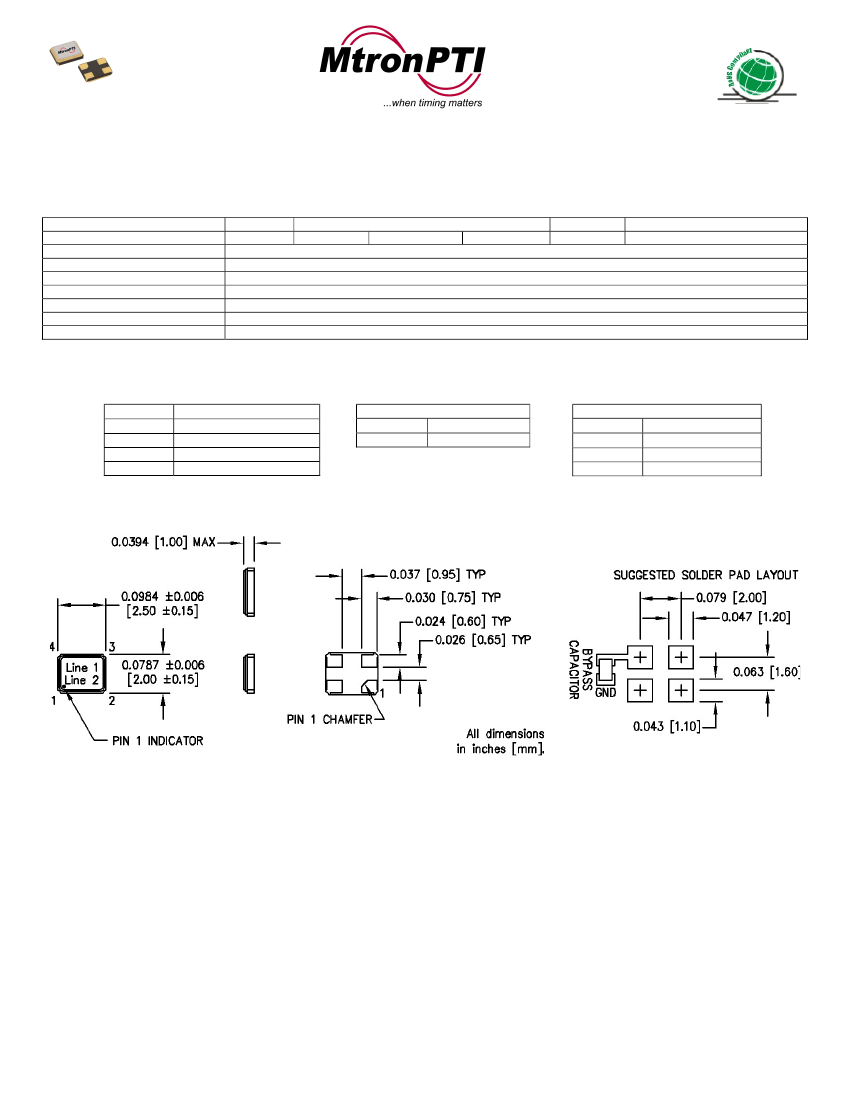

Dimensions, Marking, and Pin Out Information:
Pad
1
2
3
4
Function
Tristate, Standby or N/C
Ground
Output
+V
DD
Part Marking (MHz range)
Line 1
xxxMxxx
Line 2
M ywwv
xxxMxxx
y
ww
v
Legend
Frequency in MHz
Year
Work week
Factory code
Note : Layout should include 0.01 µF or larger bypass capacitor between +Vdd and ground.
2 of 3
M2400 through M2402 Series
SPECIFICATION FOR 2.5x2.0 mm SMT CRYSTAL OSCILLATOR

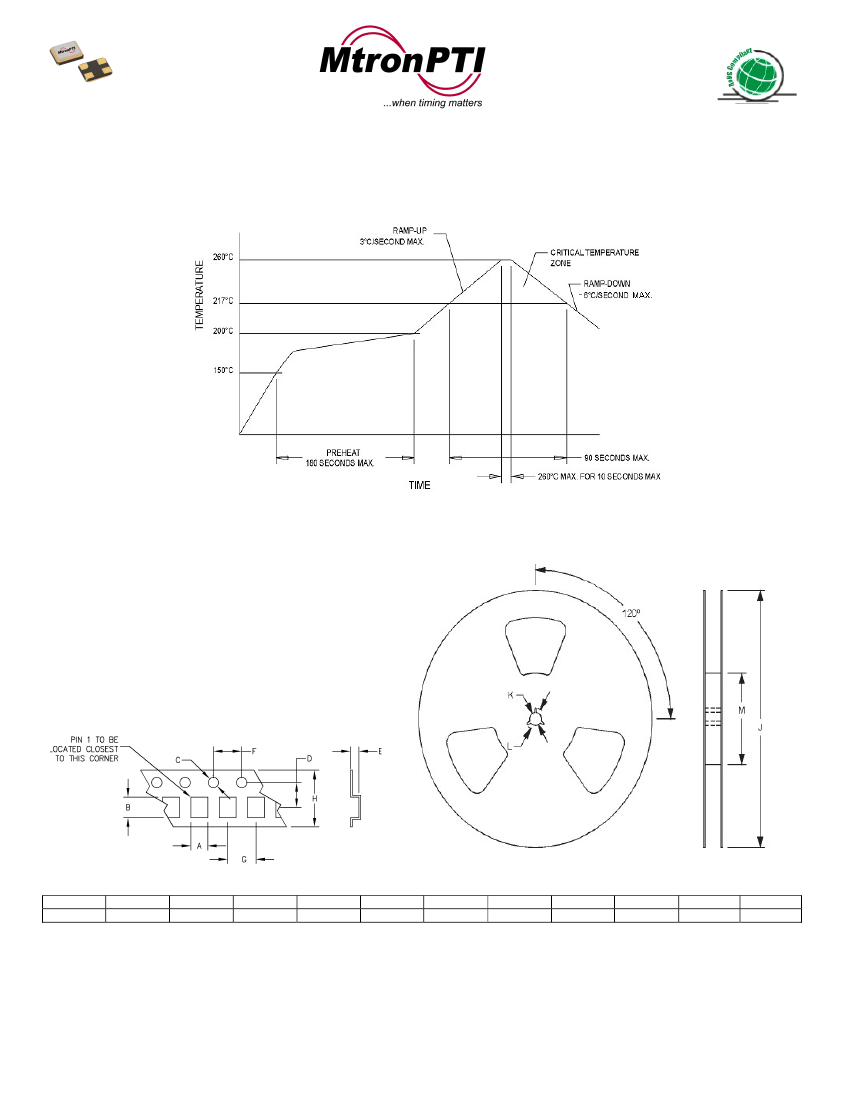

Reflow Soldering Conditions:
Figure 1
Tape and Reel Specifications:
All dimensions are in mm.
A
2.4
B
2.9
C
1.55
D
3.5
E
1.2
F
4
G
4
H
8
J
178
K
13
L
21
M
60
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice.
No liability is assumed as a result of their use or application.
Rev.0 09/11/17
3 of 3
