910F-41-219-01 datasheet, PDF - EEWORLD Datasheet

910F-41-219-01: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size183KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

910F-41-219-01 Overview

Board Connector, 38 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.335 inch
subject depth	0.52 inch
body length	2.01 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	9100
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	CENTER
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	38
Evacuation force-minimum value	.556 N

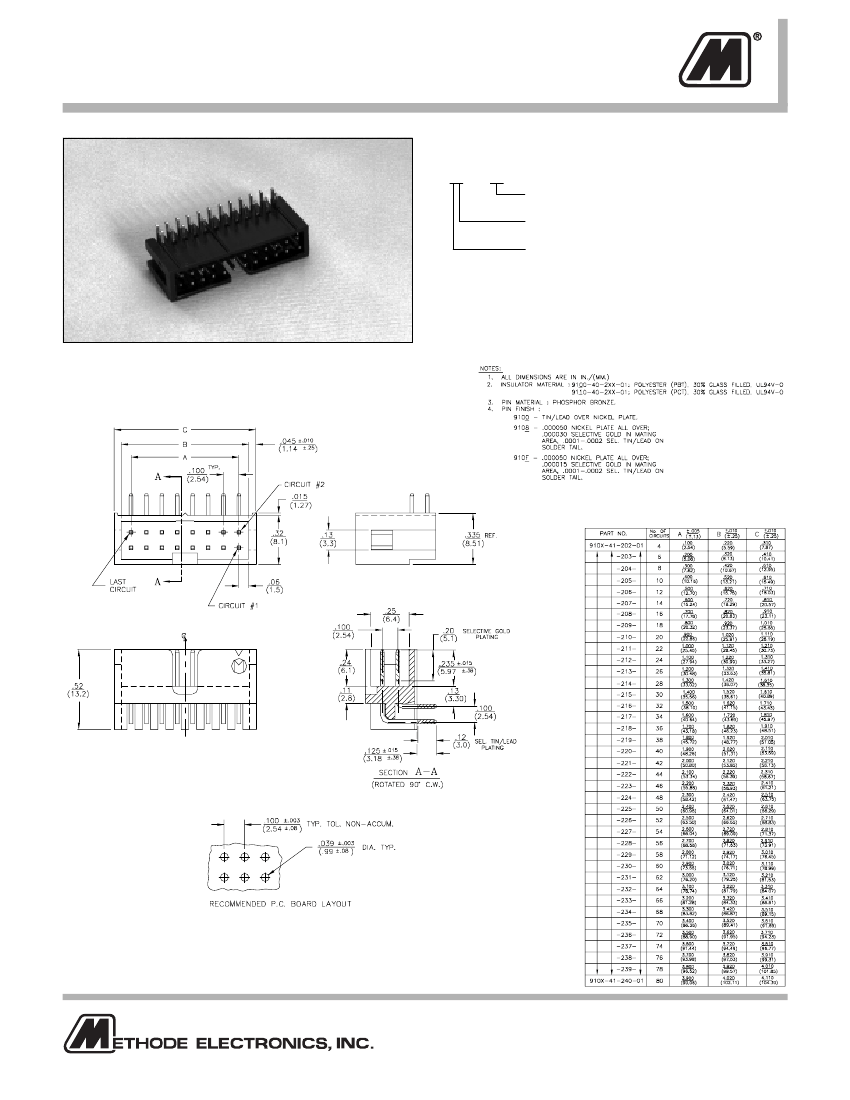

.100” (2.54mm) Dual Row, Through Hole,

Right Angle, Polarizing Shrouded Header

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

91XX-41-2XX-01

NUMBER OF POSITIONS

(SEE TABLE)

PIN PLATING

(SEE NOTE 3)

INSULATOR MATERIAL

(SEE NOTE 2)

MATING CONNECTORS: 9000 SERIES & 9300-6XX/7XX SERIES

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
