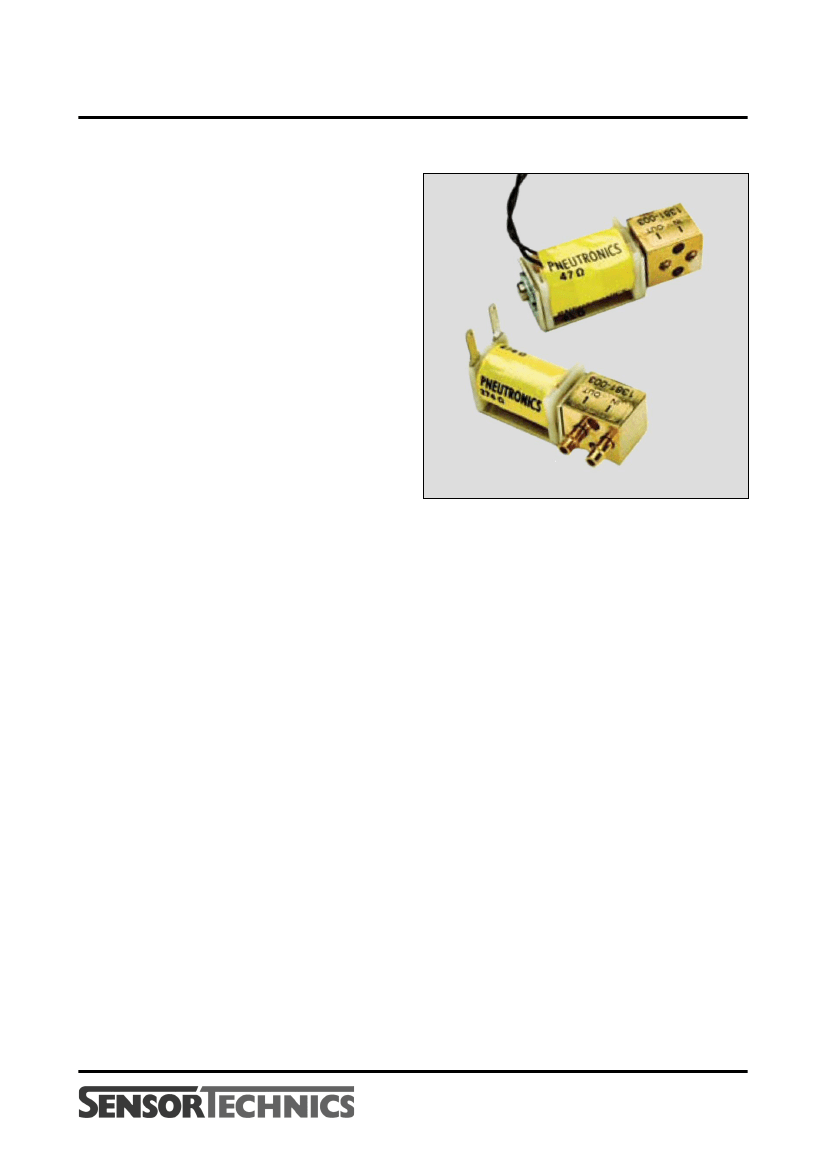

Lone Wolf
Normally open proportional solenoid valve
FEATURES
· 2-way normally open
· Achieves rapid, stable performance
· Enhances system control and patient
comfort
· Maintains ideal flow through normally
open valve with thermal compensation
· Extremely reliable
MEDIA COMPATIBILITY
Air, nitrogen, oxygen & others
PHYSICAL PROPERTIES
Operating environment
Storage temperature
Length
0 to 50 °C
-40 to 70 °C
45.3 mm (1.785 in)
16.5 mm (0.625 in)
17 mm (0.67 in)
manifold mount with 43 µm screens,
1/8" barbs, 5/64" barbs
63 g (2.2 oz)
0.508 cm
3
(0.031 in
3
)
40 µm
None required
ELECTRICAL
Power
Voltage
Electrical terminal
0.5, 1.0 or 2.0 W
3 to 60 V
DC
PC mount,
18" wire leads
Width
Height
Porting
Weight
Internal volume
Filtration (recommended)
Lubrication
October 2006 / 262
1/4
www.sensortechnics.com
Lone Wolf
Normally open proportional solenoid valve
PERFORMANCE CHARACTERISTICS
Part no.
LW1...
LW2...
LW3...
Pressure
0..10 psi
0...20 psi
0...25 psi
Vacuum
Orifice siz es
0.024" (0.610 mm)
Leak rate
1
Internal:
0.2 sccm
(bubble tight)
External:
0.016 sccm
R esp o n se
0...20 "Hg
(0...10 psi)
0.030" (0.762 mm)
0.036" (0.914 mm)
<30 msec
cycling
(2 W)

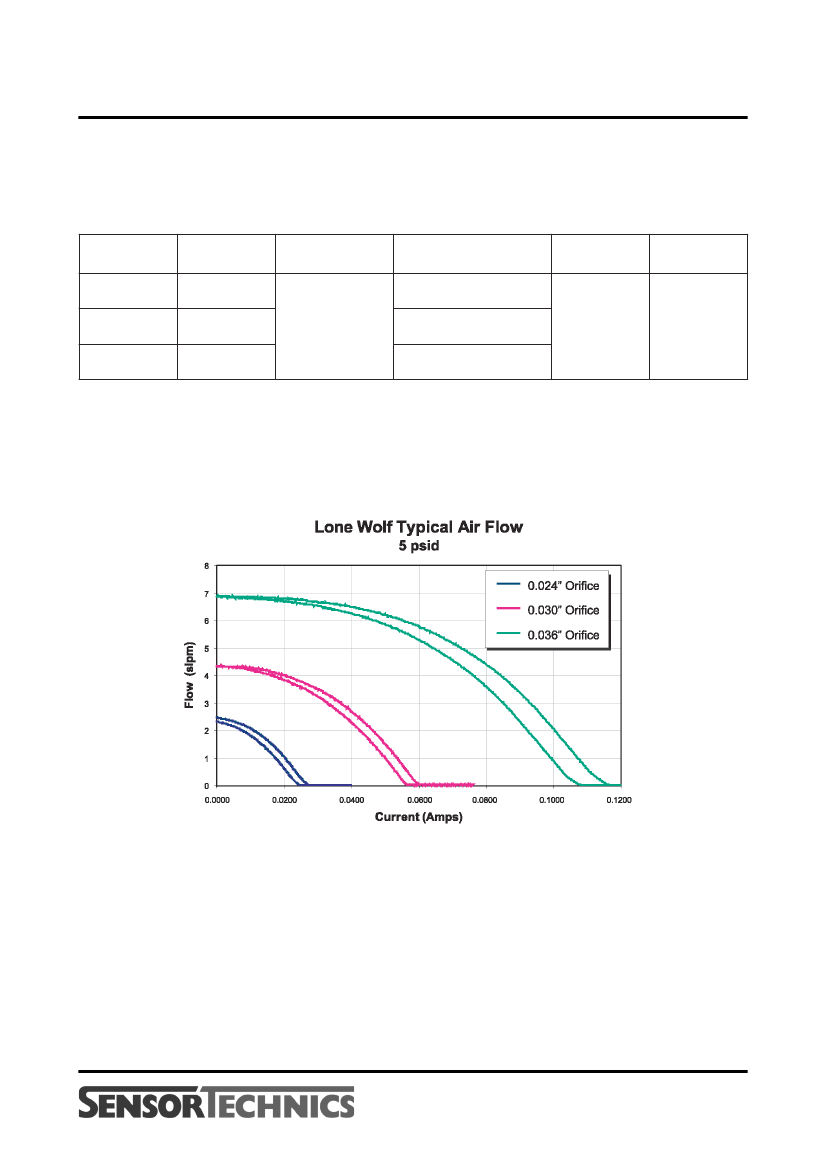

FLOW CURVE
2
Notes:
1
sccm denotes Standard Cubic Centimeters per Minute. It is a unit for the flow rate at standard conditions of temperature and
pressure. 1000 sccm = 1 slpm.
2
slpm denotes Standard Liters per Minute. It is a unit for the flow rate at standard conditions of temperature and pressure.
1 slpm = 1000 sccm.
October 2006 / 262
2/4
www.sensortechnics.com
Lone Wolf
Normally open proportional solenoid valve

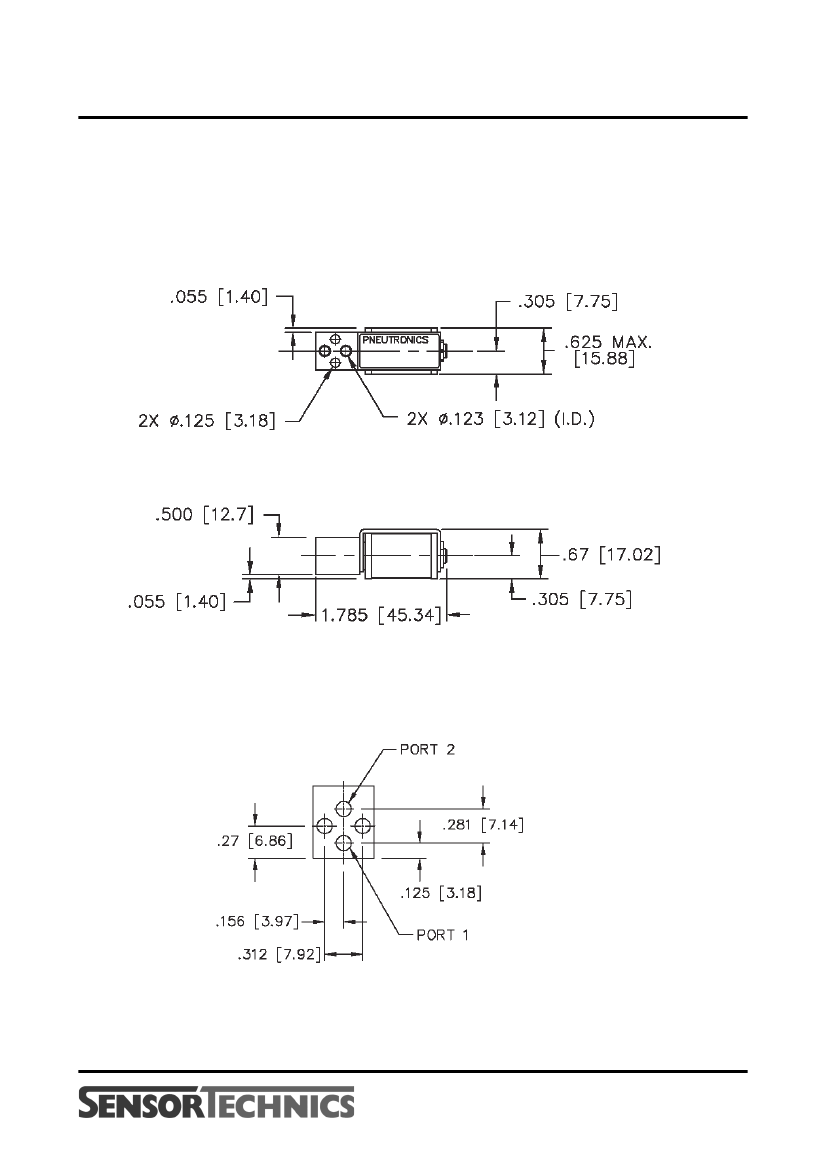

OUTLINE DRAWING
Basic valve dimensions
Port and mounting hole diagrams
dimensions in inches (mm)
October 2006 / 262
3/4
www.sensortechnics.com
Lone Wolf
Normally open proportional solenoid valve
ELECTRICAL INTERFACE OPTIONS
LW...F...
(Wire leads,
no terminals)
LW...P...
(PC mount, 4 pins)
PNEUMATIC INTERFACE OPTIONS
LW...0
(No barbs,
face seal to manifold)
LW...1
(No barbs,
face seal to manifold
with screen)
LW...8
(0.125" barbs, 1/8" I.D.
tubing, 1/4" O.D. max)
ORDERING INFORMATION
Model no.
Standard
Options
LW
1:
2:
3:
Max.
pressure
C oi l
Orifice
Wattage
0.5 W
1W
2W
(0.610 mm)
Material
B:
Brass
Elastomer
V:
FKM
Coil
selection
A:
B:
C:
D:
11
Ω
23
Ω
47
Ω
68
Ω
Electrical
interface
Pneumatic
interface
10 psi 0.024"
20 psi 0.030"
(0.762 mm)
F:
wire leads,
0:
manifold
18-19"
mount
25 psi 0.036"
(0.914 mm)
P:
PC board
mount,
4 PC pins
1:
manifold
mount with
screens*
8:
1/8" barbs
* this option will
affect price
F :
274
Ω
Example:
LW
1
B
V
A
F
8
Note: Not all combinations might be available.
Please contact your nearest Sensortechnics sales representative for further information.
Sensortechnics reserves the right to make changes to any products herein. Sensortechnics does not assume any liability arising out of the
application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
October 2006 / 262
4/4
www.sensortechnics.com
