3VT40/9JDD3 datasheet, PDF - EEWORLD Datasheet

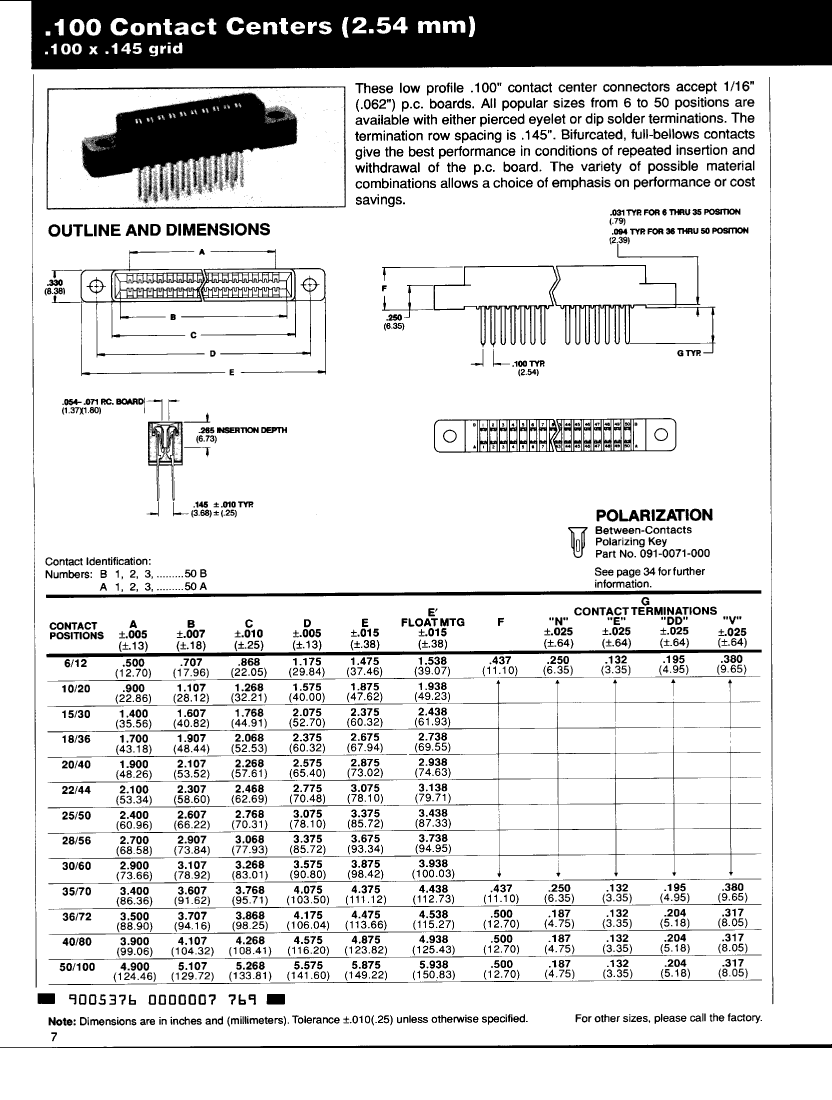

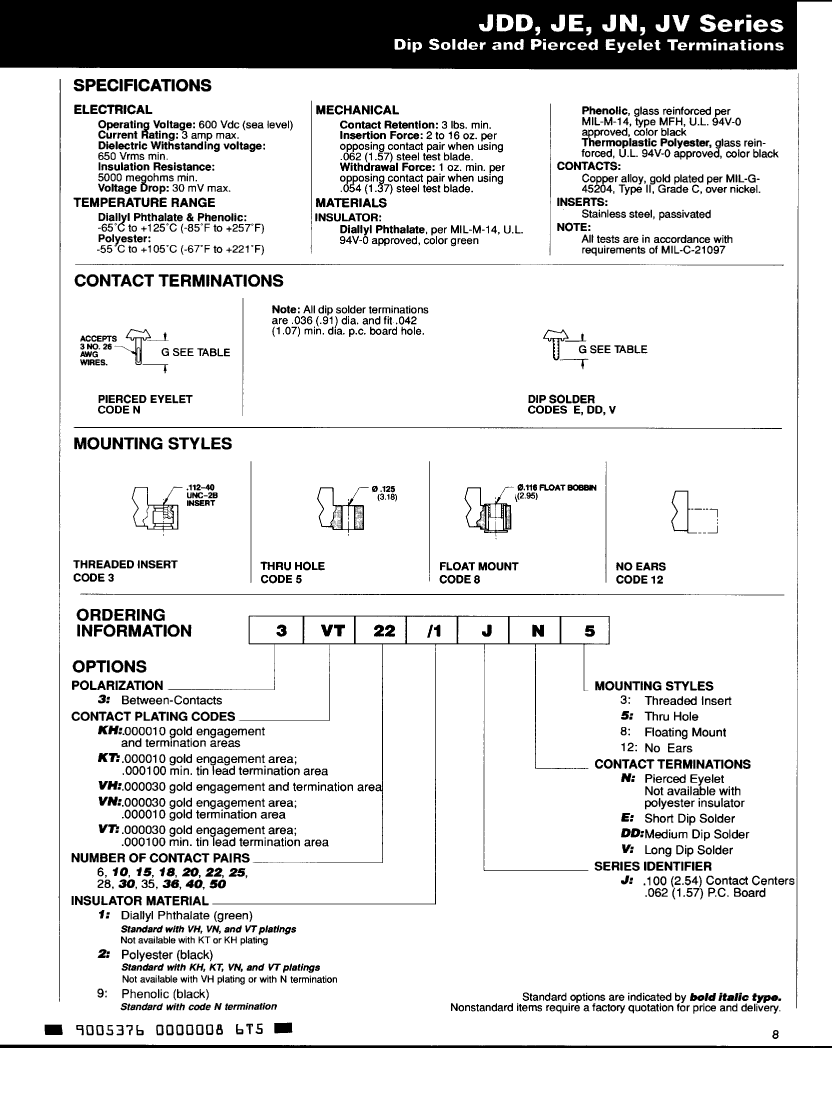

3VT40/9JDD3: DescriptionCard Edge Connector, 80 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, #4-40, Black Insulator, Receptacle; CategoryThe connector The connector; File Size236KB，4 Pages; ManufacturerWPI Viking Electronics Inc.

Download Datasheet Parametric View All

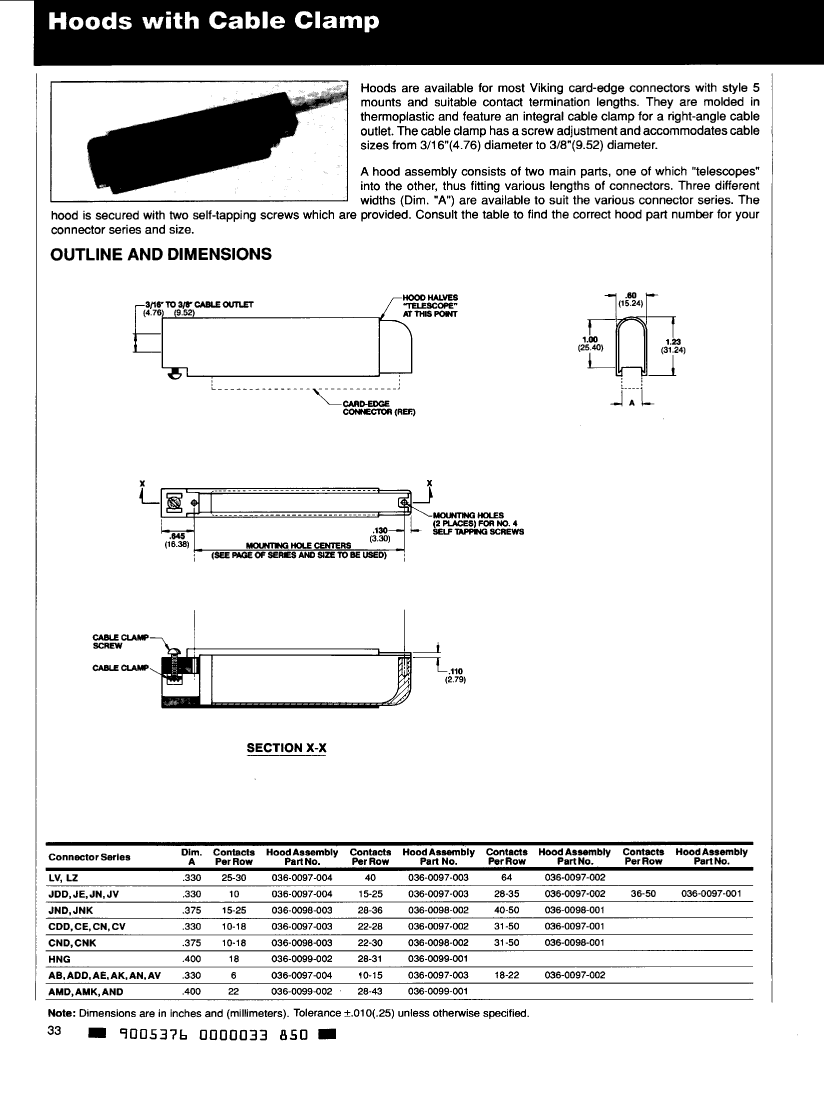

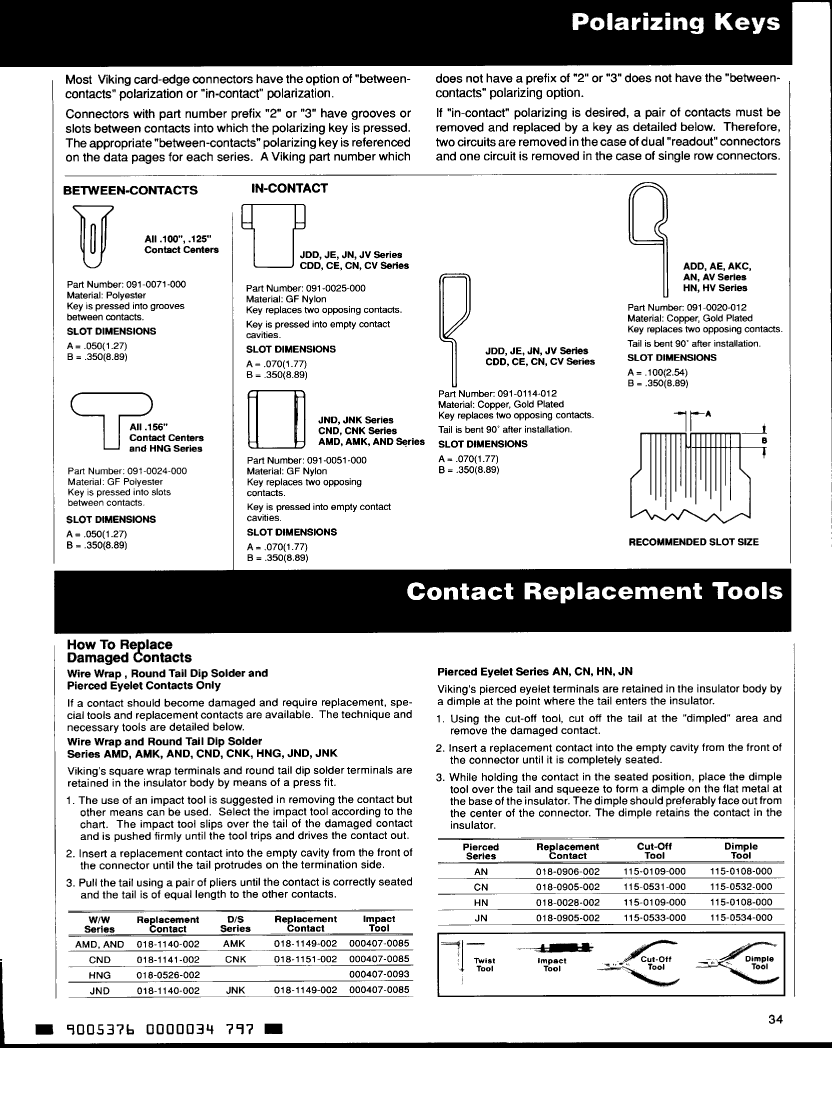

3VT40/9JDD3 Overview

Card Edge Connector, 80 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, #4-40, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	WPI Viking Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.33 inch
subject depth	0.437 inch
body length	4.875 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	650VAC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED PHENOLIC
MIL compliance	YES
Manufacturer's serial number	JDD
Plug contact pitch	0.1 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.683 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	MIL-C-21097
Terminal length	0.204 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
Evacuation force-minimum value	.278 N

This Material Copyrighted By Its Respective Manufacturer
