187-1-012-0-NSX-RT0: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size295KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

187-1-012-0-NSX-RT0 Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking

187-1-012-0-NSX-RT0 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.118 inch
subject depth	0.169 inch
body length	0.318 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	350VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	187
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

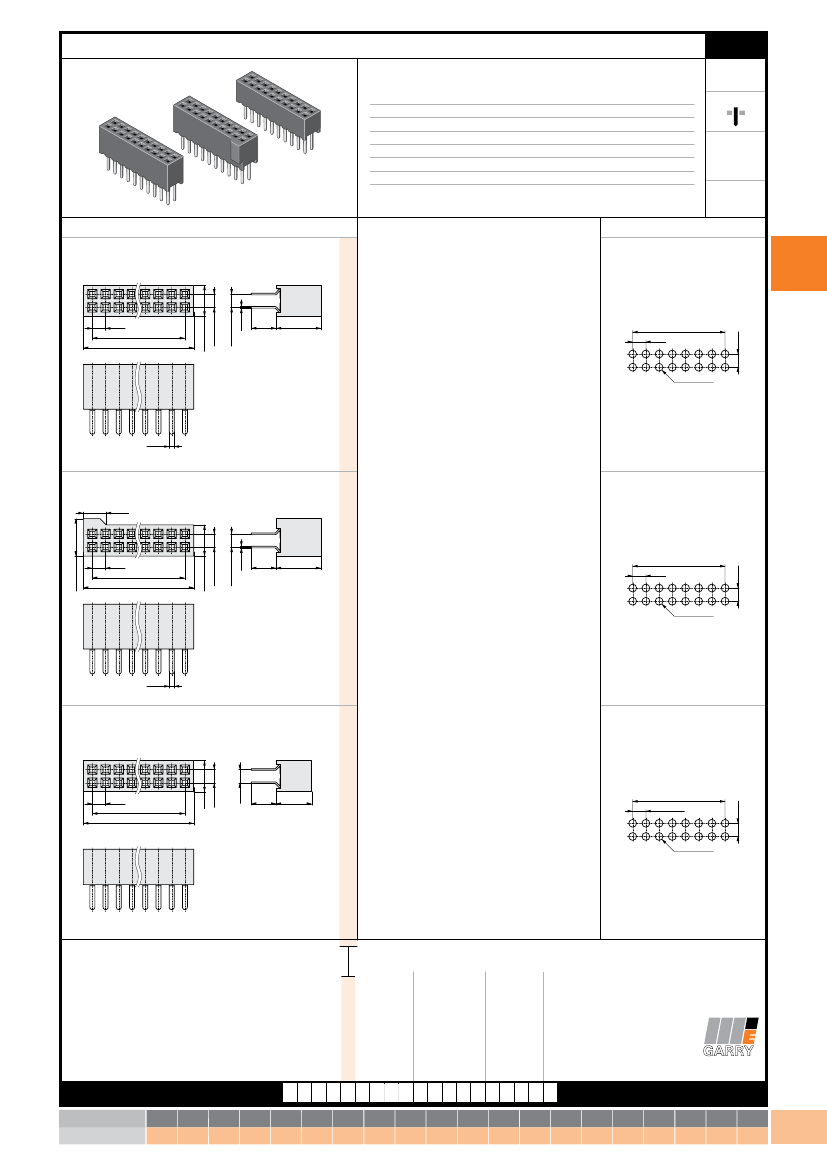

Female Header 1,27 mm

Rated current

1,0 A

Rated voltage

100 V

RMS

/ V

DC

Withstand voltage

250 V

RMS

for one minute

Material contact

Phosphor bronze

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

187

pitch

termination

mating pin

size

max.

pincount

1,27

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

☐

0,40

100

Variation

Without polarising key

PCB Layout

Product

group

4

3,00±0,10

1,27±0,10

0,15

1,27

(n/2-1)x1,27±0,15

(n/2)x1,27+0,46±0,25

2,40

4,30±0,10

1

ø0,75±0,05

0,48

With polarising key

2,20

3,00±0,10

1,27±0,10

0,15

3,60±0,10

1,27

(n/2-1)x1,27±0,15

(n/2)x1,27+0,46±0,25

2

ø0,75±0,05

0,48

Without polarising key

1,27

(n/2-1)x1,27

(n/2)x1,27+0,46

3

ø0,75±0,05

Packaging

www.mpe-connector.de

Order code:

Mating series

see page

187-?-???-0-N?X-RT0

3-12 3-13 3-14 3-15 3-22

176 177 178 179 183

CS240214_V3

* No. of contacts:

Variation 1 = 006 - 100

Variation 2 = 010 - 100

Variation 3 = 006 - 100

Plating contact (T,F,S)

No. of contacts *

(006,... - 100)

Variation (1,2,3)

Plating:

Packaging:

T = Sn

T = Tube

F = Au

S = Selective Au

1,27

2,40

3,40

(n/2-1)x1,27

1,27±0,05

3,10

1,27

2,40

4,30±0,10

(n/2-1)x1,27

1,27

(n/2-1)x1,27

1,27

4-5
