B061-0311-287-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B061-0311-287-Z

B061-0311-287-Z: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug; CategoryThe connector The connector; File Size262KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-0311-287-Z Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug

B061-0311-287-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.433 inch
body length	0.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B061
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.48 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	3

Preview

Download Datasheet

View All

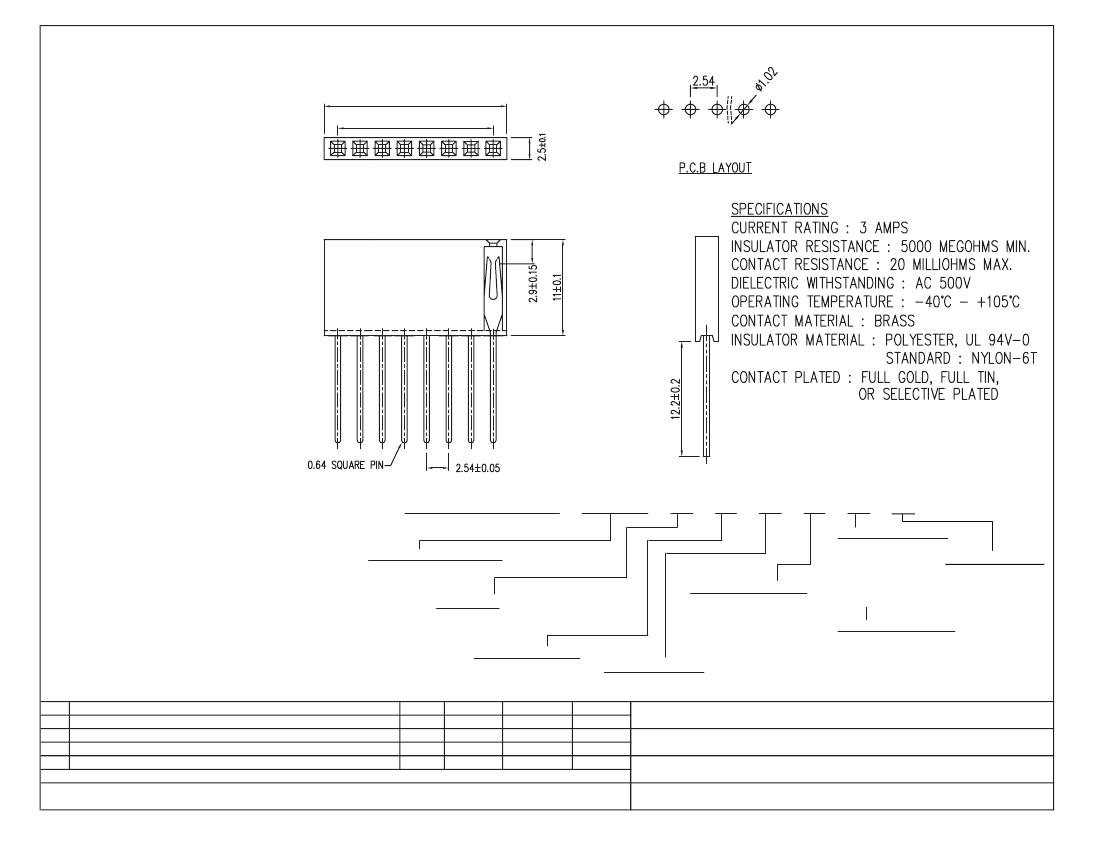

2.54 x No. of Positions +/- 0.4

2.54 x No. of Contacts -2.54

SPECIFICATIONS:

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

02 thru 40

DEFINITION:

1 - STRAIGHT

NUMBER OF ROWS:

1 - ONE

Drawn Checked

S.M.

A.M.

B.S.

S.M.

HOUSING DIMESIONS:

Height - 11.00 mm

Width - 2.50 mm

Contact Tail - 12.20 mm

CONTACT STYLE:

2 - Tuning Fork

PLATING OVERALL:

0 - FULL TIN

RoHS COMPLIANT

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

INSULATOR: GLASS FILLED POLYESTER (UL94V-0) ;NYLON 6T

CONTACT: COPPER ALLOY

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

MATERIAL:

Date

Appproved

S.M.

08/25/03

12/15/06

S.M.

SMP TECHNOLOGY, INC.

Receptacle Assembly, 2.54mm Pitch, Top Entry, Single Row, Straight

Tuning FOrk Contact, 8.5mm Height, 2.5 mm Width,12.2 mm Tail; Thru Hole

ANGLE +/- 5°

UNIT: mm

SERIES: B061

Pg: 1
